RA12-06Z-2M4-J: DescriptionArray/Network Resistor, Dual Terminator, 0.63W, 2400000ohm, 200V, 5% +/-Tol, -200,200ppm/Cel, 6010,; File Size247KB，1 Pages; ManufacturerRFE International, Inc; Websitehttp://www.rfeinc.com/; Environmental Compliance

Download Datasheet Parametric View All

RA12-06Z-2M4-J Overview

Array/Network Resistor, Dual Terminator, 0.63W, 2400000ohm, 200V, 5% +/-Tol, -200,200ppm/Cel, 6010,

RA12-06Z-2M4-J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	251536689
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rugged
Lead length	3.5 mm
lead spacing	2.54 mm
Network Type	Dual Terminator
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	5.08 mm
Package length	15.24 mm
Package form	SIP
Package width	2.5 mm
Rated power dissipation(P)	0.63 W
resistance	2400000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	RA
size code	6010
Temperature Coefficient	200 ppm/°C
Tolerance	5%
Operating Voltage	200 V

RA12-06Z-2M4-J Preview

RoHS

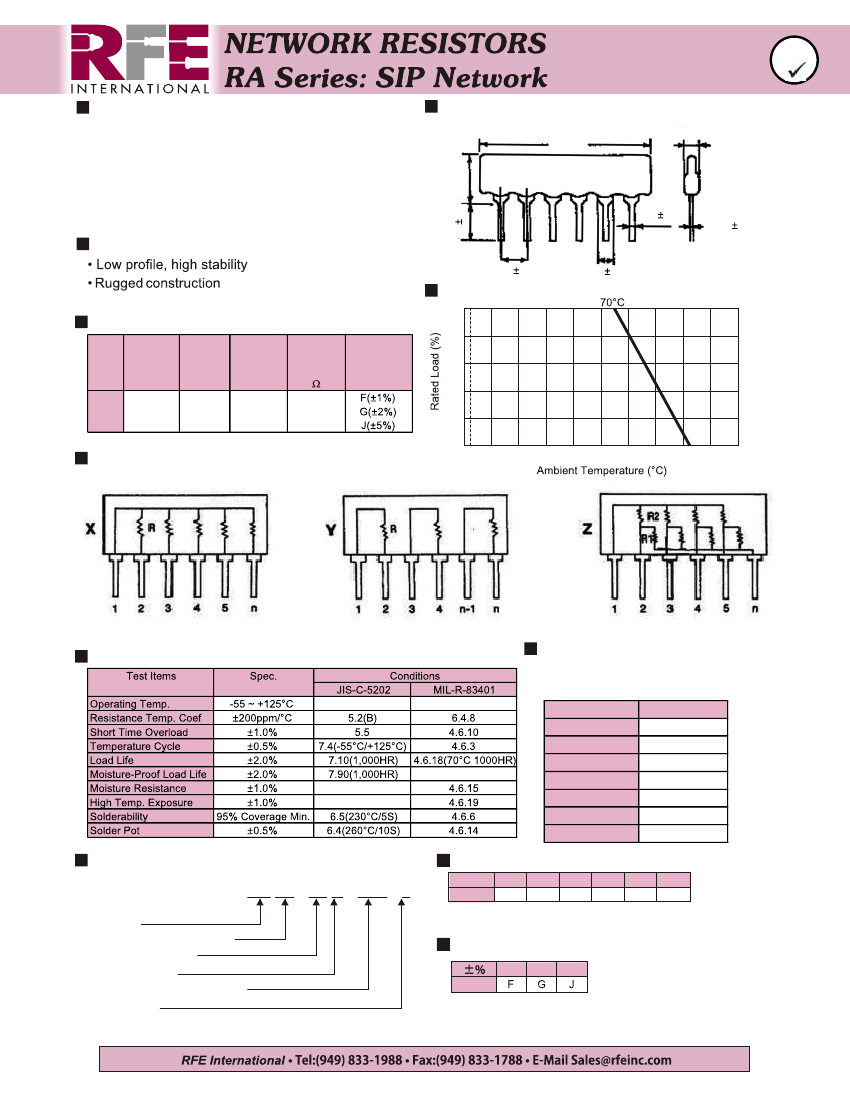

INTRODUCTION

Series RA, single in-line-pin, resistor networks offer

semi-precision performance for commercial

applications. Automated production assures

competitive pricing and uniform quality. A heavy

conformal coating protects the resistive element

from moisture contamination.

DIMENSIONS

2.5max

2.54n

5.08 MAXS

0.5

0.5 0.1

FEATURES

2.54 0.2

1.5 0.1

• Dual termination available

Derating Curve

100

80

SPECIFICATIONS

TYPE

Rated

Power of

Element

(W)

0.125

Max.

Working

Voltage

(V)

200

Max.

Overload

Voltage

(V)

280

Resistance Resistance

Range

Tolerance

( )

1~10M

60

40

20

0

RA12

3.5

0.25

0.05

STANDARD CIRCUITS

-55

-30

0

20

40

60

80

100

125

140

160

Call for special circuit requirements.

TYPICAL PERFORMANCE

RATED POWER

At 1/8 Watt per element power rating

AMBIENT TEMPERATURE: 70°C

# of Elements Rated Power

4 pin(04)

0.4W

5 pin(05)

0.5W

6 pin(06)

0.63W

7 pin(07)

0.75W

8 pin(08)

0.85W

9 pin(09)

1.0W

10 pin(10)

1.05W

PART NUMBER EXAMPLE

RA 12 - 08 X - 10K - J

Series

Wattage per Element

Number of Pins

Circuit Type

Resistance Per Element

Tolerance

RESISTANCE

Ohms

Code

1.0

1R0

1.5

1R5

15

150

1.5K

15R

150R

1K5

10M

TOLERANCE CODE

1

Code

2

5

C2CB01

2011.05.03

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
