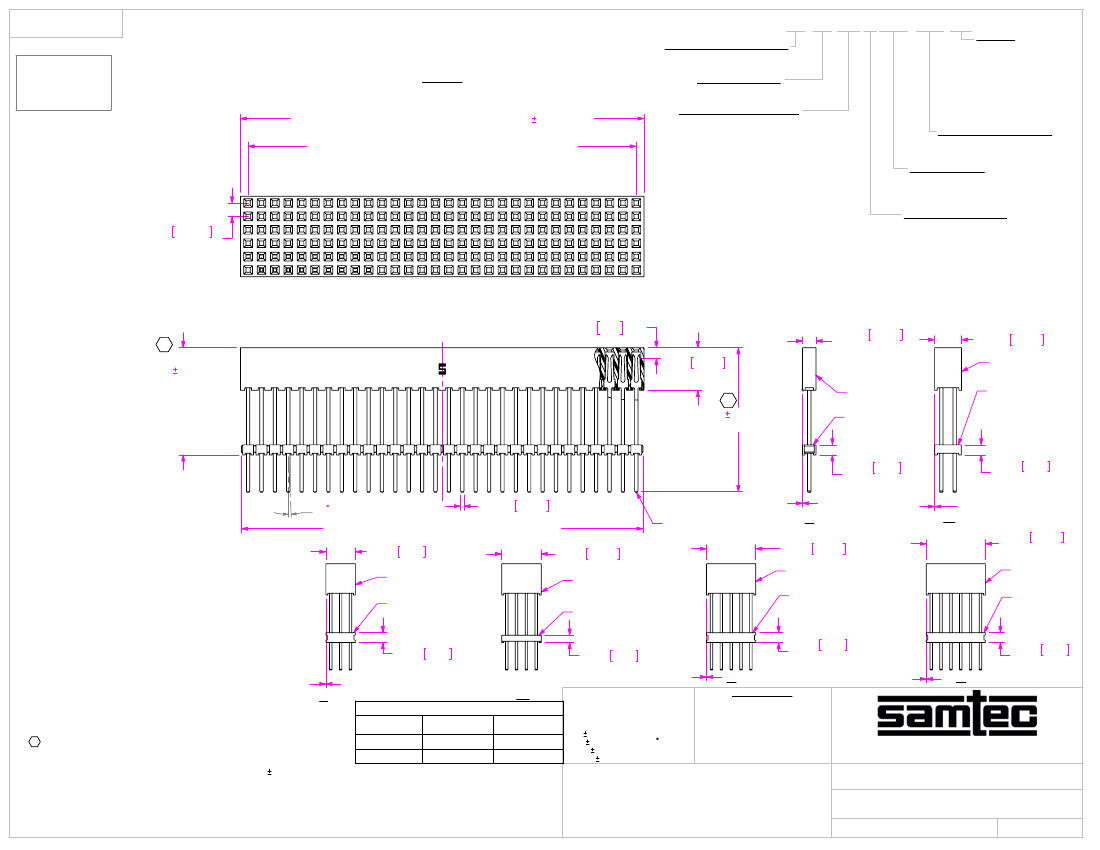

REVISION BN
DO NOT
SCALE FROM
THIS PRINT
ESQT-1XX-XX-XX-X-XXX-XXX-XX
POSITION SPECIFICATION
FIG 1
((No OF POS x .07874 [2.0000]) + .0117 [.300])
.010 [.25]
-02 THRU -50 POSITIONS
PER ROW (SEE NOTE 1)
-02: USE C-79-02-X
-03: USE C-79-53-X
LEAD STYLE SPEC
(No OF POS x .07874 [2.0000]) - .07874 [2.0000] REF
.07874 2.0000
REF (TYP)
** -MW OPTION, DO NOT DESIGN IN. SAMTEC WILL
ONLY SUPPORT EXISTING BUSINESS 2/07/02.
C
SPACE OPTION
-XXX .005[.13]
(.309 [7.85] MIN FOR
-S, -D, -Q ROWS)
(.375[9.53] MIN FOR
-T, -5, & -6 ROWS)
("B" MAX)
(SEE TABLE 1)
C
L
.064 1.62 REF
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN
POLARIZATION OPTION
ON CONTACT, MATTE TIN ON TAIL.
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN
-XXX: INDICATES POSITION
ON CONTACT, MATTE TIN TAIL.
(SEE FIG 3, SHT 2)(USE PK-07)
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN
SPACE OPTION
ON CONTACT, MATTE TIN ON TAIL.
-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN
.309 [7.85] MIN FOR -S, -D, -Q ROWS
ON CONTACT, MATTE TIN TAIL.
.375 [9.53] MIN FOR -T, -5 & -6 ROWS
-G: GOLD, 20 Au/ 50 Ni MIN ON
"B" MAX (SEE TABLE 1)
CONTACT, 3 Au / 50 Ni MIN ON TAIL.
ROW SPECIFICATION
-GF: LIGHT GOLD: 15 Au / 50 Ni MIN ON CONTACT,
3 Au / 50 Ni MIN ON TAIL (-02 LEAD STYLE ONLY).
-S: SINGLE (SEE -S)
-H: HEAVY GOLD: 30 Au / 50 Ni MIN
-D: DOUBLE (SEE -D)
ON CONTACT, 3 Au/ 50 Ni MIN ON TAIL.
-T: TRIPLE (SEE -T & SEE NOTE 4)
- S : SELECTIVE, 30 Au / 50 Ni MIN ON
-Q: QUAD (SEE -Q)
CONTACT, MATTE TIN ON TAIL.
-5: FIVE (SEE -5 & SEE NOTE 4)
-SM: SELECTIVE: 30 Au / 50Ni MIN ON CONTACT,
-6: SIX (SEE -6 AND SEE NOTE 4)
MATTE TIN ON TAIL.
-M: MEDIUM SELECTIVE, 20 Au/ 50 Ni MIN ON CONTACT,
MATTE TIN ON TAIL.
-MM: MEDIUM SELECTIVE: 20 Au / 50 Ni MIN ON
CONTACT, MATTE TIN ON TAIL.
PLATING SPECIFICATION
**-MW: METAL WASHER (SEE
FIG.2, SHT.2)(5 POS MIN,30 POS
MAX)(USE TMMH-XX-D-XX BODY
N/A ON -S ROW SPEC)
(.090 [2.29] MIN, .300 [7.62]MAX
TAIL FOR -F, -L & -S PLATING)
.090 [2.29] MIN, .482 [12.24]MAX
TAIL FOR -G,& -M PLATING)
OPTION
.0787 2.000
REF
.250 6.350
REF
.1575 4.000 REF
SQT-XX-D
SQT-XX-S
TMM-XX-S
TMM-XX-D
C
"A" .010[.25]
(SEE TABLE 1)
.059 1.50
REF
2 MAX SWAY
(EITHER DIRECTION) (TYP)
.059 1.50
REF
.0197 0.500 SQ REF (TYP)
[(No OF POS x .07874 [ 2.0000]) +.000/-.015 ]
.236 6.00 REF
.315 8.000 REF
C-79-XX-XX
-S
SEE NOTE 3
-D
SEE NOTE 3
.472 12.00
REF
.394 10.00 REF
SQT-XX-T
TMMH-XX-T
SQT-62-Q
TMM-XX-Q
SQT-XX-5
TMMH-XX-5
SQT-XX-6
TMMH-XX-6
.079 2.01 REF
SEE NOTE 3
NOTES:
.059 1.50 REF
SEE NOTE 3
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
*
.079 2.01
REF(TYP)
-T
LEAD STYLE
-02
-03
SEE NOTE 3
-Q
TABLE 1
"A"
.850 [21.59]
.458 [11.63]
"B"
.800 [20.32]
.408 [10.36]
-5
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
SEE NOTE 3
*
-6
.079 2.01
REF(TYP)
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. TOOLING TO BE DESIGNED TO PRODUCE
UP TO 61 POSITIONS.
3. TMM / TMMH BODIES ARE NOT TO BE MORE THAN .005 FROM PLANE
SET BY SQT BODY.
4. -XM FOR T, 5 AND 6 ROW OPTIONS CANNOT WITHSTAND PB-FREE
REFLOW PROCESSING.
5. MAX CUT FLASH .020[.51]
6. ORDERS WILL BE PACKAGED ACCORDING TO THE SAMTEC PACKAGING
EFFICIENCY STANDARDS (SPES) FOUND ON WWW.SAMTEC.COM
.X:
.1[2.5]
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE
ELEVATED SQT ASSM.
ESQT-1XX-XX-XX-X-XXX-XXX-XX
10/20/1995
SHEET
1
OF
3
F:\DWG\MISC\MKTG\ESQT-1XX-XX-XX-X-XXX-XXX-XX-MKT.SLDDRW
BY:
PURVIS
REVISION BN

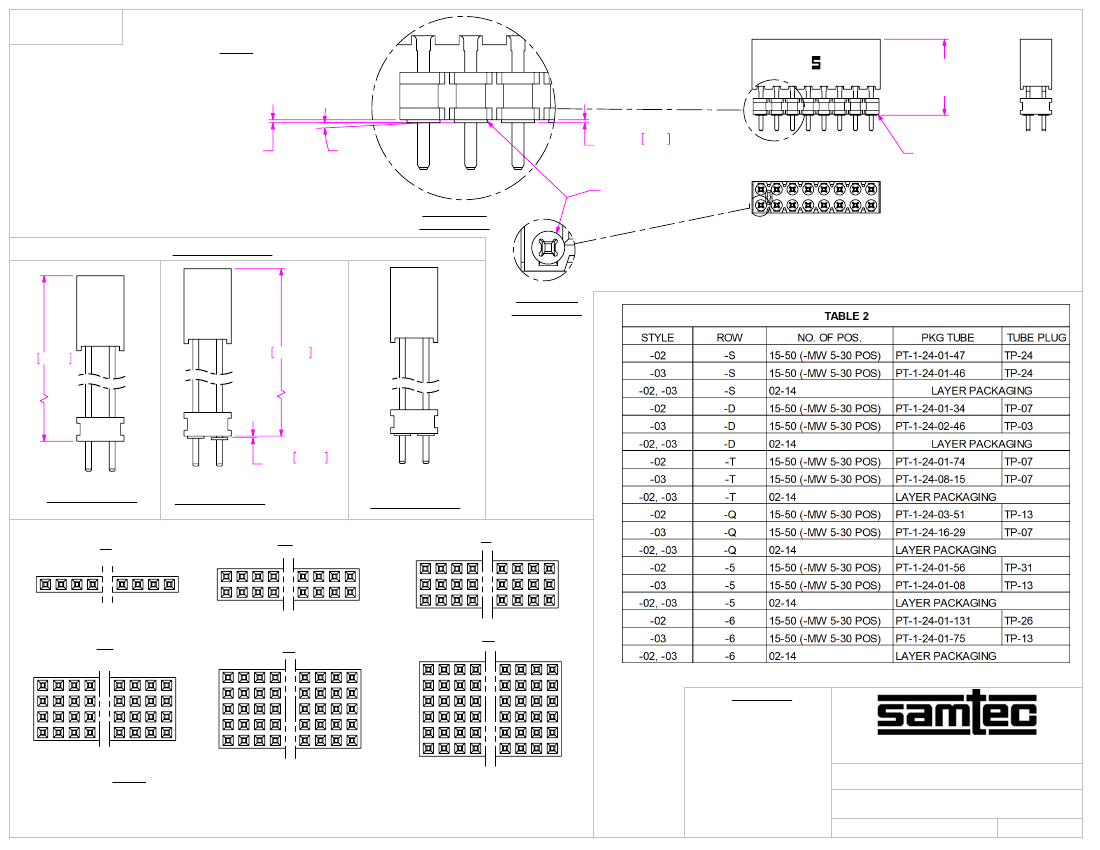

FIG 2
**
-MW:
METAL WASHER
(ONE PER POSITION)
(5 POS MIN, 30 POS MAX)
3°
MAX
SWAY
.005 0.13 MAX
(MEASURE AT THE TAIL)
SPACE OPTION
-XXX +.008 [.20]
-.005 [.13]
FLUSH TO +.008 [.20] MAX
(BELOW TMMH BODY)
TMMH-XX-D-XX-XX
** -MW OPTION, DO NOT DESIGN IN. SAMTEC WILL
ONLY SUPPORT EXISTING BUSINESS 2/07/02.
SQT-01-MW-T
DETAIL 'A'
SCALE 6 : 1
-02 STYLE ONLY
DETAIL 'B'
SCALE 6 : 1
.750 19.050
.750 19.05
.005 0.127
MAX
IN PROCESS 1
-S
IN PROCESS 2
-D
100
02
REPRESS TO SPACE
OPTION NEEDED
IN PROCESS 3
150
-T
03
01
50
99
01
148
300
01
-Q
200
04
250
-5
-6
05
06
F:\DWG\MISC\MKTG\ESQT-1XX-XX-XX-X-XXX-XXX-XX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
197
01
FIG 3
246
01
295
01
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
POLARIZATION OPTION LOCATION
INSERT PK-07-N INTO SPECIFIED
POSITION AND BREAK OFF TAB
NOTE:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
ELEVATED SQT ASSM.
1. MINIMUM CONTACT
RETENTION: 0.5 LB PER PIN.
ESQT-1XX-XX-XX-X-XXX-XXX-XX
10/20/1995
SHEET
2
OF
3
BY:
PURVIS
REVISION BN
PT-1-24-01-47
& TP-24
PT-1-24-01-46
& TP-24
PT-1-24-01-34
& TP-07
PT-1-24-02-46
& TP-03
PT-1-24-01-74
& TP-07
PT-1-24-08-15
& TP-07
-03-T
-03-S
-03-D
-02-D
-02-S
PT-1-24-03-51
& TP-13
PT-1-24-16-29
& TP-07
PT-1-24-01-56
& TP-31
PT-1-24-01-08
& TP-13
-02-T
PT-1-24-01-131
& TP-26
PT-1-24-01-75
& TP-13
-03-6
-03-5
-02-6
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
-03-Q
-02-5

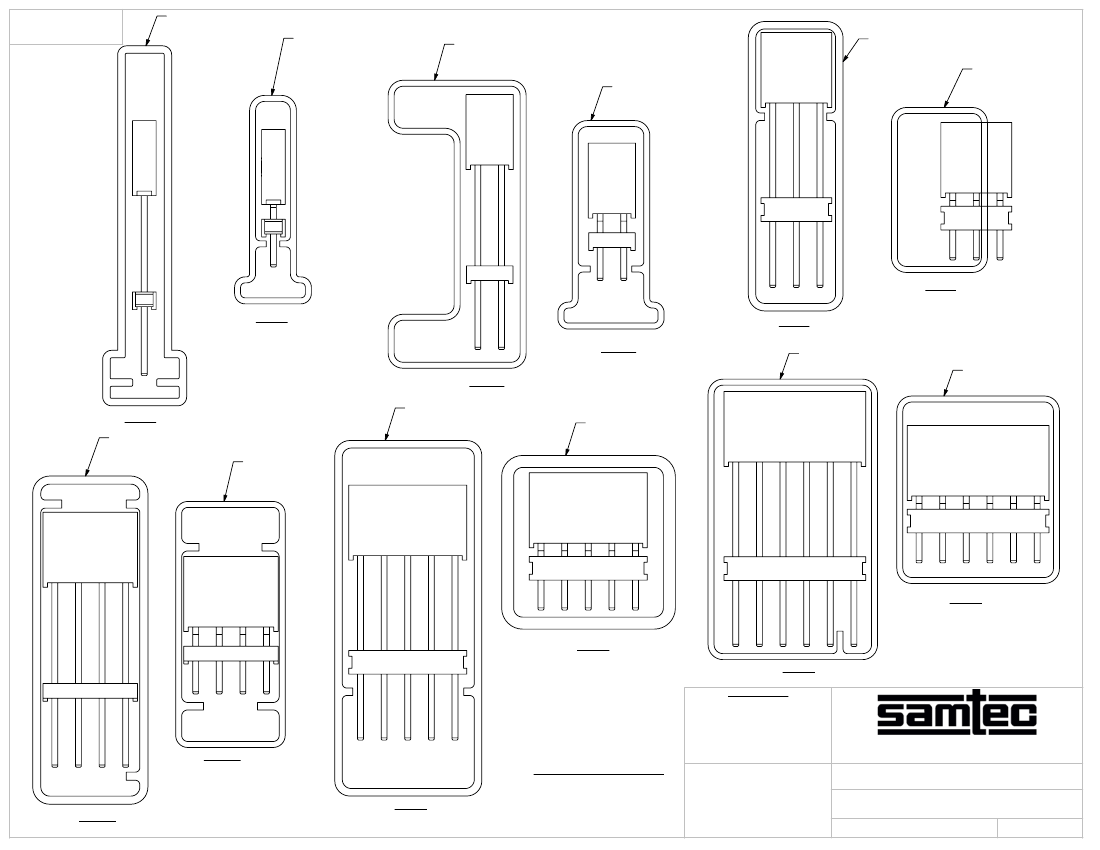

PACKAGING VIEWS
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
ELEVATED SQT ASSM.
-02-Q
ESQT-1XX-XX-XX-X-XXX-XXX-XX
10/20/1995
SHEET
3
OF
3
F:\DWG\MISC\MKTG\ESQT-1XX-XX-XX-X-XXX-XXX-XX-MKT.SLDDRW
BY:
PURVIS
