ET60T-06-00-03-L-RT2-GP-HS datasheet, PDF

Datasheet> All Categories > ET60T-06-00-03-L-RT2-GP-HS

ET60T-06-00-03-L-RT2-GP-HS: DescriptionBoard Connector, 9 Contact(s), Female, Right Angle, Solder Terminal, Guide Slot, Black Insulator; File Size393KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

ET60T-06-00-03-L-RT2-GP-HS Overview

Board Connector, 9 Contact(s), Female, Right Angle, Solder Terminal, Guide Slot, Black Insulator

ET60T-06-00-03-L-RT2-GP-HS Parametric

Parameter Name	Attribute value
Objectid	315292689
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.394 inch
subject depth	0.98 inch
body length	2.106 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P9
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact resistance	15 mΩ
Contact style	HYBRID
Dielectric withstand voltage	900VAC V
Durability	100 Cycles
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
Mixed contacts	YES
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Plating thickness	10u inch
Rated current (signal)	24 A
Terminal length	0.142 inch
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

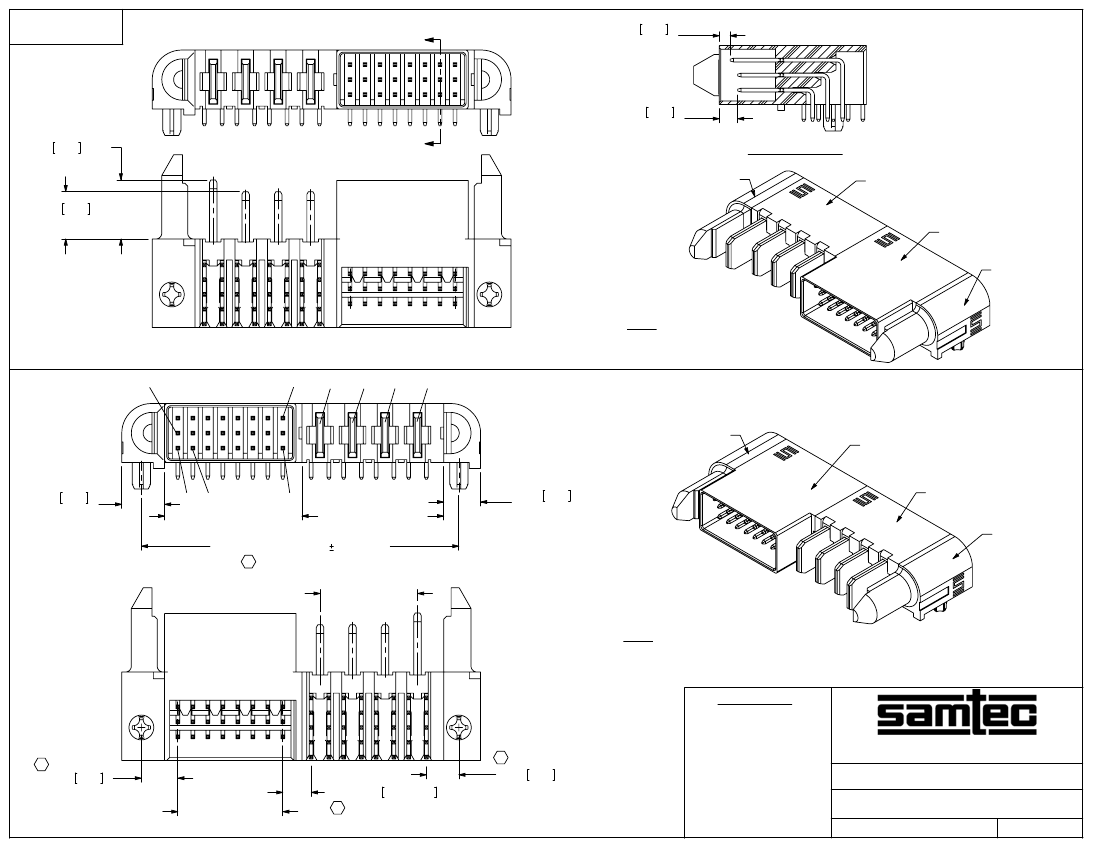

REVISION D

DO NOT

SCALE FROM

THIS PRINT

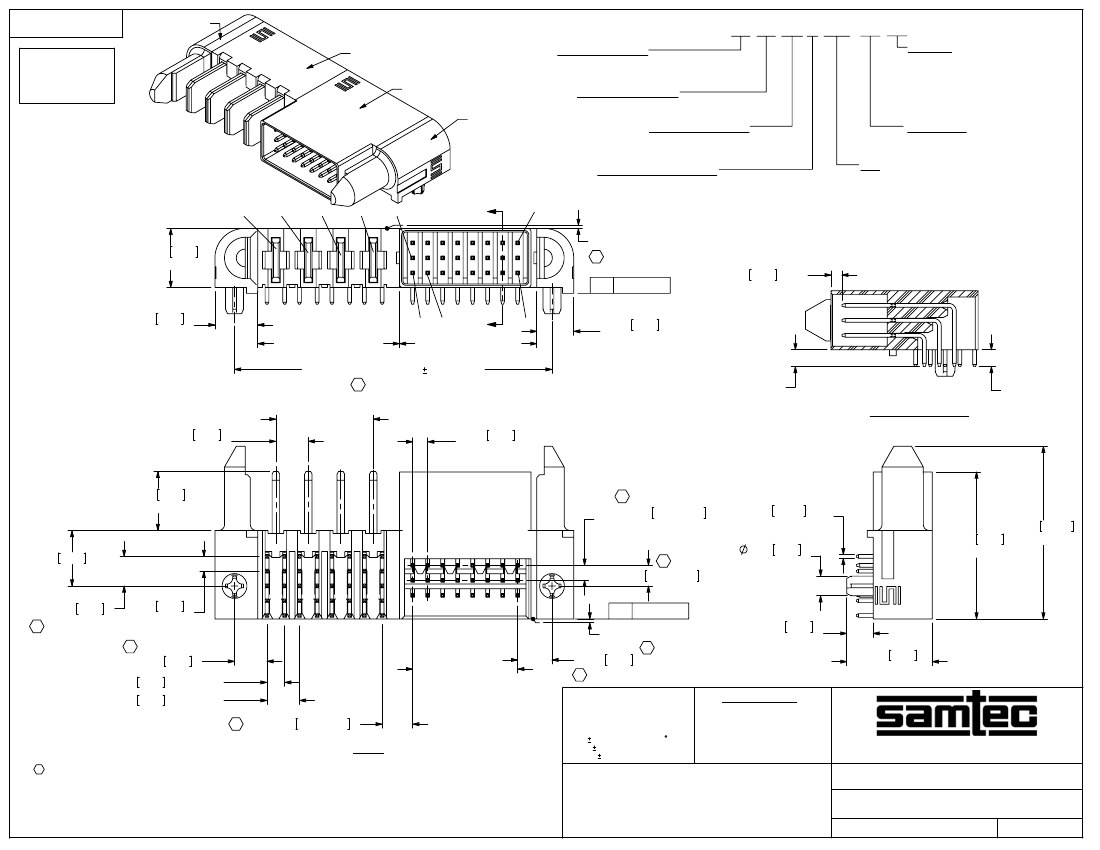

ET60T-RA-01-L-G

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

SUB-ET60T-XX-X-RT1-DC

SUB-ET60T-XX-X-RT1-S

ET60T-RA-01-R-G

ET60T-XX-XX-XX-X-RXX-GP-XX

OPTIONS

-HS: HOT SWAP

(LONG PINS, OUTER POS

PWR 10 MM, TOP ROW SIG)

(LEAVE BLANK FOR NO HOT SWAP)

GUIDE POST

TAIL

-RT1:RA-TH, .062" PCB

*-RT2: RA-TH, .093" PCB

*-RP: PRESS FIT (POWER PIN ONLY)

(FOR -RP SIGNAL POS MUST BE -RT1)

(* = NOT TOOLED)

POWER POS (LEFT)

-00, *-01, -02, -03, -04, *-05,

-06, *-07, *-08, *-09, *-10

SIGNAL POS (TOTAL)

-00, *-06, *-12, *-18,

-24, *-30, *-36

POWER POS (RIGHT)

-00, *-01, -02, -03, -04, *-05,

-06, *-07, *-08, *-09, *-10

PLATING SPECIFICATION

-L: 10 µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

-S: 30 µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

0.00±0.25[.006] (TYP)

T/B 0.20[.008]

1.83 .072 REF

P01

10.00 .394

REF

P02

P03

P04

"A"

7.25 .285

REF

01 02

"A" REF

(SEE TABLE 1, SHT 3)

"A"

"C" REF

(SEE TABLE 2,SHT 3)

6.25 .246

REF

"F" REF

(SEE TABLE 3,

SHT 3)

"E" REF

(SEE TABLE 3,

SHT 3)

("A" + "C" + 6.50[.260]) 0.20[.008]

"B" REF

(SEE TABLE 1, SHT 3)

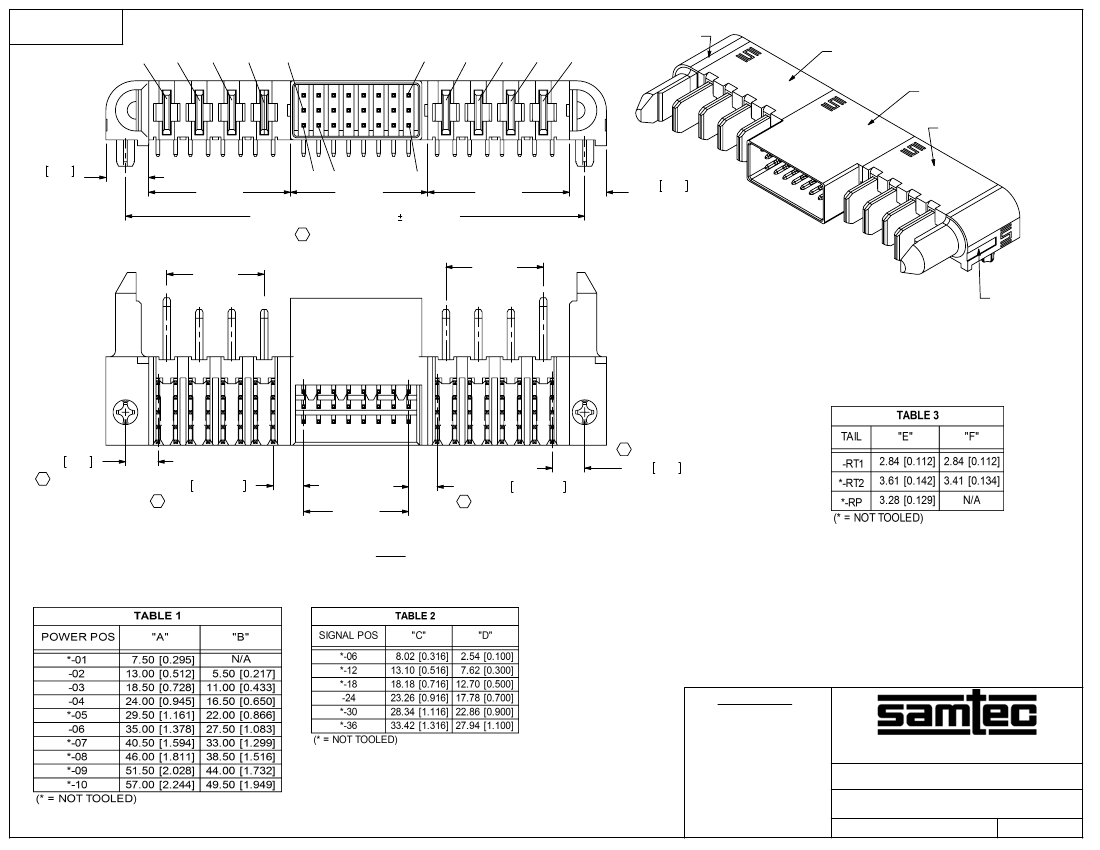

SECTION "A"-"A"

5.50 .217

REF (TYP)

2.54 .100

REF (TYP)

10.00 .394

REF

2.54±0.25 .100±.010

(TYP)

3.50±0.25 .138±.010

0.635 .0250 SQ

REF (TYP)

3.33 .131

REF (2 PLCS)

24.90 .980

REF

29.25 1.152

REF

9.40 .370 REF

5.00 .197

2.50 .098

REF (TYP)

5.50 .217

3.00 .118 REF (TYP)

5.51 .217 REF (TYP)

C 5.17±0.20 .204±.008

"D" REF

(SEE TABLE 2, SHT 3)

S/S 0.20[.008]

0.00±0.10[.004] (TYP)

5.81 .229

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

TOLERANCES ARE:

DECIMALS

4.46 .176

REF

14.46 .569

REF

PROPRIETARY NOTE

NOTES:

ET60T-04-24-00-X-RT1-GP SHOWN

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PUSHOUT FORCE: 3.0 LBS FOR SIGNAL & POWER PINS.

3. CONTACT SAMTEC FOR CONNECTOR PRESS FIT INSTRUCTIONS AND REQUIRED FIXTURES,

ALL P/N’S REQUIRE PRESSING TO PCB DUE TO ALIGNMENT PEGS.

4. MAXIMUM BURR ALLOWANCE: 0.038[.0015].

5. ASSEMBLIES TO BE PACKAGED IN TRAYS.

FIG 1

X.X: 0.3 [.01]

X.XX: 0.13 [.005]

X.XXX: 0.051 [.0020]

ANGLES

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 3:2

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

INSULATOR: LCP, COLOR: BLACK

SIGNAL TERMINAL: PHOS BRONZE

POWER TERMINAL: COPPER ALLOY

F:\DWG\MISC\MKTG\ET60T-XX-XX-XX-X-RXX-GP-XX-MKT.SLDDRW

R/A PLUG TEN60 POWER ASSEM

BY:

ROY LUO

ET60T-XX-XX-XX-X-RXX-GP-XX

07/06/2011

SHEET
