ZHTM-5/2.5-0-SP datasheet, PDF

Datasheet> All Categories > accessories> ZHTM-5/2.5-0-SP

ZHTM-5/2.5-0-SP: DescriptionZHTM-5/2.5-0-SP; Categoryaccessories; File Size230KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

ZHTM-5/2.5-0-SP Overview

ZHTM-5/2.5-0-SP

ZHTM-5/2.5-0-SP Parametric

Parameter Name	Attribute value
Wall type	Pre-coated film winding-JKT
color	black
Shrinkage	2:1
Material	Chlorinated polyolefin
flexibility	Flexible
Fluid type	Brake fluid, unleaded gasoline, diesel, water, lubricating oil, hydraulic oil, insulating oil
Material system code	100
Expand inner diameter (minimum value)	5 mm [ .197 in ]
Recovered inner diameter (maximum value)	2.5 mm [ .0985 in ]
Size range	2.5 – 5 mm [ .099 – .197 in ]
Recovered wall thickness (nominal)	.75 mm [ .03 in ]
Shrinkage temperature (min) (°C)	121
Resistant	mechanical damage
Operating temperature range (°C)	-30 – 105
Flammability	ignition retardation
Shrinkage temperature (°C)	121
fluid resistance	splash proof
Encapsulation method	pieces
Product source	US
Low outgassing	no

Preview

Download Datasheet

View All

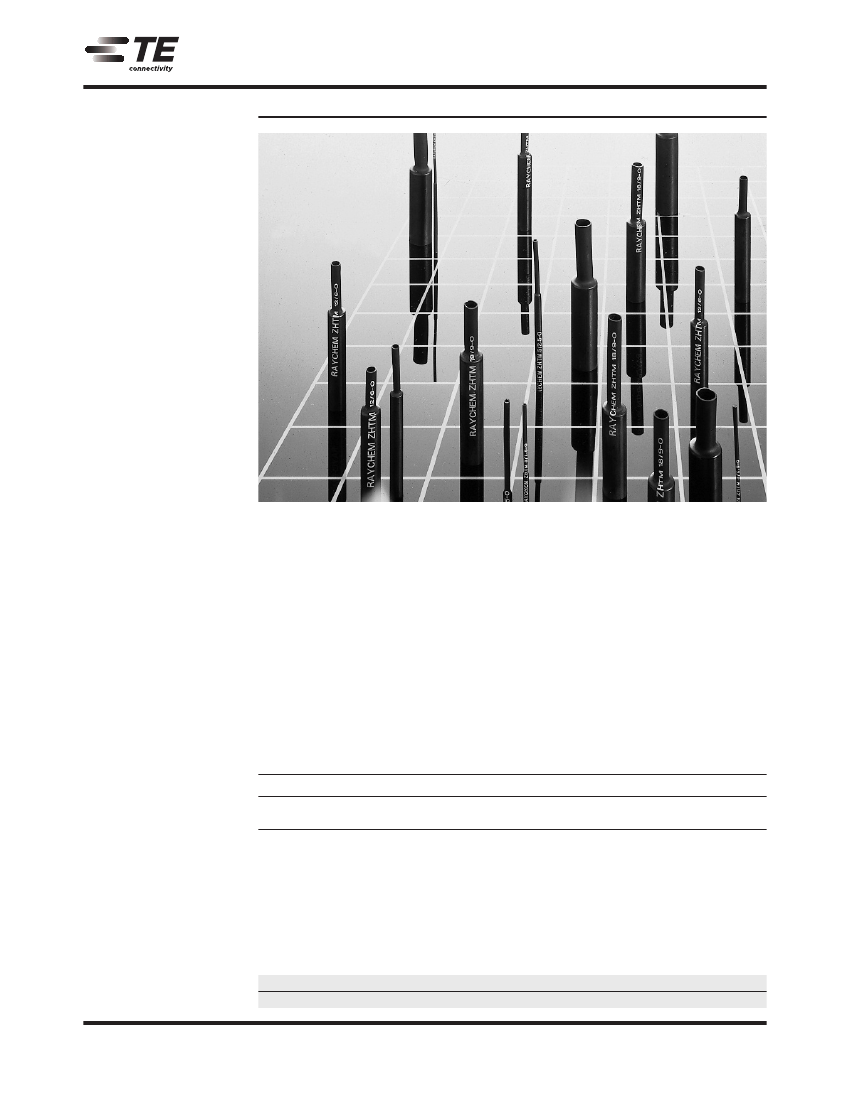

Heat-Shrinkable Tubing

ZHTM

Heat-Shrinkable, Flexible

Tubing with Low Toxicity for

Fire Safety Applications

Product Facts

2:1 shrink ratio

Low smoke emission

System 100 tubing

RoHS compliant

Applications

A flexible, thick-wall,

heat-shrinkable tubing to

be used in conjunction with

-100 molded parts and

Zerohal cable to form

System 100. This material

exhibits excellent fire safety

characteristics combined

with low smoke emission

and low evolution of acid

gases while retaining good

mechanical and fluid-

resistance properties.

Used for insulation and

protection of cables,

harnesses, and electrical

and electronic components

in enclosed spaces, such

as in marine applications,

mass transit systems, and

offshore installations, to

reduce toxicity risks, or

where equipment would

be irreparably damaged

by corrosive products

of combustion.

Installation

Minimum shrink

temperature: 80°C [176°F]

Minimum full recovery

temperature: 121°C [250°F]

Operating Temperature Range

-30°C to 105°C

[-22°F to 221°F]

Specifications/Approvals

Series

ZHTM

Military

Def. Stan. 59-97

Issue 3 Type 8

Agency

BS 4G-198 Part 3 Type 15

VG 95343 Part 5 Type L

VDE 0341/Pt 9005

Industry

BR 1326A

RW-2058

Available in:

Americas

Europe

Asia Pacific

3-130

Catalog 1654025

Revised 3-13

www.te.com

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

Dimensions are in millimeters

unless otherwise specified.

USA: +1 800 522 6752

Asia Pacific: +86 0 400 820 6015

UK: +44 800 267 666

For additional support numbers

please visit www.te.com
