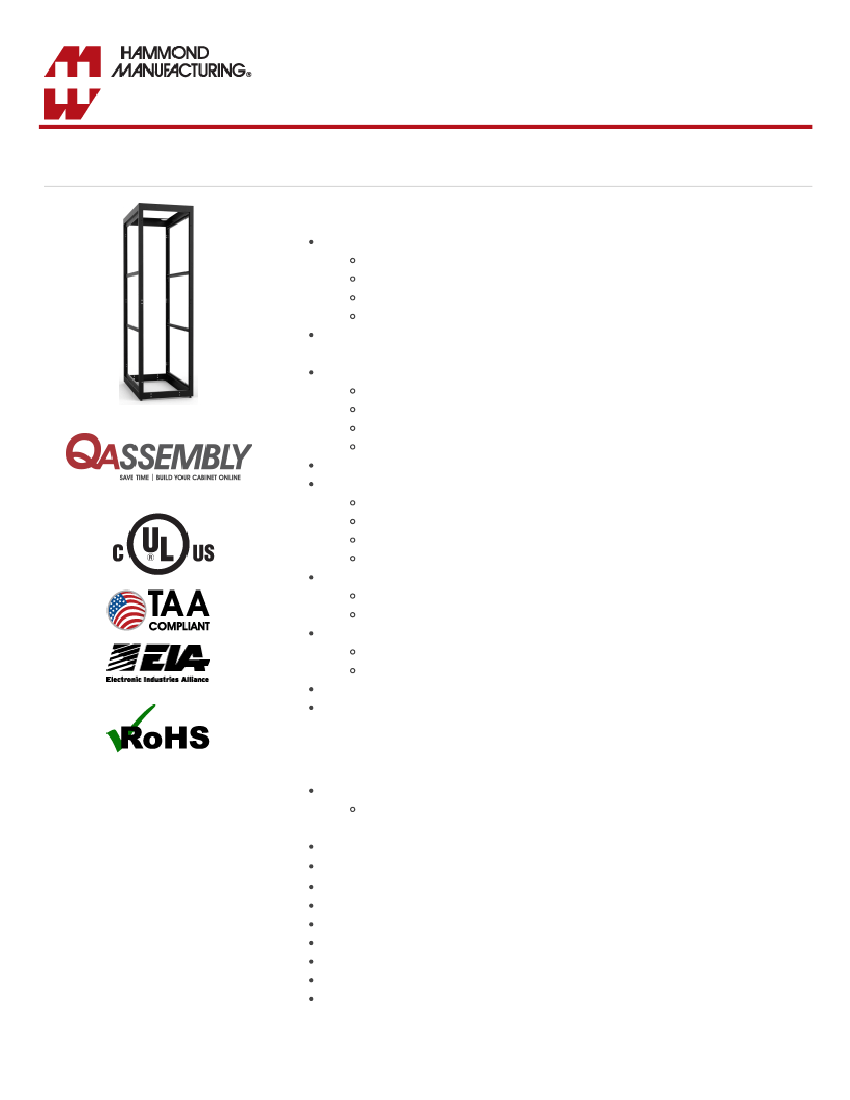

Modular Server Rack Cabinet
C4 Series
UL 2416 Rated 3,000 lbs Weight Capacity
Features
Constructed in:
14-gauge steel (body)
16-gauge steel (doors and side panels)
10-gauge steel (tapped mounting rails)
12-gauge steel (square hole mounting rails)
EIA compliant 10-32 tapped or square hole punched rails with rack unit labels
(rails not
included with frame).
Top panel options include:
Solid
Vented
Fan cutous
Pre-installed fan(s) capable of up to 550 CFM
Side panels available in both solid and vented for thermal induction.
Doors available in:
Solid
Tinted Acrylic
Perforated (65% Open Area Vented)*
Split Perforated (Barn Door)*
The 24” wide C4 includes:
Generous cabling space
Four (4) 3.5” wide cable entry holes on the top
The 30” wide C4 includes:
Extra generous cabling space
Support for up to four optional 4" deep vertical cable managers
Vertical cable trays are available for both 24” and 30“ width cabinets
Vertical cable managers feature magnetic latching doors, and 3.5” wide x 4” deep cable
space and are available for 30“ width cabinets
Specifications
UL Listed 2416 rated for up to 3,000 lbs (1,360 kg) static load rating.
Applies to factory assemblies only. See the
C4RR
for our most popular
assemblies.
Infinite-depth setting using C-channel struts.
Zinc-plated mounting rails provide superior surface areas for equipment grounding.
The 30” wide C4 rails have cable-tie support and pass-through holes.
Four (4) leveling feet are included with support for optional casters.
Grounding studs provided on frame as well as side panels and doors.
Finished in textured black powder paint. Additional colors available upon request.
TAA Compliant.
RoHS Compliant.
Manufactured in North America.
Additional Options Available
https://www.hammfg.com/dci/products/cabinet-systems/c4
1/4
10/1/2018
Modular Server Rack Cabinet (C4 Series) - Hammond Mfg.
Up to 48U and 48" deep.
Other standard colors also include white.
Click here to build your own cabinet configuration using Q-
Assembly!
Click here to view our Pre-Assembled C4RR Cabinet Series.

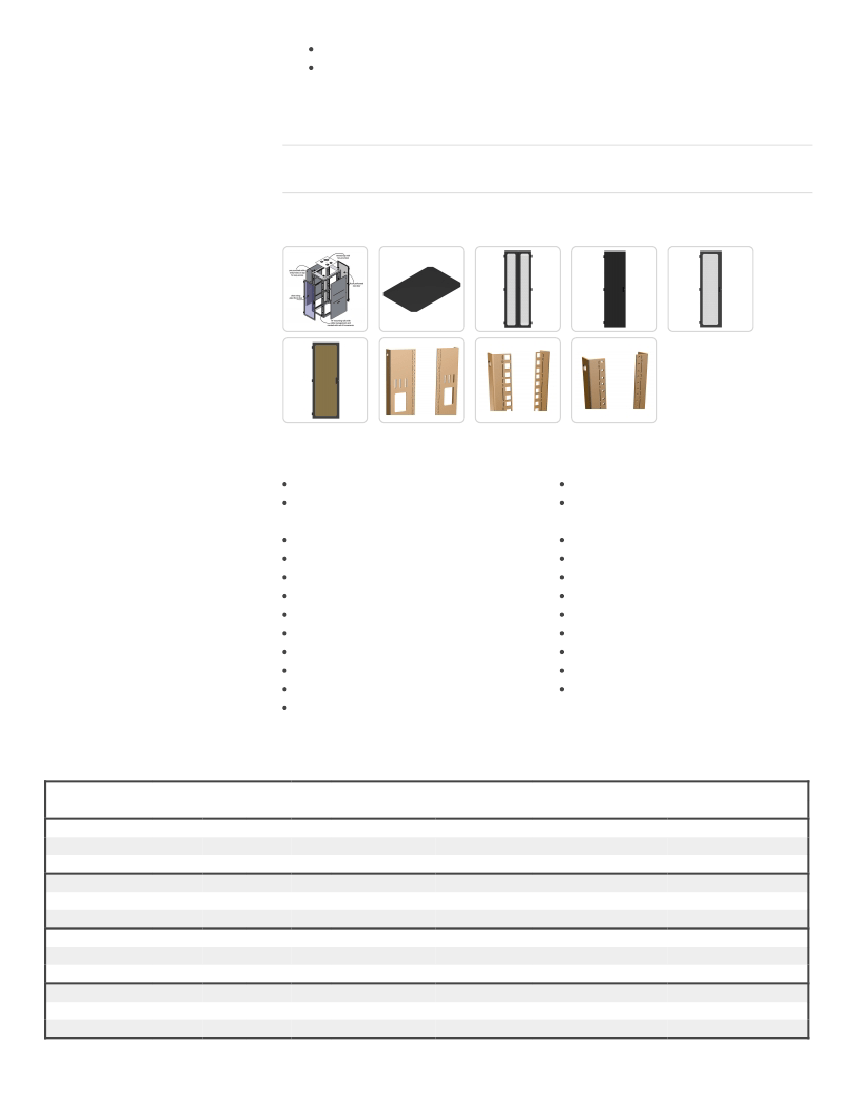

Gallery
Accessories
Cabinet Fan Tops
Cabinet Door Replacement Lock
Kit
Universal Rack Shelf
Rack Mount Locking Storage Drawer
Sliding Keyboard Shelf
Adjustable Depth Cable Manager
Horizontal Ring Cable Manager
Cable Management Arm
Vertical Cable Tray
Outlet Strips
Grounding
Caster Set
Adjustable Depth Shelf
Four Post Mounting Sliding Shelf
Rack Unit Label
Horizontal Lacing Strip
Horizontal Steel Finger Cable Manager
Horizontal Hinged Cable Manager
Vertical Cable Manager with Door
Rack Panels
Mounting Hardware
Side Panel Locking Kit
Rack and Cabinet Baying/Ganging/Joining
C4 Open Frames and Rail Options
Overall Dimensions
Part No.
C4F244231BK1
C4F244236BK1
C4F244242BK1
C4F247331BK1
C4F247336BK1
C4F247342BK1
C4F247731BK1
C4F247736BK1
C4F247742BK1
C4F307731BK1
C4F307736BK1
C4F307742BK1
Height
48.58
48.58
48.58
80.08
80.08
80.08
83.58
83.58
83.58
83.58
83.58
83.58
Width
24.00
24.00
24.00
24.00
24.00
24.00
24.00
24.00
24.00
30.00
30.00
30.00
Depth
31.50
36.00
42.00
31.50
36.00
42.00
31.50
36.00
42.00
31.50
36.00
42.00
Rack
Units
24U
24U
24U
42U
42U
42U
44U
44U
44U
44U
44U
44U
Usable Mounting Dimensions
Height
42.00
42.00
42.00
73.00
73.00
73.00
77.00
77.00
77.00
77.00
77.00
77.00
Depth
29.50
34.00
40.00
29.50
34.00
40.00
29.50
34.00
40.00
29.50
34.00
40.00
Mounting Rail Options (Sold Separately)
Tapped 10-32
Not Available
Not Available
Not Available
C4PR2473TZPL
C4PR2473TZPL
C4PR2473TZPL
C4PR2477TZPL
C4PR2477TZPL
C4PR2477TZPL
C4PR77TZPL
C4PR77TZPL
C4PR77TZPL
Square Hole
C4PR2442SZPL
C4PR2442SZPL
C4PR2442SZPL
C4PR2473SZPL
C4PR2473SZPL
C4PR2473SZPL
C4PR2477SZPL
C4PR2477SZPL
C4PR2477SZPL
C4PR77SZPL
C4PR77SZPL
C4PR77SZPL
Overall height includes leveling feet. Note that mounting rails are not included with the frame.
https://www.hammfg.com/dci/products/cabinet-systems/c4
2/4
10/1/2018
Modular Server Rack Cabinet (C4 Series) - Hammond Mfg.
C4 Doors
Part No.
Solid Door
C4DF2442SBK1
C4DF2473SBK1
C4DF2477SBK1
C4DF3077SBK1
Part No.
Acrylic Door
C4DF2442PBK1
C4DF2473PBK1
C4DF2477PBK1
C4DF3077PBK1
Part No.
Perforated
C4DF2442VBK1
C4DF2473VBK1
C4DF2477VBK1
C4DF3077VBK1
Part No.
Perforated Split Doors
C4BD2442VBK1
C4BD2473VBK1
C4BD2477VBK1
C4BD3077VBK1
Use with Cabinet
Rack Units
24U
42U
44U
44U
Width
24.00
24.00
24.00
30.00
*Perforated doors for both front and back of the cabinet are suggested for most server applications.
C4 Side Panels (Sold in Pairs)
Part No.
Solid
C4SP4231SBK1
C4SP4236SBK1
C4SP4242SBK1
C4SP7331SBK1
C4SP7336SBK1
C4SP7342SBK1
C4SP7731SBK1
C4SP7736SBK1
C4SP7742SBK1
Part No.
Vented
C4SP4231VBK1
C4SP4236VBK1
C4SP4242VBK1
C4SP7331VBK1
C4SP7336VBK1
C4SP7342VBK1
C4SP7731VBK1
C4SP7736VBK1
C4SP7742VBK1
24U
24U
24U
42U
42U
42U
44U
44U
44U
Use with Cabinet
Rack Units
Depth
31.50
36.00
42.00
31.50
36.00
42.00
31.50
36.00
42.00
C4 Top Panels
Part No.
Part No.
Part No.
Solid
Top Panel
C2T1923SBK1
C2T1931SBK1
C2T1936SBK1
C2T2423SBK1
C2T2431SBK1
C2T2436SBK1
Part No.
Vented
Top Panel
C2T1923VBK1
C2T1931VBK1
C2T1936VBK1
C2T2423VBK1
C2T2431VBK1
C2T2436VBK1
Fan Cutout/
Cable Entry
Top Panel
C2T1923FBK1
C2T1931FBK1
C2T1936FBK1
C2T2423FBK1
C2T2431FBK1
C2T2436FBK1
Part No.
Fan Vents
Top Panel
C2T1923VFBK1
C2T1931VFBK1
C2T1936VFBK1
C2T2423VFBK1
C2T2431VFBK1
C2T2436VFBK1
Four (4) 4.7"
100CFM Fans
With Thermostat
Top Panel
C2T1923F4TBK1
C2T1931F4TBK1
C2T1936F4TBK1
C2T2423F4TBK1
C2T2431F4TBK1
C2T2436F4TBK1
Part No.
One (1) 10"
550 CFM Fan
Without Thermostat
Top Panel
C2T1923F10BK1
C2T1931F10BK1
C2T1936F10BK1
C2T2423F10BK1
C2T2431F10BK1
C2T2436F10BK1
Use with Cabinet
Width
24.00
24.00
24.00
30.00
30.00
30.00
Depth
31.50
36.00
42.00
31.50
36.00
42.00
C4 Bottom Panel
Use with Cabinet
Part No.
C4B2431SBK1
C4B2436SBK1
C4B2442SBK1
C4B3031SBK1
C4B3036SBK1
C4B3042SBK1
Width
24.00
24.00
24.00
30.00
30.00
30.00
Depth
31.50
36.00
42.00
31.50
36.00
42.00
C4 Vertical Cable Manager
Use with Cabinet
Part No.
VCT42
VCT73
VCT77
VCTPDU73
VCTPDU77
Description
Cable Tray
Cable Tray
Cable Tray
Cable Tray with Tooless PDU Bracket
Cable Tray with Tooless PDU Bracket
Rack Units
24U
42U
44U
42U
44U
