352-700-1161N datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 352-700-1161N

Preview

352-700-1161N: DescriptionRF SMA Connector, Male, Cable Mount, Clamp Terminal, Plug; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

352-700-1161N Overview

RF SMA Connector, Male, Cable Mount, Clamp Terminal, Plug

352-700-1161N Parametric

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-142; RG-400
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	35
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CLAMP
voltage standing wave ratio	1.39
Base Number Matches	1

Preview

Download Datasheet

View All

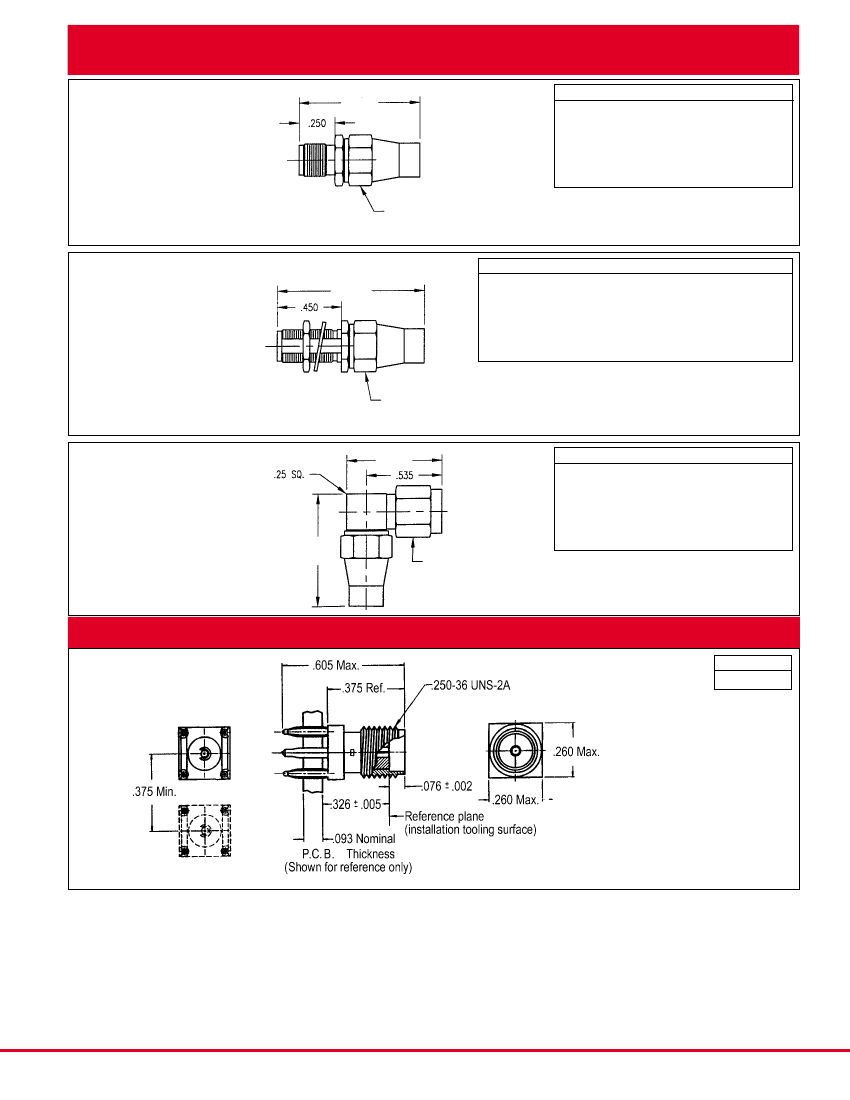

SMA Brass:

Straight Jack

Captive Contact

Clamp, Flexible Cable

.84

Part Number

351-700-0360H

351-700-0630H

351-700-0631H

351-700-1070H

351-700-1161H

5/16 HEX TYP

Cable

RG-178

RG-316

RG-316 double shielded

RG-180

RG-142, 400

• See page 97 for cable assembly procedures: 7-01

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Straight Jack

Bulkhead Mount

Captive Contact

1.03

Part Number

351-775-0360H

351-775-0630H

351-775-0631H

351-775-1070H

351-775-1161H

Cable

Mounting Hole

RG-178

No. 075

RG-316

No. 075

RG-316 double shielded

No. 075

RG-180

No. 075

RG-142, 400

No. 075

5/16 HEX TYP

• See page 97 for cable assembly procedures: 7-01

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

12.4 GHz

Right Angle

Plug

.78

.69

Part Number

352-700-0360H

352-700-0630H

352-700-0631H

350-700-1070H

350-700-1161H

5/16 HEX TYP

Cable

RG-178

RG-316

RG-316 double shielded

RG-180

RG-142, 400

• See page 98 for cable assembly procedures: 7-02

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

SMA Brass:

Straight Jack

50 Ohm C-Press® Press-fit Connector

Part Number

121-29262-1

• See page 84 for mounting hole layout.

• Part number shown is for gold plated.

• C-Press® is a registered trademark of Litton Systems, Inc.

Note: Dimensions shown in inches.

Winchester/Retconn

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

RF/19
