8151-50502: DescriptionD Type Connector, 50 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8151-50502 Overview

D Type Connector, 50 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug

8151-50502 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.358 inch
subject depth	0.323 inch
body length	1.579 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	CENTRONIC
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	8151
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Shell material	STEEL
Termination type	IDC
Total number of contacts	50
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

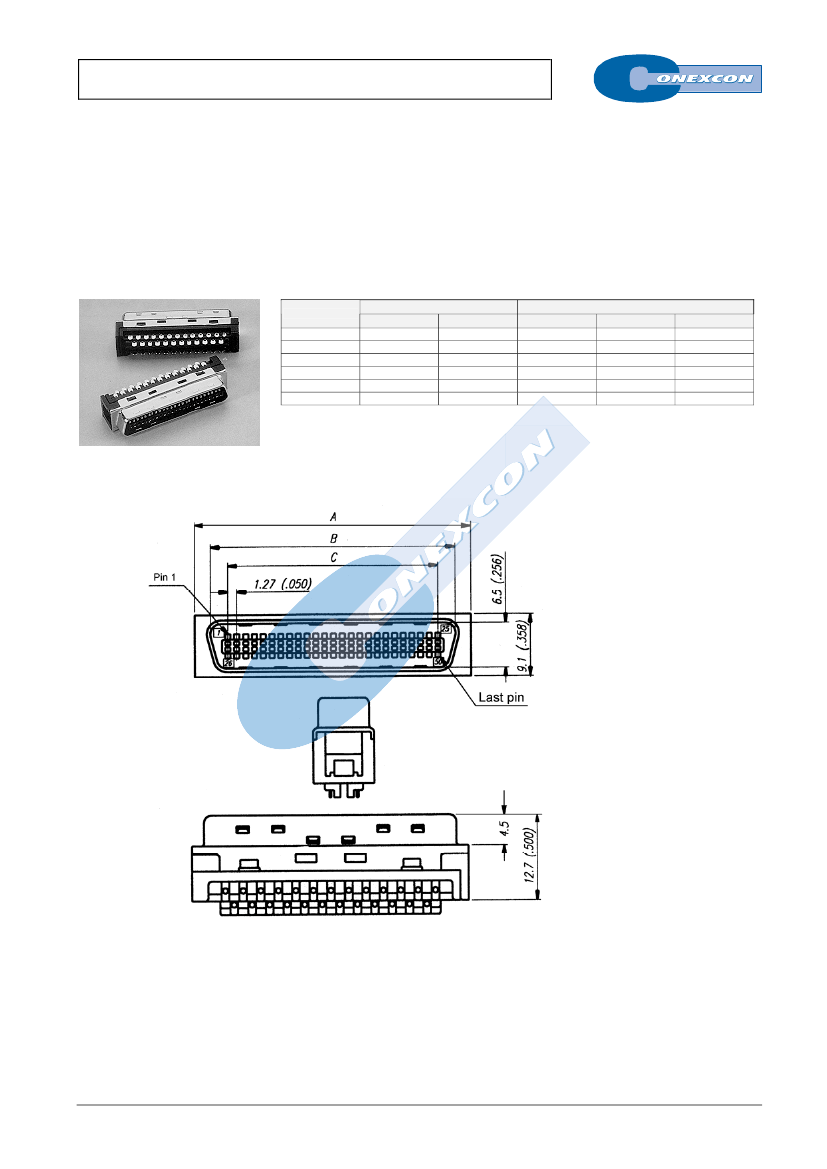

SOLDER IDC TYPE FOR CABLE PLUG

8151 SERIES.

Half- Pitch Ribbon Connectors

Features





Shell: Cold roller Steel

Insulator Material: PBT + Glass-Fibre UL 94V-0

Accepts: 8160, 8161 and 8162 series Hoods

For electric equipments of high reliability and high density

packaging

Ordering and Dimensional Information

Part Number

Without Hood

8151 –

T014

8151 –

T020

8151 –

T026

8151 –

T036

8151 –

T050

8151 –

T068

With Hood (8160)

8151 –

T0142

8151 –

T0202

8151 –

T0262

8151 –

T0362

8151 –

T0502

8151 –

T0682

A

17.19 (0.677)

21.00 (0.827)

24.81 (0.977)

31.16 (1.227)

40.10 (1.579)

51.48 (2.027)

Dimensions

B

12.79 (0.504)

16.60 (0.564)

20.41 (0.804)

26.76 (1.054)

35.65 (1.404)

47.08 (1.854)

C

7.62 (0.300)

11.43 (0.450)

15.24 (0.600)

21.59 (0.850)

30.48 (1.200)

41.91 (1.650)



Available in 14, 20, 26, 36, 50 and 68 circuits

Excellent I/O connector

Wire size (AWG 26 to 28)

Ribbon contact design

Contact Material: Phosphor bronze

Dimensional Information

Circuit Size

14

20

26

36

50

68

T = Contact Plating



T =

2.

Tin plated

T =

3.

Gold flash over 50µ” nickel

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

Available kit with Connector + Hood

8160

8151

– TXXX2

XXX=

Nº Circuits

FULL LINE CATALOGUE

K-XX

8151-50502 Related Products

	8151-50502	8151-30502	8151-50682	8151-30362	8151-60682	8151-2036	8151-2068	8151-30682
Description	D Type Connector, 50 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 50 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 68 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 36 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 68 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 36 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 68 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 68 Contact(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknown	unknown	unknown
body width	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch
subject depth	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch
body length	1.579 inch	1.579 inch	2.027 inch	1.227 inch	2.027 inch	1.227 inch	2.027 inch	2.027 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	SN	SN	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	8151	8151	8151	8151	8151	8151	8151	8151
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	50	50	68	36	68	36	68	68
Maximum wire diameter	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	-	-	-
Plating thickness	15u inch	FLASH inch	15u inch	FLASH inch	30u inch	-	-	FLASH inch
