1
2 3
4
5
6
A
A
XXX XX XX XXX XXXXX YY XX
B
FCIconnect.com
B
C
C
Copyright FCI
linear
NOTES:-
1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008
2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION
WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

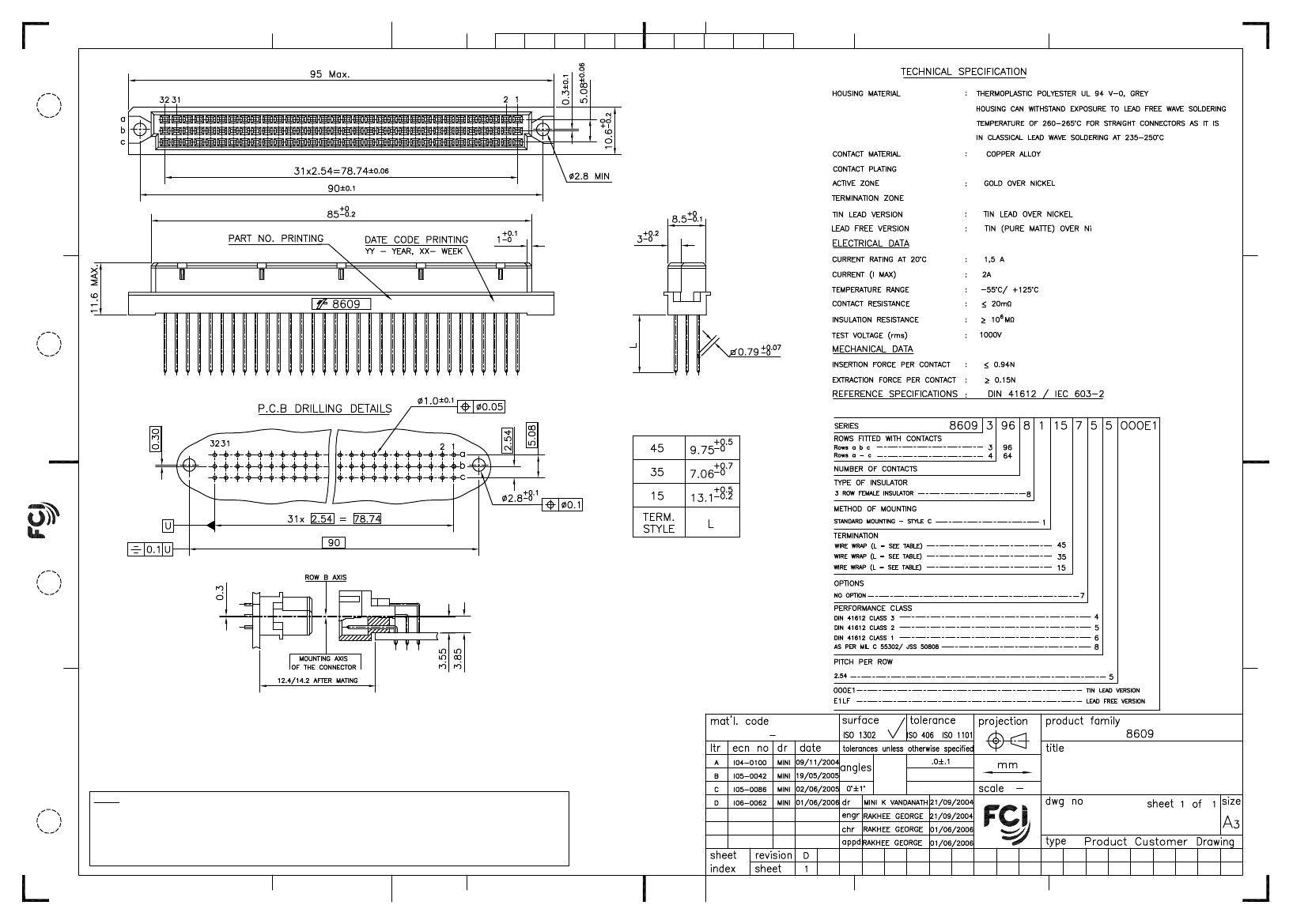

DIN STANDARD RECEPTACLE
WIRE WRAP DIN 41612 STYLE-C
C-8609-2014
D
3
4
5
6
STATUS:
Released
Printed: May 14, 2011
.
D
3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.
form: A3
1
2
PDM: Rev:D
