HCR22SZPL: Description47u combi rails rack mounting; Categoryaccessories; File Size116KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com; Environmental Compliance

Download Datasheet Compare View All

HCR22SZPL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HCR22SZPL	-	-	View	Buy Now

HCR22SZPL Overview

47u combi rails rack mounting

Preview

Download Datasheet

View All

10/8/2017

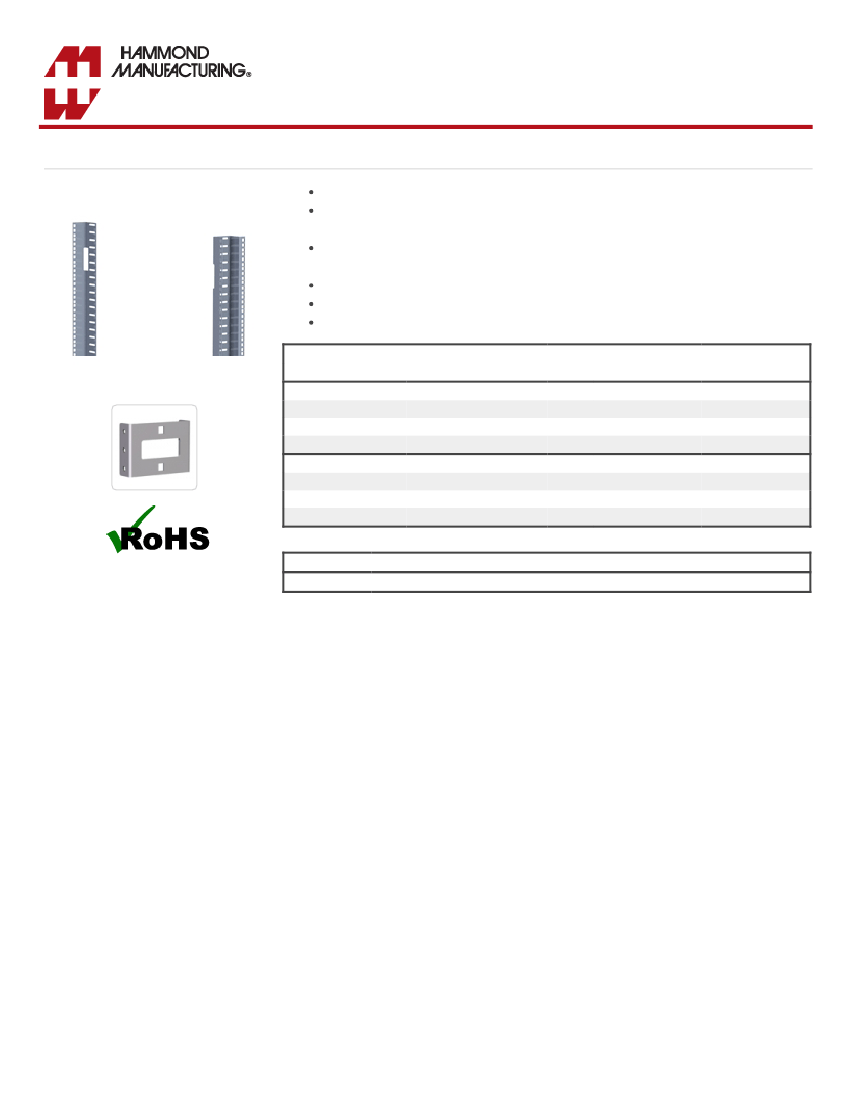

19" Rails and Width Adaptor Kit (HMER Series) - Hammond Mfg.

Quality Products. Service Excellence.

19" Rails and Width Adaptor Kit

HMER Series

Provides 19" rack mounting centers in 600mm wide cabinets.

Provides 19" rack mounting centers in 800mm wide cabinets when combined with Width

Adapter Kits (Part #

HAK19800).

Can mount directly to frame in full front and full back positions or can have full front to

back depth adjustment when used with Depth Grid Straps (sold separately).

Rails are 12 gauge, include mounting hardware and are clear zinc plated (ZPL) finish.

Square holed rails with full EIA centers.

Sold in pairs.

Mounting Space

Part Number

HPR16SZPL

HPR18SZPL

HPR20SZPL

HPR22SZPL

HCR16SZPL

HCR18SZPL

HCR20SZPL

HCR22SZPL

Style

Panel (L shape)

Combination

U

33

38

42

47

33

38

42

47

Inches

57.75

66.5

73.5

82.25

57.75

66.5

73.5

82.25

Use with H

1600

1800

2000

2200

1600

1800

2000

2200

Part Number

HAK19800

Description

Adapts 800mm wide cabinets to 19" rack mounting (includes 4 brackets)

Data subject to change without notice

https://www.hammfg.com/electrical/products/modular/hmer

1/1
