35SZV4.7M4X5.5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 35SZV4.7M4X5.5

35SZV4.7M4X5.5: Descriptioncap alum 4.7uf 35v 20% smd; CategoryPassive components capacitor; File Size71KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

35SZV4.7M4X5.5 Overview

cap alum 4.7uf 35v 20% smd

35SZV4.7M4X5.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	, 1717
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	4.7 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.003 mA
Manufacturer's serial number	SZV
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	60 mA
size code	1717
surface mount	YES
Delta tangent	0.12
Terminal surface	Tin (Sn)
Terminal shape	ONE SURFACE

Preview

Download Datasheet

View All

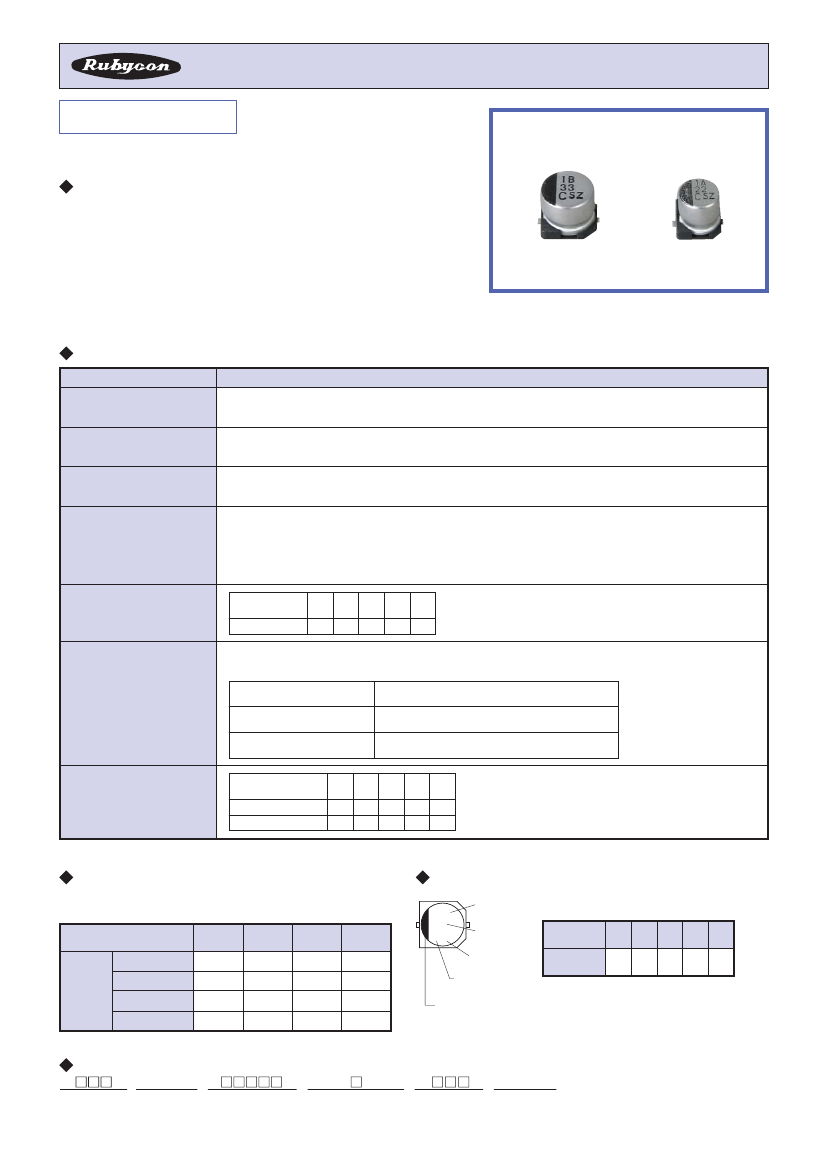

CHIP ALUMINUM ELECTROLYTIC CAPACITORS

SZV

SERIES

105

C Low Impedance, Lead Free Reflow Soldering.

FEATURES

•

Load Life : 105

C 1000 hours.

•

Lead free reflow soldering is available.

•

Available for high density mounting.

•

Low impedance at 100kHz with selected materials.

•

RoHS compliance.

SPECIFICATIONS

Items

Category Temperature Range

Characteristics

-55

∼

+105

6.3∼35V.DC

20%(20

C,120Hz)

0.01CV or 3

A whichever is greater.

(After 2 minutes application of rated voltage)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

Dissipation Factor(MAX)

(tan

)

www.BDTIC.com/Rubycon

Rated Voltage

6.3 10 16 25 35

(V)

tanδ

0.26 0.19 0.16 0.14 0.12

Leakage Current

(µA)

Rated Capacitance

(µF)

Rated Voltage

(V)

(20

C,120Hz)

After applying rated voltage with rated ripple current for 1000 hrs at 105

C, the capacitors shall meet the following requirements.

Within - 25% of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

6.3

(V)

C)/Z(20

C) 2

C)/Z(20

C) 5

Low Temperature Stability

Impedance Ratio(MAX)

(120Hz)

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency

MARKING

CSZ

Lot No.

Capacitance

Series

Rated voltage code

Polarity of the terminals

(Hz)

120

0.30

0.42

0.55

0.70

0.60

0.75

0.85

10k

0.80

0.90

0.95

100k <

1.00

Rated Voltage

6.3

(V)

Rated Voltage code

1µF

Coefficient

2.2∼ 4.7µF

10∼ 33µF

47∼ 100µF

PART NUMBER

SZV

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Case Size

35SZV4.7M4X5.5 Related Products

	35SZV4.7M4X5.5	16SZV22M5X5.5	10SZV33M5X5.5
Description	cap alum 4.7uf 35v 20% smd	cap alum 22uf 16v 20% smd	cap alum 33uf 10v 20% smd
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	, 1717	, 2121	, 2121
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
capacitance	4.7 µF	22 µF	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e6	e6
leakage current	0.003 mA	0.00352 mA	0.0033 mA
Manufacturer's serial number	SZV	SZV	SZV
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%	20%
Number of terminals	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%
Rated (DC) voltage (URdc)	35 V	16 V	10 V
ripple current	60 mA	52.25 mA	52.25 mA
size code	1717	2121	2121
surface mount	YES	YES	YES
Delta tangent	0.12	0.16	0.19
Terminal surface	Tin (Sn)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)
Terminal shape	ONE SURFACE	FLAT	FLAT
Is Samacsys	-	N	N
Base Number Matches	-	1	1
