DATE
SYM
REVISION RECORD
AUTH
DR. CK.
57.8
(2.275")
+ 5.0
152.4
(6")
WIRE LEADS SHOWN ABOVE
Note: Dimensions in mm.
( inches )
ORDERING CODE
SPECIFICATIONS :
Plastic material - polypropylene
Springs - nickel plated spring steel
Wire - 152.4 mm Ref.Long 26 AWG,
UL1007, CSA - TR-64, 300V, 80 C.
Rivets - Brass, nickel plated
9 Volts Snaps - Brass, nickel plated
BC3AAG
SOLDER LUGS
=L
( 6") WIRE LEADS
=W
9 VOLT TYPE SNAPS =SF
1.5V
33
(1.3")
29.0
(1.16")
TOLERANCES
(EXCEPT AS NOTED)
Memory Protection Devices, Inc.
200 Broad Hollow Road, Farmingdale, New York 11735
SCALE
NONE
TITLE
DRAWN BY
APPROVED BY
S.C.
DECIMAL
+
-
.5
(.020")
FRACTIONAL
+
-
.8
(.030")
ANGULAR
+
3
-

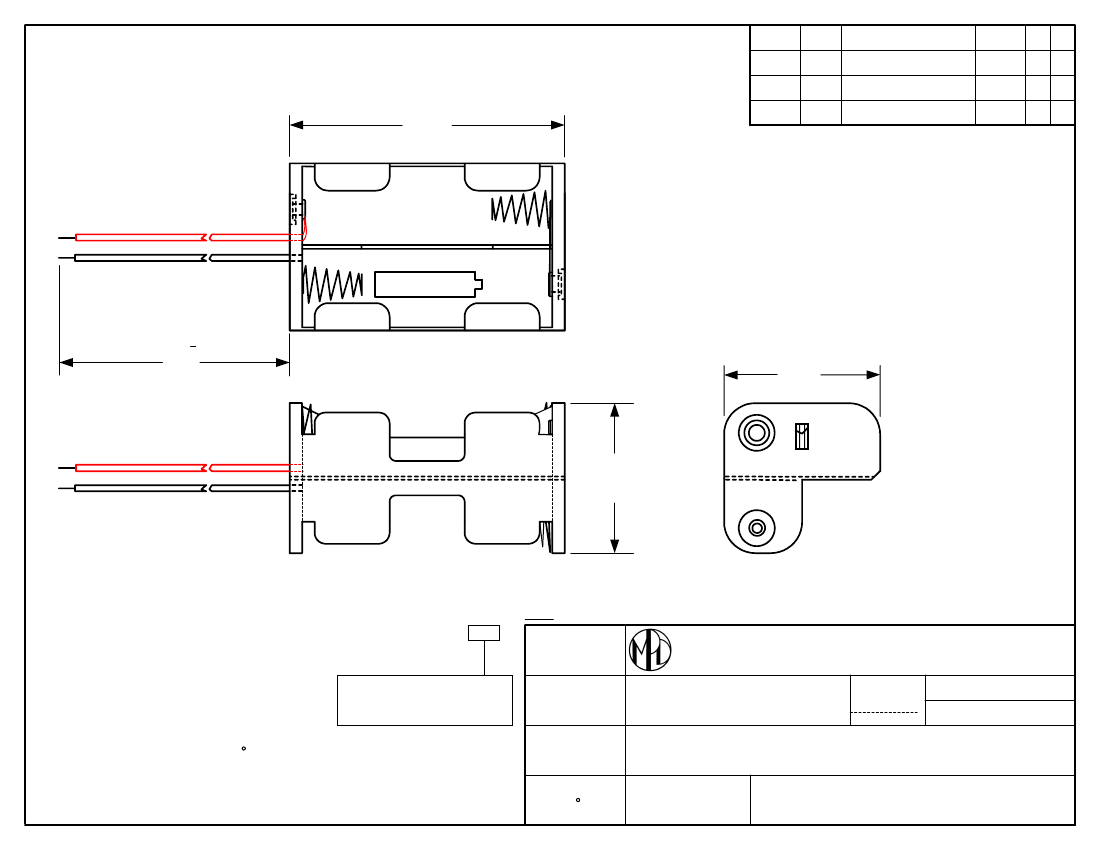

THREE "AA" CELL HOLDER
DATE
DRAWING NUMBER
05/10/2001
BC3AAGW
