55-00504 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 55-00504

55-00504: DescriptionCombination Line Connector,; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric Compare View All

55-00504 Overview

Combination Line Connector,

55-00504 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	COMBINATION LINE CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

18,2

18,5

Technical specification:

Technische Daten:

Rated voltage/

Bemessungsspannung:

max. 230 V AC/DC

6 A at 40 °

6 A bei 40 °

Current rating/

Strombelastbarkeit:

Degree of protection/

Schutzart:

IP67/IP69K, in mated condition/

IP67/IP69K im gesteckten Zustand

Temperature range

Connector/

-40 °C ... +85 °C

32,3

Umgebungstemperatur

Stecker:

Temperature range

Wire/

Umgebungstemperatur

Leitung:

fixed/

-40 ° ... +80 °

fest

moved/ -25 ° ... +80 °C

bewegt:

Mating cycles/

>=100

0.75 mm²

Deutsch DT06-6S-P012,

black /

schwarz

54,3

Steckzyklen:

Wire cross section/

Anschlussquerschnitt:

Housing/

Gehäuse:

Materials/

Werkstoffe:

Contact/

Kontakt:

Copper alloy/

Kupferlegierung

9,5

Contact carrier/

Kontaktträger:

Thermoplastic/

Thermoplastik

Contact plating/

Kontaktoberfläche:

TPU, UL 94, black/

schwarz

Overmolding/

Umspritzung:

"L"

Sealing/

Dichtung:

Silicone/

Silikon

Contact assignment/

Kontaktbelegung:

green/

grün

M12x1

18,3

9,2

The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages.

Weitergabe sowie Vervielfältigung dieses Dokuments, Verwertung und Mitteilung seines Inhalts sind verboten, soweit nicht ausdrücklich gestattet. Zuwiderhandlungen verpflichten zu Schadenersatz.

Alle Rechte für den Fall der Patent-, Gebrauchsmuster- oder Geschmacksmustereintragung vorbehalten.

10,5

brown/

braun

white/

weiß

pink/

rosa

18,3

4,4

grey/

grau

yellow/

gelb

4,4

Part.-no./

Art.-Nr.:

Description/

Beschreibung:

Cable length "L"

Kabellänge "L":

Cable/

Kabel:

55-00504

55-00505

55-00506

55-xxxxx

tolerance of cable/

Kabeltoleranz:

DT06-6SG-A/K1/0.75/2m

DT06-6SG-A/K1/0.75/5m

DT06-6SG-A/K1/0.75/10m

DT06-2SG-A/K1/0.75/...m

dim. in mm

10m

...m

PUR, black /

schwarz

6x0.75 mm²,

Cable /

Kabel

781-K17600

L <= 5m: L + 50mm

L > 5m: L + 1%

0,0

0,00

∢

0,50mm

0,25mm

0,10mm

5°

Date/

Datum

drawn

gez.

Name

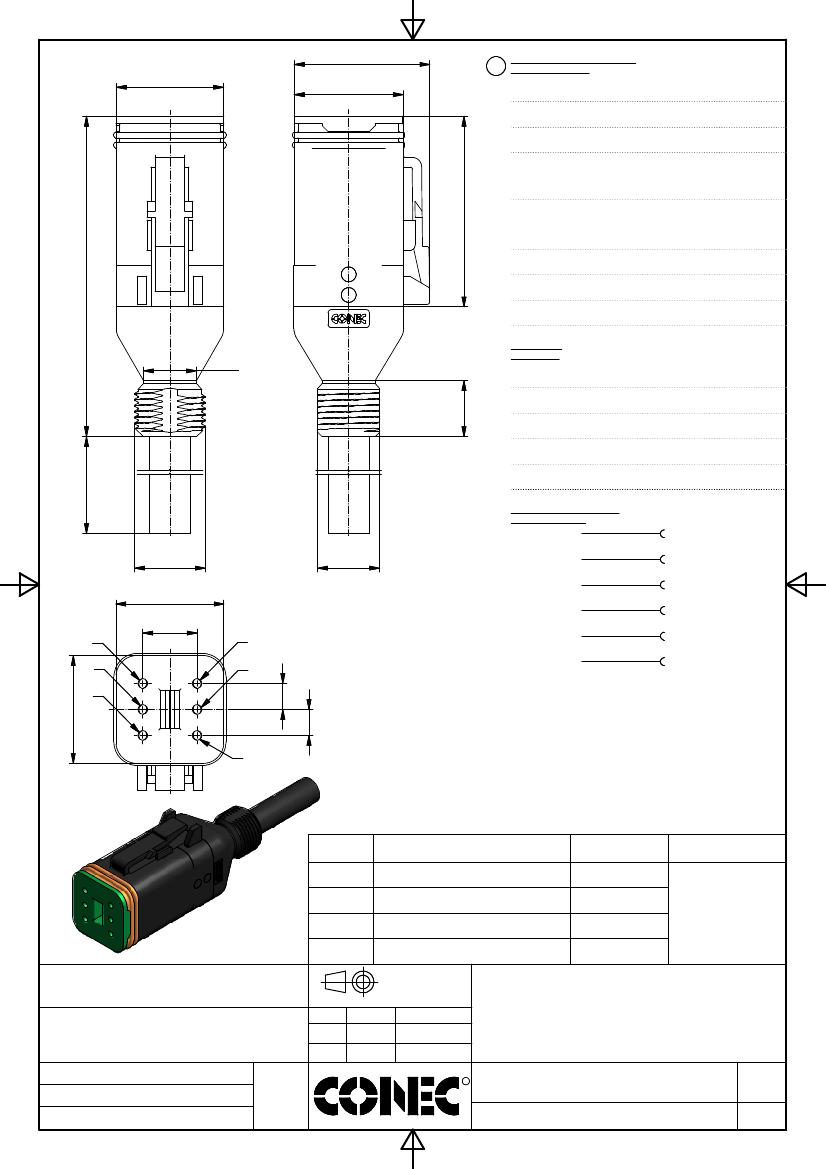

DT 06 - 6pos Plug

Valve Connector with thread M12x1

DT 06 - 6pol Ventilstecker

Ventilstecker mit Gewinde M12x1

general tolerance/

Allgemeintoleranz:

24.10.14

26.02.15

Strakerjahn

Koch

Z.-nr.:

appd./

gepr..

Index:

Status:

d Ä6304 12.09.2016 K.H.

Freigegeben

scale

Maßstab

dwg no /

1,5 : 1

55K1A066

DIN-

RoHS compliant/

konform

1/1

55-00504 Related Products

	55-00504	55-00506	55-00505
Description	Combination Line Connector,	Combination Line Connector, RoHS compliant	Combination Line Connector, RoHS compliant
Reach Compliance Code	compliant	compliant	compliant
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Base Number Matches	1	1	-
Maker	-	CONEC	CONEC
package instruction	-	RoHS compliant	RoHS compliant
subject depth	-	2.138 inch	2.138 inch
Contact point gender	-	FEMALE	FEMALE
empty shell	-	NO	NO
Filter function	-	NO	NO
Mixed contacts	-	NO	NO
Installation type	-	CABLE	CABLE
Maximum operating temperature	-	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C
Options	-	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	-	6 A	6 A
Total number of contacts	-	6	6
