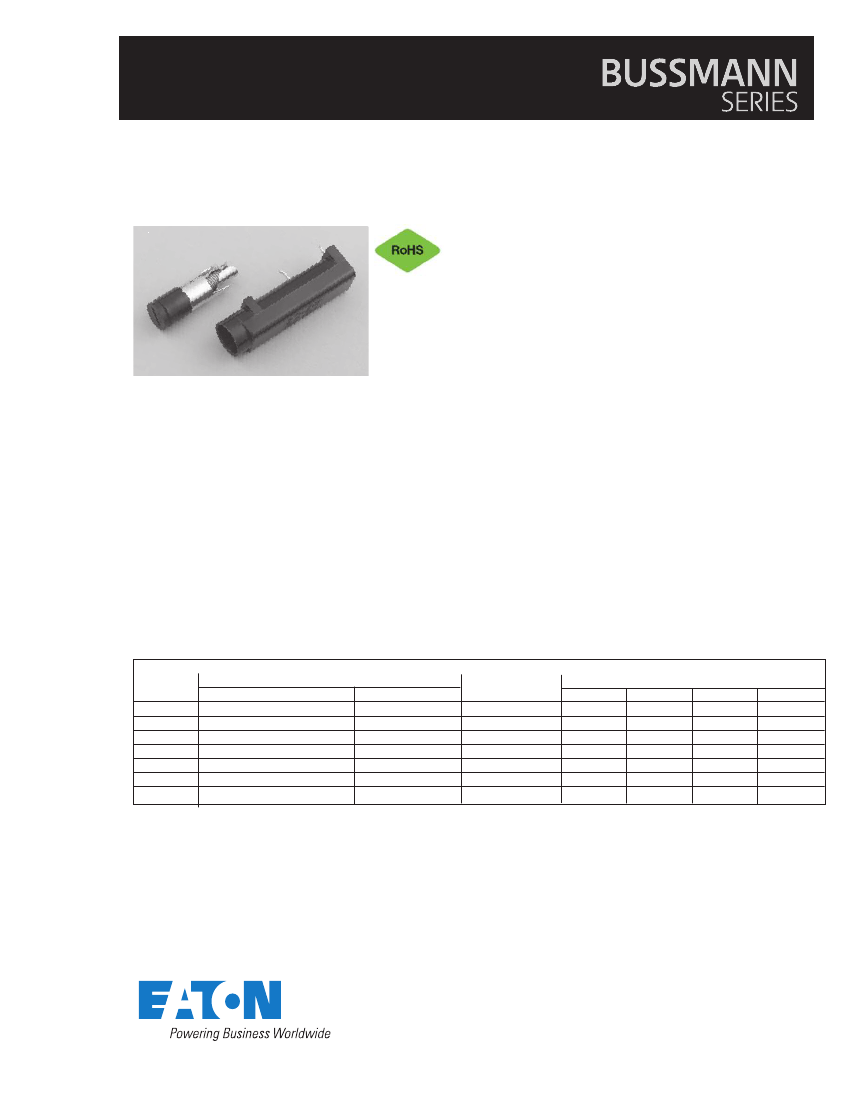

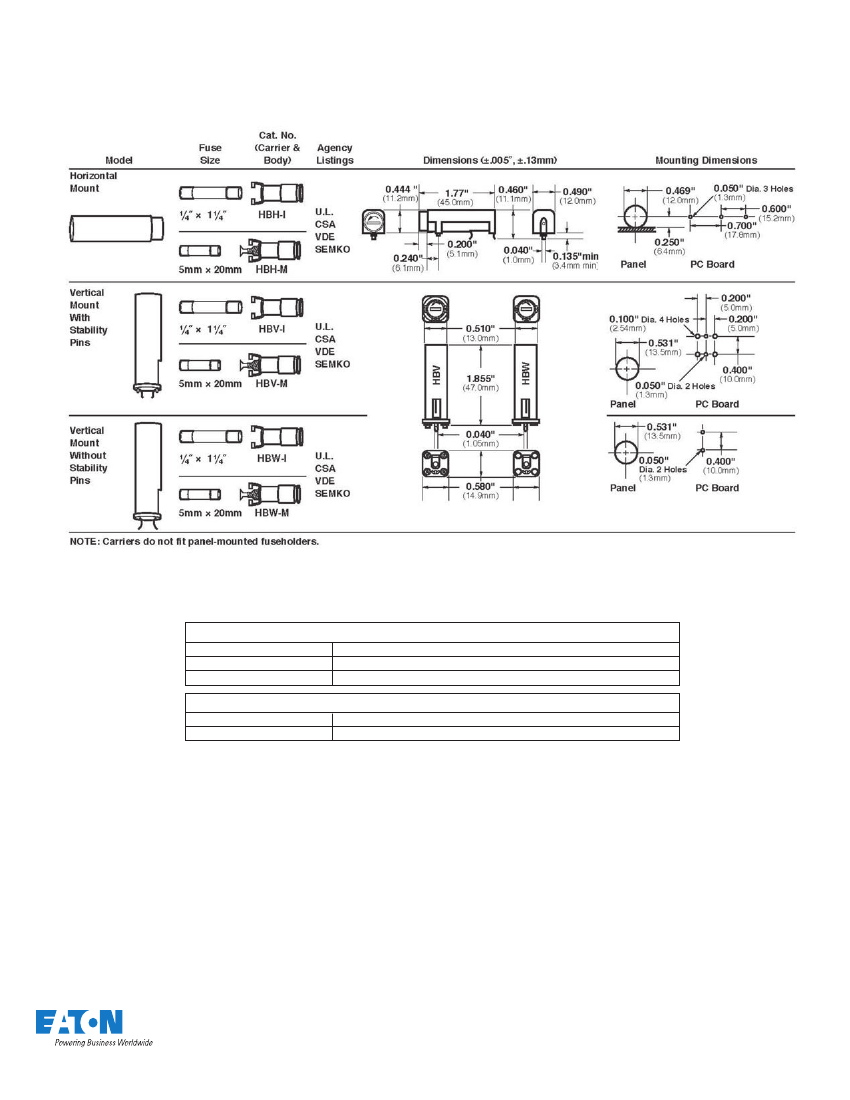

Technical Data
2118
Effective
May
2017
Supersedes
June
2008
HBH, HBV, HBW
1⁄4" x 1 1⁄4" and 5 mm x 20 mm fuse holders
Agency information
•
CE, VDE 4009241 (HBV, HBW) SEMKO
800444
•
UL Recognized: IZLT2, E14853
•
CSA Certified: Class 6225-01, File 47235
Resistance ratings
•
Insulation resistance: 10,000 megaohm at 500 Vdc
•
Contact resistance: Less than 0.005 ohms at 200 mV
Dielectric strength
Product features
•
For 1⁄4" x 1 1⁄4" and 5 x 20mm fuses
•
Fuse carriers are interchangeable
•
Carriers are color coded for easy identification:
o
Gray for 1⁄4" diameter fuses
o
Black for 5mm fuses
•
Vertical and horizontal body mounting versions
•
Fuse carrier and knob are spring loaded
bayonet type with screwdriver slot
•
“Kicked” terminals (all models) for optimum
wave-soldering
•
Stabilizer pins on HBV model
•
High dielectric molded thermoplastic meets UL 94V0
•
Dielectric strength: Over 200 V/mil
Environmental data
•
Operating Temperature: (-40 ºC to + 85 ºC )
•
Temperature rating (RTI): The mounting body for
all devices has a temperature rating of 150 °C. The
knob for all devices has a temperature rating of
130 °C.
Ordering
•
Specify packaging, product, and option code
Catalog
Number
HBH-I
HBH-M
HBV-I
HBV-M
HBW-I
HBW-M
HBH
Fuse Holder
Body Mount
Carrier Size
1
Horizontal
⁄
4
" x 1
1
⁄
4
"
Horizontal
5 x 20mm
1
Vertical w/ Stability Pins
⁄
4
" x 1
1
⁄
4
"
Vertical w/ Stability Pins
5 x 20mm
1
Vertical w/o Stability Pins
⁄
4
" x 1
1
⁄
4
"
Vertical w/o Stability Pins
5 x 20mm
Horizontal
na
Specifications
Voltage Rating
Volts
250
250
250
250
250
250
250
Current Rating (amps) Agency Approval
UL
CSA
VDE
SEMKO
16
12
–
10
16
12
–
10
16
12
6.3
10
16
12
6.3
10
16
12
6.3
10
16
12
6.3
10
16
12
–
10
Technical Data
2118
Effective
May
2017
HBH, HBV, HBW
1⁄4" x 1 1⁄4" and 5 mm x 20 mm fuse holders
Packaging Code Pre x
Blank
BK
Option Code Su x
-R
Description
10 fuse holders packed into a carton
100 fuse holders packed into a cardboard shelf package
Description
RoHS compliant version
Packaging Code
Option Code
