MTL2S8434-6-004-404 datasheet, PDF

Datasheet> All Categories > MTL2S8434-6-004-404

MTL2S8434-6-004-404: DescriptionBoard Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Natural Insulator, Receptacle; File Size160KB，2 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MTL2S8434-6-004-404 Overview

Board Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Natural Insulator, Receptacle

MTL2S8434-6-004-404 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	303588078
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HORIZONTAL CONNECTIONS
body width	0.602 inch
subject depth	0.705 inch
body length	0.866 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P4
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	5 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	3000VAC V
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYBUTYLENE TEREPHTHALATE
Mixed contacts	YES
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Rated current (signal)	6 A
Guideline	UL,VDE
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	4

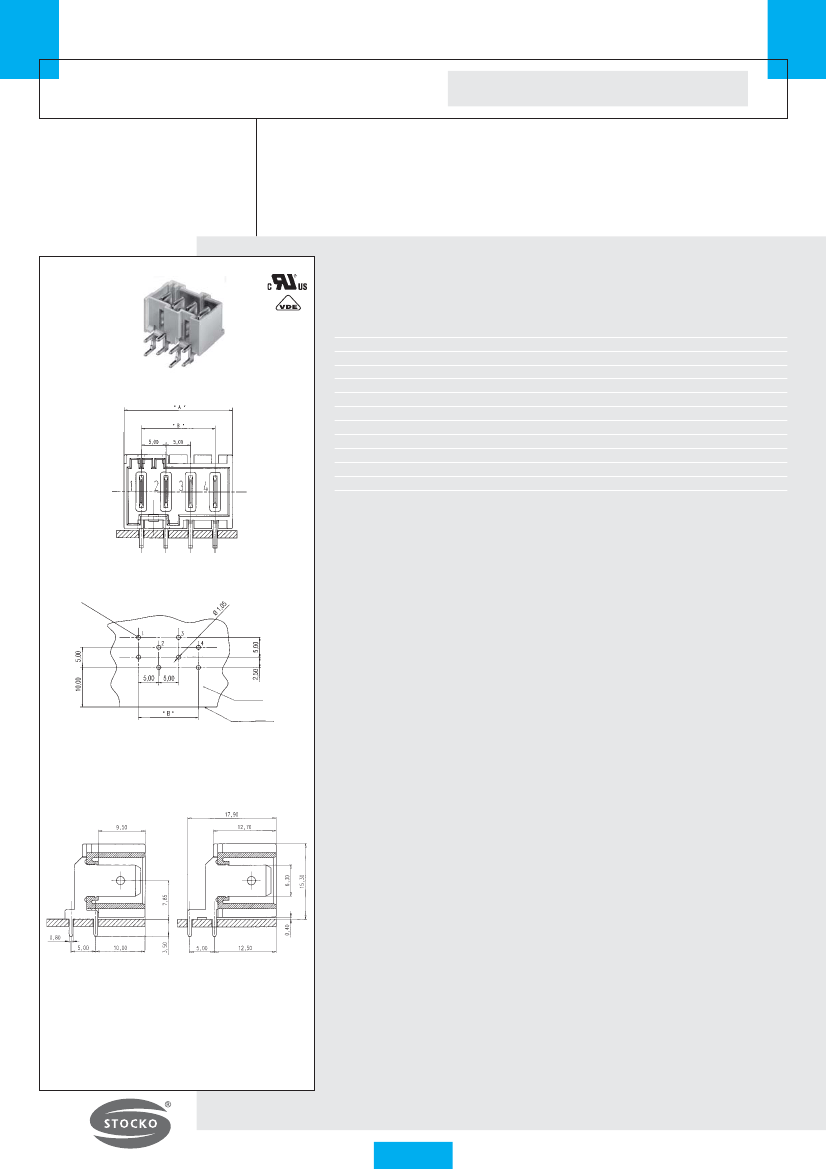

Preview

Download Datasheet

View All

Steckverbindersysteme

CO-DO

O-DOMO RAS

E CO-DOMO / RA S T 5

Technische Daten /

Technical Data

Connector systems

Mechanisch

Mechanical

Raster

Pitch

Polzahl

Positions

Verrastung

Locking features

Anschlußart

Termination

Leiterquerschnitt

Wire size

Isolations Ø

Insulation diameter

Leiteraufbau

Type of wire

Temperaturbereich

Temperature range

Elektrisch

Electrical

Strombelastbarkeit

Current rating

Nennspannung

Nom. voltage

Durchschlagsfestigkeit

Gehäusematerial

Delectrical strength

Isolationswiderstand

Insulation resistance

Durchgangswiderstand

Contact resistance

Luftstrecke

Air gap

Kriechstrecke

Creeping distance

Kriechstromfestigkeit

Creeping strength

Freigaben

Approved by

Werkstoffe

Materials

Kontakt

Contact

Kontaktoberfläche

Contact finishing

Isolierkörper

Housing

Gehäusefarbe

Colour of housing

Feder /

Socket:

CuSn

Feder /

Socket:

PBT

natur

natural

Direktstecker /

Direct connector

Indirektstecker

/ Indirect connector

Direktstecker /

Direct connector

Indirektstecker

/ Indirect connector

≥

3000 V eff

≥

Ohm

≤

5 m Ohm

≥

3 mm

Direktstecker /

Direct connector

Indirektstecker

Indirect connector

CTI

≥

250

DIN VDE 0627, UL

≥

3 mm

≥

4 mm

16 A

250 V AC

400 V AC

5 mm

Direktstecker /

Direct connector

Indirektstecker

/ Indirect connector

Direktstecker /

Direct connector

Indirektstecker

/ Indirect connector

IDC

Direktstecker /

Direct connector

Indirektstecker

Indirect connector

Direktstecker /

Direct connector

Indirektstecker

/ Indirect connector

Litze

stranded

- 40 °C ...+ 110 °C

2 - 12

1 - 12

PCB

Innen /

inside

0,5 - 0,75 mm

0,35 - 1,5 mm²

3,0 mm

3,2 mm
