41910-2--2400-002000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 41910-2--2400-002000

41910-2--2400-002000: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size704KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

41910-2--2400-002000 Overview

Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

41910-2--2400-002000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	419
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

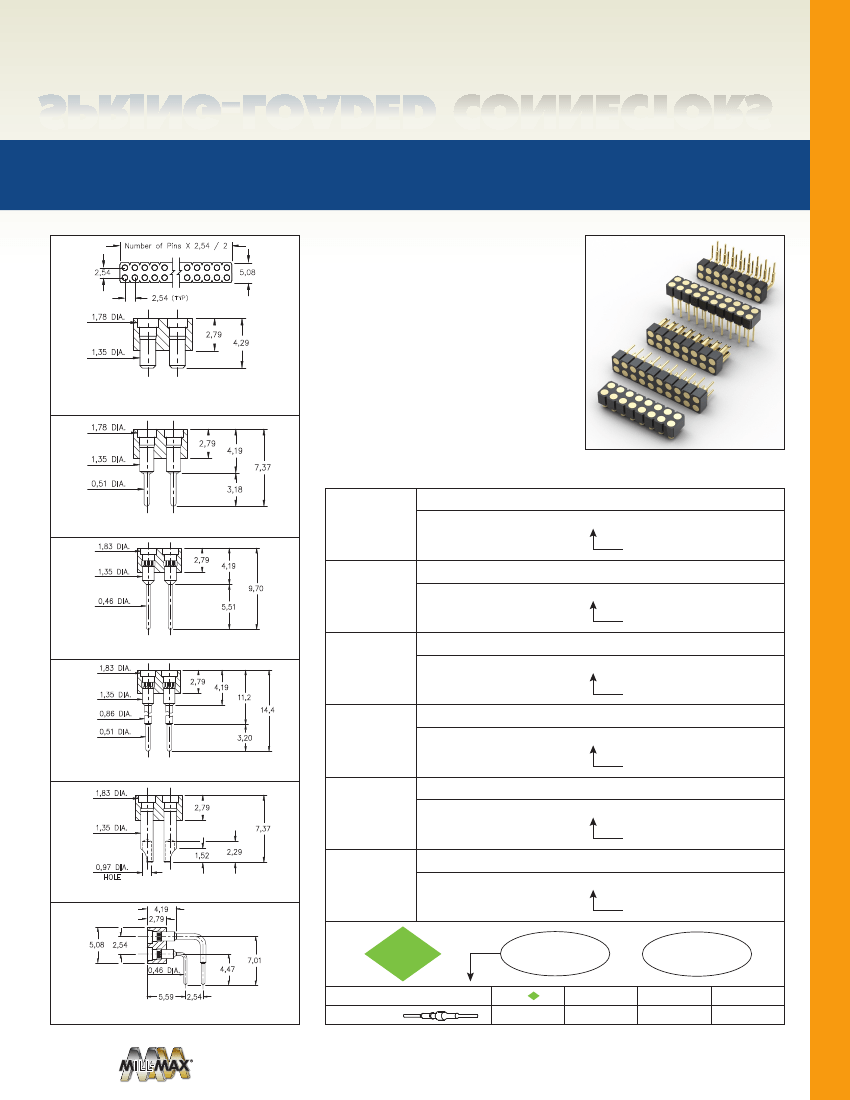

SPRING-LOADED

CONNECTORS

SERIES 419, 430, 499 • 2,54 GRID TARGET CONNECTORS

FOR SPRING-LOADED ASSEMBLIES • DOUBLE ROW STRIPS

• Series 419, 430 and 499 Spring Target

Connectors, supplied in double row strips

• Spring Target Connectors present a large flat

surface for making contact with our standard

.042” dia. spring pin plungers. The target

connectors provide an excellent gold-plated

conductive path back to the board mounted

spring pin connector

Coplanarity 0,13. For Pin counts >20 positions, consult

Technical Support.

FIG. 1

• Target connectors use MM #1938, #1940,

#1941, #1942 and #3024 pins. See page 218

for details

• Insulators are high temperature thermoplastic

ORDERING INFORMATION

Series 419...041

Surface Mount

419-10-2_ _-30-041000

Specify number of pins

04-64

FIG. 2

FIG. 1

Series 419...001

Standard Solder Tails

419-10-2_ _-00-001000

04-64

FIG. 2

FIG. 3

Series 419...002

Specify number of pins

Long Solder Tails

419-10-2_ _-00-002000

04-64

FIG. 3

Series 419...005

Specify number of pins

Elevated with Solder Tails

419-10-2_ _-00-005000

04-64

FIG. 4

Series 430...240

Solder Cups

430-10-2_ _-00-240000

04-64

FIG. 5

Series 499...008

Specify number of pins

Right Angle Solder Tails

499-10-2_ _-10-008000

04-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 5

FIG. 6

RoHS - 2

Specify number of pins

XX=Plating Code

See Below

0,25μm Au

2011/65/EU

FIG. 6

SPECIFY PLATING CODE XX=

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 21 | SPRING-LOADED CONNECTORS

Specify number of pins
