EMDS13N2J-42.000M

Description
CRYSTAL OSCILLATOR, CLOCK, 42MHz, LVDS OUTPUT, ROHS COMPLIANT, PLASTIC, SMD, 6 PIN
File Size107KB,2 Pages
ManufacturerECLIPTEK
Websitehttp://www.ecliptek.com
Environmental Compliance
Download Datasheet Parametric View All

EMDS13N2J-42.000M Overview

CRYSTAL OSCILLATOR, CLOCK, 42MHz, LVDS OUTPUT, ROHS COMPLIANT, PLASTIC, SMD, 6 PIN

EMDS13N2J-42.000M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1266805238
Reach Compliance Codecompliant
Other featuresSTANDBY; COMPLEMENTARY OUTPUT; BULK
maximum descent time0.325 ns
Frequency Adjustment - MechanicalNO
frequency stability25%
JESD-609 codee4
Installation featuresSURFACE MOUNT
Number of terminals6
Nominal operating frequency42 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Oscillator typeLVDS
Output load100 OHM
physical size7.0mm x 5.0mm x 0.85mm
longest rise time0.325 ns
Maximum supply voltage3.6 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceNickel/Palladium/Gold (Ni/Pd/Au)

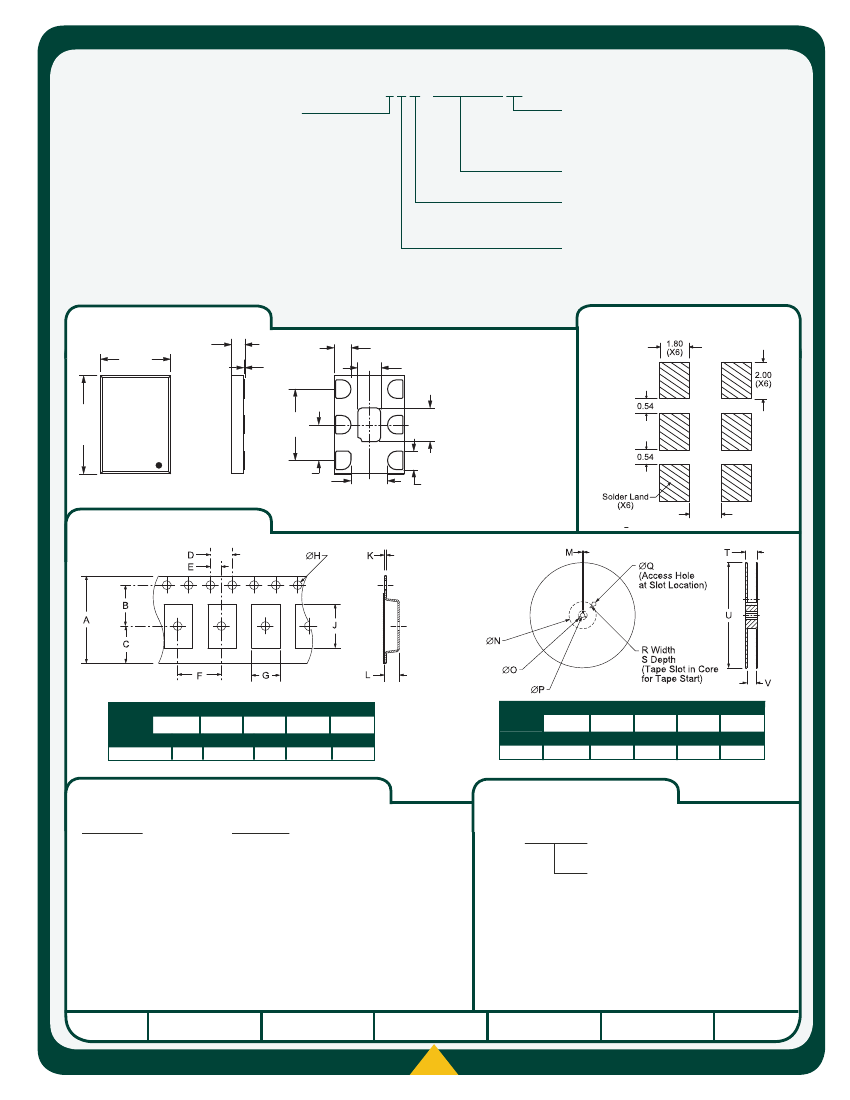

EMDS13
Series
• MEMS Clock Oscillators
• LVDS Output
• +3.3V Supply Voltage
• Complementary Output
• Output Enable and Standby Options
• 6 Pad Plastic SMD Package
• 30,000 G Shock Resistance
• RoHS Compliant (Pb-free)
H
L
W
EMDS13
0.85
7.0
5.0
OSCILLATOR
ELECTRICAL SPECIFICATIONS
Nominal Frequency (MHz)
Some frequencies within this range may
not be available
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
CC
)
Excluding Load Termination Current
Input Current
Inclusive of All Conditions: Calibration Tolerance at 25°C,
Frequency Tolerance / Stability
Frequency Stability over the Operating Temperature Range,
Some tolerance stability options
Supply Voltage Change, Output Load Change, 1st Year Aging
may not be available
at 25°C, Reflow, Shock, and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Differential Output Voltage (V
OD
)
Offset Voltage (V
OS
)
Differential Output Error (
D
V
DD
)
Offset Error (
D
V
OS
)
Output Swing (
D
VO
PP
)
20% to 80% of waveform
Rise Time / Fall Time
at 50% of waveform
Duty Cycle
Between Output and Complementary Output
Load Drive Capability
OE
Logic Control / Additional Output
ST
Output Control Input Voltage
V
IH
of 70% of V
CC
Minimum
No Connection
V
IL
of 30% of V
CC
Maximum
Without Load
Output Enable Current
Standby Current
Without Load
Aging
First Year at 25°C
FJ = 12kHz to 20MHz
Start Up Time
Period Jitter
Deterministic
Random
RMS
pk-pk
RMS Phase Jitter (Random)
1.000MHz to 100.000MHz
Fj=637kHz to 10MHz
100.001MHz to 156.250MHz
156.251MHz to 220.000MHz
RMS Phase Jitter (Random)
1.000MHz to 100.000MHz
Fj=1MHz to 20MHz
100.001MHz to 156.250MHz
156.251MHz to 220.000MHz
RMS Phase Jitter (Random)
1.000MHz to 100.000MHz
Fj=1.875MHz to 20MHz
100.001MHz to 156.250MHz
156.251MHz to 220.000MHz
MANUFACTURER
CATEGORY
SERIES
PACKAGE
1.000MHz to 220.000MHz
0°C to +70°C, -20°C to +70°C, or -40°C to +85°C
-55°C to +125°C
3.3V
DC
±0.3V
DC
80mA Maximum
±100ppm, ±50ppm, ±25ppm, or
±20ppm Maximum
1.425V
DC
Typical
1.075V
DC
Typical
247mV Minimum, 350mV Typical, 454mV Maximum
1.125V Minimum, 1.250V Typical, 1.375V Maximum
50mV Maximum
50mV Maximum
350mVdc Minimum
225pSec Typical, 325pSec Maximum
50 ±5(%)
100 Ohms
Ouput Enable (OE) and Complementary Output or
Standby (ST) and Complementary Output
Enables Outputs
Enables Outputs
Disables Outputs: High Impedance
75mA Maximum (OE)
30µA Maximum (ST)
±1ppm Maximum
10 mSeconds Maximum
0.2pSec Typical
2.0pSec Typical
1.8pSec Typical, 2.5pSec Maximum
25pSec Typical, 30pSec Maximum
2.1pSec Typical
1.7pSec Typical
1.6pSec Typical
1.7pSec Typical
1.2pSec Typical
0.7pSec Typical
1.5pSec Typical
0.7pSec Typical
0.6pSec Typical
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EMDS13
PLASTIC
3.3V
OS7P
10/11
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
