CRS12
TOSHIBA Schottky Barrier Diode
CRS12
Switching Mode Power Supply Applications
(Output voltage:
≤12
V)
DC/DC Converter Applications
•
•
•
•
Forward voltage: V
FM
= 0.58 V (max)
Average forward current: I
F (AV)
= 1.0 A
Repetitive peak reverse voltage: V
RRM
= 60 V
Suitable for compact assembly due to small surface-mount package
“S−FLAT
TM
” (Toshiba package name)
Unit: mm
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Repetitive peak reverse voltage
Average forward current
Non-repetitive peak surge current
Junction temperature
Storage temperature range
Symbol
V
RRM
I
F (AV)
I
FSM
T
j
T
stg
Rating
60
1.0 (Note 1)
20 (50 Hz)
−40~150
−40~150
Unit
V
A
A
°C
°C
Note 1: Ta
=
73°C
Device mounted on a ceramic board
Board size: 50 mm
×
50 mm
Soldering size: 2 mm
×
2 mm
Board thickness: 0.64 t
Rectangular waveform (α
=
180°), V
R
=
30 V
JEDEC
JEITA
TOSHIBA
―
―
3-2A1A
Weight: 0.013 g (typ.)
Note 2: Using continuously under heavy loads (e.g. the application of
high temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating
conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Peak forward voltage
Peak repetitive reverse current
Junction capacitance
Symbol
V
FM (1)
V
FM (2)
I
RRM (1)
I
RRM (2)
C
j
Test Condition
I
FM
=
0.7 A (pulse test)
I
FM
=
1.0 A (pulse test)
V
RRM
=
5 V (pulse test)
V
RRM
=
60 V (pulse test)
V
R
=
10 V, f
=
1.0 MHz
Device mounted on a ceramic board
(board size: 50 mm
×
50 mm)
(soldering land: 2 mm
×
2 mm)
(board thickness: 0.64 t)
Thermal resistance
(junction to ambient)
R
th (j-a)
Device mounted on a glass-epoxy board
(board size: 50 mm
×
50 mm)
(soldering land: 6 mm
×
6 mm)
(board thickness: 1.6 t)
Device mounted on a glass-epoxy board
(board size: 50 mm
×
50 mm)
(soldering land: 1.2 mm
×
1.2 mm)
(board thickness: 1.6 t)
Thermal resistance
(junction to lead)
R
th (j-ℓ)
⎯
Min
⎯
⎯
⎯
⎯
⎯
⎯
Typ.
0.48
0.52
0.4
4.0
40
⎯
Max
⎯
0.58
⎯
100
⎯
70
Unit
V
μA
pF
⎯
⎯
140
°C/W
⎯
⎯
240
⎯
⎯
20
°C/W
1
2006-11-13
CRS12
Marking
Abbreviation Code
SB
Part No.
CRS12
Standard Soldering Pad
Unit: mm
1.2
1.2
2.8
Handling Precaution
1)
Schottky barrier diodes have reverse current characteristic compared to other diodes.
There is a possibility SBD may cause thermal runaway when it is used under high temperature or high voltage.
Please take forward and reverse loss into consideration during design.
The absolute maximum ratings denote the absolute maximum ratings, which are rated values and must not be
exceeded during operation, even for an instant. The followings are the general derating method that we
recommend when you design a circuit with a device.
V
RRM
: Use this rating with reference to (1) above. V
RRM
has a temperature coefficient of(0.1%/°C. Take
this temperature coefficient into account designing a device at low temperature.
I
F (AV)
: We recommend that the worst case current be no greater than 80% of the absolute maximum
rating of
I
F (AV)
and T
j
bebelow 120°C. When using this device, take the margin into consideration by using
an allowable Tamax-I
F (AV)
curve.
I
FSM
: This rating specifies the non-repetitive peak current. This is only applied for an abnormal
operation, which seldom occurs during the lifespan of the device.
T
j
: Derate this rating when using a device in order to ensure high reliability.
We recommend that a device be used at a T
j
of below 120°C.
3)
Thermal resistance between junction and ambient fluctuates depending on the device’s mounting condition.
When using a device, design a circuit board and a soldering land size to match the appropriate thermal
resistance value.
Please refer to the Rectifiers databook for further information.
2)
4)
2
2006-11-13

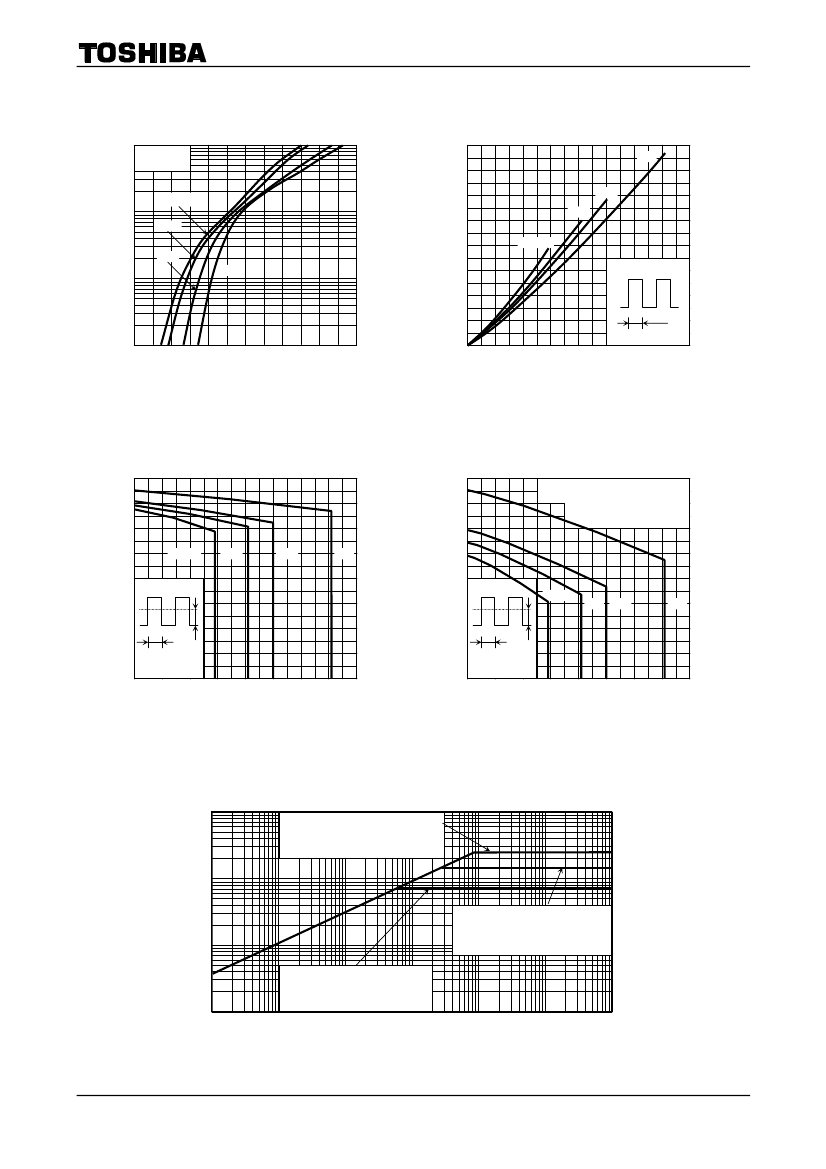

CRS12
i
F
– v
F
10
0.8
Pulse test
P
F (AV)
– I
F (AV)
DC
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
0°
α
360°
Conduction angle
α
α =
60°
Rectangular
waveform
120°
180°
i
F
(A)
Instantaneous forward current
Tj
=
150°C
1
125°C
75°C
0.1
25°C
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
Average forward power dissipation
P
F (AV)
(W)
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Instantaneous forward voltage vF
(V)
Average forward current
I
F (AV)
(A)
Tℓ max – I
F (AV)
160
160
140
120
100
80
60
40
0°
α
360°
Ta max – IF (AV)
Device mounted on a ceramic board:
board size: 50 mm
×
50 mm
Soldering land: 2 mm
×
2 mm
board thickness: 0.64 t
Maximum allowable lead temperature
T
ℓ
max (°C)
120
100
80
60
40
0°
α
360°
α =
60°
120°
180°
DC
Rectangular
waveform
Maximum allowable temperature
Ta max (°C)
140
Rectangular
waveform
α =
60°
120°
180°
DC
IF (AV)
20 Conduction
angle
α
VR
=
30 V
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
IF (AV)
20 Conduction
angle
α
VR
=
30 V
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Average forward current
I
F (AV)
(A)
Average forward current
I
F (AV)
(A)
r
th (j-a)
– t
1000
Device mounted on a glass-epoxy board:
board size: 50 mm
×
50 mm
Soldering land: 1.2 mm
×
1.2 mm
board thickness: 1.6 t
Transient thermal impedance
rth (j-a) (°C/W)
300
100
30
10
Device mounted on a ceramic board:
board size: 50 mm
×
50 mm
Soldering land: 2.0 mm
×
2.0 mm
board thickness: 0.64 t
0.01
0.1
1
Device mounted on a glass-epoxy board:
board size: 50 mm
×
50 mm
Soldering land: 6.0 mm
×
6.0 mm
board thickness: 1.6 t
3
1
0.001
10
100
1000
Time t (s)
3
2006-11-13
CRS12
Surge forward current
C
j
– V
R
500
300
(typ.)
32
(non-repetitive)
I
FSM
(A)
Ta
=
25°C
f
=
50 Hz
Ta
=
25°C
C
j
(pF)
f
=
1 MHz
28
24
20
16
12
8
4
0
1
100
50
30
10
1
3
5
10
30
50
100
Peak surge forward current
Junction capacitance
Reverse voltage
VR
(V)
3
5
10
30
50
100
Number of cycles
I
R
– T
j
10
Pulse test
1
(typ.)
0.20
Rectangular
waveform
0°
360°
0.16
VR
0.12 Conduction angle
α
Tj
=
125°C
0.08
P
R (AV)
– V
R
(typ.)
48 V
0.1
30 V
0.01
10 V
0.001
VR
=
5 V
20 V
40 V
Average reverse power dissipation
P
R (AV)
(W)
(mA)
Reverse current IR
300°
240°
180°
120°
α =
60°
DC
0.04
0.0001
0
20
40
60
80
100
120
140
160
0
0
6
12
18
24
30
36
42
48
Junction temperature Tj
(°C)
Reverse voltage
VR
(V)
4
2006-11-13
CRS12
