KS12R29S3CGD datasheet, PDF - EEWORLD Datasheet

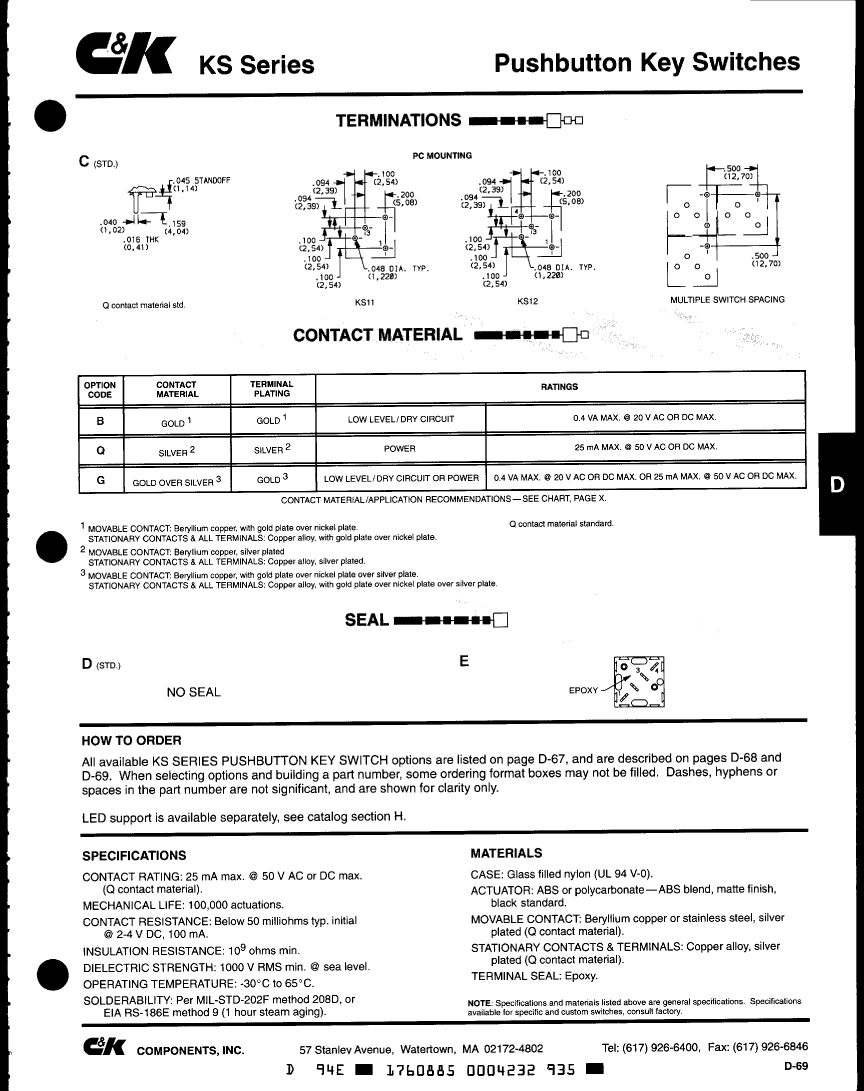

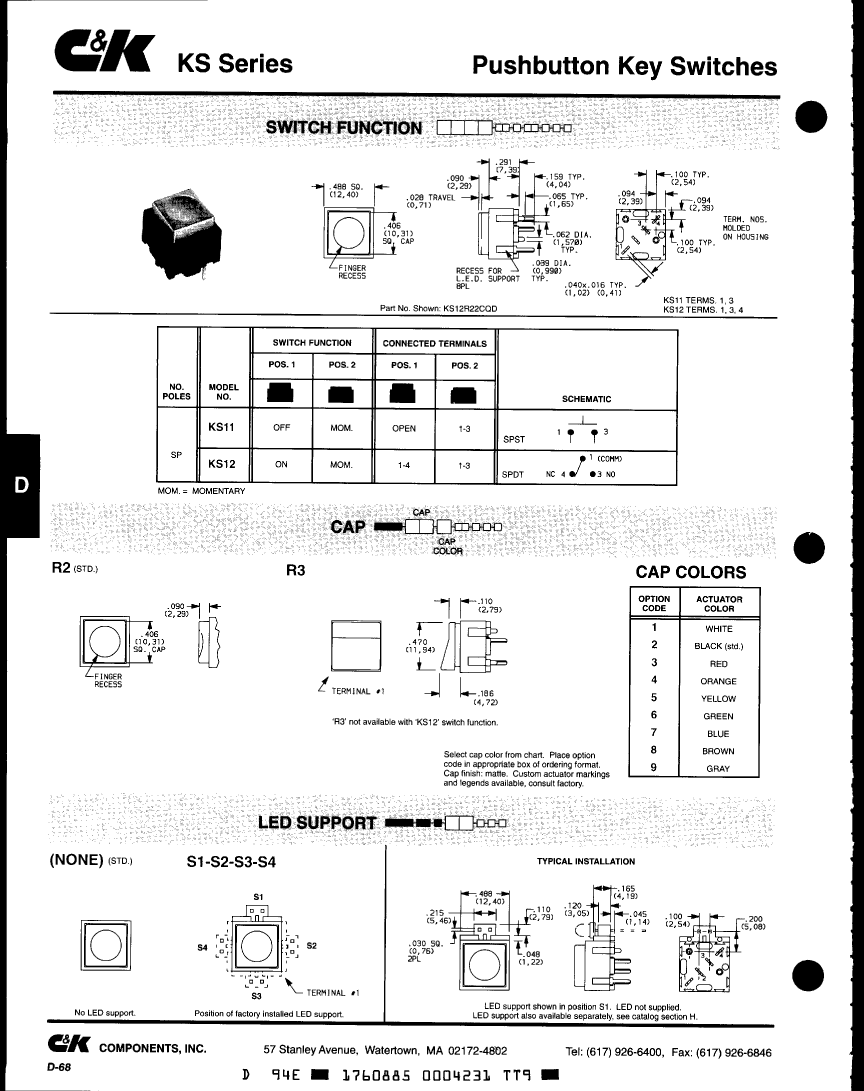

KS12R29S3CGD: DescriptionPushbutton Switch, SPDT, On-(on), Vertical, 0.025A, 50VDC, 5 PCB Hole Cnt, Solder Terminal, Through Hole-straight; File Size212KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

KS12R29S3CGD Overview

Pushbutton Switch, SPDT, On-(on), Vertical, 0.025A, 50VDC, 5 PCB Hole Cnt, Solder Terminal, Through Hole-straight

Parameter Name	Attribute value
Objectid	1166879303
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle
Actuator color	GRAY
Executor completed	MATTE
Actuator length	0.09 inch
Actuator material	POLYCARBONATE
Actuator stroke	0.7112 mm
Actuator type	PUSHBUTTON
Other features	INCLUDES LED SUPPORT
body width	10.3124 mm
body height	13.716 mm
Body length or diameter	12.3952 mm
center contact material	BERYLLIUM COPPER
Center contact plating	GOLD OVER SILVER
Contact (AC) maximum rated R load	0.025A@50VAC
Maximum contact current (AC)	0.025 A
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated power R load	0.4VA@20VDC
Contact (DC) maximum rated R load	0.025A@50VDC
Contact function	ON-(ON)
Contact resistance	0.05 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	50 V
Maximum contact voltage (DC)	50 V
Dielectric withstand voltage	1000VAC V
Electrical life	100000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	GLASS FILLED NYLON
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	65 °C
Minimum operating temperature	-30 °C
PCB hole count	5
Solderability	MIL-STD
surface mount	NO
Switch action	VERTICAL
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	GOLD/NICKEL
Terminal length	0.159 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
