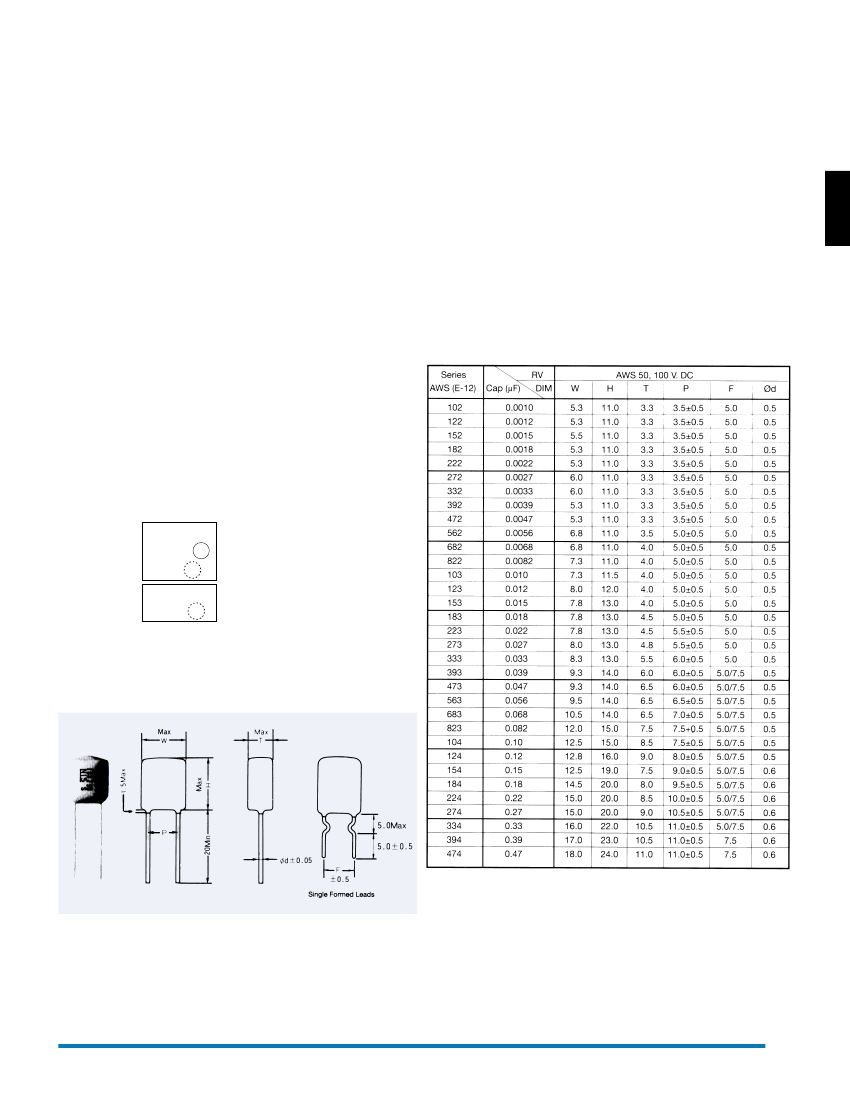

AWS SERIES
— MIXED DIELECTRIC, POLYESTER +
POLYPROPYLENE, CLOSE TOLERANCE
Electrical Specifications
Temp. Range
-40 to +85ºC
Rated Voltage
50V, 100V DC
Capacitance
0.001 to .47µF (E-24)
Cap. Tolerance
±2% (G), ±5% (J), ±10% (K)
tg
0.005 max. (at 1KHz)
Insulation Resistance
50,000 MΩ min.
Life Test
85ºC WV x 140% 1000 hours
∆c/c
<±2%
tg <.0056
IR >50KMΩ
Damp Heat
40ºC 90-95% RH WV 500 hours
∆c/c
< ±3%
tg <.006
IR >10KMΩ
Mechanical Characteristics
Construction
Polyester, Polypropylene Film,
Aluminum Electrodes, Welded
Leads, Epoxy Resin Vacuum
Impregnated.
Light Blue
Taped or Bulk. See page 11 for
taping specifications.
See page 14.
Color
Packaging
Part Number Sequence
Dimensions (mm)
Markings
102 to 822
472 K
N
50 A
104 J 50
NIS A
cap – tol
logo
voltage – date code
cap – tol – voltage
logo – date code
103 to 474
Drawings
33
NISSEI
NISSEI
PART NUMBER CODE SYSTEM
(1)
Type
(2)
Lead Internal
con fig use
uration
(3)
Rated
voltage
(4)
(5)
CapacitanceCapacitance
tolerance
value
Model
Code
(Standard
"0000")
(6)
Lead
dimension
/Packing
mode
(2)
Lead configuration code
Code
*1
(6)
Lead Dimensions Packing Mode code
*2
Typical Code Samples
0000
0050
F (mm)
Lead spacing
Code
0050
*3
0075
0100
0125
0150
Style
1
2
F (mm)
Lead spacing
17.5
20.0
22.5
25.0
27.5
Code
0175
0200
Lead spacing (F) after forming indicated as multiplied by 10.Always in bulk
0225
0250
0275
Code
0200
*4
D200
D210
D220
0200
0200
0200
(AMZ50V&
Straight leads taped and ammo-packed. See p.5 to 6.
AMC:C220)
Single / Double-formed leads taped and ammo-packed.
See p.5 to 6.
Description
No lead processing and always in bulk (0000)
Lead length multiplied by 10.Always in bulk
Lead configuration
Straight lead
Cut shorter (cut leads)
C
F
Single formed (leads)
5.0
7.5
10.0
D
Double formed (leads)
12.5
15.0
Type
V
Lead taping for automatic
insertion machine (Formed leads)
3
Formed leads type
4
5
6
S
Lead taping for automatic
insertion machine (Straight leads)
Straight leads type
*1 The blank square signifies a straight lead type.
*2 some types could bear different lead dimension codes, to be confirmed each case. As to reel packing, contact Nissei.
*3 a code Cap471 to 393 in Model Code "0000"of AMC type shall be "1050".
*4 a code Cap471 to 393 in Model Code "0000"of AMC type shall be "A210".
(3)
Rated Voltage
(V.d.c,V.a.c)
Voltage
Code
25
0025
35
0035
50
0050
63
0063
100
0100
125
0125
200
0200
250
0250
275
0275
315
0315
400
0400
450
0450
630
0450
800
0800
1000
1000
1250
1250
1600
1600
(4)
Capacitance Tolerance
Code
F
G
H
J
K
M
Tolerance (%) +/- 1 +/- 2 +/- 3 +/- 5 +/- 10 +/- 20
(5)
Capacitance Code
Capacitance (pF) expressed in 3-digit code.
The first two digits: Significant figures of capacitance value.
The third digit: The number of zeros to follow the significant figures.
Coding Sample
1) Coding of: AMZ 50V, 0.10 microF, +/-5%, SINGLE formed, taped and ammo-packed
AMZ V
(1)
(2) Internal
use
0050
(3)
J 104
(4)
(5)
0000
Model Code
(Standard
"0000")
0200
(6)
2) Coding of MMC 250V 1.0
μF
+/-10%, single formed with 15.0mm leads, in bulk
MMC F
(1)
(2) Internal
use
0250 K 105
(3)
(4)
(5)
0000
Model Code
(Standard
"0000")
0150
(6)
3) Coding have: MMT 50V 0.1 microF +/-5%, straight lead (in bulk)
MMT
(1)
(2) Internal
use
0050
(3)
J 104
(4)
(5)
0000
Model Code
(Standard
"0000")
0050
(6)
When using our capacitors, please consider the application notes on pages 8-15 and contact Nissei for any additional technical specifications relating to the limits of our performance
characteristics.
