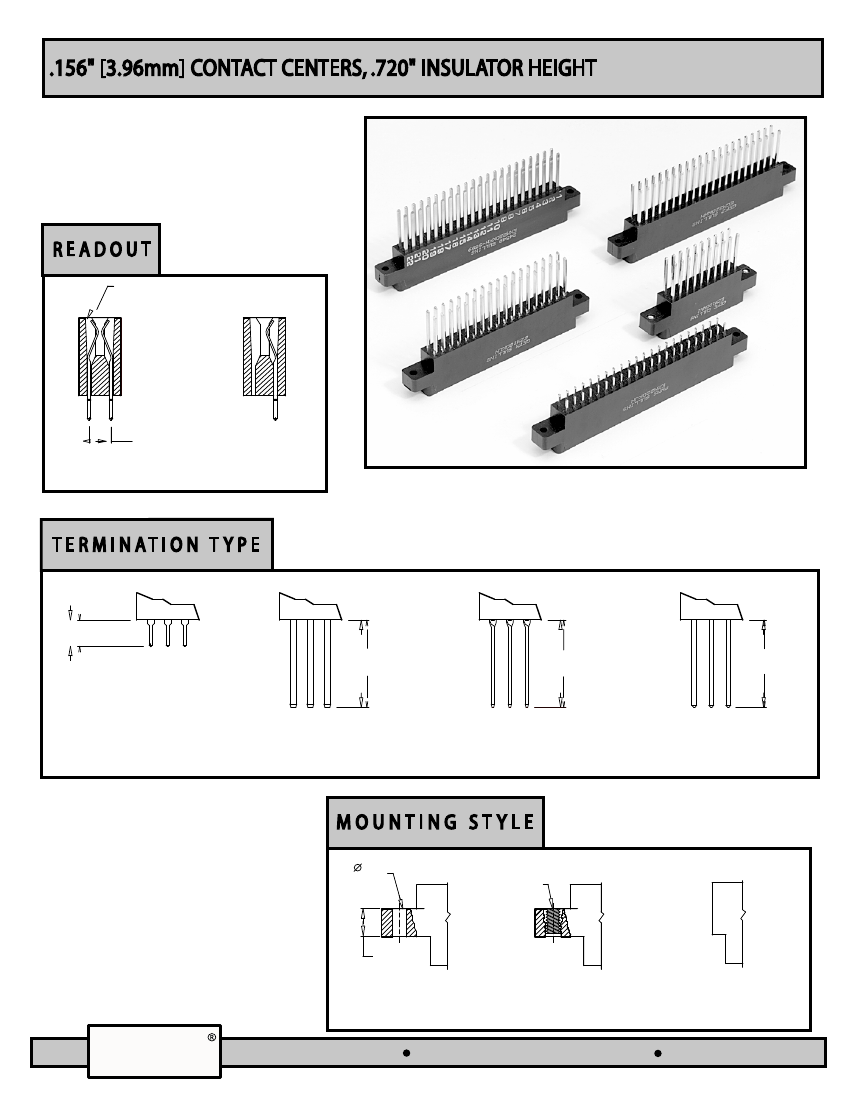

FEATURES
_
* Accommodates .062
+
.008" PC board
* PBT insulator
* Molded-in key available
* 3 amp current rating
* 10 milli ohm maximum at rated current
CANTILEVER
CONTACT
.188
[4.78]
DUAL (D)
HALF LOADED (H)
.225 [5.72]
.750
[19.05]
.750
[19.05]
.750
[19.05]
.031 [.79] SQUARE
POSTS, (KJ)
.031 x .062 [.79 x 1.57]
POSTS, (KK)
.031 x .062 [.79 x 1.57]
90ó TWISTED POSTS, (KL)
.045 [1.14] SQUARE POSTS
(WW)
.125
[3.18]
#4-40
.250
[6.35]
CLEARANCE
HOLE (H)
THREADED
INSERT (I)
NO MOUNTING
EARS (N)
68
s›’’Œ”™
PHONE 760.744.0125
www.SullinsElectronics.com
FAX 760.744.6081
E Z M 43 D KK H
MATERIALS (Insulator/Contact)
E = PBT/Phosphor Bronze (Standard)
Consult Factory for Other Materials
CONTACT FINISH
Contact Surface
Z = .000010" Gold
X = .000030" Gold
G = .000010" Gold
Y = .000030" Gold
Contact Surface
T = .000100" Tin
S = .000010" Gold
M = .000030" Gold
CONTACT CENTERS
M = .156" [3.96 mm]
Termination
.000100" Tin
.000100" Tin
.000005" Gold
.000005" Gold
Overall Plating
.000100" Tin
.000010" Gold
.000010" Gold
Underplate
.000050" Nickel
.000050" Nickel
.000050" Nickel
.000050" Nickel
Underplate
.000050" Nickel
.000050" Nickel
.000050" Nickel
MOUNTING STYLE (Opposite Page)
H = Clearance Hole
I = Threaded Inserts
N = No Mounting
TERMINATION TYPE (Opposite Page)
KJ = .031" [.79 mm] Square Post
KK = .031" [.79 mm] x .062" [1.58 mm] Post
KL = .031" [.79 mm] x .062" [1.58 mm] Post,
Twisted 90ó
WW = .045" [1.14 mm] Square Post
READOUT (Opposite Page)
D = Dual
H = Half Loaded
NUMBER OF CONTACT POSITIONS
06 Thru 43
Dimensions in [ ] are in millimeters, all others in inches.
E
D
B
C

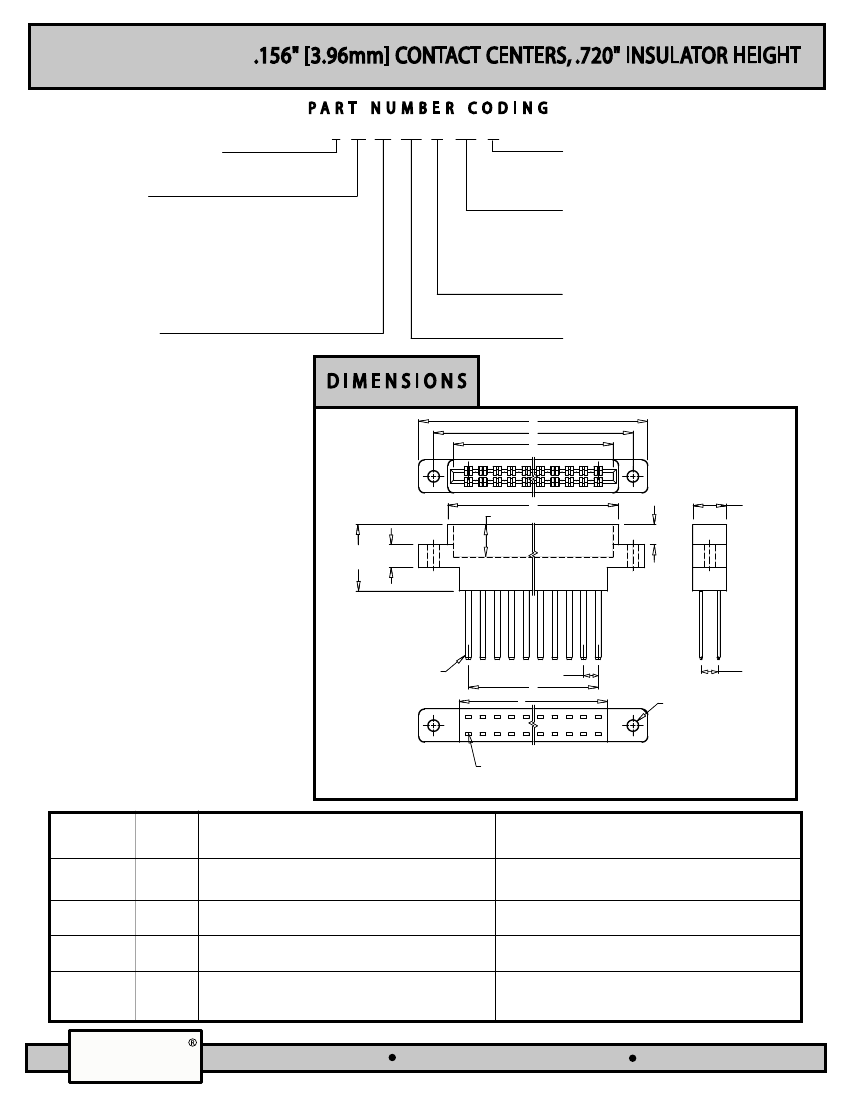

.350 INSERTION DEPTH [8.89]
.360
[9.14]
.216 [5.49]
.720
.250
[18.29]
[6.35]
REFER TO TERMINATION
TYPE
.156 TYP. [3.96]
A
F
2
1
4
3
6
5
8
7
10
9
92 94 96 98 100
91 93 95 97 99
.188
[4.76]
REFER TO MOUNTING
STYLE
*
Consult Factory for availability.
** For complete part number add readout,
termination type and mounting style from
Part Number Coding (e.g. EZM43DKKH).
NUMBER
OF
CONTACTS
6/12
10/20
12/24
15/30
18/36
22/44
25/50
28/56
30/60
31/62
36/72
43/86
50/100
INCHES
C
D
+.015
+.010
_
_
1.224
1.848
2.160
2.628
3.096
3.720
4.188
4.656
4.968
5.124
5.904
6.996
8.088
1.534
2.158
2.470
2.938
3.406
4.030
4.498
4.966
5.278
5.434
6.214
7.306
8.398
CONTACT MARKINGS
2 4 6 ... 96 98 100
1 3 5 ... 95 97 99
PART NUMBER**
A
+.008
_
0.780
1.404
1.716
2.184
2.652
3.276
3.744
4.212
4.524
4.680
5.460
6.552
7.644
B
+.008
_
1.100
1.724
2.036
2.504
2.972
3.596
4.064
4.532
4.844
5.000
5.780
6.872
7.964
E
+.020
_
1.784
2.408
2.720
3.188
3.656
4.280
4.748
5.216
5.528
5.684
6.464
7.556
8.648
F
+ .015
_
0.980
1.604
1.916
2.384
2.852
3.476
3.944
4.412
4.724
4.880
5.660
6.752
7.844
A
+
_ 0.20
19.81
35.66
43.59
55.47
67.36
83.21
95.10
106.98
114.91
118.87
138.68
166.42
194.16
B
+ 0.20
_
27.94
43.79
51.71
63.60
75.49
91.34
103.23
115.11
123.04
127.00
146.81
174.55
202.29
MILLIMETERS
C
D
+ 0.38
+ 0.25
_
_
31.09
46.94
54.86
66.75
78.64
94.49
106.38
118.26
126.19
130.15
149.96
177.70
205.44
38.96
54.81
62.74
74.63
86.51
102.36
114.25
126.14
134.06
138.02
157.84
185.57
213.31
E
+ 0.51
_
45.31
61.16
69.09
80.98
92.86
108.71
120.60
132.49
140.41
144.37
164.19
191.92
219.66
F
+ 0.38
_
24.89
40.74
48.67
60.55
72.44
88.29
100.18
112.06
119.99
123.95
143.76
171.50
199.24
EZM06 _ _ _
EZM10 _ _ _
EZM12 _ _ _
EZM15 _ _ _
EZM18 _ _ _
EZM22 _ _ _
EZM25 _ _ _*
EZM28 _ _ _
EZM30 _ _ _
EZM31 _ _ _
EZM36 _ _ _
EZM43 _ _ _
EZM50 _ _ _*
s›’’Œ”™
PHONE 760.744.0125
www.SullinsElectronics.com
FAX 760.744.6081
69
