EYA15DRXI datasheet, PDF - EEWORLD Datasheet

EYA15DRXI: DescriptionCard Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.125 inch Pitch, Solder Terminal, Blue Insulator, Receptacle; File Size247KB，3 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

EYA15DRXI Overview

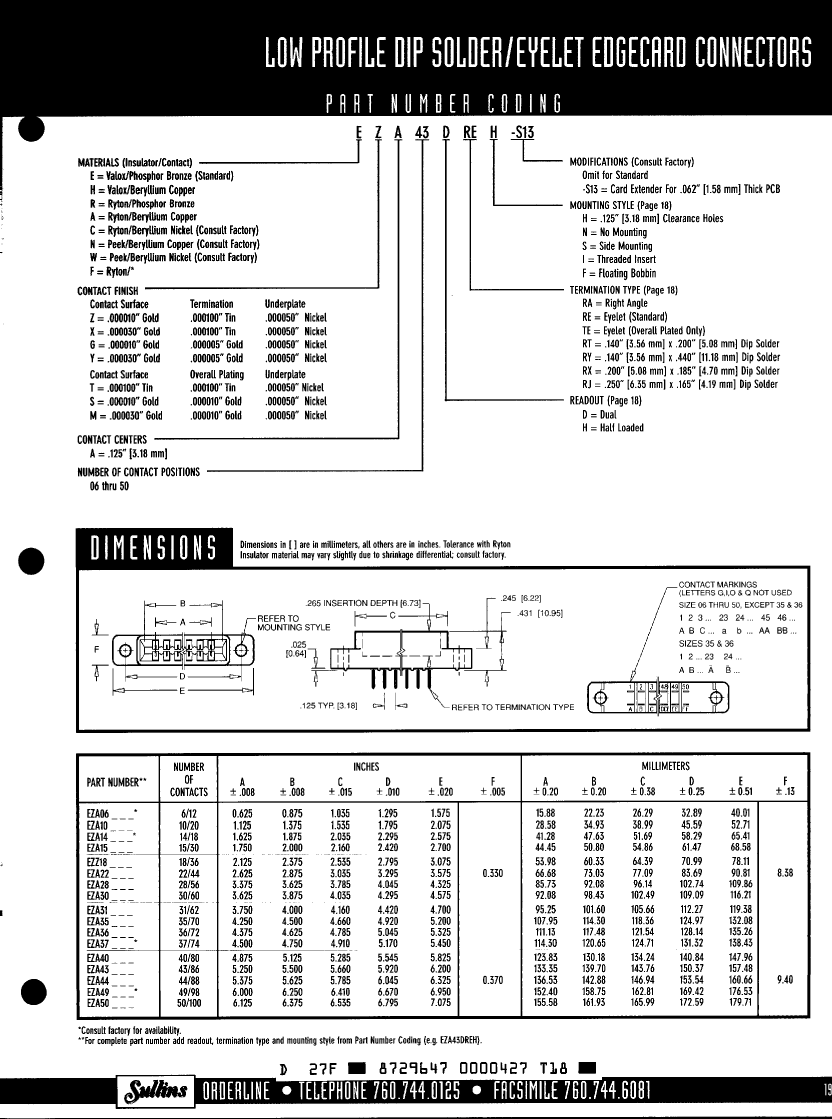

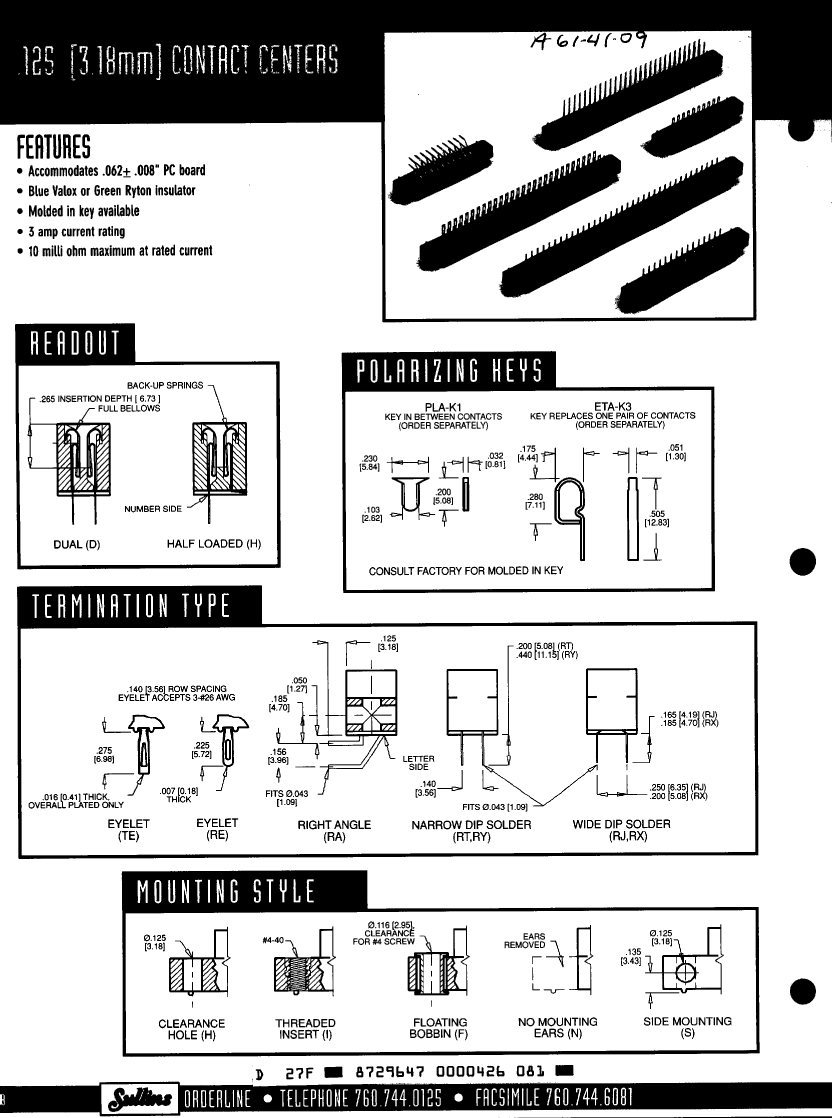

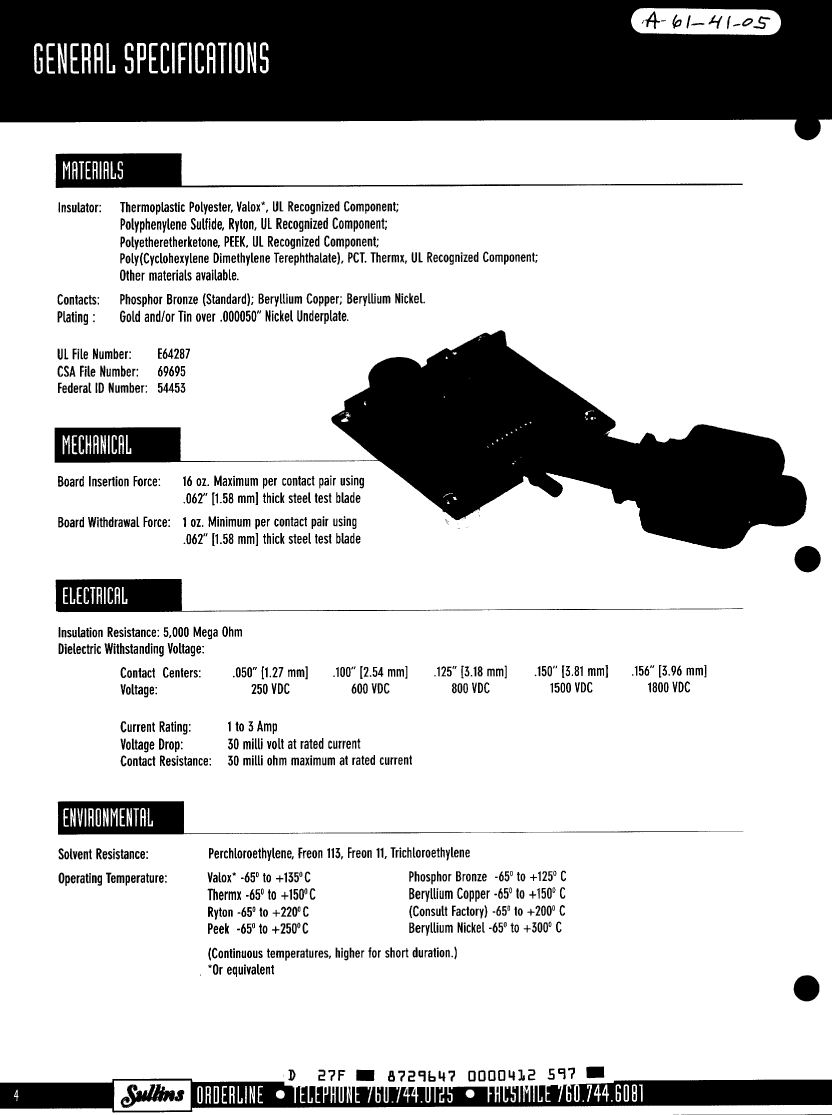

Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.125 inch Pitch, Solder Terminal, Blue Insulator, Receptacle

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1157375606
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.2
Other features	NONE
Board mount options	#4-40 THD HOLE
body width	0.33 inch
subject depth	0.431 inch
body length	2.7 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	800VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	POLYESTER
JESD-609 code	e4
Plug contact pitch	0.125 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	135 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
Terminal length	0.185 inch
Terminal pitch	3.175 mm
Termination type	SOLDER
Total number of contacts	30
