0.5 mm Pitch, 1.0 mm above the board Top and Bottom Contact, Back-Flip
actuator Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
FH34(S)Series
Increased FPC/FFC holding force
Space saving (30 pos. shown)
Actuator
Metal fittings
1.0mm
17m
m
3.2mm
Easy FPC/FFC insertion
Back opening rotating
17
mm
Top contacts
All four
sides are
chamfered.

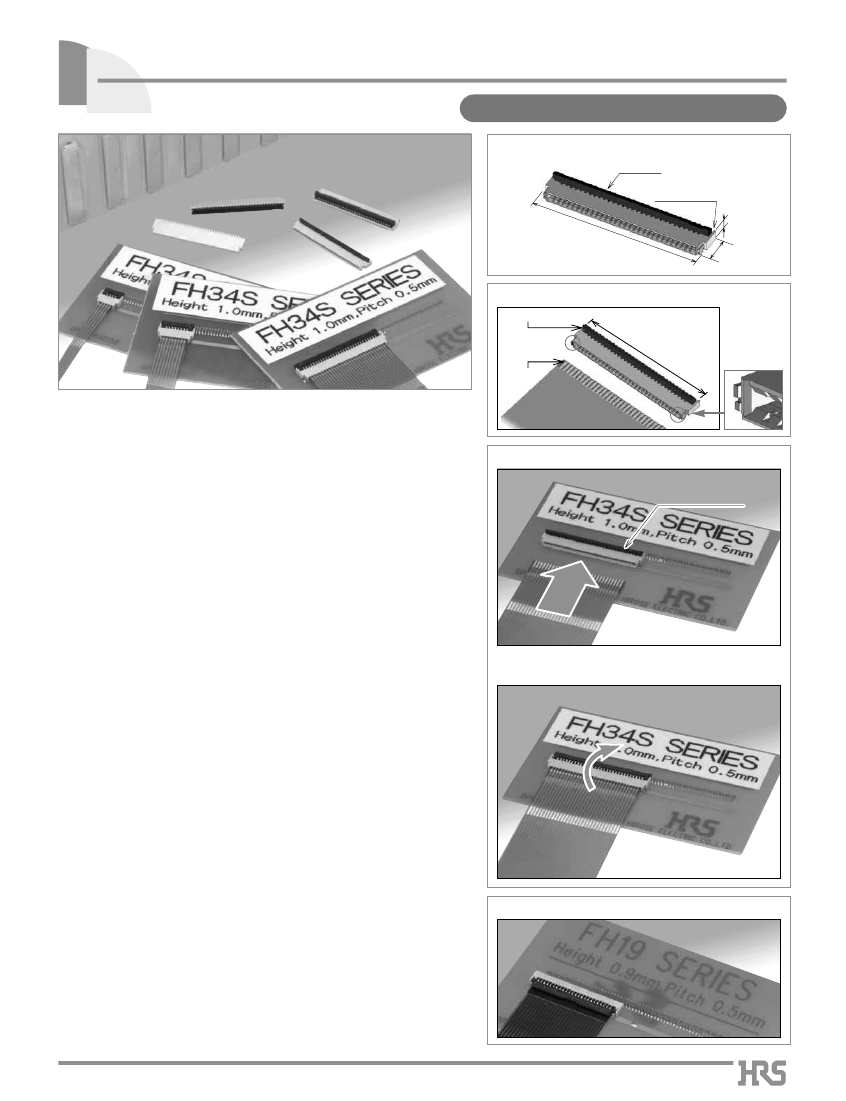

sFeatures
1. Low-profile
With the 1.0 mm above the board and width of 3.8 mm the
connectors are used in space saving applications.
FP
C
/F
FC
Ready to insert FPC/FFC
Delivered with
the actuator open
2. Increased FPC/FFC retention
As compared with existing similar construction connectors:
* In horizontal direction: Approximately 2.6 times
* In vertical direction: Approximately 2 times
3. Unique Back-Flip rotating actuator
The rotating actuator opens from the back of the connector,
assuring reliable electrical and mechanical connection.
4. Easy FPC insertion and reliable electrical connection
Proven Flip Lock actuator allows easy insertion of FPC and
provides a tactile sensation when fully closed, confirming
complete electrical and mechanical connection.
FPC
FPC/FFC inserted and retained.
Completed electrical and mechanical connection.
5. Delivered with the actuator open
FPC/FPC can be immediately inserted without the need for the
opening of the actuator.
6. Accepts standard FPC thickness
0.3mm thick standard Flexible Printed Circuit (FPC) can be used.
This is the only ultra-low profile ZIF connector using standard
FPC.
7. Compatible with existing connectors.
FPC/FFC and PCB mounting patterns are the same as for the
FH19SC Series (bottom contact), allowing the use of both
connectors for interconnections between two boards or replacement
of the connectors.
8. Conductive traces on the PCB can run under
the connector
No exposed contacts on the bottom of the connector.
9. Board placement with automatic equipment
Flat upper surface and tape and reel packaging facilitate vacuum
pick-up and placement.
Standard reel packaging contains 5000 connectors.
Compatible with existing connectors.(FH19SC SERIES)
10.Halogen-free
*
(FH34SJ,FH34SW,FH34SRJ)
*As defined by IEC61249-2-21
Br-900ppm maximum, Cl-900ppm maximum, Cl + Br combined-1,500ppm maximum
2012.3
1
FH34(S)Seriesq0.5 mm Pitch, 1.0 mm above the board Top and Bottom Contact, Back-Flip actuator Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
sSpecifications
Current rating 0.5 A (Note 1)
Ratings
Voltage rating 50 Vrms AC
Recommended FPC/FFC
Operating temperature range:
-55 to +85°C (Note 1)
Operating humidity range:
Relative humidity 90% max. (No condensation)
Storage temperature range:
-10 to +50°C (Note 2)
Storage humidity range:
Relative humidity 90% max. (No condensation)
Thickness: 0.3 ± 0.03 mm, Gold plated contact pads
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Durability
5. Vibration
Specification
500 Mø min.
No flashover or insulation breakdown
100 mø max.
* Including FPC and FFC conductor resistance
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or longer
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
No electrical discontinuity of 1µs or longer
Contact resistance: 100 mø max.
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
Insulation resistance: 50 Mø min.
No damage, cracks, or parts dislocation
Contact resistance: 100 mø max.
Insulation resistance: 50 Mø min.
No damage, cracks, or parts dislocation
No deformation of components affecting performance
Conditions
100 V DC
250 Vrms AC / one minute
1 mA, AC / DC 20mV max (AC: 1kHz)
20 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75
mm, 10 cycles in each of the 3 axis
Acceleration of 981m/s
2
, 6 ms duration, sine half-
wave, 3 cycles in each of the 3 axis
96 hours at 40°C and humidity of 90 to 95%
Temperature : -55°C
/
+15°C to +35°C/+85°C
/
+15°C to +35°C
Time:
30
/
2 to 3
/
30
/
2 to 3 minutes
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350°C ±5°C for 5 seconds (Note 3)
6. Shock
7. Humidity (Steady state)
8. Temperature cycle
9. Resistance to soldering heat
Note1: When passing the current through all of the contacts, use 70% of the rated current.
Note2: Includes temperature rise caused by current flow.
Note3: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in storage, shipment or
during transportation after board mounting.
Note4: Information contained in this catalog represents general requirements for this Series.
Contact us for the drawings and specifications for a specific part number shown.
sMaterials
Part
Material
Finish
FH34S series
Color:Beige
FH34SJ series
FH34SW series
FH34SR series
Color:Gray
FH34SRJ series
FH34S series
FH34SJ series
Color:Black
FH34SR series
FH34SRJ series
FH34SW series
Color:Light brown
FH34SJ series
Color:Black
FH34SR series
Gold plating with nickel barrier
Pure tin reflow plating
Remarks
LCP
UL94V-0
Insulator
PA
UL94HB
UL94V-0
-------
-------
LCP(8pos.)
Contacts
Metalfittings
Phosphor bronze
Phosphor bronze
sOrdering
information
FH 34S J - 30S - 0.5 SH (50)
1
1
Series name : FH
2
Series No.
: 34S
3
Blank : Standard
J
W
R
RJ
: Top contact, Halogen-free
(Flame retardance UL94V-0).
: Top contact, Halogen-free
(Flame retardance UL94HB).
: Bottom contact
: Bottom contact, halogen-free
(Flame retardance UL94V-0).
2
3
4
5
6
7
4
Number of positions : 4 to 34
5
Contact pitch : 0.5mm
6
Termination type
SH : SMT horizontal mounting type
7
Plating specifications
(50)…Gold plating with nickel barrier
2
FH34(S)Seriesq0.5 mm Pitch, 1.0 mm above the board Top and Bottom Contact, Back-Flip actuator Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
sConnector
Dimensions
A±0.15
B
0.5
∞Number of contacts
(0.15)
0.15 H
H
Number of contacts indicator
Cav No.
(1.95)
(3.2)
(3.8)
2.9
1±0.1
(1.75)
1
HRS mark
Note 1 : The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
Note 2 : Packaged on tape and reel only. Check packaging specification.
Note 3 : Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
Note 4 : After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
Part Number
FH34S-4S-0.5SH(50)
FH34S-6S-0.5SH(50)
FH34S-7S-0.5SH(50)
FH34S-8S-0.5SH(50)
FH34S-11S-0.5SH(50)
FH34S-14S-0.5SH(50)
FH34S-16S-0.5SH(50)
FH34S-20S-0.5SH(50)
FH34S-22S-0.5SH(50)
FH34S-23S-0.5SH(50)
FH34S-24S-0.5SH(50)
FH34S-26S-0.5SH(50)
FH34S-30S-0.5SH(50)
FH34S-32S-0.5SH(50)
FH34S-34S-0.5SH(50)
FH34SJ-4S-0.5SH(50)
FH34SJ-6S-0.5SH(50)
FH34SJ-8S-0.5SH(50)
FH34SJ-30S-0.5SH(50)
FH34SW-4S-0.5SH(50)
FH34SW-12S-0.5SH(50)
FH34SR-22S-0.5SH(50)
FH34SRJ-4S-0.5SH(50)
FH34SRJ-6S-0.5SH(50)
FH34SRJ-8S-0.5SH(50)
CL No.
580-1203-2-50
580-1205-8-50
580-1224-2-50
580-1204-5-50
580-1213-6-50
580-1206-0-50
580-1211-0-50
580-1217-7-50
580-1216-4-50
580-1228-3-50
580-1210-8-50
580-1212-3-50
580-1201-7-50
580-1208-6-50
580-1207-3-50
580-1237-4-50
580-1234-6-50
580-1235-9-50
580-1239-0-50
580-1225-5-50
580-1233-3-50
580-1240-9-50
580-1238-7-50
580-1236-1-50
580-1231-8-50
Number of Contacts
4
6
7
8
11
14
16
20
22
23
24
26
30
32
34
4
6
8
30
4
12
22
4
6
8
A
4
5
5.5
6
7.5
9
10
12
13
13.5
14
15
17
18
19
4
5
6
17
4
8
13
4
5
6
B
1.5
2.5
3
3.5
5
6.5
7.5
9.5
10.5
11
11.5
12.5
14.5
15.5
16.5
1.5
2.5
3.5
14.5
1.5
5.5
10.5
1.5
2.5
3.5
C
2.53
3.53
4.03
4.53
6.03
7.53
8.57
10.57
11.57
12.07
12.57
13.57
15.57
16.53
17.53
2.53
3.53
4.53
15.57
2.53
6.53
11.57
2.53
3.53
4.53
D
3.38
4.38
4.88
5.38
6.88
8.38
9.38
11.38
12.38
12.88
13.38
14.38
16.38
17.38
18.38
3.38
4.38
5.38
16.38
3.38
7.38
12.38
3.38
4.38
5.38
Tape and reel packaging (5,000 pieces/reel).
Order by number of reels.
A * *
(0.15)
(C)
D±0.1
0.5
2.9
0.1
0.3
3
FH34(S)Seriesq0.5 mm Pitch, 1.0 mm above the board Top and Bottom Contact, Back-Flip actuator Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
sRecommended
PCB mounting pattern and metal mask dimensions
Recommended metal mask thickness: t=0.1
0.65±0.03
(Metal mask)
B
J
(0.25)
(0.25)
(0.15)
(2.9)
0.5
∞Number of contacts
0.3±0.05
0.1 J
0.25±0.03
(Metal mask)
0.8±0.05
3.3±0.05
0.8±0.05
(0.065)
(0.185)
E±0.1
F±0.1
(A)
sRecommended
FPC/FFC Dimensions
G±0.05
0.5±0.07
0.5±0.03
0.
2
B±0.03
2-
0.3±0.03
R
0.3±0.03
(Uncover area)
Note 1 : Stiffener dimension should be 2.5mm min., and H dimension should be 0.5mm for improved flexibility of FPC.
Note 2 : When using the FPC/FFC in FH34S or FH19SC connectors, the exposed area inserted in either connector is 2.5mm ±
0.3mm and the stiffener is 3.5mm min.
All dimensions: mm
F
G
2.5
3.9
3.5
4.9
4
5.4
4.5
5.9
6
7.4
7.5
8.9
8.5
9.9
10.5
11.9
11.5
12.9
12
13.4
12.5
13.9
13.5
14.9
15.5
16.9
16.5
17.9
17.5
18.9
2.5
3.9
3.5
4.9
4.5
5.9
15.5
16.9
2.5
3.9
6.5
7.9
11.5
12.9
2.5
3.9
3.5
4.9
4.5
5.9
Part Number
FH34S-4S-0.5SH(50)
FH34S-6S-0.5SH(50)
FH34S-7S-0.5SH(50)
FH34S-8S-0.5SH(50)
FH34S-11S-0.5SH(50)
FH34S-14S-0.5SH(50)
FH34S-16S-0.5SH(50)
FH34S-20S-0.5SH(50)
FH34S-22S-0.5SH(50)
FH34S-23S-0.5SH(50)
FH34S-24S-0.5SH(50)
FH34S-26S-0.5SH(50)
FH34S-30S-0.5SH(50)
FH34S-32S-0.5SH(50)
FH34S-34S-0.5SH(50)
FH34SJ-4S-0.5SH(50)
FH34SJ-6S-0.5SH(50)
FH34SJ-8S-0.5SH(50)
FH34SJ-30S-0.5SH(50)
FH34SW-4S-0.5SH(50)
FH34SW-12S-0.5SH(50)
FH34SR-22S-0.5SH(50)
FH34SRJ-4S-0.5SH(50)
FH34SRJ-6S-0.5SH(50)
FH34SRJ-8S-0.5SH(50)
1.5±0.3
CL No.
580-1203-2-50
580-1205-8-50
580-1224-2-50
580-1204-5-50
580-1213-6-50
580-1206-0-50
580-1211-0-50
580-1217-7-50
580-1216-4-50
580-1228-3-50
580-1210-8-50
580-1212-3-50
580-1201-7-50
580-1208-6-50
580-1207-3-50
580-1237-4-50
580-1234-6-50
580-1235-9-50
580-1239-0-50
580-1225-5-50
580-1233-3-50
580-1240-9-50
580-1238-7-50
580-1236-1-50
580-1231-8-50
Number of Contacts
4
6
7
8
11
14
16
20
22
23
24
26
30
32
34
4
6
8
30
4
12
22
4
6
8
A
4
5
5.5
6
7.5
9
10
12
13
13.5
14
15
17
18
19
4
5
6
17
4
8
13
4
5
6
B
1.5
2.5
3
3.5
5
6.5
7.5
9.5
10.5
11
11.5
12.5
14.5
15.5
16.5
1.5
2.5
3.5
14.5
1.5
5.5
10.5
1.5
2.5
3.5
2.5MIN(Stiffener)
H
(0.15)
E
3.1
4.1
4.6
5.1
6.6
8.1
9.1
11.1
12.1
12.6
13.1
14.1
16.1
17.1
18.1
3.1
4.1
5.1
16.1
3.1
7.1
12.1
3.1
4.1
5.1
4
FH34(S)Seriesq0.5 mm Pitch, 1.0 mm above the board Top and Bottom Contact, Back-Flip actuator Flexible Printed Circuit & Flexible Flat Cable ZIF Connectors
sRecommended

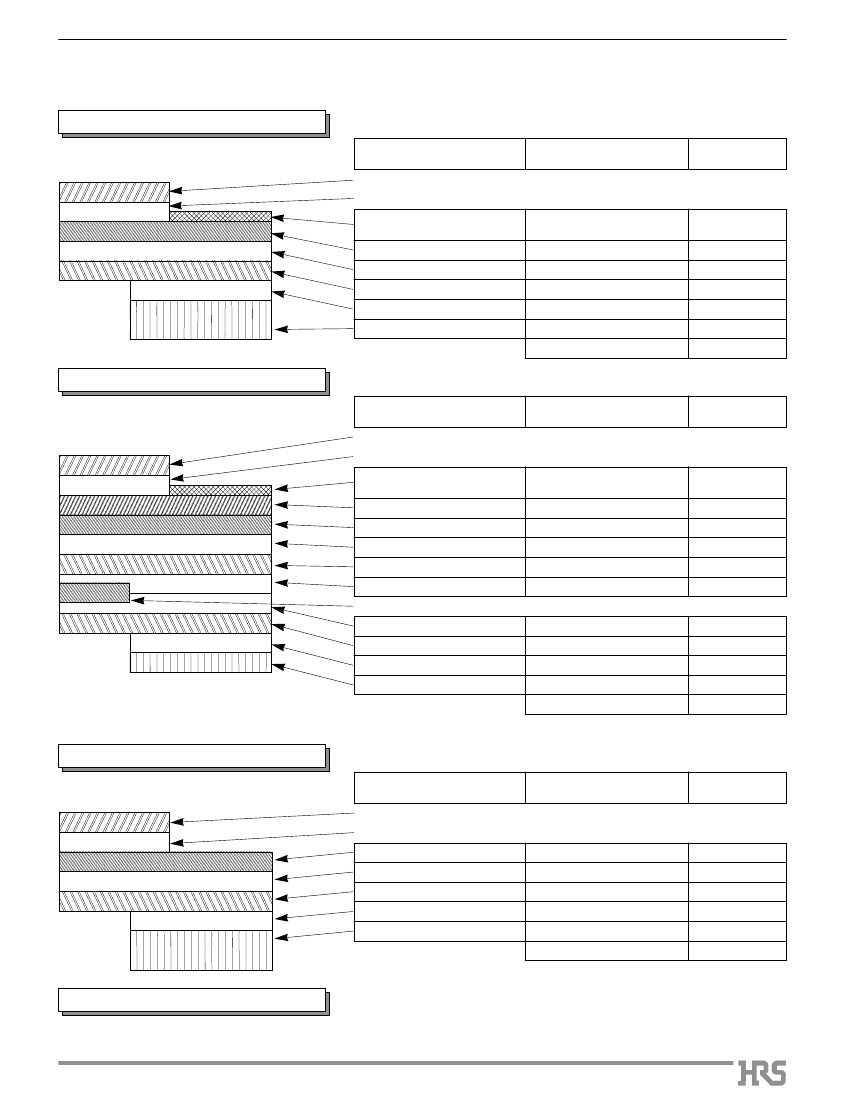

FPC construction
q
Contact FPC manufacturer for specific details.
1. Using Single-sided FPC
FPC : Flexible Printed Circuit
Material Name
Covering film layer
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
0.2µm thick gold plated over 1
to 5µm thick nickel underplating
Cu
1oz
Polyimide
Material
1 mil thick
Material Thickness
(µm)
(25)
(25)
3
35
25
25
35
175
298
Thermosetting adhesive
Polyimide
1 mil thick
Reinforcement material adhesive Thermosetting adhesive
Stiffener
Polyimide
Total
7 mil thick
2. Using Double-sided FPC
FPC : Flexible Printed Circuit
Material Name
Covering layer film
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering film layer
Reinforcement material adhesive
Stiffener
Cu
1/2oz
0.2µm thick gold plated over 1
to 5µm thick nickel underplating
Cu
Cu
1/2oz
Polyimide
Material
1 mil thick
Material Thickness
(µm)
(25)
(25)
3
15
18
18
25
18
(18)
25
25
50
100
297
Thermosetting adhesive
Polyimide
1 mil thick
Thermosetting adhesive
Polyimide
1 mil thick
Thermosetting adhesive
Polyimide
Total
4 mil thick
* To prevent release of the FPC due to its bending, use of the double sided FPC with copper foil on the back side is NOT RECOMMENDED.
3. Using FFC
FFC : Flexible Flat Cable
Material Name
Polyester film
Adhesive
Gold plated annealed copper foil
Adhesive
Polyester
Adhesive
Stiffener
Polyester
Polyester
Total
Polyester
Thermoplastic polyester
Material
Material Thickness
(µm)
(12)
(30)
35
30
12
30
188
295
4. Precautions
1. This specification is a recommendation for the construction of the FH34S Series FPC and FFC (t=0.3 ± 0.03).
2. For details about the construction, please contact the FPC/FFC manufacturers.
[i=s]This post was last edited by mmmllb on 2015-3-10 10:00[/i] But it's so expensive...[size=2]Sports:[/size][size=2]Starting from 2588. [/size] [size=2]The Sport series case is made of lightweight s...
I often find that the forum is attacked, and sometimes the website cannot be accessed. What’s going on?And when I click this,appearsTemplate file: /Data/webapps/home/my/./template//showmessage.htm Not...
I am now debugging the TCC7901 chip board in TELECHIPS. TCC7901 has 6 PORTs but only 4 channels. My boss wants me to use all 4 channels in 2.2 BSP. However, 2.2 BSP uses CH0 and CH2 for debugging and ...
I have been planning to make a quadcopter for a long time, but due to the high cost, I have only been collecting information and have not been able to start. This time, I was fortunate to see the DIY ...
SAM4E has many counting clocks, among which there is a real-time clock RTT (Real-time Timer), which is a 32-bit counter with a programmable 16-bit prescaler. There are two clock sources, namely the sl...
A single-chip microcomputer is also called a single-chip microcontroller. It is not a chip that completes a certain logical function, but a computer system integrated into one chip. In general, a c...[Details]
1 Introduction
The high temperature tester is mainly used for temperature tracking measurement and data acquisition during the heating process. By systematically analyzing the test data, the...[Details]
Instrument stepper motor
The stepper motor is an open-loop control element that converts electrical pulse signals into angular displacement or linear displacement. In the case of non...[Details]
1. With the development of modern industry and the continuous improvement of automation, some medium and large control systems have been greatly facilitated, which not only makes control easier, bu...[Details]
I. Introduction
Since RS232 has a short communication distance (only 15 meters according to EAT/TAI-232 standard), and can only perform point-to-point communication, it cannot directly f...[Details]
1 Introduction
PROFIBUS is an international, open, and manufacturer-independent fieldbus standard. It is widely used in manufacturing automation, process industry automation, and automatio...[Details]
The potentiometer is an adjustable electronic component. The main functions of the potentiometer in the circuit are as follows:
1. Used as a voltage divider
A potentiometer is a continuou...[Details]
Digital array radar (DAR) uses digital beam forming (DBF) in both receiving and transmitting modes to achieve flexible distribution and reception of RF signal power in the airspace, obtain excellent t...[Details]
TC9012F is a universal CMOS large-scale integrated circuit for infrared remote control signal transmission, suitable for remote control of TV, VTR, laser player and other equipment. In the market, ...[Details]
Today, with energy becoming increasingly scarce, the utilization of natural energy has become the focus of people's attention. Among various natural energies, the endless solar energy is highly fav...[Details]
Introduction
In industrial control, speed measurement is often required. Generally, a contact tachometer is used. This tachometer must be placed against the center of the shaft to measure. It...[Details]
0 Introduction
Under normal circumstances, the three-phase power in the power system is symmetrical, and they meet certain amplitude and phase conditions; but when the load changes, the syst...[Details]
Traditional
virtual instruments
consist of a data acquisition
board
based on PCI bus and
corresponding software. However, with
the rapid development of
computer
network techno...[Details]
introduction
When it comes to the production of mobile phone lithium-ion batteries, the first thing that comes to mind is Japan's industrialized mechanical assembly line, NOKIO, MOTOLROLA's st...[Details]
introduction
Belt drive is a common transmission device used in industrial production. Its commonly used speed detection device is a photoelectric encoder installed at the rotating end of th...[Details]
_pdf/pg_0001.png)
Talking
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
