M8340102K2743FBDSL datasheet, PDF

Datasheet> All Categories > M8340102K2743FBDSL

M8340102K2743FBDSL: DescriptionRESISTOR, NETWORK, FILM, BUSSED, 1.5 W, THROUGH HOLE MOUNT, DIP; File Size98KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

M8340102K2743FBDSL Overview

RESISTOR, NETWORK, FILM, BUSSED, 1.5 W, THROUGH HOLE MOUNT, DIP

M8340102K2743FBDSL Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1993712898
package instruction	DIP, 8531
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.15
structure	Epoxy Molded
Component power consumption	0.1 W
The first element resistor	274000 Ω
JESD-609 code	e0
Lead length	3.3 mm
lead spacing	2.54 mm
Manufacturer's serial number	M83401
Installation features	THROUGH HOLE MOUNT
Network Type	BUSSED
Number of components	15
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	3.05 mm
Package length	21.59 mm
Package shape	RECTANGULAR PACKAGE
Package form	DIP
Package width	6.35 mm
method of packing	TUBE
Rated power dissipation(P)	1.5 W
Rated temperature	70 °C
Guideline	MIL-PRF-83401
resistance	274000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	MDM(MILITARY M83401)
size code	8531
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal shape	FLAT
Tolerance	1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

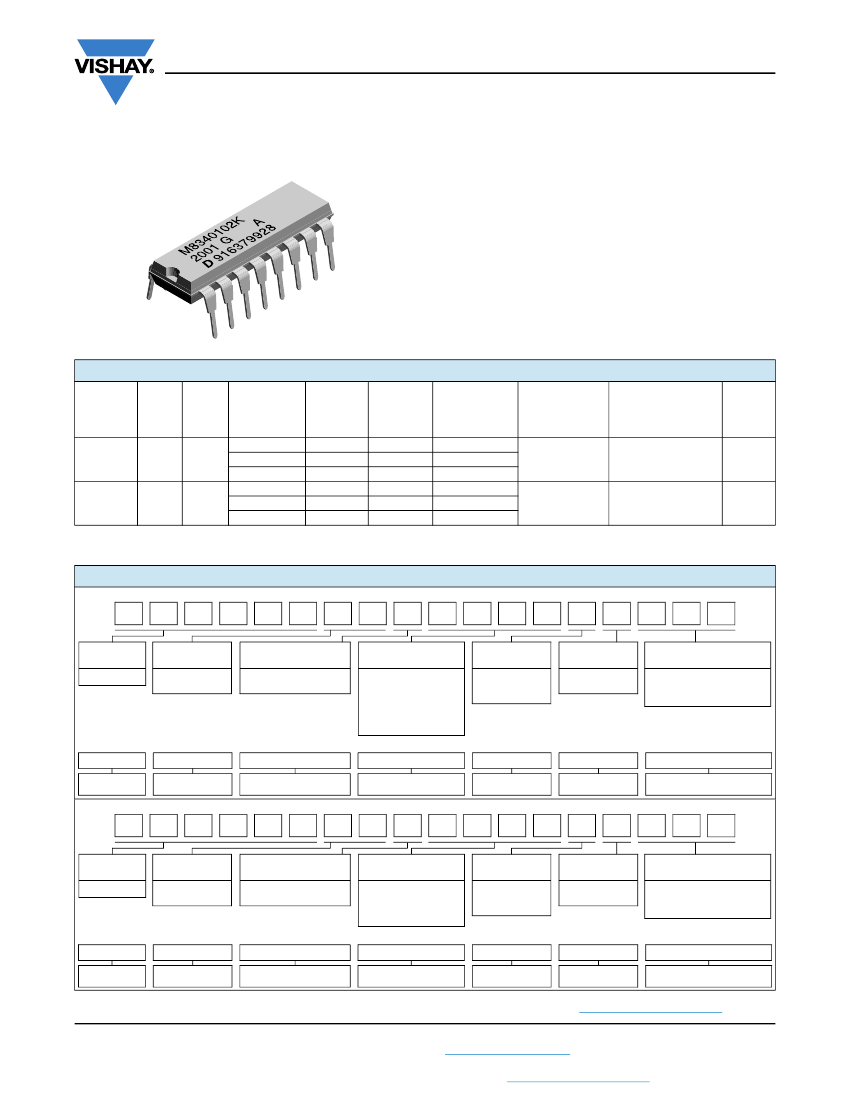

MDM (Military M83401/01 and /02)

www.vishay.com

Vishay Dale

Thick Film Resistor Networks, Military, MIL-PRF-83401 Qualified,

Type RZ010 and RZ020 Dual-In-Line, Molded DIP

FEATURES

Isolated, bussed and dual terminator schematics available

MIL-PRF-83401 qualified

Epoxy molded construction

All device leads are hot-solder dipped

Available in tube pack

TCR available in “K” (± 100 ppm/°C) or “M” (± 300 ppm/°C)

depending on style

• 100 % screen tested per group A, subgroup 1 of

MIL-PRF-83401

• All devices are capable of passing the MIL-STD-202,

method 210, condition D, “Resistance to Soldering Heat”

test

•

STANDARD ELECTRICAL SPECIFICATIONS

POWER

VISHAY

RATING

MIL

RATING

RESISTANCE TOLERANCE

(2)

MIL

DALE

SPEC. SCHEMATIC ELEMENT PACKAGE

RANGE

MODEL/



STYLE SHEET

±%

70 °C



PIN NO.

01 (B)

0.10

1.30

10 to 1M

MDM14

RZ010

03 (A)

0.20

1.40

10 to 1M

1, 2, 5

05 (J)

0.05

1.20

Consult factory

01 (B)

0.10

1.50

10 to 1M

MDM16

RZ020

03 (A)

0.20

1.60

10 to 1M

1, 2, 5

05 (J)

0.05

1.40

Consult factory

Notes

(1)

K = ± 100 ppm/°C; M = ± 300 ppm/°C

(2)

± 2 % standard, ± 1 % and ± 5 % available

TEMPERATURE

COEFFICIENT

(1)

(-55 °C to +125 °C)

± ppm/°C

100, 300

WEIGHT

1.3

100, 300

1.5

GLOBAL PART NUMBER INFORMATION

New Global Part Numbering: M8340101M2201GBD04 (preferred part numbering format)

MIL STYLE

RESISTANCE

TOLERANCE

VALUE

=±1%

M83401

= 14 pin

= 100 ppm

3 digit significant

=±2%

= 16 pin

= 300 ppm

figure, followed

=±5%

by a multiplier

10R0

= 10



3302

= 33 k

1004

= 1 M

Historical Part Number Example: M8340101M2201GB (will continue to be accepted)

SPEC SHEET

CHARACTERISTIC

M83401

SPEC SHEET

CHARACTERISTIC

2201

RESISTANCE

VALUE

TOLERANCE

SCHEMATIC

= Isolated

= Bussed

PACKAGING

D04

= Tin/lead, tube

DSL

= Tin/lead, tube,

single lot date code

SCHEMATIC

D04

PACKAGING

MIL STYLE

New Global Part Numbering: M8340102KA001GJD04 (preferred part numbering format)

MIL STYLE

RESISTANCE

TOLERANCE

VALUE

=±1%

M83401

= 14 pin

= 100 ppm

Per Std.

=±2%

= 16 pin

= 300 ppm

MIL. Spec.

=±5%

(see Impedance

Codes table)

Historical Part Number Example: M8340102KA001GJ (will continue to be accepted)

SPEC SHEET

CHARACTERISTIC

M83401

SPEC SHEET

CHARACTERISTIC

A001

RESISTANCE

VALUE

TOLERANCE

SCHEMATIC

= Dual

terminator

PACKAGING

D04

= Tin/lead, tube

DSL

= Tin/lead, tube,

single lot date code

SCHEMATIC

D04

PACKAGING

MIL STYLE

Note

• For additional information on packaging, refer to the Through-Hole Network Packaging document (www.vishay.com/doc?31542).

Revision: 12-Sep-13

Document Number: 31516

For technical questions, contact:

ff2aresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000
