5027908091 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5027908091

Preview

5027908091: Descriptionconn .5mm fpc 80pos zif dbl smd; CategoryThe connector; File Size351KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Compare View All

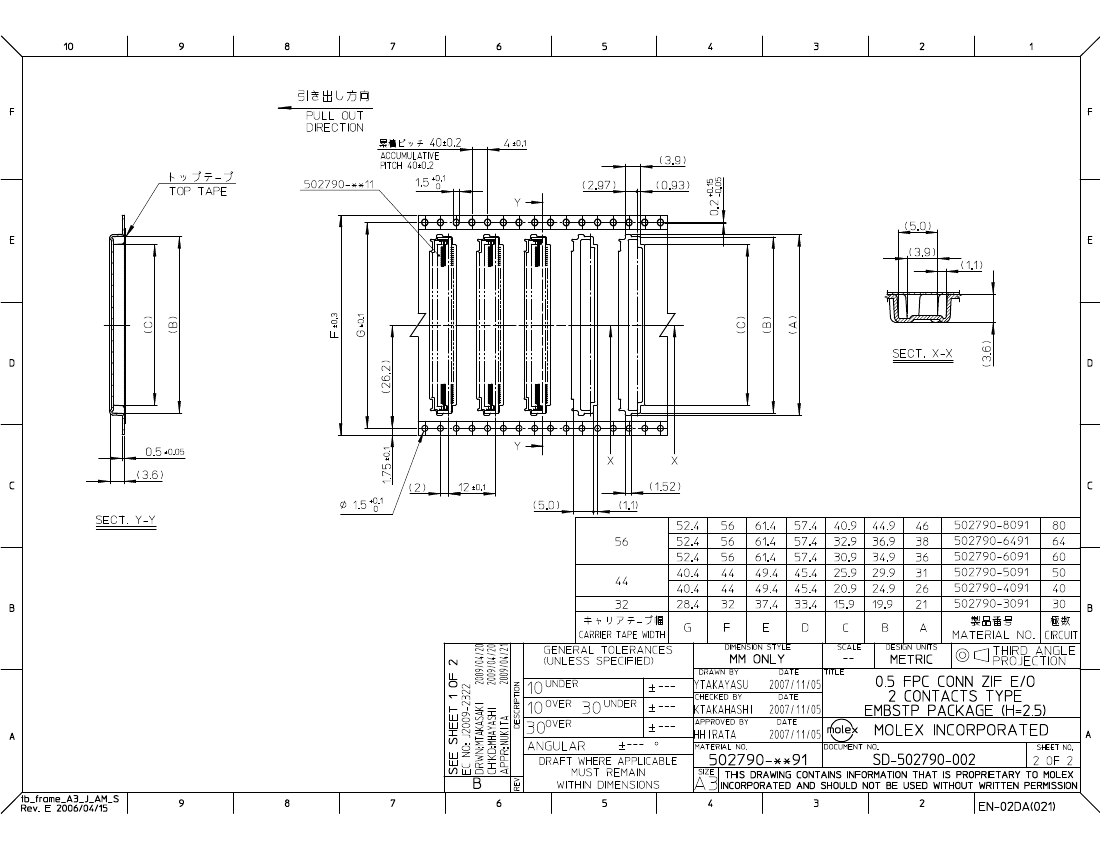

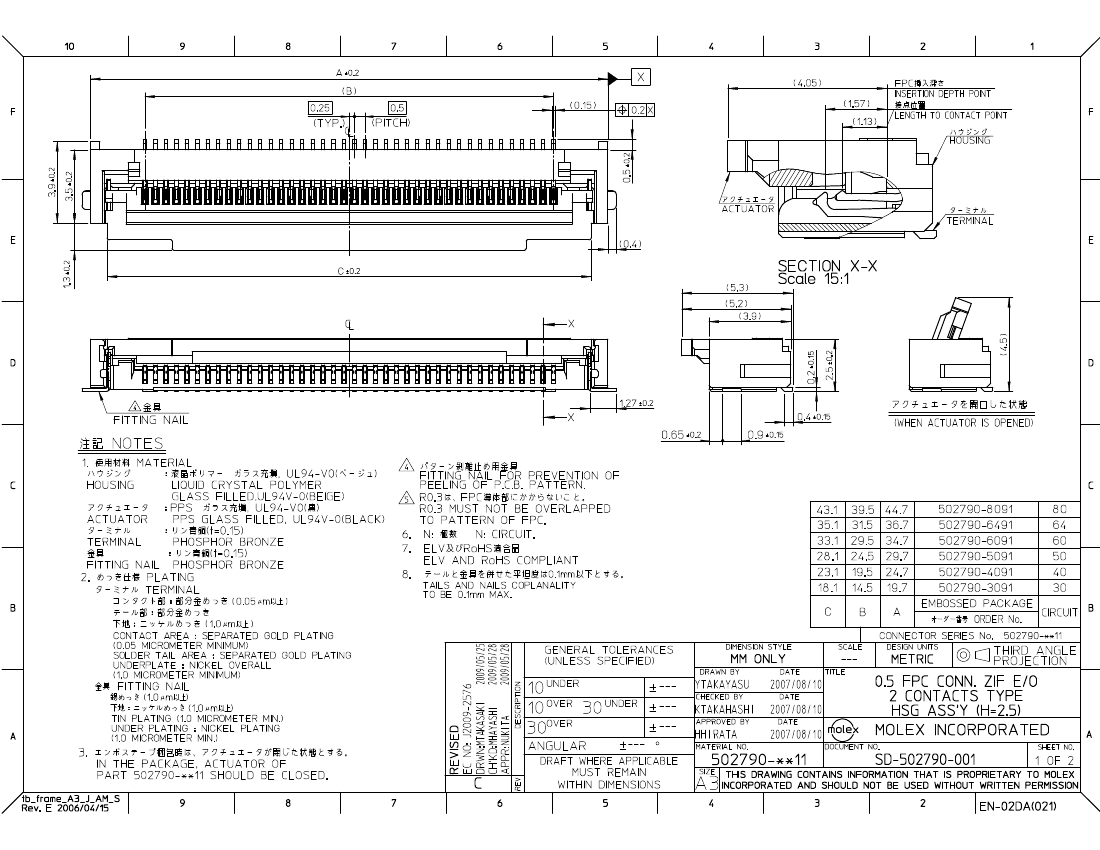

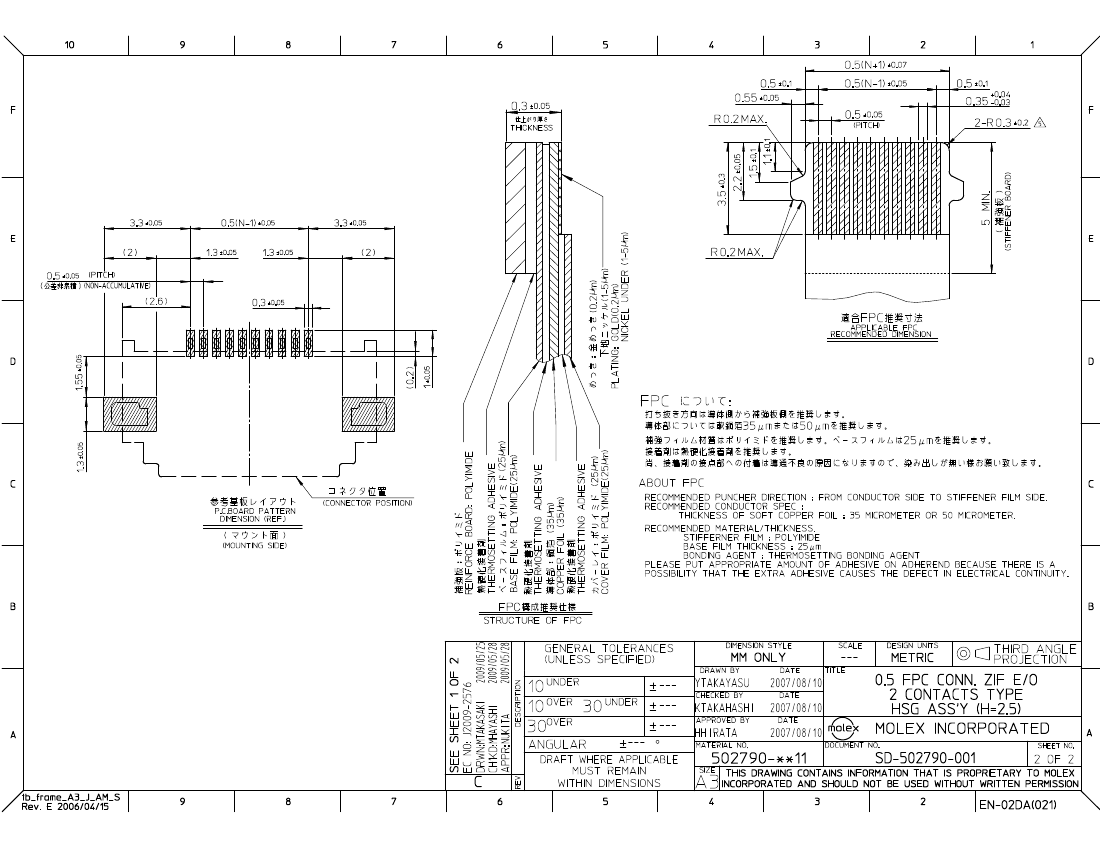

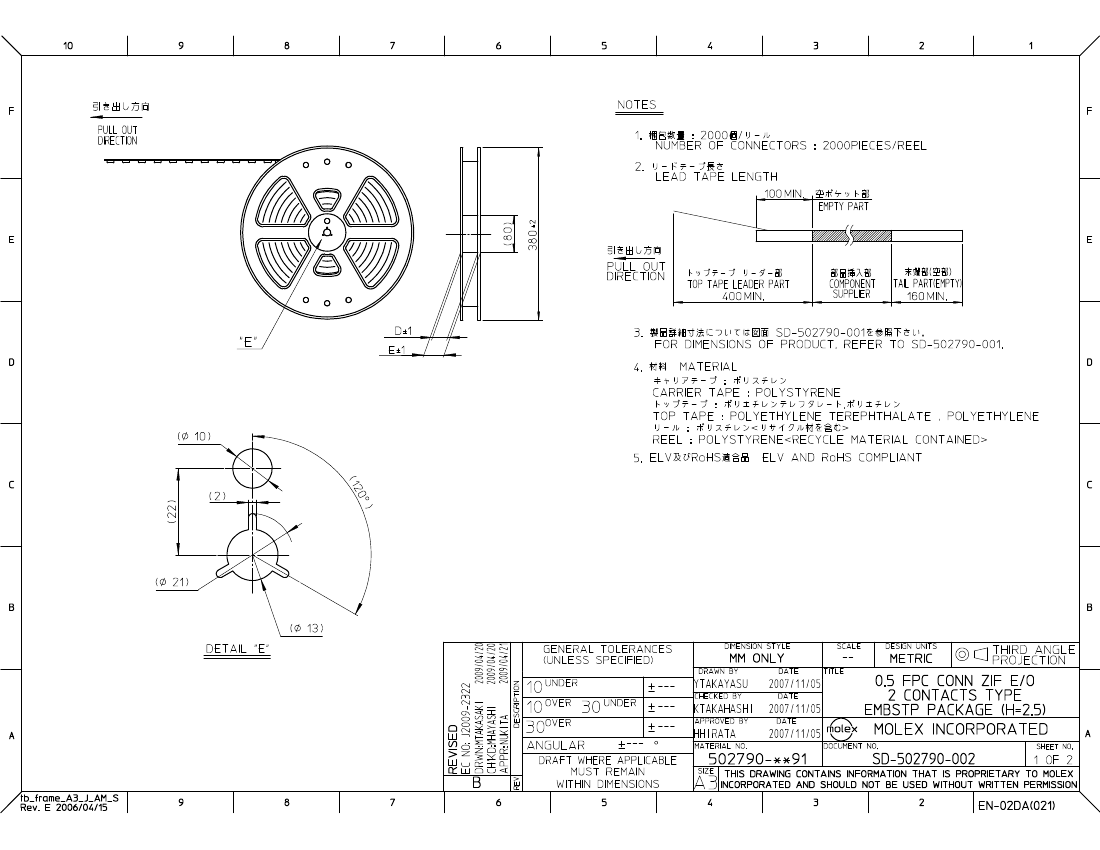

5027908091 Overview

conn .5mm fpc 80pos zif dbl smd

Preview

Download Datasheet

View All

5027908091 Related Products

	5027908091	5027904091	5027903091	5027905091	5027906491	5027906091
Description	conn .5mm fpc 80pos zif dbl smd	conn .5mm fpc 40pos zif dbl smd	conn .5mm fpc 30pos zif dbl smd	conn .5mm fpc 50pos zif dbl smd	conn .5mm fpc 64pos zif dbl smd	conn .5mm fpc 60pos zif dbl smd
Standard Package	-	-	2,000	2,000	2,000	1
Category	-	-	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	-	-	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors
Packaging	-	-	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Cut Tape (CT)
Flat Flex Type	-	-	FPC	FPC	FPC	FPC
Mounting Type	-	-	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle
Connector/Contact Type	-	-	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom
Number of Positions	-	-	30	50	64	60
Pitch	-	-	0.020" (0.50mm)	0.020" (0.50mm)	0.020" (0.50mm)	0.020" (0.50mm)
Terminati	-	-	Solde	Solde	Solde	Solde
FFC, FCB Thickness	-	-	0.30mm	0.30mm	0.30mm	0.30mm
Height Above Board	-	-	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)
Locking Feature	-	-	Flip Lock	Flip Lock	Flip Lock	Flip Lock
Cable End Type	-	-	Tabbed	Tabbed	Tabbed	Tabbed
Contact Material	-	-	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Contact Finish	-	-	Gold	Gold	Gold	Gold
Housing Material	-	-	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	-	-	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled
Features	-	-	Double Contact, Solder Retention, Zero Insertion Force (ZIF)	Double Contact, Solder Retention, Zero Insertion Force (ZIF)	Double Contact, Solder Retention, Zero Insertion Force (ZIF)	Double Contact, Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	-	-	50V	50V	50V	50V
Operating Temperature	-	-	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C
Material Flammability Rating	-	-	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Current Rating	-	-	0.5A	0.5A	0.5A	0.5A
Dynamic Catalog	-	-	Easy-On™ 502790 Series	Easy-On™ 502790 Series	Easy-On™ 502790 Series	Easy-On™ 502790 Series
Other Names	-	-	502790-3091WM1446TR	502790-5091WM1448TR	502790-6491WM1449TR	WM2268CT
