5037722410 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5037722410

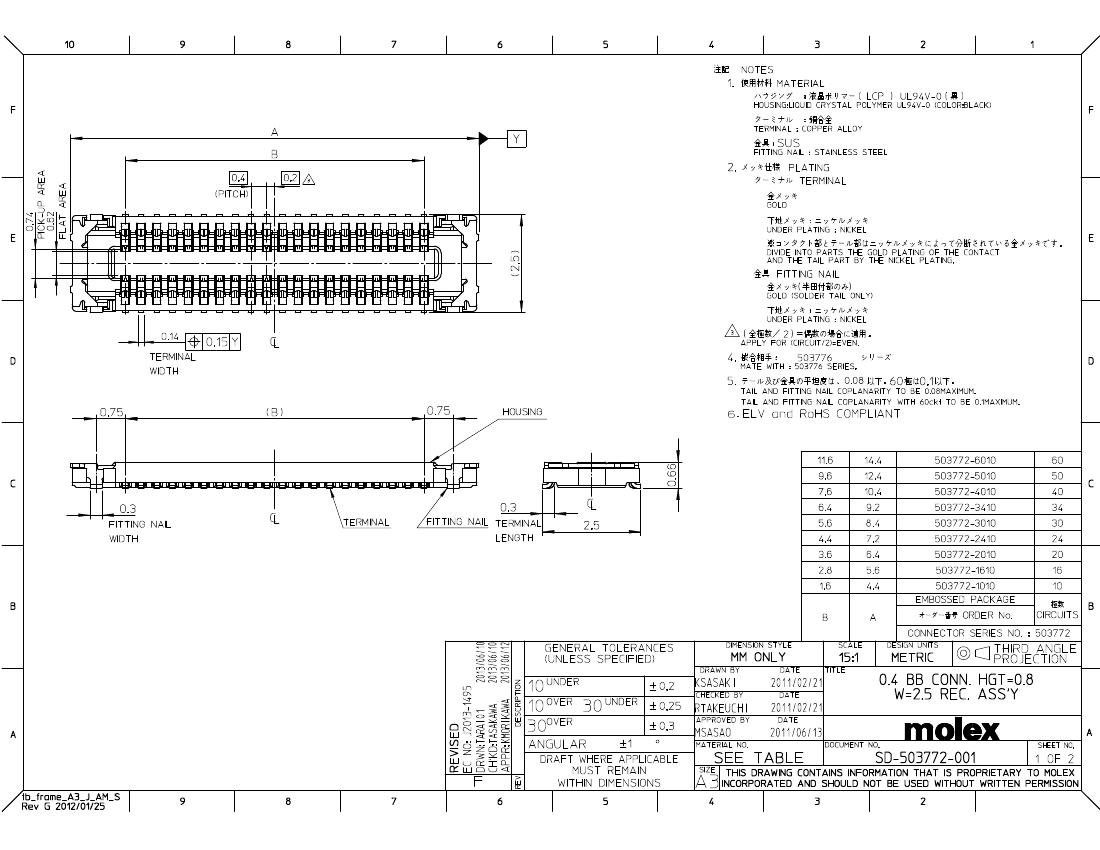

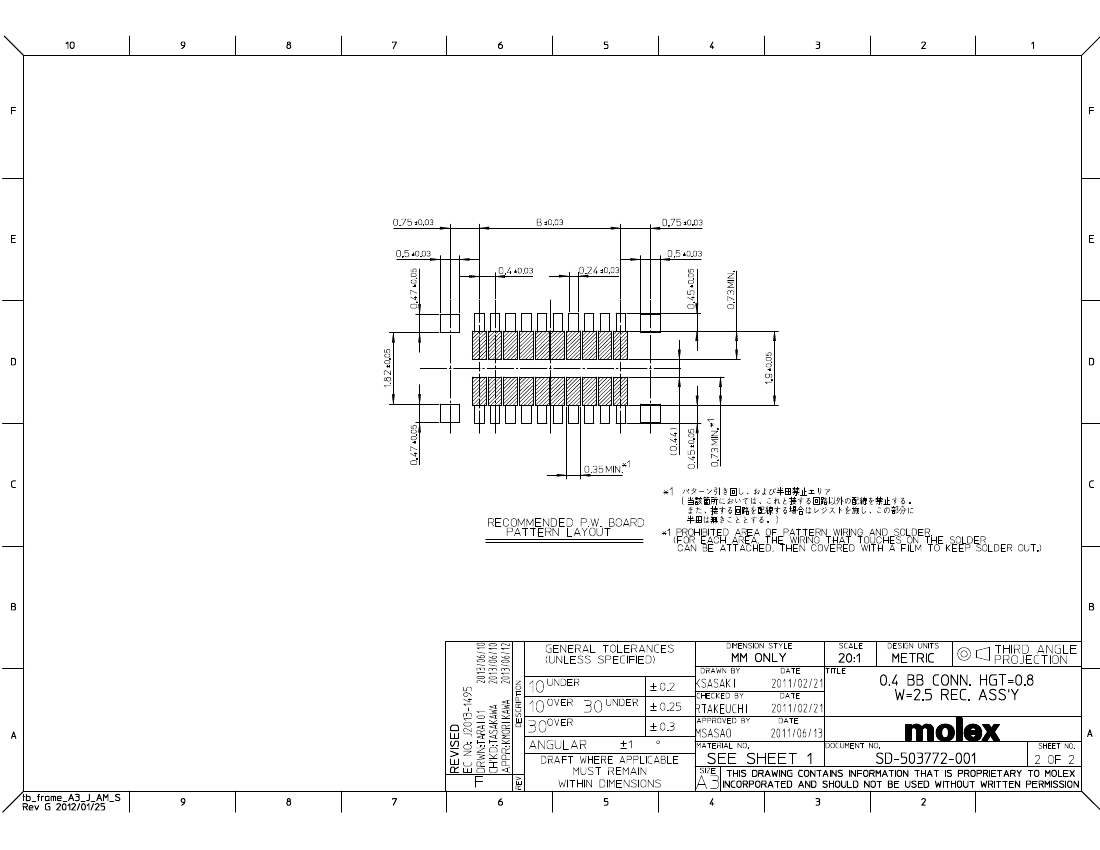

Preview

5037722410: DescriptionTWO PART BOARD CONNECTOR; CategoryThe connector The connector; File Size325KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

5037722410 Overview

TWO PART BOARD CONNECTOR

5037722410 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1280958406
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	Molex
Samacsys Manufacturer	Molex
Samacsys Modified On	2022-12-22 14:06:35
YTEOL	0
Other features	SLIMSTACK
Board mount options	SOLDER HOLDING POSTS
body width	0.098 inch
subject depth	0.025 inch
body length	0.283 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.016 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.143 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	24

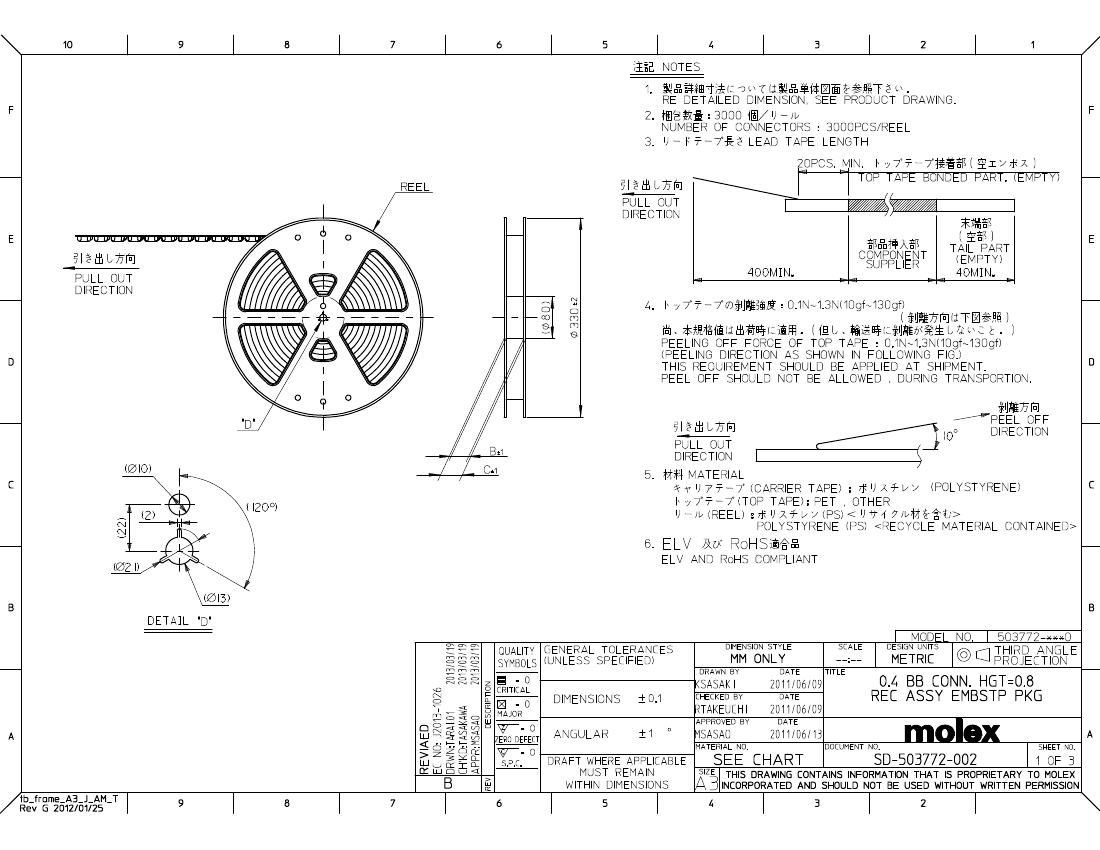

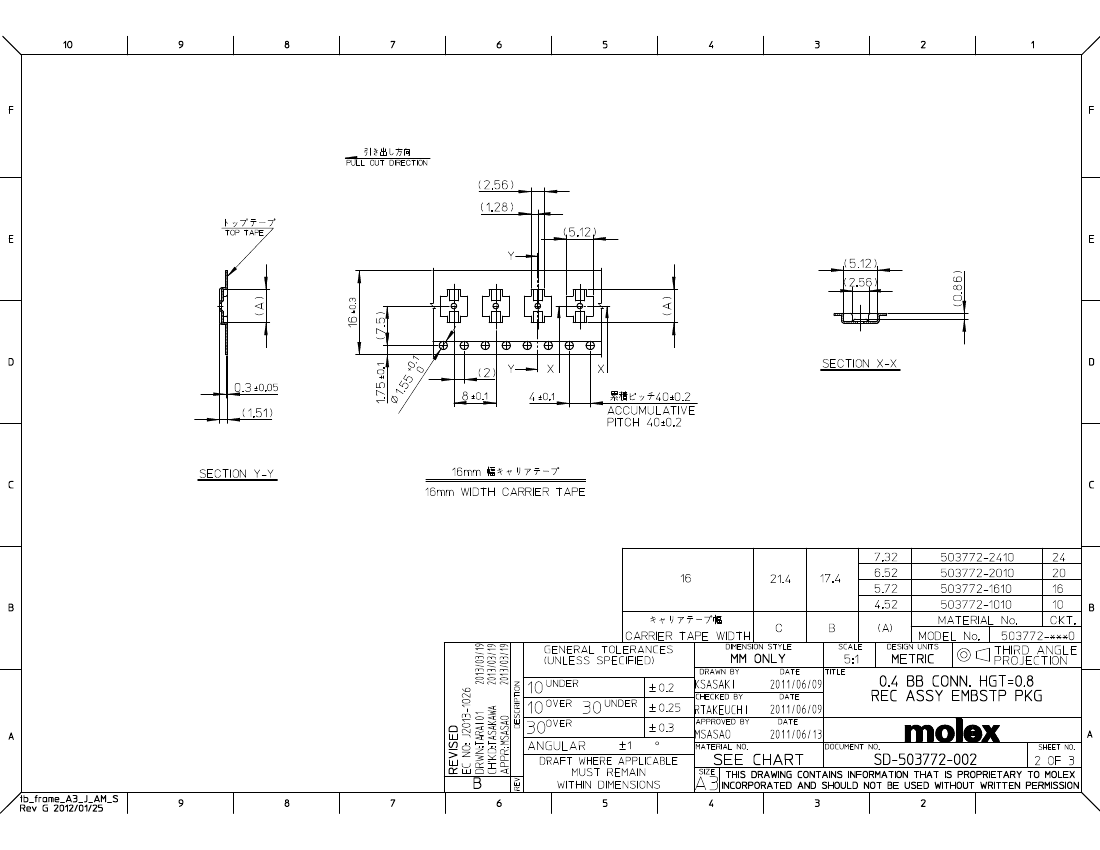

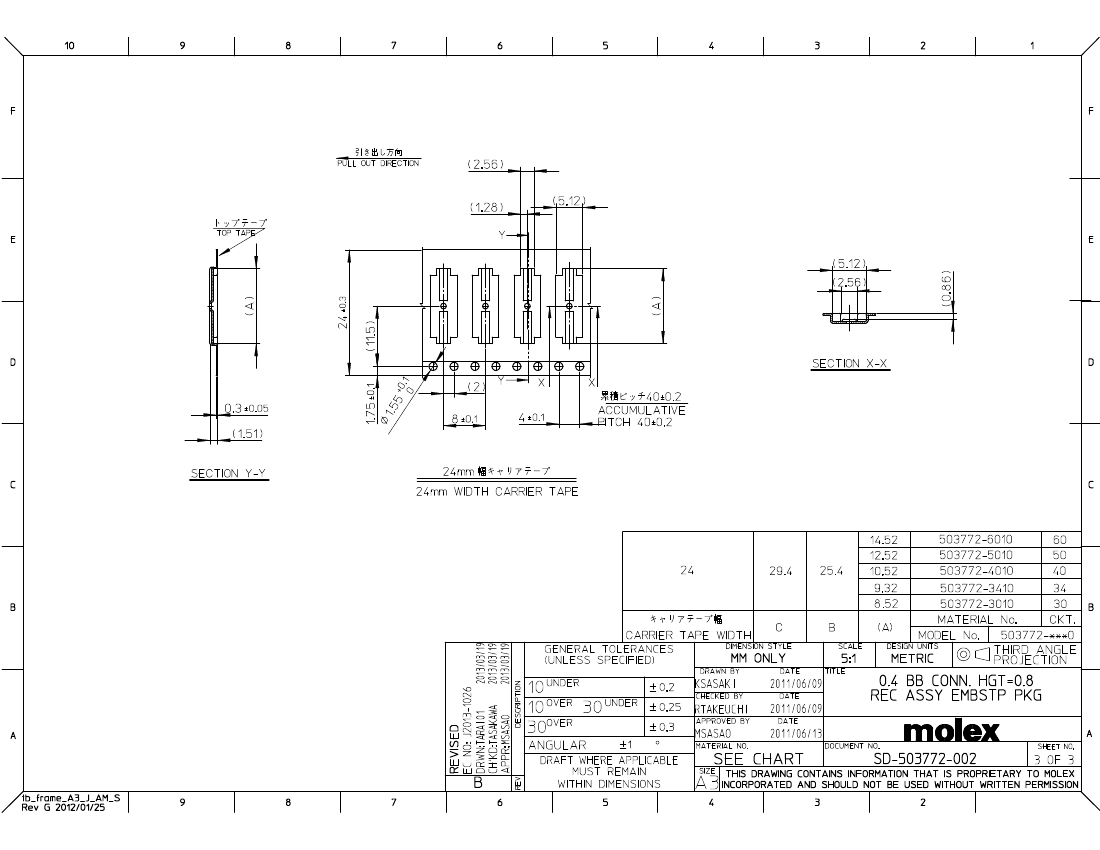

Preview

Download Datasheet

View All

5037722410 Related Products

	5037722410	5037721610	5037721010	5037722010	5037723010	5037723410
Description	TWO PART BOARD CONNECTOR	0.4mm btb recpt 0.80mm 16pos	0.4mm btb recpt 0.8mm 10 pos	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to
Objectid	1280958406	-	-	1280958405	1280958407	1280958408
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT	-	-	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant	-	unknow	compliant	compliant	compliant
Samacsys Manufacturer	Molex	-	-	Molex	Molex	Molex
Samacsys Modified On	2022-12-22 14:06:35	-	-	2020-05-20 12:11:38	2019-09-10 21:09:05	2019-11-13 11:00:34
Other features	SLIMSTACK	-	-	SLIMSTACK	SLIMSTACK	SLIMSTACK
Board mount options	SOLDER HOLDING POSTS	-	-	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS
body width	0.098 inch	-	-	0.098 inch	0.098 inch	0.098 inch
subject depth	0.025 inch	-	-	0.025 inch	0.025 inch	0.025 inch
body length	0.283 inch	-	-	0.252 inch	0.331 inch	0.362 inch
Body/casing type	RECEPTACLE	-	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE	-	-	NOT APPLICABLE	NOT SPECIFIED	NOT APPLICABLE
Contact point gender	FEMALE	-	-	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	80 mΩ	-	-	80 mΩ	80 mΩ	80 mΩ
Contact style	BELLOWED TYPE	-	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	-	-	NO	NO	NO
Durability	30 Cycles	-	-	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	-	-	NO	NO	NO
IEC compliance	NO	-	-	NO	NO	NO
Insulation resistance	100000000 Ω	-	-	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	-	-	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER	-	-	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER
MIL compliance	NO	-	-	NO	NO	NO
Plug contact pitch	0.016 inch	-	-	0.016 inch	0.016 inch	0.016 inch
Mixed contacts	NO	-	-	NO	NO	NO
Installation option 1	LOCKING	-	-	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	-	-	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	-	BOARD	BOARD	BOARD
Number of connectors	ONE	-	-	ONE	ONE	ONE
PCB row number	2	-	-	2	2	2
Number of rows loaded	2	-	-	2	2	2
Maximum operating temperature	85 °C	-	-	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.143 mm	-	-	1.143 mm	1.143 mm	1.143 mm
polarization key	POLARIZED HOUSING	-	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.3 A	-	-	0.3 A	0.3 A	0.3 A
Guideline	UL	-	-	UL	UL	UL
Terminal pitch	0.4 mm	-	-	0.4 mm	0.4 mm	0.4 mm
Termination type	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	24	-	-	20	30	34
Factory Lead Time	-	-	9 weeks	9 weeks	9 weeks	9 weeks
