869-20/042 Overview

filter power line emi 20a snap

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.

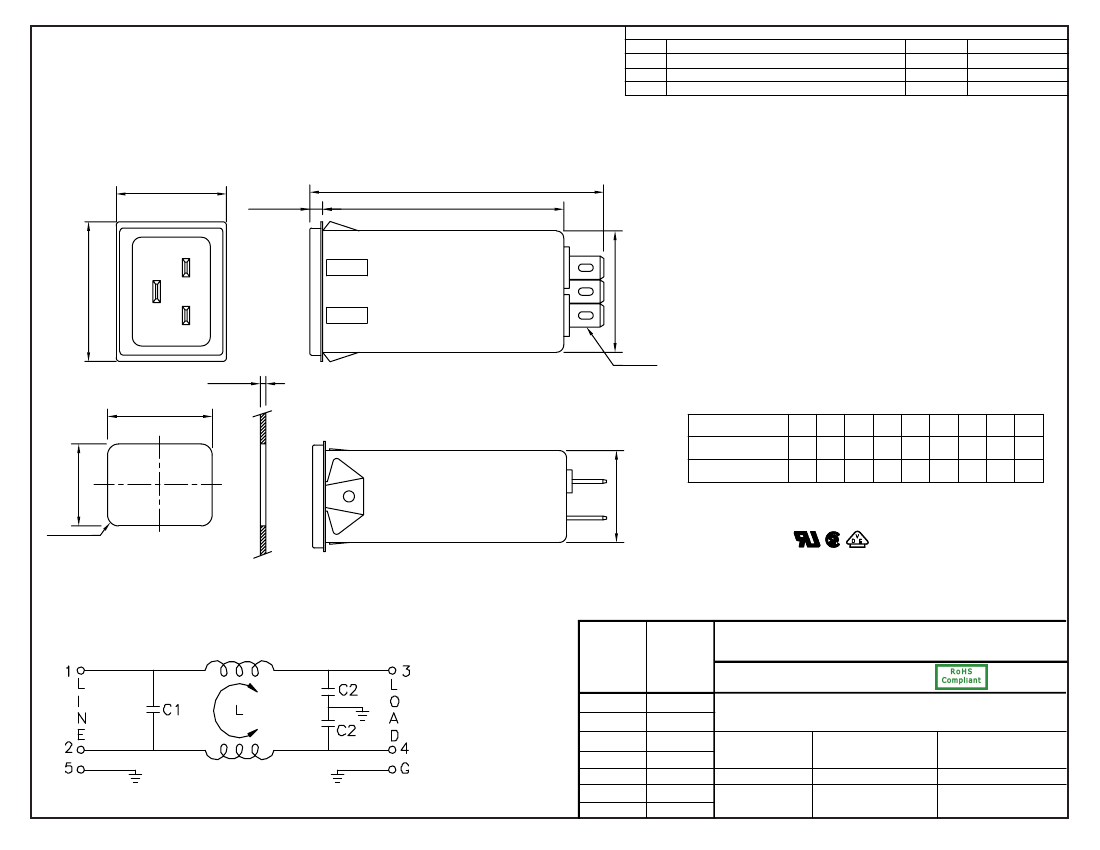

1. PHYSICAL DIMENSIONS
REVISION
REV.
B
C
D
DESCRIPTION
RoHS Compliancy
Updated Specifications
Updated Dimensions and Specifications
DATE
06-01-06
11-28-07
03-31-11
APPROVED
DP
DP
LY
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................125/250VAC
30.0 ± 0.5
3.5 ± 0.5
80.0 ± 1.0
65.0 ± 0.5
1-2.
CURRENT RATING
A. @ 125 VAC..........................................20 A RMS MAX
B. @ 250 VAC.........................................16 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 125 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
/
/
.05
2
0
.10
5
2
.15
8
2
.50
10
10
1.0
15
15
5.0
25
40
10
30
35
30
35
40
1-3.
34.0 ± 0.5
38.0 ± 0.5
1-4.
1-5.
0.8~1.6
36.0 ±
0.5
0
6.3X0.8
1-6.
FREQ. MHz
COM. MODE dB
26.5 ±
0.5
0
26.0 ± 0.5
DIF. MODE dB
1-7.
1-8.
1-9.
OPERATING TEMPERATURE.................-25° TO +100° C
SAFETY:
RoHS COMPLIANT
R4.0MAX
PANEL CUTOUT
2. ELECTRICAL SCHEMATIC
Dim
range
(mm)
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
869-20/042
EMI FILTER
UNIT: mm
L: 0.3mH
C1: 0.1uF
C2: 2200pF
0-1
1-6
6-18
18-50
50-120
120-250
250-500
REV. D
Approved / Date
JJH / 08-16-04
Drawn / Date
B.ZHANG
08-16-04
Checked / Date
08-16-04
