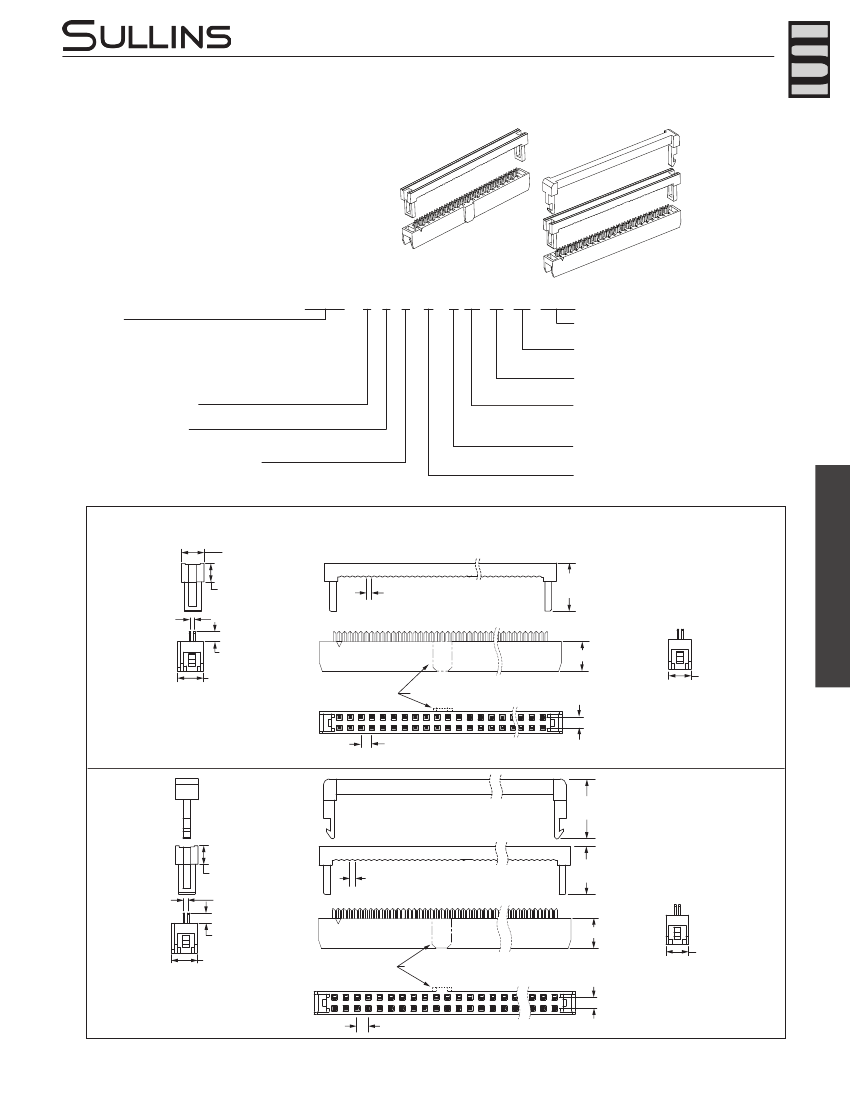

.079” [2.00 mm]Contact Centers, IDC Sockets, Insulation Displacement

With or Without Strain Relief- SFH Series

Mates with SBH21 series (See opposite page)

SPECIFICATIONS

• Centered Polarizing Key Optional

• Operating Temperature: -45°C to +105°C

• UL Flammability Rating: 94V-0

• Current Rating: 1 Amp

• Dielectric Withstanding: 500 VAC

• Insulation Resistance: 1000 Megohms

Headers

PART NUMBER OPTIONS

SFH21 - P P P

SERIES

SFH21 = IDC Socket Without Strain Relief,

.079” [2.00 mm] Contact Centers by

.079” [2.00 mm] Row Spacing

SFH213 = IDC Socket With Strain Relief,

.079” [2.00 mm] Contact Centers by

.079” [2.00 mm] Row Spacing

INSULATOR MATERIAL

P = PBT

CONTACT MATERIAL

P = Phosphor Bronze

CONTACT FINISH - RoHS Compliant

P = Gold Flash Overall

V = Gold Flash on Contact Surface, Nickel on Termination

N - D 10 - ID - BK - M181

MODIFICATION (Omit for Standard)

M181 = Without Centered Polarizing Key

COLOR

BK = Black

TERMINATION TYPE

ID = Insulation Displacement

NUMBER OF CONTACT POSITIONS

03 thru 13, 15, 17, 20, 22, 25, 30, 34 (SFH21)

05 thru 13, 15, 17, 20, 22, 25 (SFH213)

NUMBER OF ROWS

D = Dual Row

CONTACT CENTERS

N = .079” [2.00 mm]

DIMENSIONS

For complete drawings, go to www.sullinscorp.com or e-mail techsupport@sullinscorp.com

Dimensions in [ ] are in millimeters, all others are in inches.

.163 [4.15]

.348

[8.85]

Headers

.134 [3.40]

.031 [0.80]

.075 [1.90]

.187 [4.75]

.039 [1.00]

-M181 Modification

(No Centered

Polarizing Key)

.215 [5.45]

.163 [4.15]

Centered Polarizing Key Optional, Requires -M181 Modification to Remove

.079 [2.00]

INSULATION DISPLACEMENT (ID)

without Strain Relief,

requires SFH21

Example P/N: SFH21-PPPN-D20-ID-BK

.432

[10.98]

.134 [3.40]

.031 [0.80]

.075 [1.90]

.187 [4.75]

.039 [1.00]

.348

[8.85]

-M181 Modification

(No Centered

Polarizing Key)

.215 [5.45]

.163 [4.15]

Centered Polarizing Key Optional, Requires -M181 Modification to Remove

.079 [2.00]

INSULATION DISPLACEMENT (ID)

with Strain Relief,

requires SFH213

Example P/N: SFH213-PPPN-D20-ID-BK
