52584-0669 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52584-0669

52584-0669: Descriptionconn recept 66pos 1mm vert smd; CategoryThe connector The connector; File Size227KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52584-0669 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52584-0669	-	-	View	Buy Now

52584-0669 Overview

conn recept 66pos 1mm vert smd

52584-0669 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TUBE PACKAGING
Board mount options	LOCATING POSTS
body width	0.236 inch
subject depth	0.224 inch
body length	1.531 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	70 mΩ
Contact style	LEAF
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	52584
Plug contact pitch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	10u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	66
UL Flammability Code	94V-0
Evacuation force-minimum value	LIF N
Base Number Matches	1

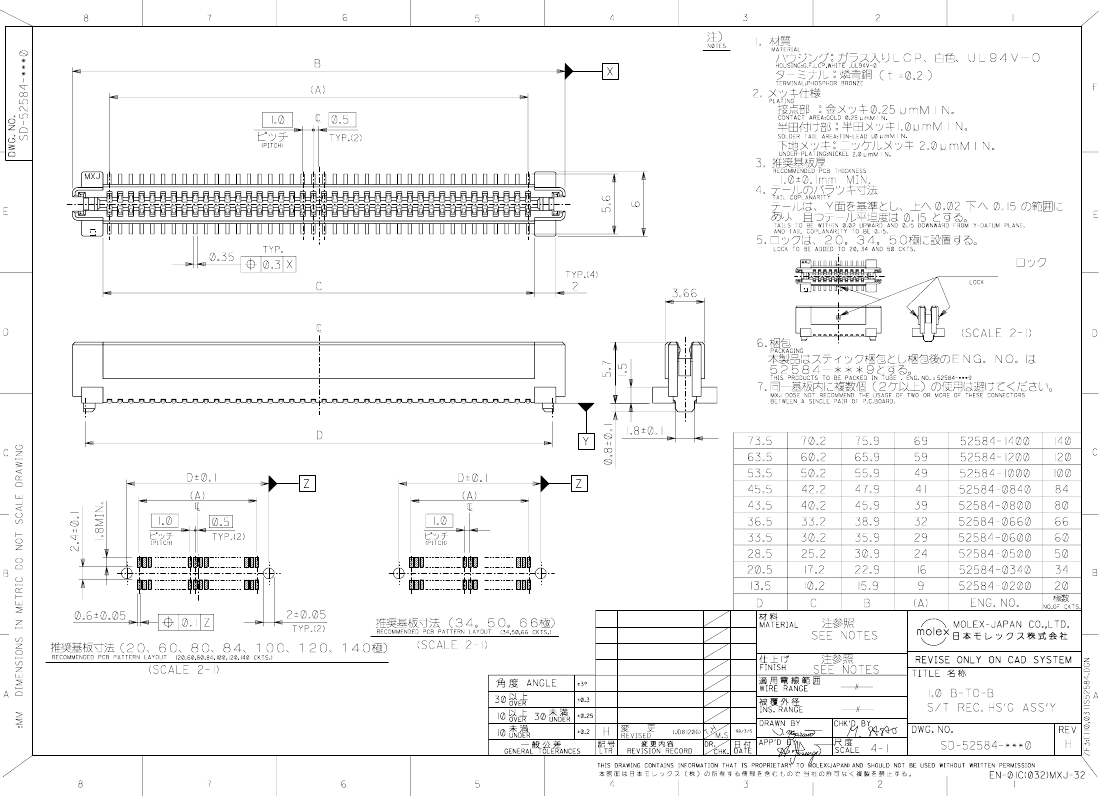

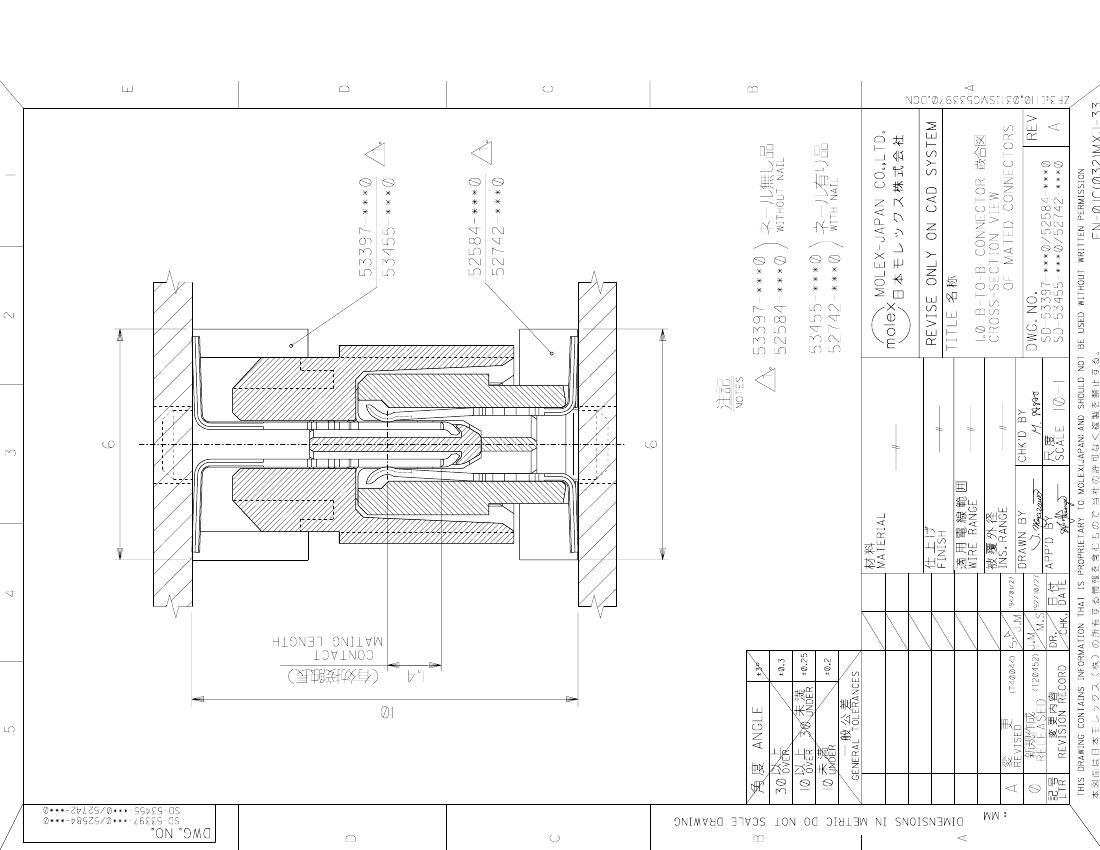

Preview

Download Datasheet

View All

52584-0669 Related Products

	52584-0669	52584-0209	52584-0809	52584-1009	52584-1409
Description	conn recept 66pos 1mm vert smd	conn recept 20pos 1mm vert smd	conn recept 80pos 1mm vert smd	conn recept 100pos 1mm vert smd	conn recept 140pos 1mm vert smd
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknow	unknown	compli	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TUBE PACKAGING	TUBE PACKAGING	TUBE PACKAGING	TUBE PACKAGING	TUBE PACKAGING
Board mount options	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS
body width	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
subject depth	0.224 inch	0.224 inch	0.224 inch	0.224 inch	0.224 inch
body length	1.531 inch	0.626 inch	1.807 inch	2.201 inch	2.988 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	70 mΩ	70 mΩ	70 mΩ	70 mΩ	70 mΩ
Contact style	LEAF	LEAF	CENTRONIC	CENTRONIC	LEAF
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	LIF N	LIF N	LIF N	LIF N	LIF N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	66	20	80	100	140
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	LIF N	LIF N	LIF N	LIF N	LIF N
Maker	Molex	Molex	Molex	Molex	-
Base Number Matches	1	1	1	-	1
