Part Number

Search

39-29-0223

Description
conn header 22pos 4.2mm str gold
CategoryThe connector    The connector
File Size657KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

39-29-0223 Online Shopping

Suppliers Part Number Price MOQ In stock
39-29-0223 - - View Buy Now

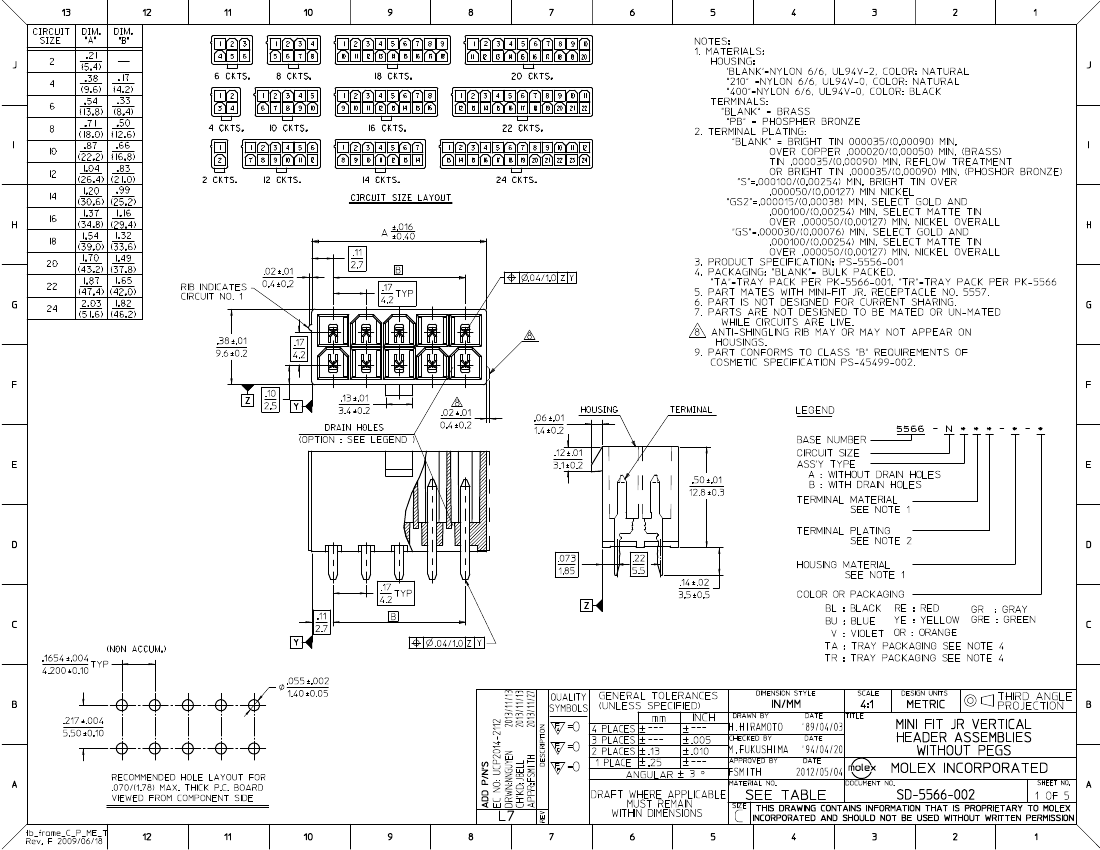

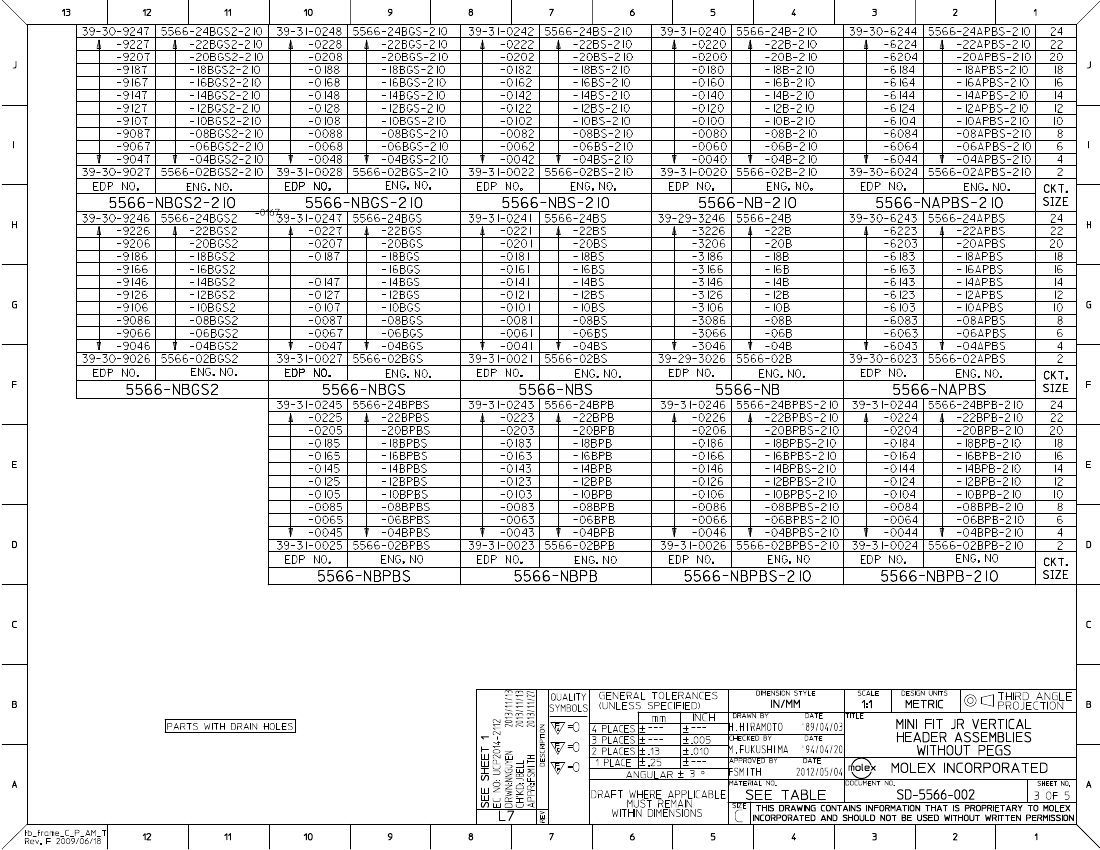

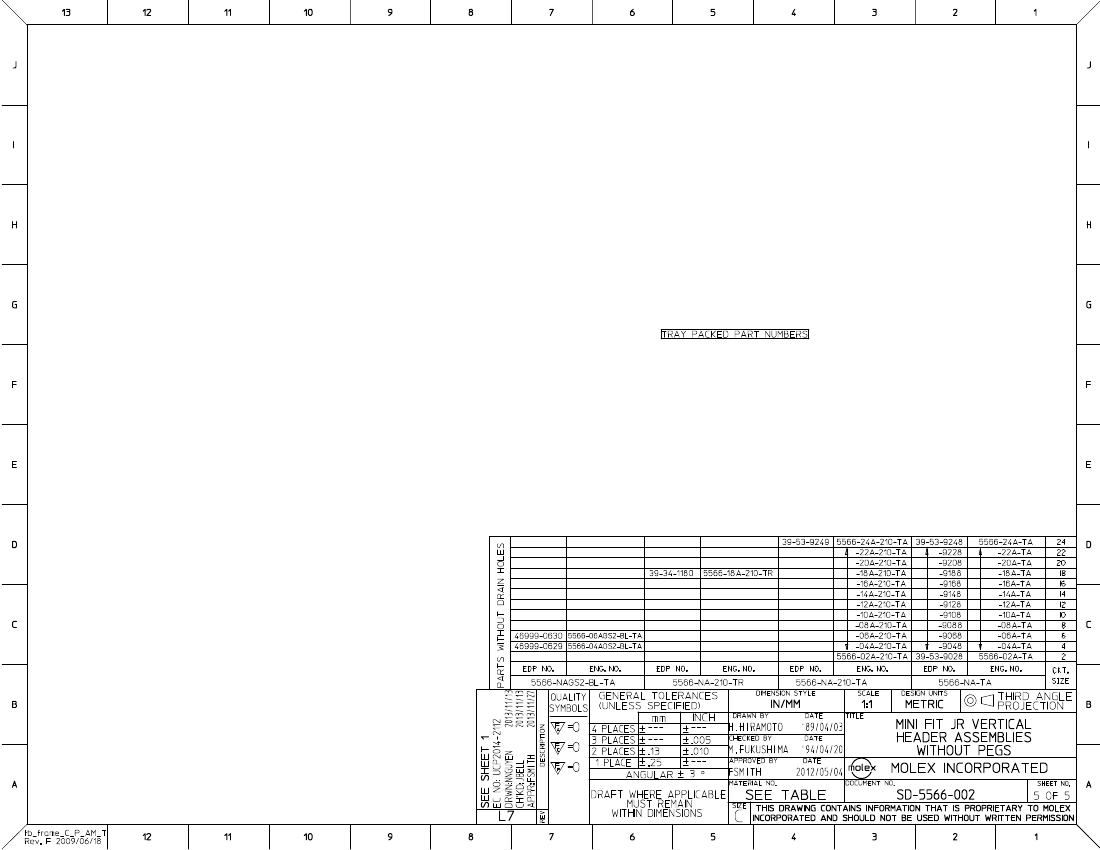

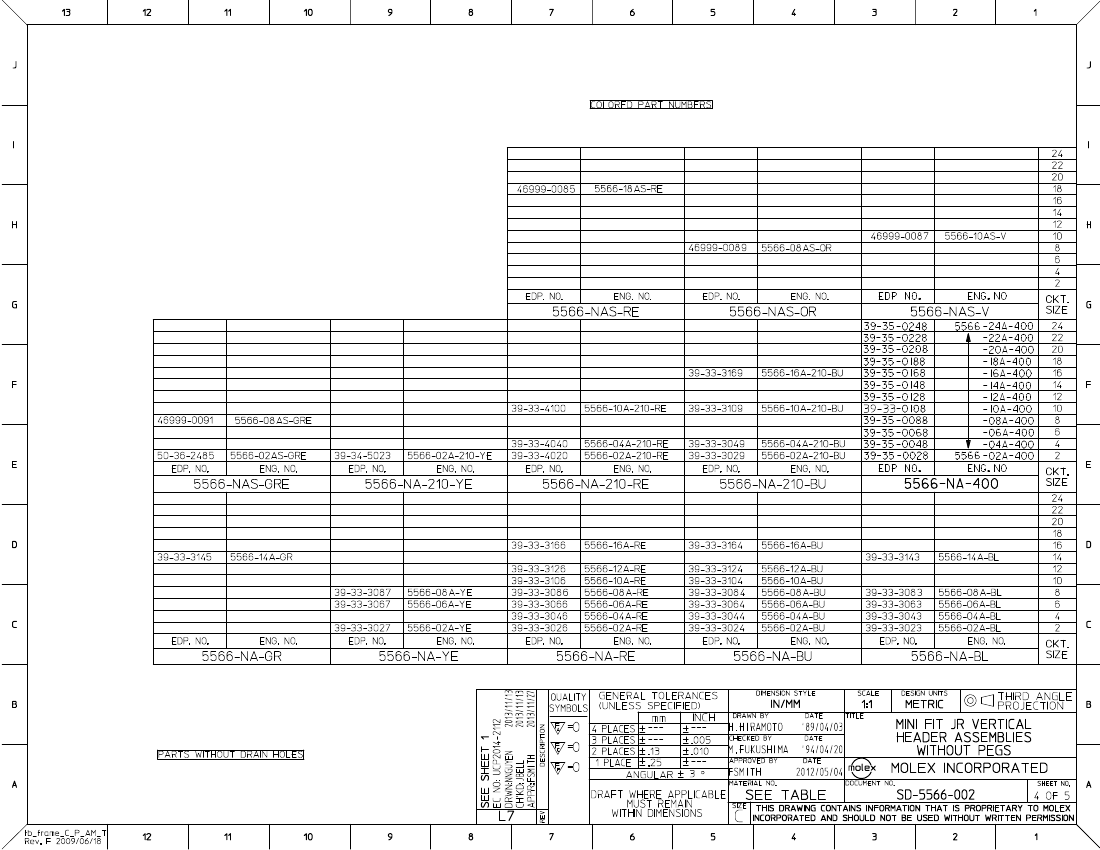

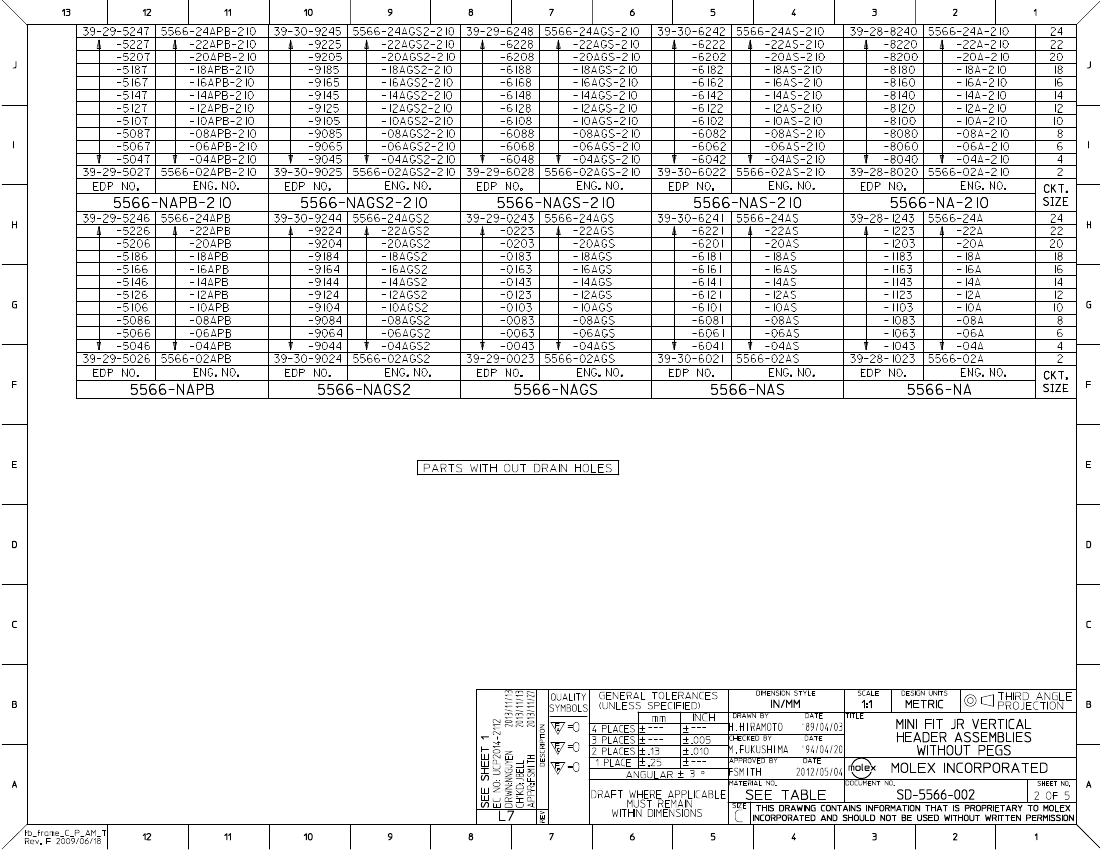

39-29-0223 Overview

conn header 22pos 4.2mm str gold

39-29-0223 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresMINI-FIT JR, POSITIVE LOCK
body width0.378 inch
subject depth0.504 inch
body length1.87 inch
Body/casing typePLUG
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability30 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force6.672 N
Insulation resistance1000000000 Ω
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.165 inch
Match contact row spacing0.165 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1POLARIZED LCK
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing5.5118 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)6 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell materialPOLYAMIDE66
Terminal length0.138 inch
Terminal pitch4.191 mm
Termination typeSOLDER
Total number of contacts22
UL Flammability Code94V-2
Evacuation force-minimum value3.1136 N
Base Number Matches1
