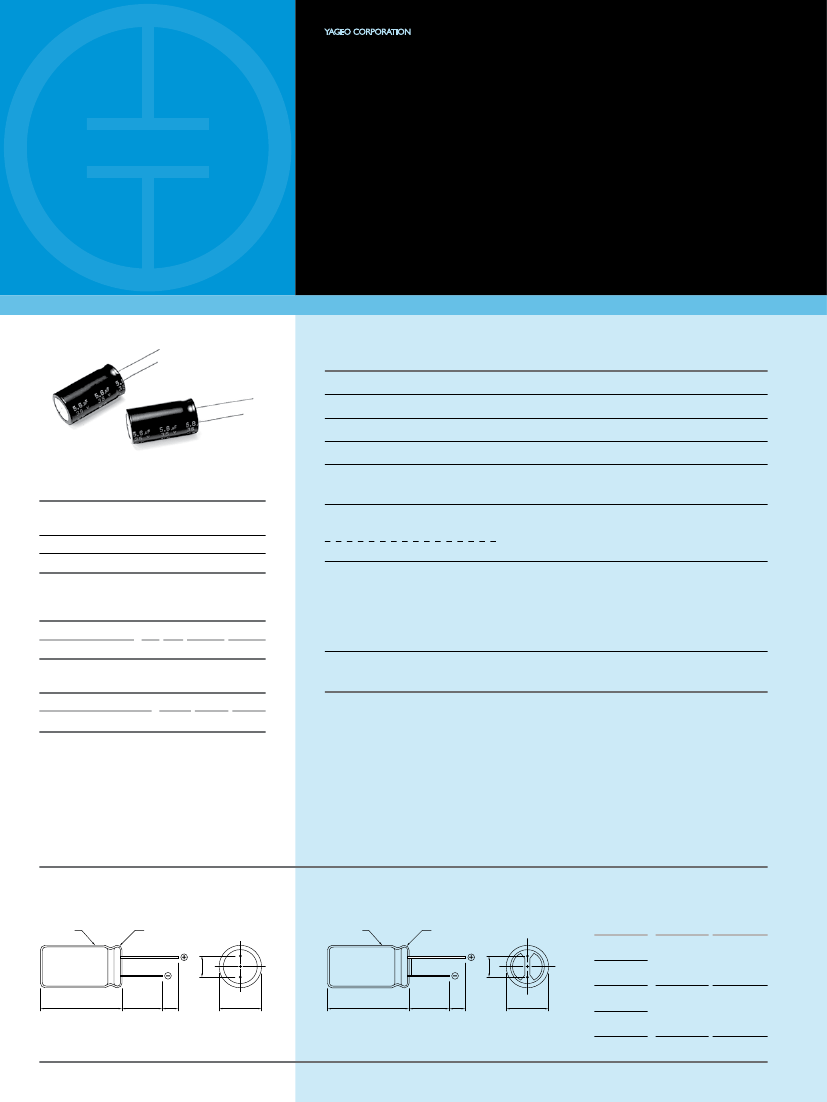

YAGEO CORPORATION
ELECTROLYTIC CAPACITORS
Miniature Aluminum
Electrolytic Capacitors
SR
[ For Horizontal Deflection ]
Bi-Polarized Capacitors for Horizontal Deflection Circuits of TV Sets
ELECTRICAL CHARACTERISTICS
Operating Temperature Range : -40 ~ +85°C
Rated Voltage Range : 25, 35, 50V
Rated Capacitance Range : 2.2 ~ 47µF
Capacitance Tolerance : -20 ~ +20% at 120Hz, 20°C
DESCRIPTION
Bi-Polarized Type for Used in Horizontal Deflection
Current
Correction at High Frequency and High Ripple Currents
Lower Cost Compared with other Film Capacitors
MULTIPLIER FOR RIPPLE CURRENT
Frequency Coefficient
FREQUENCY (Hz)
60
FACTOR
Temperature Coefficient
TEMPERATURE (°C)
FACTOR
65
1.15
70
1.00
85
0.80
120
400~1K 15.75K
0.8
1.0
0.4 0.4
DC Leakage Current : 100µA Max.
( After 2 Minutes Both Direction )
Dissipation Factor :
W V (V) : 25
35
D.F. (%) : 5
5
50
5
Endurance: After the rated voltage has been applied at 85°C for 1000 hours (Polarity Inverted Every
250 Hours) The Capacitors Shall Meet the Following Requirements.
(a) Capacitance Change : Within 20% of Initial Value
(b) Dissipation Factor : Not Exceeding 150% of Specified Value
(c) Leakage Current : Not Exceeding the Specified Value
Shelf Life : After having been placed at 85°C without voltage applied for 500 hours, the capacitors
shall meet the same requirements as Endurance.
DIAGRAM OF DIMENSIONS
Rubber Stand-off
Dimensions: mm
Vinyl Sleeve
(P.V.C)
Rubber End Seal
Vinyl Sleeve
(P.V.C)
F
±
0.5
Rubber End Seal
Dø
12.0
F
±
0.5
F
5.0
dø
0.6
13.0
D
±
0.5
L
15Min.
5Min.
D
±
0.5
L
15Min.
5Min.
16.0
18.0
22.0
7.5
0.8
L
≤
16 L + 1.5Max.
L
>
16 L + 2Max.
Dø = 8 & 10 L + 2.5Max.
Dø
<
20 Dø + 0.5
Dø
≥
20 Dø + 1
10.0
0.8 (1.0)
59
CASE SIZE & PERMISSIBLE RIPPLE CURRENT OF STANDARD PRODUCTS
CAP. (μF)
RATED VOLTAGE W V (SURGE VOLTAGE W V)
25 (32)
SIZE
2.2
3.3
4.7
5.6
6.8
8.2
10
13
15
18
20
22
25
47
16 x 25
16 x 25
16 x 25
16 x 32
16 x 36
16 x 36
18 x 40
18 x 40
18 x 40
22 x 40
22 x 40
22 x 40
22 x 40
22 x 40
RIPPLE
6
7
7
7
8
8
12
12
12
13
13
13
13
13
35 (44)
SIZE
16 x 25
16 x 25
16 x 25
16 x 32
16 x 36
16 x 36
18 x 40
18 x 40
18 x 40
22 x 40
22 x 40
22 x 40
22 x 40
22 x 40
RIPPLE
6
7
7
7
8
8
12
12
12
13
13
13
13
13
50 (63)
SIZE
16 x 25
16 x 25
16 x 25
16 x 32
16 x 36
16 x 36
18 x 40
18 x 40
18 x 40
22 x 40
22 x 40
22 x 40
22 x 40
22 x 40
RIPPLE
6
7
7
7
8
8
12
12
12
13
13
13
13
13
D x L: mm
Note: 1. Ripple Current: (Ap-p) / Sawtooth Waveform 85°C, 15.75KHz
