YC124-JRG0747R0 datasheet, PDF

Datasheet> All Categories > YC124-JRG0747R0

YC124-JRG0747R0: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0408, CHIP; File Size297KB，7 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

YC124-JRG0747R0 Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0408, CHIP

YC124-JRG0747R0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Objectid	1804920189
package instruction	, 0408
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Component power consumption	0.0625 W
The first element resistor	47 Ω
JESD-609 code	e3
Manufacturer's serial number	YC124
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 7 INCH
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
size code	0408
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V

YC124-JRG0747R0 Preview

YC124 (8Pin/4R)

5%; 1%

DATA SHEET

ARRAY CHIP RESISTORS

Product Specification – Mar. 22, 2004 V.5

Supersedes Date of Sep. 04, 2003

Chip Resistor Surface Mount

SERIES

124

SCOPE

This specification describes YC124 series chip resistors made by thick film process.

ORDERING INFORMATION

Part number is identified by the series, size, tolerance, packing style, temperature coefficient, special type and

resistance value.

YC124 – X X X XX XXXX

(1) (2) (3)

(4)

(5)

MARKING

YC124

(1) TOLERANCE

F = ±1%

J = ±5%

ynsc009

First two digits for significant figure and

3rd digit for number of zeros

Fig. 1

5% Marking, Value=5.6Ω

Letter R: decimal place

(2) PACKAGING TYPE

R = Paper taping reel

(3) TEMPERATURE

CHARACTERISTIC OF

RESISTANCE

G = ±200ppm/°C

– = Base on spec

ynsc010

Letter 0: Jumper chip (0 ohm)

Fig. 2

Jumper=Zero Ohm

DIMENSION

Table 1

(4) SPECIAL TYPE

07 = 7 inch dia. Reel

13 = 13 inch dia. Reel

TYPE

B (mm)

H (mm)

P (mm)

L (mm)

H2 (mm)

T (mm)

YC124

0.2±0.15

0.45±0.05

0.5±0.05

2.0±0.1

0.3±0.05

0.45±0.1

0.3±0.15

1.0±0.1

(5) RESISTANCE VALUE:

56R, 560R, 5K6, 56K, 1M.

CCB257_a

W1 (mm)

W2 (mm)

Fig. 3

YC124 series chip resistors construction

SCHEMATIC

For dimension see Fig. 3 and Table 1

handbook, 2 columns

CCA862_b

Fig. 4

Equivalent circuit diagram

R1=R2=R3=R4

www.yageo.com

Mar. 22, 2004 V.5

Chip Resistor Surface Mount

SERIES

124

POWER RATING

RATED POWER AT 70°C,

YC124=1/16W FOR ELEMENT

Pmax

(%Prated)

100

MRA632

ELECTRICAL CHARACTERISTICS

Table 2

CHARACTERISTICS

Operating Temperature Range

Maximum Working Voltage

Maximum Overload Voltage

Dielectric Withstanding Voltage

Number of Resistors

YC124 1/16W

–55°C to +155°C

50V

100V

10Ω to 1MΩ

Zero Ohm Jumper <0.05Ω

±200ppm/°C

Rated Current

Maximum Current

1.0A

2.0A

−55

50 70

155

100

Tamb (°C)

Resistance Range

Temperature Coefficient

Fig. 5

Maximum dissipation (P

max

) in

percentage of rated power as

a function of the operating

ambient temperature (T

amb

)

Jumper Criteria

RATED VOLTAGE:

The DC or AC (rms) continuous

working voltage corresponding to

the rated power is determined by

the following formula:

V=√(P X R)

Where

V=Continuous rated DC

or AC (rms) working voltage (V)

P=Rated power (W)

R=Resistance value (X)

www.yageo.com

Mar. 22, 2004 V.5

Chip Resistor Surface Mount

SERIES

124

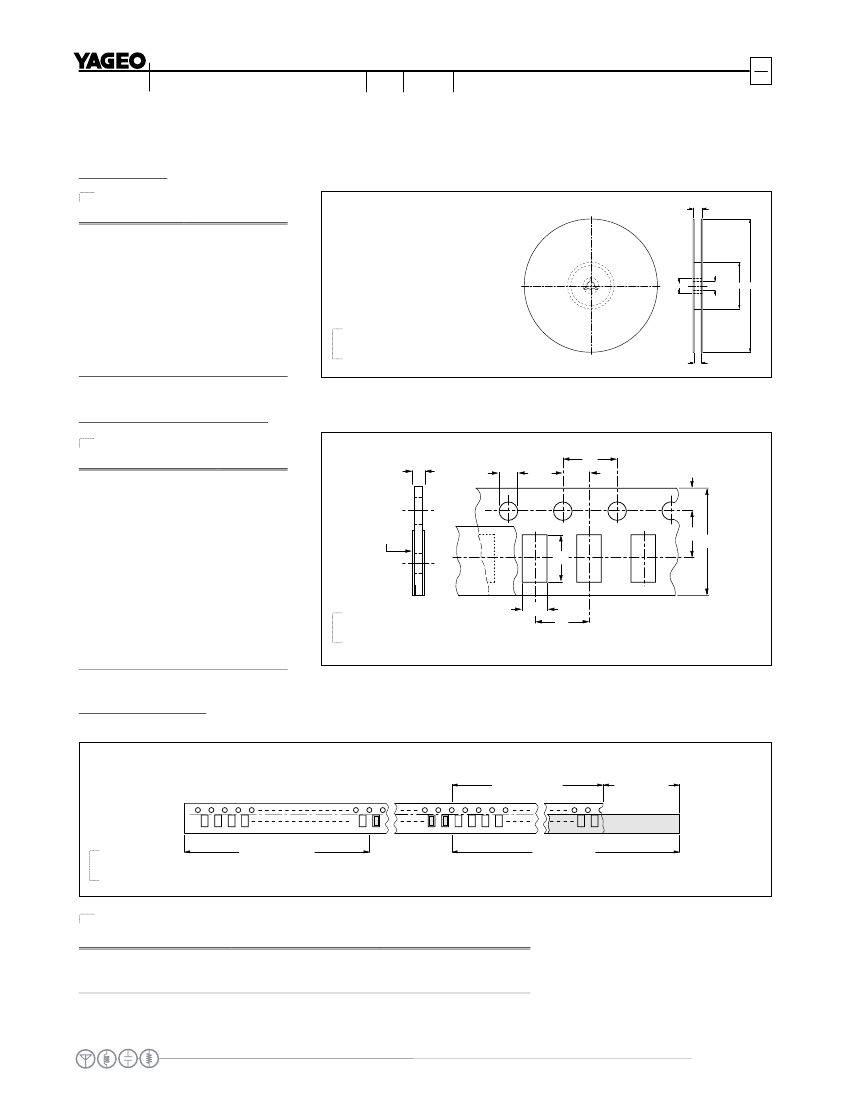

TAPING REEL

Table 3

DIMENSION

Tape Width

ØA (mm)

ØB (mm)

ØC (mm)

ØD (mm)

W (mm)

T (mm)

YC124

8mm

180+0/–3

60+1/–0

13.0±0.2

21±0.8

9.0±0.3

11.4±1

For dimension see Table 3

gewidth

Fig. 6

Reel dimension

MSA284_b

PAPER TAPE SPECIFICATION

Table 4

DIMENSION

A (mm)

B (mm)

W (mm)

E (mm)

F (mm)

(mm)

ØD

(mm)

T (mm)

YC124

1.2±0.1

2.2±0.1

8.0±0.2

1.75±0.1

3.5±0.05

4.0±0.1

2.0±0.1

2.0±0.05

1.5+0.1/–0

0.70±0.1

Fig. 7

Paper tape dimension

cover tape

MBD123_a

For dimension see Table 4

PACKING METHOD

LEADER/TRAILER TAPE SPECIFICATION

leader end

trailer end

empty compartments

with cover tape

(min. 240 mm)

cover tape only

trailer (max. 260 mm)

leader

≥400

CCB325

Fig. 8

Leader and trailer tape dimension

Table 5

Packing style and packaging quantity

PACKING STYLE

Paper Taping Reel (R)

REEL DIMENSION

7" (178 mm)

13" (330 mm)

YC124

10,000

40,000

www.yageo.com

Mar. 22, 2004 V.5

Chip Resistor Surface Mount

SERIES

124

TYPE

Temperature

Coefficient of

Resistance

(T.C.R.)

TEST METHOD

Measure resistance at

+25°C or specified room

temperature as R

, then

measure at –55°C or

+155°C respectively as R

Determine the

temperature coefficient of

resistance from the

following formula:

Formula

–R

T.C.R. = ------------------------- ×10

(ppm/°C)

–t

)

Where

=+25°C or specified room temperature

=–55°C or +155°C test temperature

=resistance at reference temperature in ohms

=resistance at test temperature in ohms

ACCEPTANCE STANDARD

Refer to table 2

Thermal

Shock

At –55±3°C for 2 minutes and at +155±2°C for 2 minutes as one cycle. After 5

cycles, the specimen shall be stabilized at room temp.

Measure the resistance to determine

ΔR/R(%)

after one more hour.

±(0.5%+0.05Ω) for 1% tol.

±(1.0%+0.05Ω) for 5% tol.

Low

Temperature

Operation

Place the specimen in a test chamber maintained at –65 (+0/–5)°C. After one hour

stabilization at this temperature, full rated working voltage shall be applied for 45

(+5/–0) minutes. Have15 (+5/–0 ) minutes after remove the voltage, the specimen

shall be removed from the chamber and stabilized at room temperature for 24 hrs.

Measure the resistance to determine

ΔR/R(%).

±(0.5%+0.05Ω) for 1% tol .

±(1.0%+0.05Ω) for 5% tol.

No visible damage

Short

Time

Overload

Apply 2.5 times of rated voltage but not exceeding the maximum overload voltage

for 5 seconds. Have the specimen stabilized at room temperature for 30 minutes

minimum.

Measure the resistance to determine

ΔR/R(%).

±(1.0%+0.05Ω) for 1% tol.

±(2.0%+0.05Ω) for 5% tol.

No visible damage

Insulation

Resistance

Place the specimen in the jig and apply a rated

continues overload voltage (R.C.O.V) for one

minute as shown.

Measure the insulation resistance.

Type

Voltage (DC)

YC124

100V

≥10,000MΩ

Dielectric

Withstand

Voltage

Place the specimen in the jig and apply a

specified value continuous overload voltage as

shown for one minute.

Type

Voltage (AC)

YC124

100Vrms

Breakdown voltage>

specification and without

open/short

Resistance

To Soldering

Heat

Immerse the specimen in the solder pot at 260±5°C. for 10±1 seconds. Have the

specimen stabilized at room temperature for 30 minutes minimum.

Measure the resistance to determine

R/R(%).

±(0.5%+0.05Ω) for 1% tol.

±(1.0%+0.05Ω) for 5% tol.

No visible damage

www.yageo.com

Mar. 22, 2004 V.5
