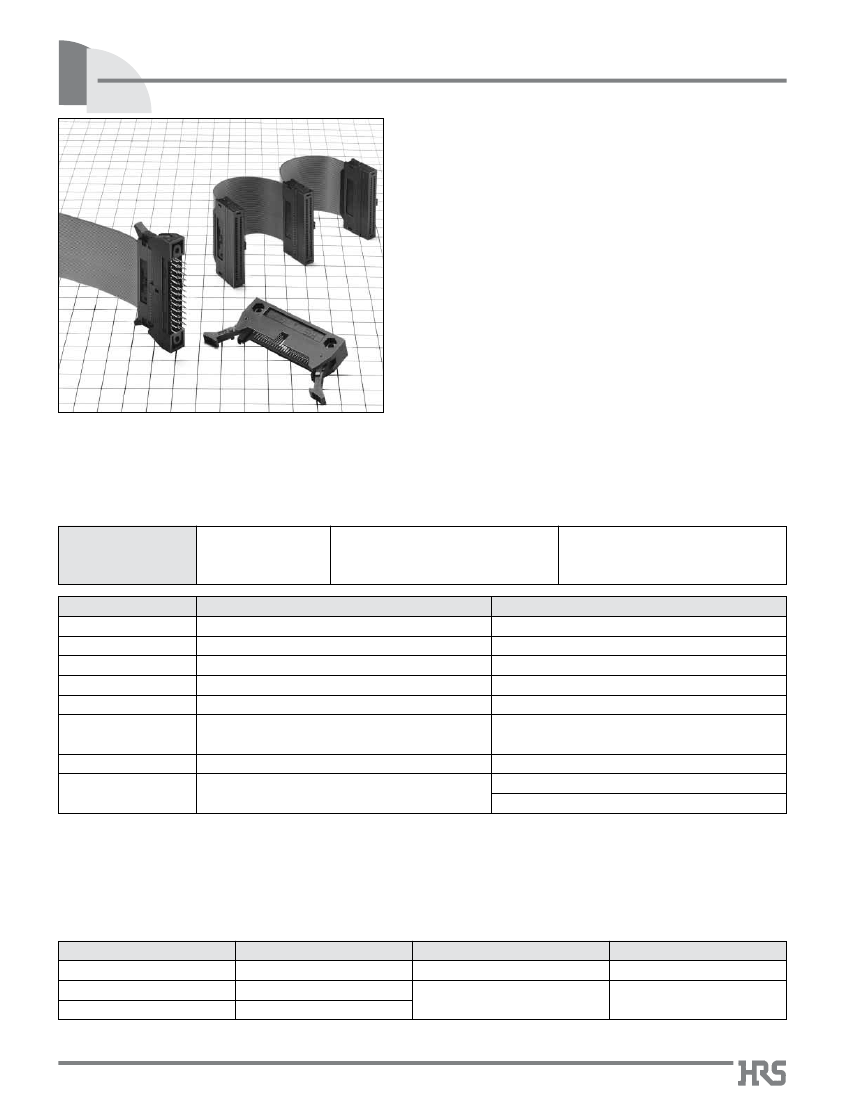

0.635mm Pitch ID Cable Connector
HIF6H Series
■Features
1. Batch Insulation Displacement of 0.635mm Pitch ID
Cable Connector
The 0.635mm pitch cable can be insulated and displaced at a
time. HIF6 series is displaced two sheets cable with one sheet
cable.
2. Applicable Cable AWG#30
The applicable cable is AWG#30 cable.
3. Achieve Bus-line Connection
This connector allows connection to No. 1 pin. By changing the
cover, bus-line connection can be allowed.

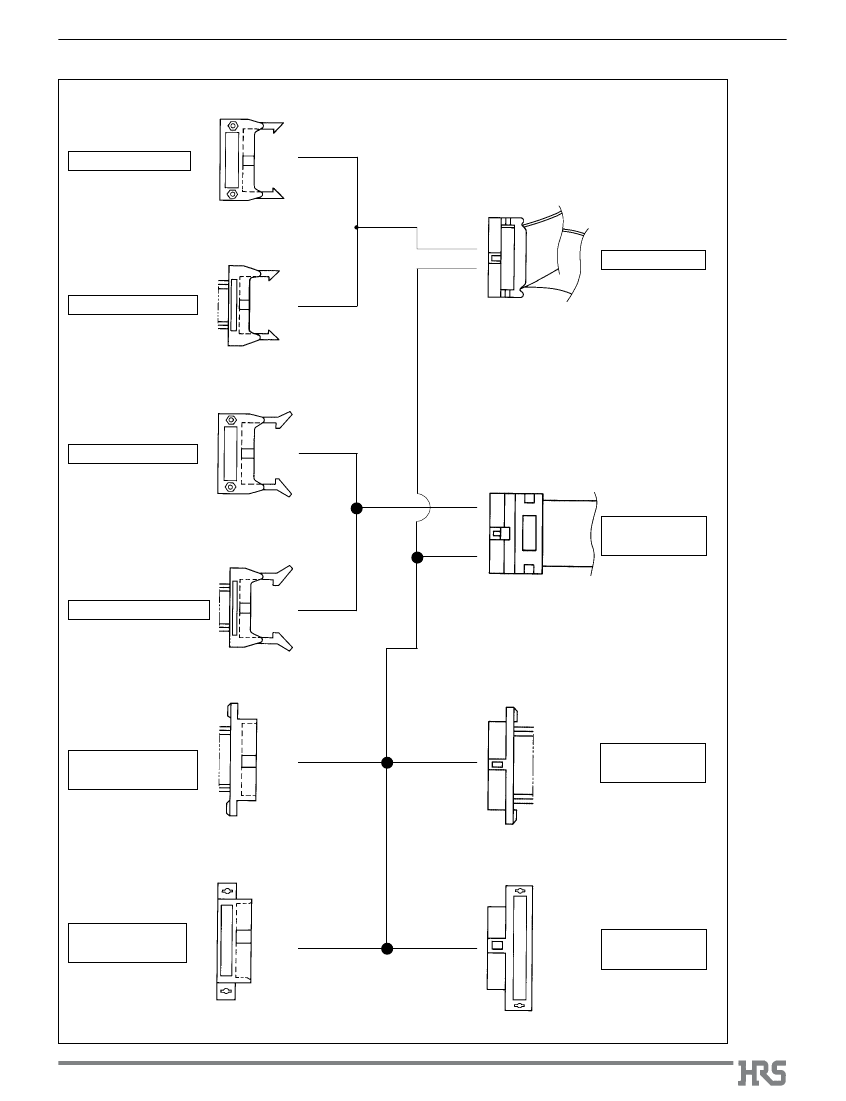

4. Compatibility
This connector allows engagement with the HIF6A(B) series
header. However, the lock header is used for the HIF6H series
only.
Note: HIF6H series should be ordered together with the cable.
■Applications
Computers, peripheral terminal equipment, various kinds of business machines.
■Product
Specifications
Rating
Current rating : 0.5A
Operating Temperature Range :
-55 to +85ç(Note
1) Storage Temperature Range
: -10 to +60ç(Note
2)
Storage Humidity Range
:
-40
to 70%(Note 2)
Voltage rating : 125V AC Operating Moisture Range :
-40
to 80%
Specification
1000M
ohms
min.
250V DC
300V AC/1 minute
0.1A
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
Condition
No flashover or insulation breakdown.
30m
ohms
max.
No electrical discontinuity of 1μs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-65ç: 30 minutes ->15 to 35ç: 5 minutes max.
(125ç:
30 minutes-> 15 to 35ç: 5 minutes max.) 5 cycles
500 cycles
5.
Humidity (Steady state)
Insulation resistance: 1000M
ohms
min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Durability (Mating/un-mating) Contact resistance: 30m
ohms
max.
8. Resistance to Soldering heat
No deformation of components affecting performance.
Solder Bath: 260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a
specific part number shown.
■Material
Part
Insulator
Socket Contact
Pin header contact
Material
PBT
Copper alloy
Brass
Finish
Black
Selective gold plated
Remarks
UL94V-0
–––––––
B87
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
Series●0.635mm
or will be
ID Cable Connector
the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF6H
have been discontinued,
Pitch
discontinued soon. Please check
■Ordering
Information
●Pin
Header
HIF6H -
*
P A - 1.27 DSA
q
w
e
r
t
y
q
Series Name
e
P : Pin header
r
A : Selective gold plating
t
Contact Pitch
y
Contact style
: 1.27mm
: DS : Right angle type
DSA: Straight type
: HIF 6H
w
Number of contacts : 34, 40, 50, 60, 80, 100
●Socket
HIF6H -
*
D - 1.27 R
q
q
Series Name
w
e
r
t
: HIF6H : Standard type
HIF6HB : Bus connection type
w
Number of contacts : 34, 40, 50, 60, 80, 100
e
D : Socket
r
Contact Pitch : 1.27mm
t
R : ID type
*
If needed, please order HIF6H series connectors with cable attached.
Designate the connection circuit and cable length.
B88
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
Series●0.635mm
or will be
ID Cable Connector
the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF6H
have been discontinued,
Pitch
discontinued soon. Please check

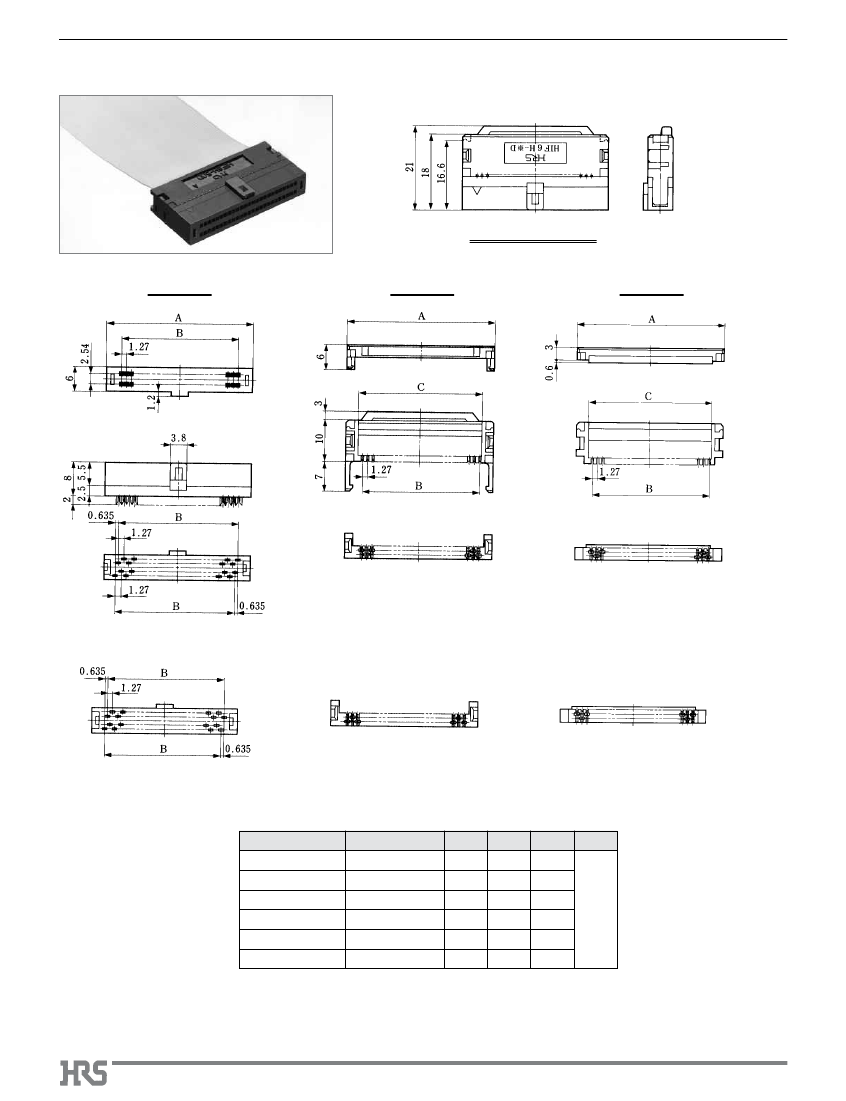

■Socket
Combination Pattern
Body
Cover B
Cover A
(40.60.80.100 contacts)
(40.60.80.100 contacts)
(40.60.80.100 contacts)
(34.50 contacts)
(34.50 contacts)
(34.50contacts)
Unit: mm
Part Number
HIF6H-034D-1.27R
HIF6H-040D-1.27R
HIF6H-050D-1.27R
HIF6H-060D-1.27R
HIF6H-080D-1.27R
HIF6H-100D-1.27R
Number of Contacts
34
40
50
60
80
100
A
27.44
31.25
37.60
43.95
56.65
69.35
B
20.32
24.13
30.48
36.83
49.53
62.23
C
21.84
25.65
32.00
38.35
51.05
63.75
RoHS
YES
*
If needed, please order HIF6H series connectors with cable attached.
Designate the connection circuit and cable length on catalog pages B94 and B95.
Please note that even when socket units are purchased, wiring will not be possible
other than at Hirose Electric.
B90
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact
ID Cable Connector
HIF6H Series●0.635mm Pitch
your Hirose sales representative.

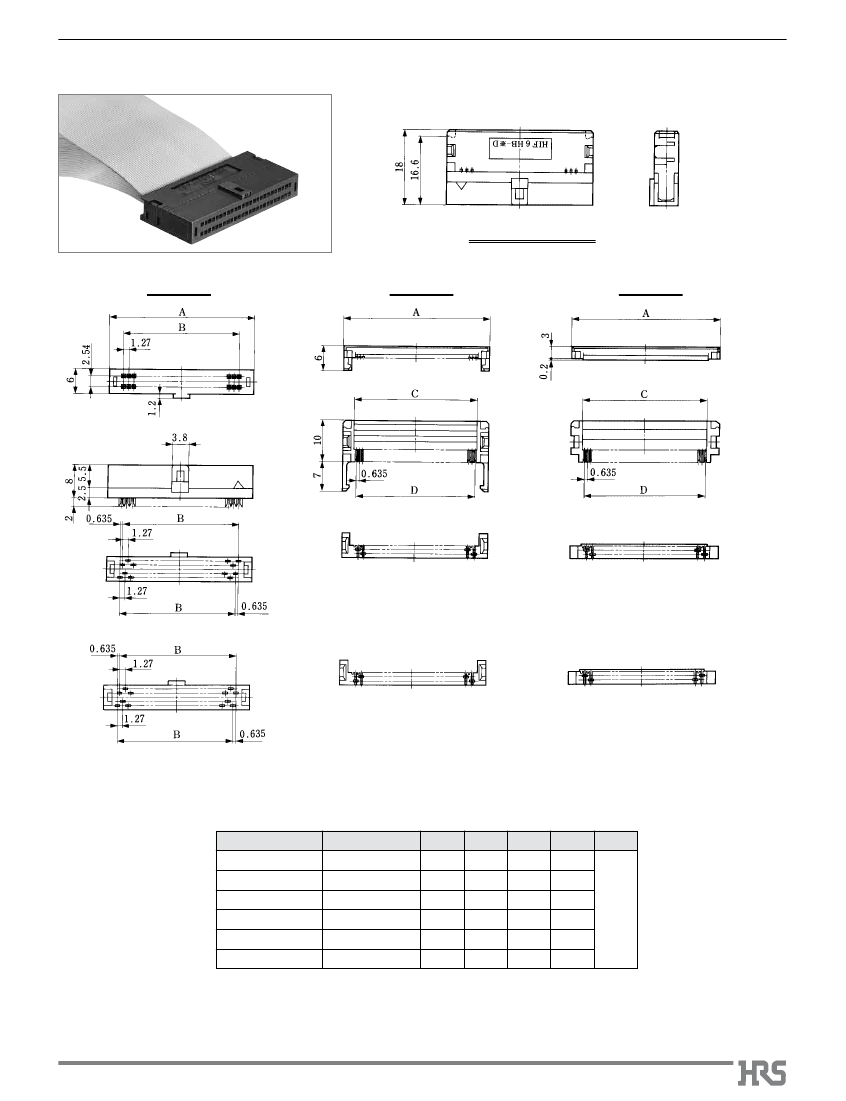

■Socket
for bus-line connection
Combination Pattern
Body
Cover B
Cover A
(40.60.80.100 contacts)
(40.60.80.100 contacts)
(40.60.80.100 contacts)
(40.60.80.100 contacts)
(34.50 contacts)
(34.50 contacts)
(34.50contacts)
Unit: mm
Part Number
HIF6HB-034D-1.27R
HIF6HB-040D-1.27R
HIF6HB-050D-1.27R
HIF6HB-060D-1.27R
HIF6HB-080D-1.27R
HIF6HB-100D-1.27R
Number of Contacts
34
40
50
60
80
100
A
27.44
31.25
37.60
43.95
56.65
69.35
B
20.32
24.13
30.48
36.83
49.53
62.23
C
D
RoHS
21.84 20.955
25.65 24.765
32.00 31.115
38.35 37.465
51.05 50.165
63.75 62.865
YES
*
Please order HIF6H series connectors with cable attached.
Designate the connection circuit and cable length on pages B94 and B95.
Please note that even when socket units are purchased, wiring will not be possible other
than at Hirose Electric.
