5-146291-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5-146291-3

Preview

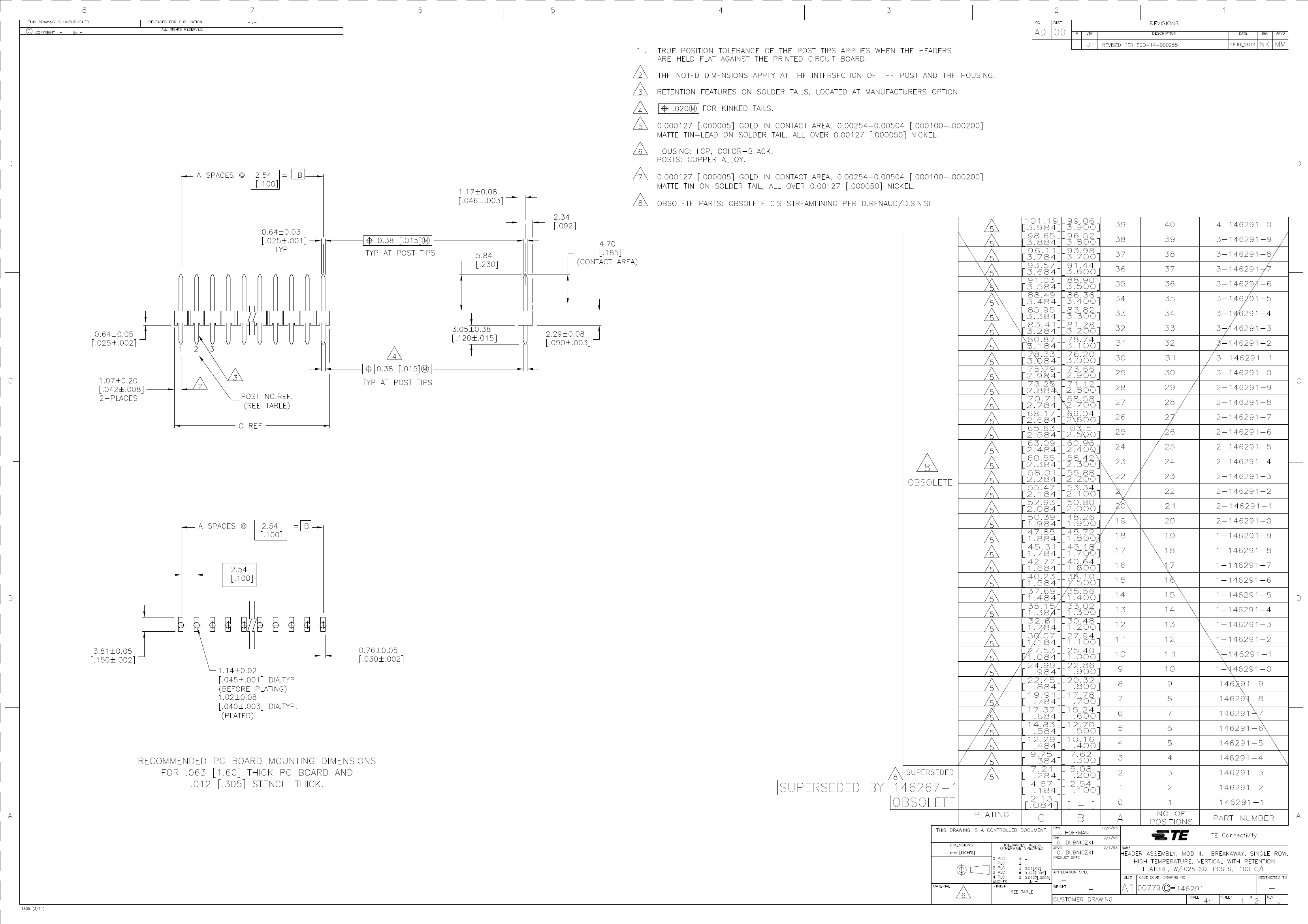

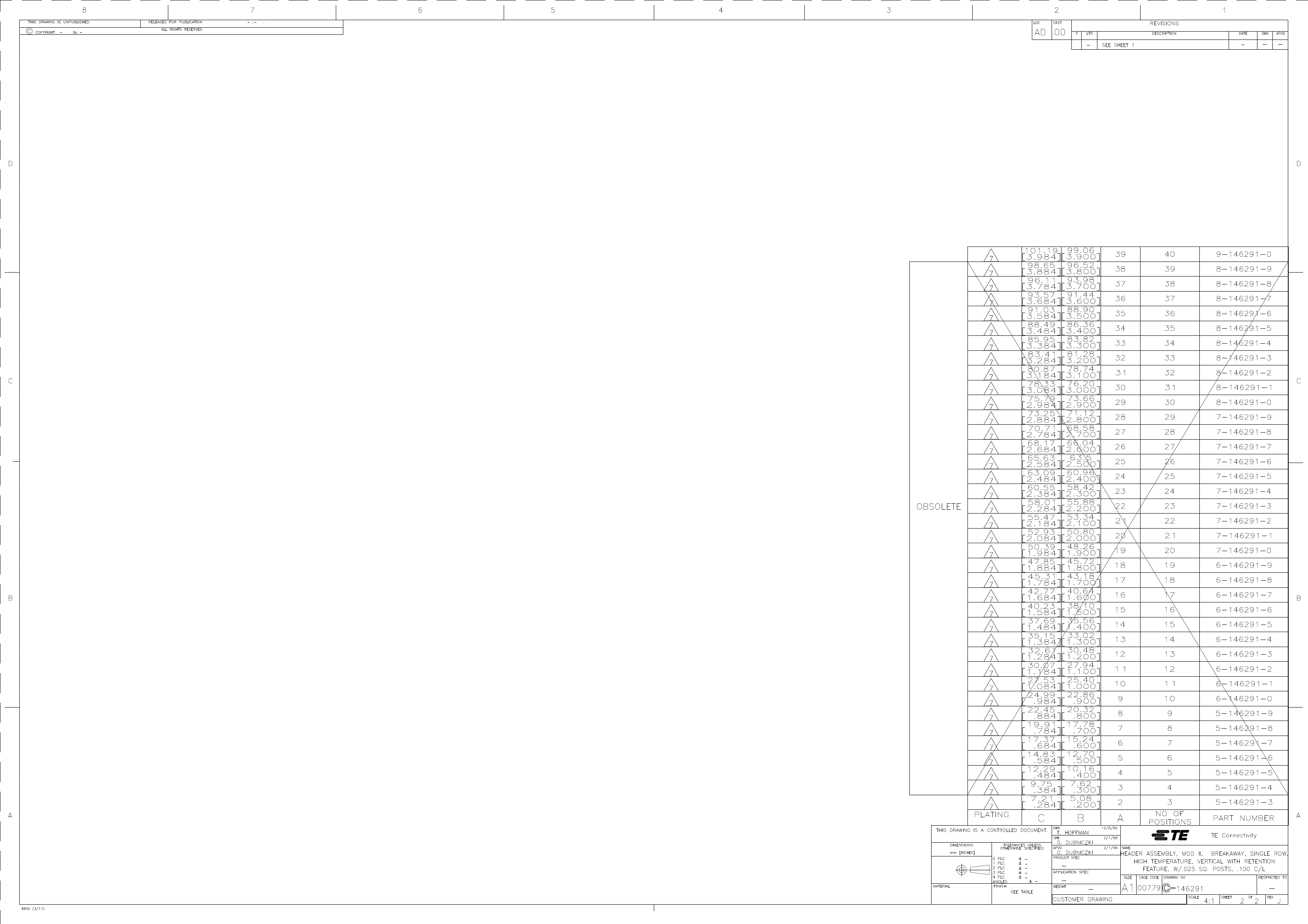

5-146291-3: Description03 MODII HDR SRST B/A 100 W/HD; CategoryThe connector; File Size282KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-146291-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-146291-3	-	-	View	Buy Now

5-146291-3 Overview

03 MODII HDR SRST B/A 100 W/HD

5-146291-3 Parametric

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting header
Connectors and terminals terminate to	A printed circuit board
Connector type	separation
Line spacing	2.54 mm [ .1 in ]
sealing ring	Without
shape	standard
stabilizing device	Without
plate support	Without
stress relief	Without
Connector terminal load status	Fully loaded
PCB mounting direction	vertical
Number of Positions	3
Rows	1
keying	yes
Cylinder size	.64 mm [ .025 in ]
Terminal base material	copper alloy
PCB terminal termination area plating materials	tin lead
Terminal base material	nickel
Terminal protection	Without
Terminal shape	square
Terminal type	Pin
Terminal Contact Plating Thickness (µin)	5
Terminal contact plating material	gold
PCB Termination Methods	Through hole
Termination cylinder length	3.05 mm [ .12 in ]
Terminal Plating Thickness (µin)	100 – 200
Terminal plating materials	tin
PCB mounting fixation type	Fixed solder tail
PCB installation and fixation	with
Panel mount features	Without
Engage connector latch	Without
PCB installation method	Through hole
joint alignment	with
Centerline (Pitch)	2.54 mm [ .1 in ]
Shell material	thermoplastic
Shell color	black
PCB thickness (recommended)	1.6 mm [ .063 in ]
Joint post length	5.84 mm [ .23 in ]
High temperature shell	yes
High speed serial data connector	no
approved standards	UL E28476
UL flammability rating	UL 94V-0
Package quantity	540
Encapsulation method	carton

Preview

Download Datasheet

View All

5-146291-3 Related Products

	5-146291-3	4-146291-0	9-146291-0
Description	03 MODII HDR SRST B/A 100 W/HD	40 MODII HDR SRST B/A 100 W/HD	40 MODII HDR SRST B/A 100 W/HD
PCB Connector Component Types	PCB mounting header	PCB mounting header	PCB mounting header
Connectors and terminals terminate to	A printed circuit board	A printed circuit board	A printed circuit board
Connector type	separation	separation	separation
sealing ring	Without	Without	Without
shape	standard	standard	standard
plate support	Without	Without	Without
stress relief	Without	Without	Without
Connector terminal load status	Fully loaded	Fully loaded	Fully loaded
PCB mounting direction	vertical	vertical	vertical
Number of Positions	3	40	40
Rows	1	1	1
keying	yes	no	yes
Cylinder size	.64 mm [ .025 in ]	.64 mm [ .025 in ]	.64 mm [ .025 in ]
PCB terminal termination area plating materials	tin lead	tin lead	tin lead
Terminal protection	Without	Without	Without
Terminal shape	square	square	square
Terminal type	Pin	Pin	Pin
Terminal contact plating material	gold	gold	gold
PCB Termination Methods	Through hole	Through hole	Through hole
Termination cylinder length	3.05 mm [ .12 in ]	3.05 mm [ .12 in ]	3.05 mm [ .12 in ]
Terminal plating materials	tin	Nickel-backed tin-lead plating	tin
PCB mounting fixation type	Fixed solder tail	Fixed solder tail	Fixed solder tail
PCB installation and fixation	with	with	with
Panel mount features	Without	Without	Without
Engage connector latch	Without	Without	Without
PCB installation method	Through hole	Through hole soldering	Through hole
joint alignment	with	Without	with
Centerline (Pitch)	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]	2.54 mm [ .1 in ]
Shell material	thermoplastic	LCP (Liquid Crystal Polymer)	thermoplastic
Shell color	black	black	black
PCB thickness (recommended)	1.6 mm [ .063 in ]	1.6 mm [ .063 in ]	1.6 mm [ .063 in ]
Joint post length	5.84 mm [ .23 in ]	4.7 mm [ .185 in ]	5.84 mm [ .23 in ]
High temperature shell	yes	yes	yes
High speed serial data connector	no	no	no
approved standards	UL E28476	CSA LR7189, UL E28476	UL E28476
UL flammability rating	UL 94V-0	UL 94V-0	UL 94V-0
Package quantity	540	50	50
Encapsulation method	carton	roll	tray
Line spacing	2.54 mm [ .1 in ]	-	2.54 mm [ .1 in ]
stabilizing device	Without	-	Without
Terminal base material	nickel	nickel	nickel
Terminal Contact Plating Thickness (µin)	5	-	5
Terminal Plating Thickness (µin)	100 – 200	-	100 – 200
