REVISIONS
REV.
A
ECO. NO
2235
DESCRIPTION
INITIAL RELEASE
DATE
05/25/2011
BY
LH
F
F
E
E
A
6.00 .236
2.00 .079
3.40 .134
D
0.80±0.05 .031±.002
0.50 .020
RECOMMENDED PCB LAYOUT
D
2.00 .079 TYP
A 0.20[ .008]
P.C. BOARD THICKNESS: 0.80 ~ 1.60mm[.031" ~ .063"]
C
C
B
1.70±0.20 .067±.008
4.60 .181
B
B
A
NOTES:
1. INSULATOR MATERIAL: NYLON 66, UL94V-0, COLOR: WHITE.
2. CONTACT MATERIAL: BRASS.
3. CONTACT PLATING: .000020" MIN. NICKEL UNDERPLATE, PURE TIN, BRIGHT OVERALL.
4. CURRENT RATING: 1 AMP PER CONTACT.
5. VOLTAGE RATING: 125V AC/DC.
6. INSULATOR RESISTANCE: 1000 MEGOHMS MIN.
7. CONTACT RESISTANCE: 20 MILLIOHMS MAX.
8. DIELECTRIC WITHSTANDING VOLTAGE: 800V AC.
9. OPERATING TEMPERATURE: -25° C TO +85° C.
10. MATES WITH SWH201 SERIES SINGLE ROW HOUSING.
8
7
6
5
DRAWN
DATE
NAME
Pb
4
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MM[INCHES]
TOLERANCES: ANGULAR:
.X= 0.3 [.01]
.XX= 0.30 [.012]
INTERPRET DIMENSIONS AND
TOLERANCING
PER: ASME Y14.5M-2009
3
05/25/2011 LH
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
TITLE

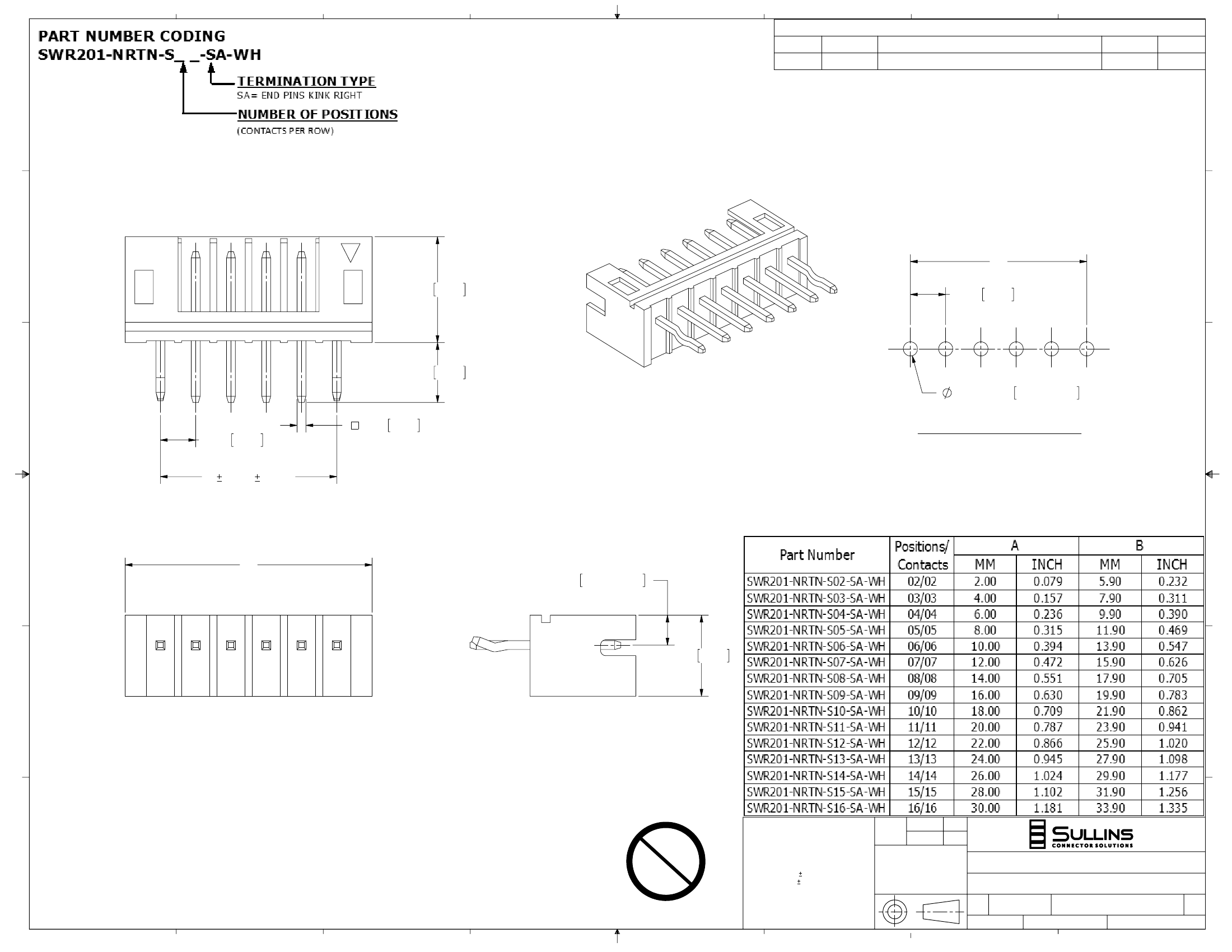

WAFER 2.0mm[.079"] CC, 1 ROW, ST
SWR201-NRTN-S_ _-SA-WH
DWG. NO.
CAGE CODE
A
PART NUMBER
SIZE
R
oHS COMPLIANT
SCALE: 8:1
2
C
54453
11623
SHEET 1 OF 1
1
REV
A
FILE NAME: Z:\COMPONENTS\Taiwan\TAiPEI-CALIFORNIA\TO CALIFORNIA (JEN)\WAFER ECO 2235,2236,2237\2235, WAFER 210 WST\11623, SWR201-NRTN-S_ _-SA-WH PRINT: 8/26/2011
