REVISIONS
REV.
B
C
F
ECO. NO
2422
2538
2668
DESCRIPTION
ADD 'P' PLATING OPTION
ADD 'LCP' MATERIAL AND REMOVE 'NYLON 9T'
DATE
08/08/2011
09/06/2012
BY
GC
LH
LH
F
UPDATE PROCESSING TEMPERATURE IN THE NOTE 02/20/2012
D
E
B .012[ 0.30]
E
.197 5.00
A
D
.100 2.54
D
HEAD DIM.
.098 2.50
TAIL DIM.
.100 2.54
C
.025 0.64
A
C
.100 2.54
.039 1.00
.100 2.54
B
RECOMMENDER PCB LAYOUT
NOTES:
1. INSULATOR MATERIAL: SEE PART NUMBER CODING, UL 94V-0, BLACK.
2. CONTACT MATERIAL: SEE PART NUMBER CODING.
3. CONTACT PLATING: SEE PART NUMBER CODING.
4. CURRENT RATING: 3 AMPS.
5. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.
6. CONTACT RESISTANCE: 20 MILLIOHMS MAX.
7. DIELECTRIC WITHSTANDING: 1000 VAC.
8.
OPERATING TEMPERATURE:
SEE PART NUMBER CODING.
9. *PROCESSING TEMP.: SEE PART NUMBER CODING.
*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT INSULATOR. HIGHER PROCESSING
TEMPERATURES MAY BE USED, PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB,
AND INSULATOR DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.
8
7
6
5
B
A
Pb
RoHS
COMPLIANT
4
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
ANGULAR:
DECIMALS
.XX= .012 [.3]
.XXX= .008 [.20]
.XXXX= .0040 [.100]
3
DRAWN
DATE
NAME
03/22/2011 LH
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.

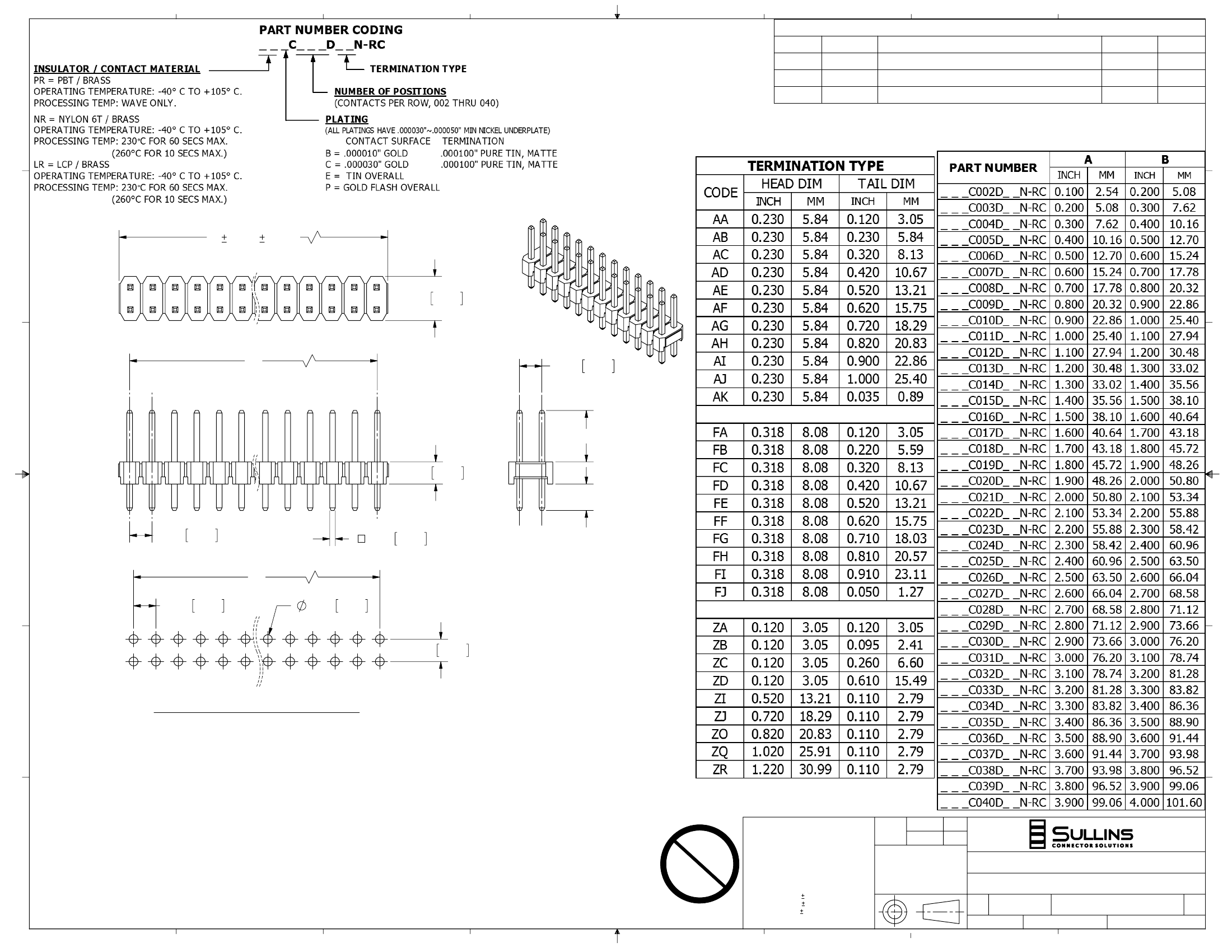

HEADER .100" PITCH, 2 ROWS, STRAIGHT
PART NUMBER
SIZE
TITLE
A
SCALE: 4:1
2
C
CAGE CODE
_ R _C_ _ _D_ _N-RC
DWG. NO.
54453
11636
REV
SHEET 1 OF 1
1
D
FILE NAME: 11636, _ R _C_ _ _D_ _N-RC
