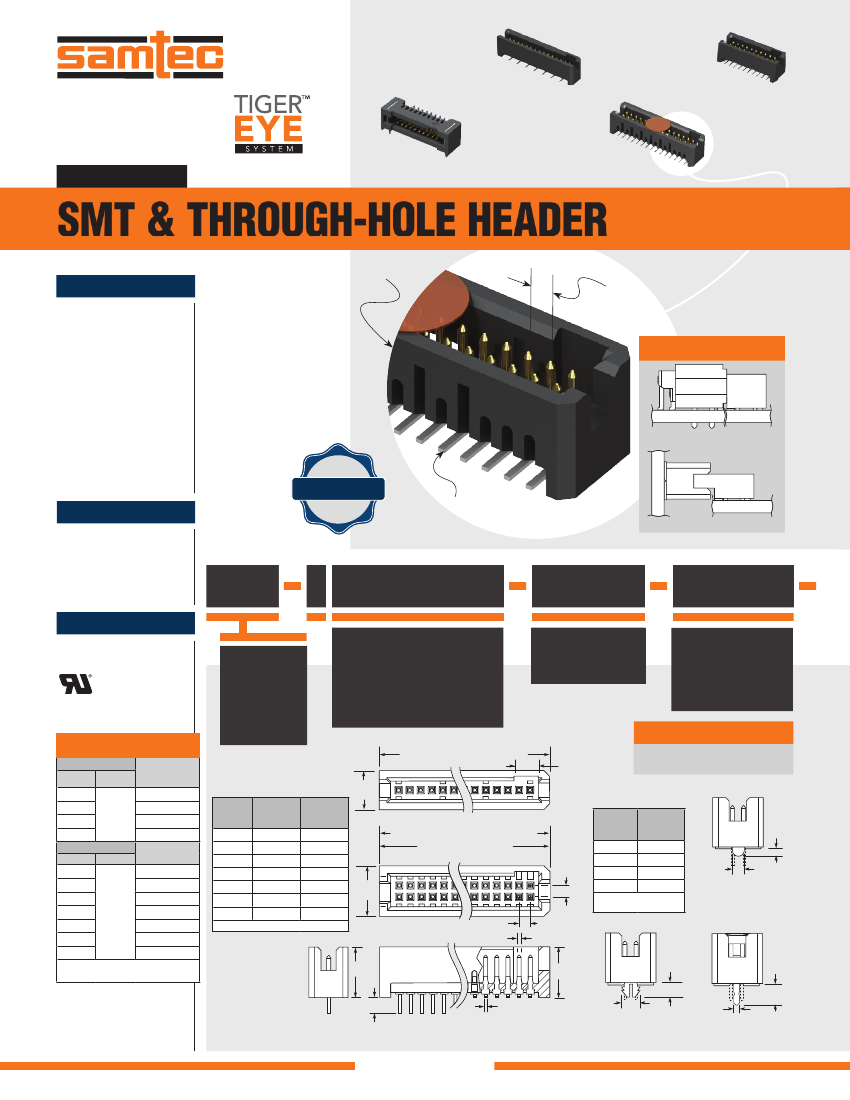

F-219
TFM–115–02–L–S
TFM–110–02–L–D–LC
(1.27 mm) .050"
TFM–110–01–L–D–RE1–WT
TFML–115–02–L–D–K
SMT & THROUGH-HOLE HEADER
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?TFM or
www.samtec.com?TFML
Insulator Material:
Black Liquid Crystal Polymer
Terminal Material:
Phosphor Bronze
Plating:
Au or Sn over 50 µ" (1.27 µm) Ni
Current Rating (TFM/SFM):
3.2 A per pin
(2 pins powered)
Voltage Rating:
250 VAC mated with SFM
Operating Temp Range:
-55 °C to +125 °C
RoHS Compliant:
Yes
TFM Board Mates:
SFM, SFMC
TFM Cable Mates:
SFSD
TFML Board Mates:
SFML
TFM-DH Board Mates:
SFM (-DH), SFMC
TFM-DH Cable Mates:
SFSDX (-S, -D, -SR, -DR)
Shrouded body
for blind mating
(1.27 mm x 1.27 mm)
.050" x .050"
micro pitch
APPLICATIONS
TFM-DH to SFM-DH SHOWN
10 YEAR MFG
WITH 30 µ" GOLD
EXTENDED LIFE
PRODUCT
HIGH MATING
CYCLES
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max (05-25)
(0.15 mm) .006" max (30-50)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
Surface mount or
through-hole tails
TFM to SFM-SH SHOWN
TYPE
STRIP
1
NO. PINS
PER ROW
LEAD STYLE
PLATING
OPTION
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
= Standard
TFM
03, 04, 06, 08
(TFM –01 & –02 only)
FILE NO. E111594
MATED HEIGHTS
LEAD STYLE
TFM
SFM
MATED
HEIGHT*
(6.35) .250
= Locking
(–01 & –02
lead style only)
TFML
05, 07, 10, 15, 20,
25, 30, 35, 40, 45, 50
(Standard sizes)
(1.27) .050 x
No. of Positions + (3.18) .125
(4.45)
.175
Specify
LEAD STYLE
from chart
= 15 µ" (0.38 µm)
Gold on post,
Matte Tin on tail
(Call Samtec for
E.L.P.™ plating option)
–L
OTHER SOLUTIONS
(2.79)
.110
• Lower cost plating options.
See TFC Series.
– 02
– 12
– 22
– 32
–01
–03
–11
–13
–21
–23
–31
–02
(8.13) .320
(9.91) .390
(11.81) .465
MATED
HEIGHT*
(5.97) .235
(5.97) .235
(7.75) .305
LEAD
STYLE
(T/H)
B
(5.59) .220
(5.59) .220
(7.37) .290
(7.37) .290
(9.14) .360
(9.14) .360
C
(1.97) .078
(2.77) .109
(1.97) .078
(2.77) .109
(1.97) .078
(2.77) .109
SINGLE ROW
01
LEAD STYLE
TFM
SFM
–01
(7.75) .305
(9.53) .375
(9.53) .375
(11.43) .450
–01
–03*
–11*
–13*
–21*
–23*
–31*
(See website for –DS & –WT OAL)
–REX = (1.27) .050 x
No. of Positions + (6.68) .263
02
LEAD
STYLE
(SMT)
A
(5.72) .225
(7.49) .295
(9.27) .365
(1.14)
.045
(1.27)
.050
DIA
–A
(SMT or TH)
(1.27)
.050
(5.72)
.225
01
(11.05) .435 (1.97) .078
(11.18) .440
* N/A with 07, -DH or
-S row option
–02
–12*
–22*
–32*
* Not Available with 07 or -S row option
DOUBLE ROW
(1.27) .050
(0.46) .018 DIA
(1.40)
.055
(1.42)
.056
(2.35)
(0.64)
.093
.025
–WT
(–01 & –02 ONLY)
*Processing conditions will
affect mated height.
B
C
(0.36) .014
A
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
THROUGH-HOLE
SURFACE MOUNT
–LC
(SMT or TH)
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
TFML–150–01–L–D–LC
TFM–105–01–L–D–RA
TFM–125–01–L–D–WT
TFM–110–02–L–DH
TFM–110–02–L–D–DS

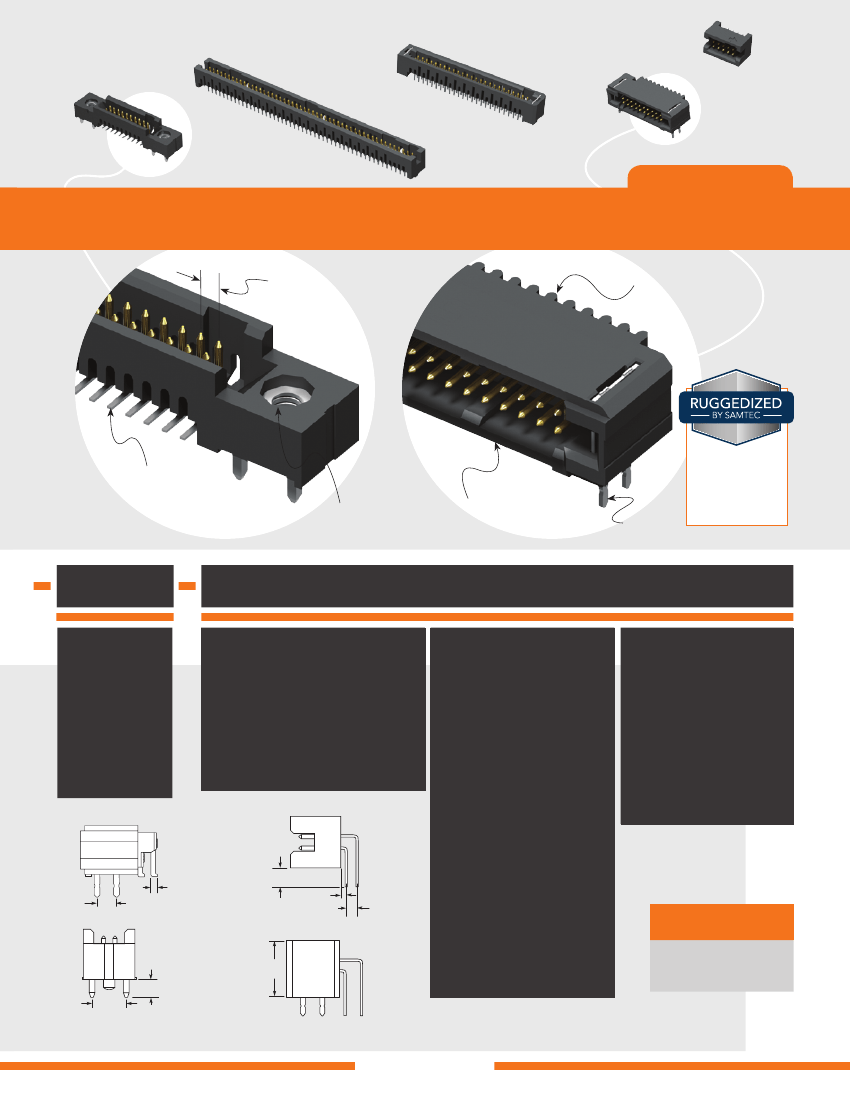

TFM, TFML SERIES
(1.27 mm)
.050" pitch
Shrouded body for
blind mating
• Passes 10 Year MFG
Surface mount or
through-hole tails
Screw down
option
Mates with SFM for
coplanar mating
Weld tab
option
• Locking option
• Locking clip option
• Weld tab option
• Screw down option
ROW
OPTION
OPTION
= Single Row
(TFM only)
–S
Specify only –RA, –RE1 or –RE2
= Right-angle
(Lead style –01 only)
–RA
Specify only –A, –LC, –DS or –WT
Not available with –RA, –RE1 and –RE2
unless otherwise noted.
= Alignment Pin
SMT lead styles only
Specify only –K or –P
= Polyimide Film Pick & Place Pad
= Double Row
–D
–A
–K
–P
= Double Horizontal
(TFM lead style –02 only)
(05 thru 50 positions only)
(–TR option only
available)
–DH*
= Right-angle Elevated for (1.58 mm) .062" PCB
(Requires TFM lead style –01, –D row and –WT)
–RE1
–RE2
= Locking Clip
(Manual Placement required)
–LC
= Right-angle Elevated for (2.36 mm) .093" PCB
(Requires TFM lead style –01, –D row and –WT)
(2.26)
.089
(0.76)
.030
(1.91)
.075
(0.51)
.020
–RA
(1.27)
.050
= Dual Screw Down for
(1.60 mm) .062" PCB
(05, 07, 10, 15, 20, 25, 30,
35, 40 positions only)
(TFM lead styles –01 and –02 only)
(Requires –D row option)
(Mates with SFM–DS option and
SFSD/SFSDT –SS and –DS option only)
(Not available with –A, –LC,
–WT, –K, –P, –TR)
–DS
= Plastic Pick & Place Pad
(5 positions minimum)
(Not available with
5 position with –WT)
Specify –TR last
= Tape & Reel
(Not available with –DS)
–TR
–DH*
(3.81)
.150
(1.99)
.079
(6.48)
.255
= Weld Tab
(TFM lead styles –01 and –02 only)
(Required callout for –RE1 & –RE2)
(Mates to SFSS/SFSD –SR and
–DR option only)
(05, 07, 10, 15, 20, 25, 30, 35,
40, 45, 50 positions only)
* Notes:
Weld tab is standard on –DH option.
No need to specify –WT.
–WT
ALSO AVAILABLE
(MOQ Required)
•
Solder nail option
• Other sizes
• Other platings
–DS
(–D, –01 & –02 ONLY)
–RE1 & –RE2
