HGC Series
Thick Film Precision High Resistance Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
•
Ultra high stability
Very low noise
Tolerances to 0.1%
TCR down to 25 ppm/ºC
RoHS compliant and halogen-free

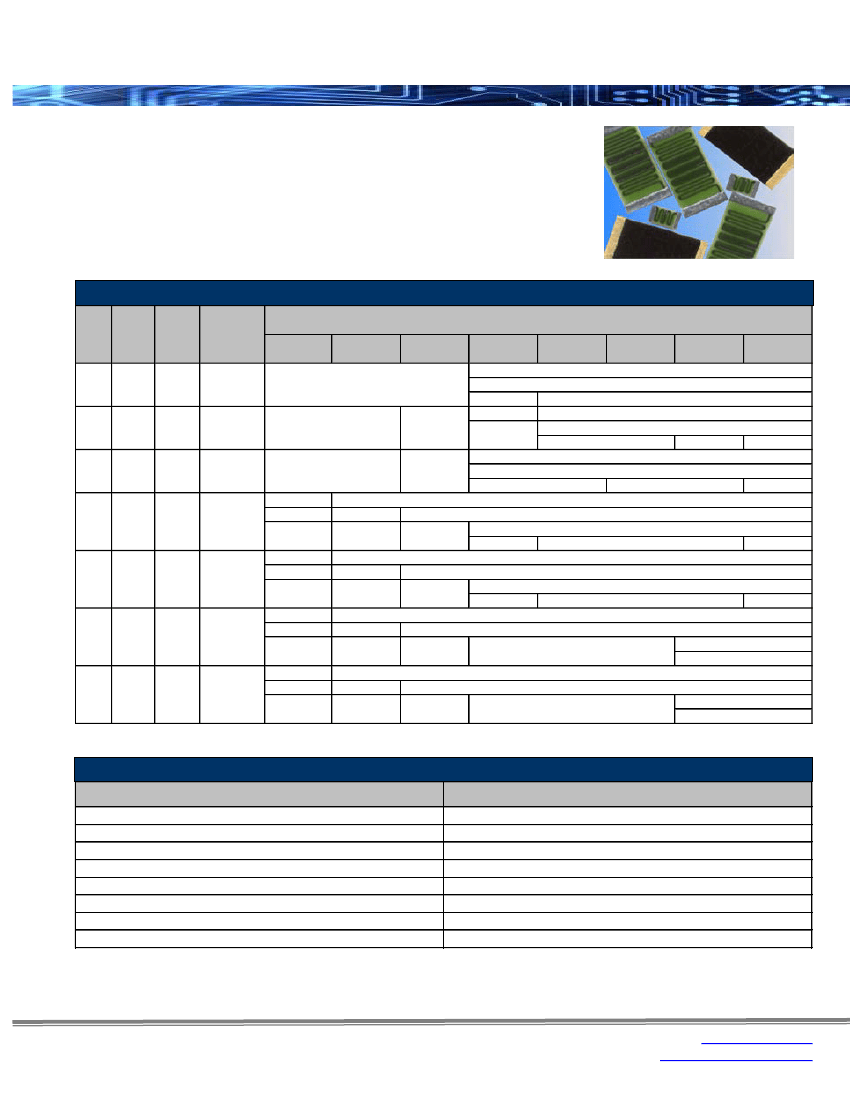

Electrical Specifications
Type /
Code
Power
Rating
(Watts)
@ 70ºC
Maximum
Working
Voltage
Resistane
Temperature
Coefficient
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
± 25 ppm/ºC
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
± 25 ppm/ºC
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
± 25 ppm/ºC
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
± 25 ppm/ºC
± 50 ppm/ºC
± 100 ppm/ºC
± 200 ppm/ºC
1M - 10M
100K - 10M
10K - 10M
1M - 10M
100K - 10M
10K - 10M
1M - 100M
100K - 100M
10K - 100M
1M - 100M
100K - 100M
10K - 100M
-
Ohmic Range (Ω) and Tolerance
0.1%
0.25%
0.5%
1%
2%
5%
10K - 100M
10K - 500M
10K - 1G
10K - 500M
10K - 1G
10K - 10G
10%
20%
0402
0.04W
50V
-
10K - 500M
10K - 100M
10K - 10M
10K - 500M
0603
0.06W
100V
10K - 1G
10K - 50G
0805
0.2W
125V
-
10K - 10M
10K - 1G
100K - 100M
10K - 100M
10K - 500M
10K - 1G
10K - 500M
10K - 1G
10K - 10G
10K - 50G
1206
0.33W
200V
1M - 100M
100K - 500M
10K - 1G
10K - 10G
1M - 100M
100K - 500M
10K - 500M
10K - 1G
10K - 1G
10K - 10G
1M - 500M
100K - 1G
10K - 1G
10K - 10G
1M - 500M
100K - 1G
10K - 1G
10K - 10G
100K - 10G
100K - 50G
100K - 10G
100K - 50G
10K - 50G
10K - 50G
2010
1W
300V
100K - 100M
10K - 100M
2512
2W
350V
100K - 500M
10K - 500M
3512
3W
600V
100K - 500M
10K - 500M
Performance Characteristics
Test
Short Time Overload
Load Life
Temperature Cycle
Moisture Resistance
Shock
Vibration
Dielectric Withstanding Voltage
Resistance to Soldering Heat
Operating Temperature Range: -55ºC to +150ºC
Typical Delta R
0.1%
0.1%
0.1%
0.1%
0.05%
0.05%
0.05%
0.05%
Rev Date: 11/14/2017
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
HGC Series
Thick Film Precision High Resistance Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

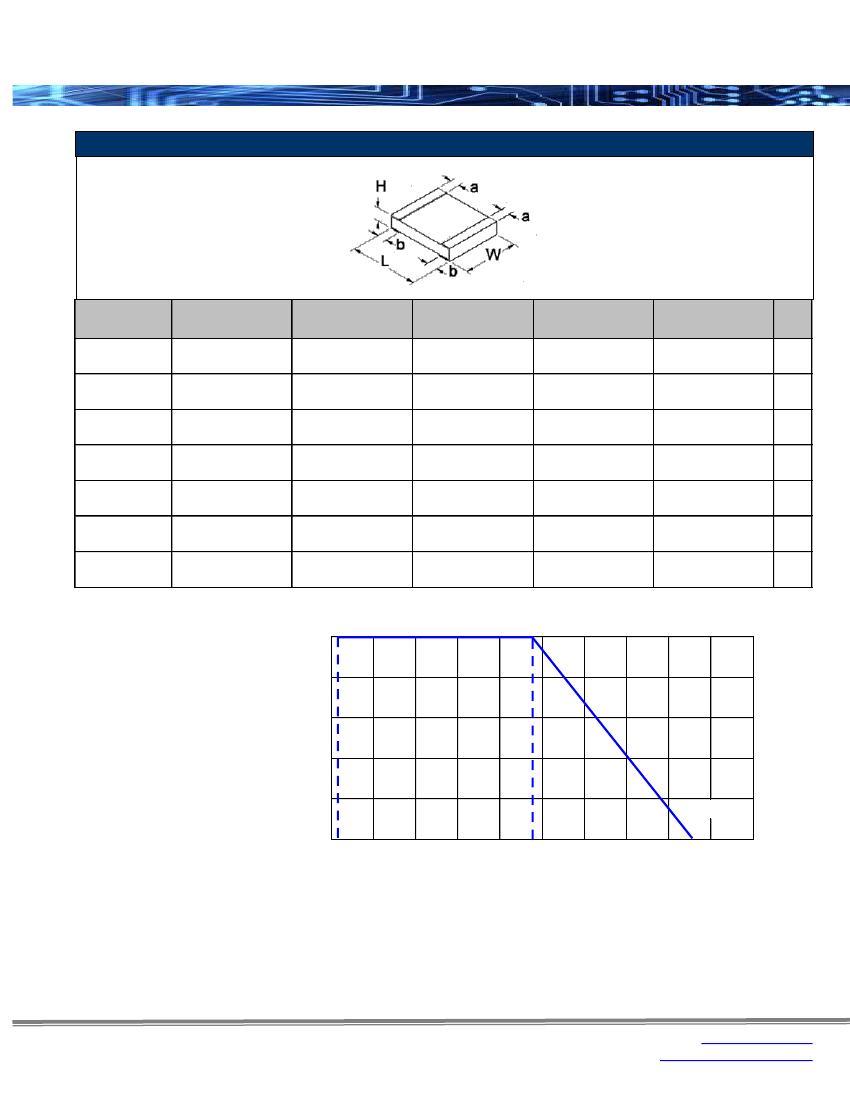

Mechanical Specifications
Type / Code
0402
0603
0805
1206
2010
2512
3512
L
Body Length
0.040 ± 0.005
1.02 ± 0.13
0.063 ± 0.010
1.60 ± 0.25
0.079 ± 0.010
2.01 ± 0.25
0.126 ± 0.010
3.20 ± 0.25
0.200 ± 0.010
5.08 ± 0.25
0.250 ± 0.010
6.35 ± 0.25
0.350 ± 0.010
8.89 ± 0.25
W
Body Width
0.020 ± 0.003
0.51 ± 0.08
0.031 ± 0.005
0.79 ± 0.13
0.050 ± 0.005
1.27 ± 0.13
0.063 ± 0.005
1.60 ± 0.13
0.100 ± 0.005
2.54 ± 0.13
0.125 ± 0.005
3.18 ± 0.13
0.125 ± 0.005
3.18 ± 0.13
H
Body Height (Max.)
0.020
0.51
0.020
0.51
0.025
0.64
0.030
0.76
0.030
0.76
0.030
0.76
0.030
0.76
a
Top Termination
0.008 ± 0.004
0.20 ± 0.10
0.010 ± 0.005
0.25 ± 0.13
0.010 ± 0.005
0.25 ± 0.13
0.010 ± 0.005
0.25 ± 0.13
0.018 ± 0.010
0.46 ± 0.25
0.020 ± 0.010
0.51 ± 0.25
0.020 ± 0.010
0.51 ± 0.25
b
Bottom Termination
0.010 ± 0.004
0.25 ± 0.10
0.012 ± 0.008
0.30 ± 0.20
0.013 ± 0.008
0.33 ± 0.20
0.020 ± 0.010
0.51 ± 0.25
0.020 ± 0.010
0.51 ± 0.25
0.024 ± 0.010
0.61 ± 0.25
0.024 ± 0.010
0.61 ± 0.25
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Power Derating Curve:
Percent Rated Power (%)
100
80
60
40
20
-55ºC
75ºC
150ºC
0
-60
0
20
40
60
80
100
120
140
160
180
Ambient Temperature (ºC)
Rev Date: 11/14/2017
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
HGC Series
Thick Film Precision High Resistance Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
“Conflict Metals” Commitment
We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region”
of the Eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals
used in the electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible
that the materials and products we supply do not contain metals sourced from this conflict region. As such, we are in
compliance with the requirements of Dodd-Frank Act regarding Conflict Minerals.
Compliance to “REACH”
We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High
Concern) free and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation,
Authorization and Restriction of Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH
Substance Candidate List.
Environmental Policy
It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We
continually strive to improve our effect on the environment. We observe all applicable laws and regulations regarding
the protection of our environment and all requests related to the environment to which we have agreed. We are
committed to the prevention of all forms of pollution.
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
H
G
C
B
1
2
0
6
F
K
C
2
M
0
0
Product Series
HGC
Code
B
Description
Solderable
wraparound
(100% matte tin)
Size
0402
0603
0805
1206
2010
2512
3512
Power
0.04W
0.06W
0.2W
0.33W
1W
2W
3W
Tolerance
Code Tol
B
0.1%
C 0.25%
D
0.5%
F
1%
G
2%
J
5%
K
10%
M
20%
Code
T
K
D
B
Packaging
Description
Size
7" Reel - Paper Tape 0402, 0603, 0805
1206, 2010
7" Reel - Plastic Tape
2512
7" Reel - Paper Tape 0603, 0805, 1206
7" Reel - Plastic Tape 2010, 2512, 3512
7" Reel - Paper Tape 0603, 0805, 1206
7" Reel - Plastic Tape 2010, 2512, 3512
Bulk
All Sizes
Quantity
5,000
4,000
2,000
1,000
500
1,000
TCR
Code ppm
E
25
C
50
D
100
L
200
Resistance Value
Four characters with the
multiplier used as the
decimal holder.
10 Kohm = 10K0
1 Mohm = 1M00
10 Gohm = 10G0
Rev Date: 11/14/2017
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
