D75F471JO1 datasheet, PDF - EEWORLD Datasheet

D75F471JO1: DescriptionMica Capacitor, Mica, 500V, 4% +Tol, 5% -Tol, 70ppm/Cel TC, 0.00047uF, 3416,; File Size213KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

D75F471JO1 Overview

Mica Capacitor, Mica, 500V, 4% +Tol, 5% -Tol, 70ppm/Cel TC, 0.00047uF, 3416,

D75F471JO1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	844517828
package instruction	, 3416
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	5.15
capacitance	0.00047 µF
Capacitor type	MICA CAPACITOR
dielectric materials	MICA
high	7.9 mm
length	8.6 mm
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	TR
positive tolerance	4%
Rated (DC) voltage (URdc)	500 V
series	D7
size code	3416
Temperature Coefficient	70ppm/Cel ppm/°C
Terminal pitch	3.6 mm
width	4.1 mm

Preview

Download Datasheet

View All

Mica Capacitors

Miniature Dipped

Types CD5, CD6, CD7, CDS5, CDS10, D7, CDS15, CDS19, CDS30

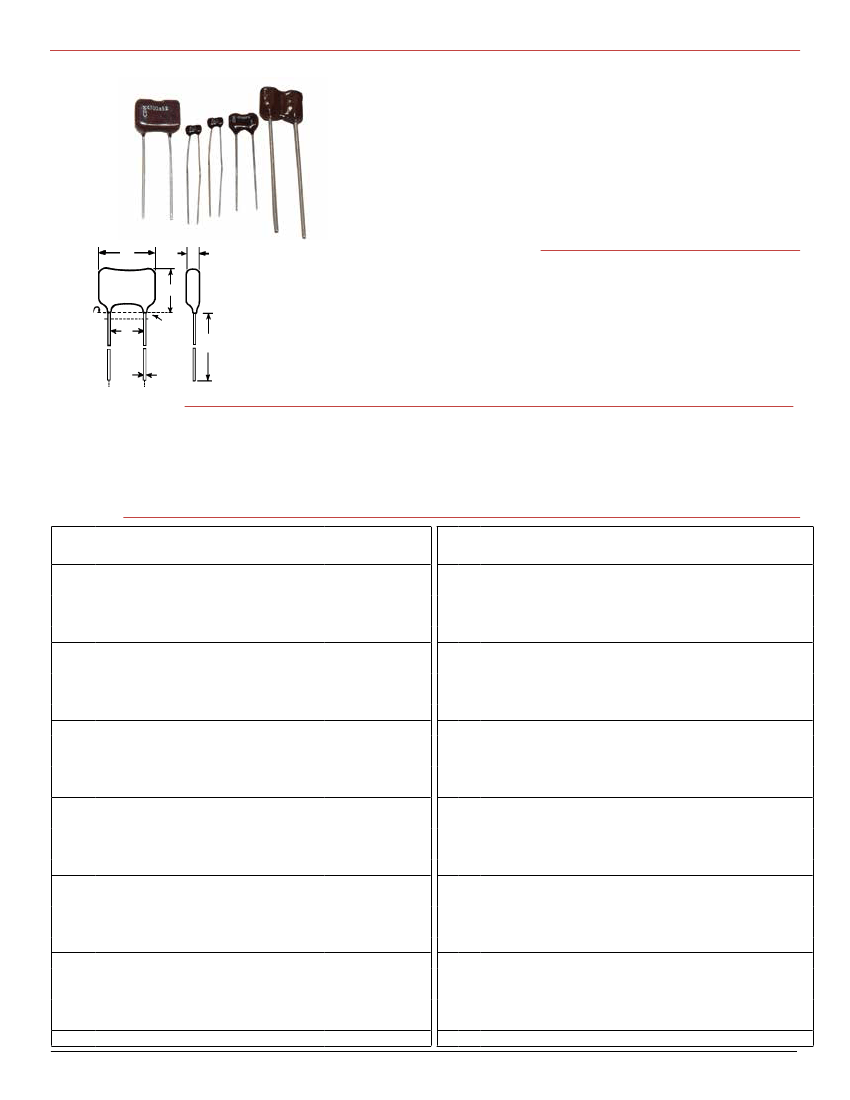

Small cases for tight places is what you get with CDE

miniature dipped silver mical capacitors. Like the stan-

dard dipped mica capacitor, the miniature dipped product

offers the same stability and rugged performance in low

and moderate-humidity applications.

Highlights

H Max.

Measured at

point where

phenolic cone

becomes a

cylinder

.031.

.078. Max.

no solder

Min.

Specifications

Part Numbers with the F at the end are

RoHS-5 Compliant

Has more than 1000 ppm lead in some

homogenous material but otherwise

complies with the EU Directive 2002/95/

EC requirement restricting the use of

Lead (Pb), Mercury (Hg), Cadmium

(Cd), Hexavalent chromium (Cr(VI)),

PolyBrominated Biphenyls (PBB) and

PolyBrominated Diphenyl Ethers (PBDE).

♦

Reel packaging available

Dimensions meet EIA RS153B specification

20,000 V/µs dV/dt pulse capability minimum

Non-flammable units that meet IEC 695-2-2 are

available

Ratings

Cap Volts

(pF)

Catalog

Capacitance Range:

Voltage Range:

Capacitance Tolerance:

Temperature Range:

Dielectric Strength Test:

inches (mm)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

1 pF to 40,000 pF

50 Vdc to 500 Vdc

±1/2 pF (D), ±1 pF (C), ±1/2% (E), ±1% (F), ±2% (G), ±5% (J)

–55 ºC to +125 ºC

200% of rated voltage

Cap Volts

(pF)

Catalog

inches (mm)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

inches (mm)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

inches (mm)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.170 (4.3)

inches (mm)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.120 (3.0)

0.100 (2.5)

(Vdc) Part Number

300 CD5CC010DO3F

300 CDS5CC010DO3F

500 CD6CD010DO3

500 CDS10CD010DO3F

500 CDS15CD010DO3F

300 CD5CC020DO3F

300 CDS5CC020DO3F

500 CD6CD020DO3

500 CDS10CD020DO3F

500 CDS15CD020DO3F

300 CD5CC030DO3F

300 CDS5CC030DO3F

500 CD6CD030DO3

500 CDS10CD030DO3F

500 CDS15CD030DO3F

300 CD5CC040DO3F

300 CDS5CC040DO3F

500 CD6CD040DO3

500 CDS10CD040DO3F

500 CDS15CD040DO3F

300 CD5CC050DO3F

300 CDS5CC050DO3F

500 CD6CD050DO3

500 CDS10CD050DO3F

500 CDS15CD050DO3F

300 CD5CC060DO3F

300 CDS5CC060DO3F

500 CD6CD060DO3

500 CDS10CD060DO3F

500 CDS15CD060DO3F

300 CD5CC070DO3F

inches (mm) inches (mm)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

(Vdc) Part Number inches (mm)

300 CDS5CC070DO3F 0.250 ( 6.4)

500 CD6CD070DO3

0.275 ( 7.0)

500 CDS10CD070DO3F 0.310 ( 7.9)

500 CDS15CD070DO3F 0.430 (10.9)

300 CD5CC080DO3F 0.270 ( 6.9)

300 CDS5CC080DO3F 0.250 ( 6.4)

500 CD6CD080DO3

0.275 ( 7.0)

500 CDS10CD080DO3F 0.310 ( 7.9)

500 CDS15CD080DO3F 0.430 (10.9)

300 CD5CC090DO3F 0.270 ( 6.9)

300 CDS5CC090DO3F 0.250 ( 6.4)

500 CD6CD090DO3

0.275 ( 7.0)

500 CDS10CD090DO3F 0.310 ( 7.9)

500 CDS15CD090DO3F 0.430 (10.9)

300 CD5CC100JO3F

0.270 ( 6.9)

300 CDS5CC100JO3F 0.250 ( 6.4)

500 CD6CD100DO3

0.275 ( 7.0)

500 CDS10CD100JO3F 0.310 ( 7.9)

500 CDS15CD100JO3F 0.430 (10.9)

300 CD5CC110JO3F

0.270 ( 6.9)

300 CDS5CC110JO3F 0.250 ( 6.4)

500 CD6CD110DO3

0.275 ( 7.0)

500 CDS10CD110JO3F 0.310 ( 7.9)

500 CDS15CD110JO3F 0.430 (10.9)

300 CD5CC120JO3F

0.270 ( 6.9)

300 CDS5CC120JO3

0.250 ( 6.4)

500 CD6CD120JO3

0.275 ( 7.0)

500 CDS10CD120JO3 0.310 ( 7.9)

500 CDS15CD120JO3 0.430 (10.9)

300 CD5CC150JO3F

0.270 ( 6.9)

300 CDS5CC150JO3F 0.250 ( 6.4)

inches (mm) inches (mm)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)
