MIP30WA10F4N83A1 datasheet, PDF

MIP30WA10F4N83A1: DescriptionRectangular Power Connector, 30 Contact(s), Female, Solder Terminal; File Size930KB，10 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric View All

MIP30WA10F4N83A1 Overview

Rectangular Power Connector, 30 Contact(s), Female, Solder Terminal

Parameter Name	Attribute value
Objectid	1938664926
Reach Compliance Code	unknown
YTEOL	8.26
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug information	MIP30WA10M4N83A1
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0

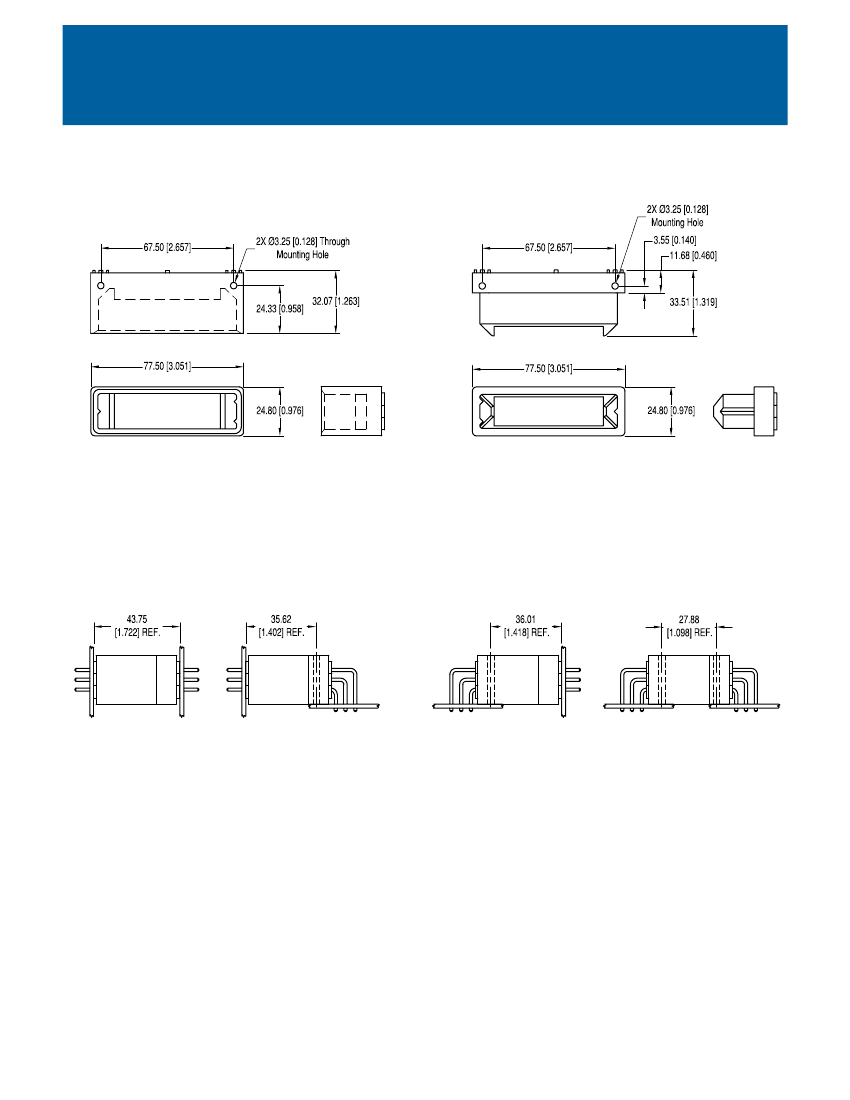

MINI-INFINITY

HIGH POWER

CONNECTOR SERIES

MIP CONNECTOR VARIANTS

MINI-INFINITY

HIGH POWER

CONNECTOR SERIES

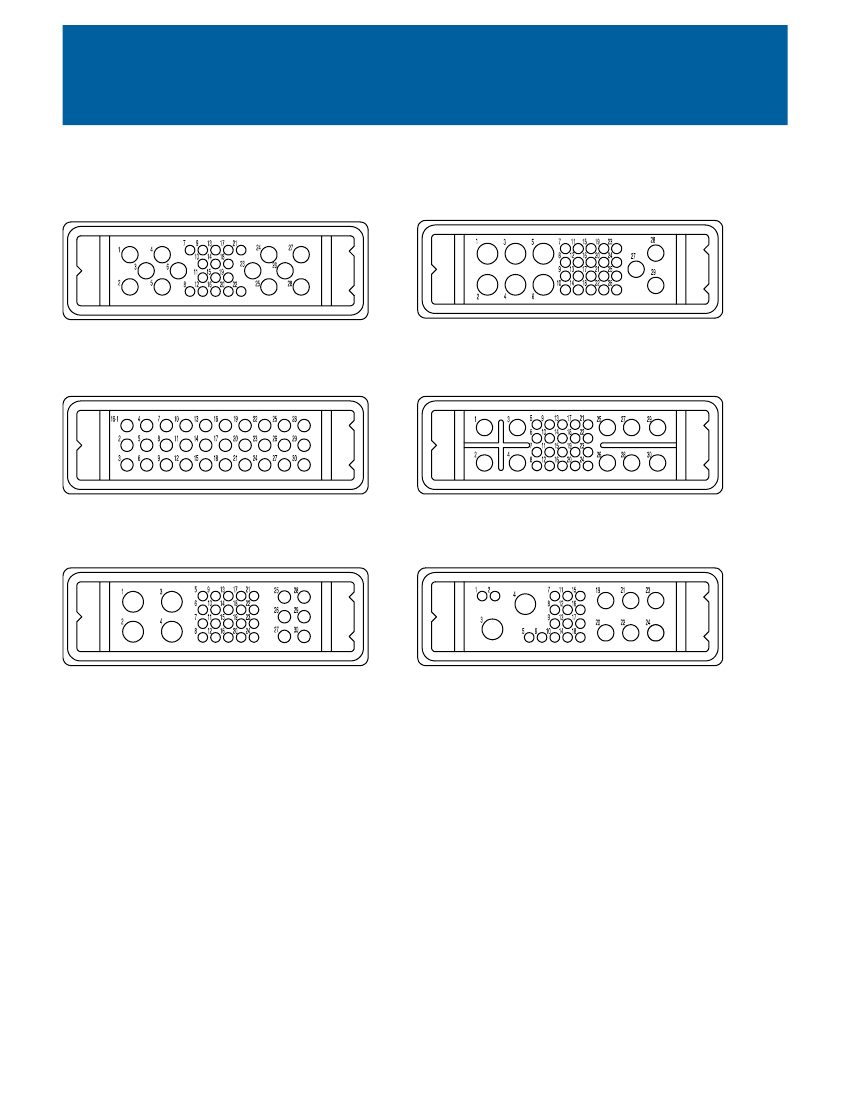

FACE VIEW OF MALE OR REAR VIEW OF FEMALE

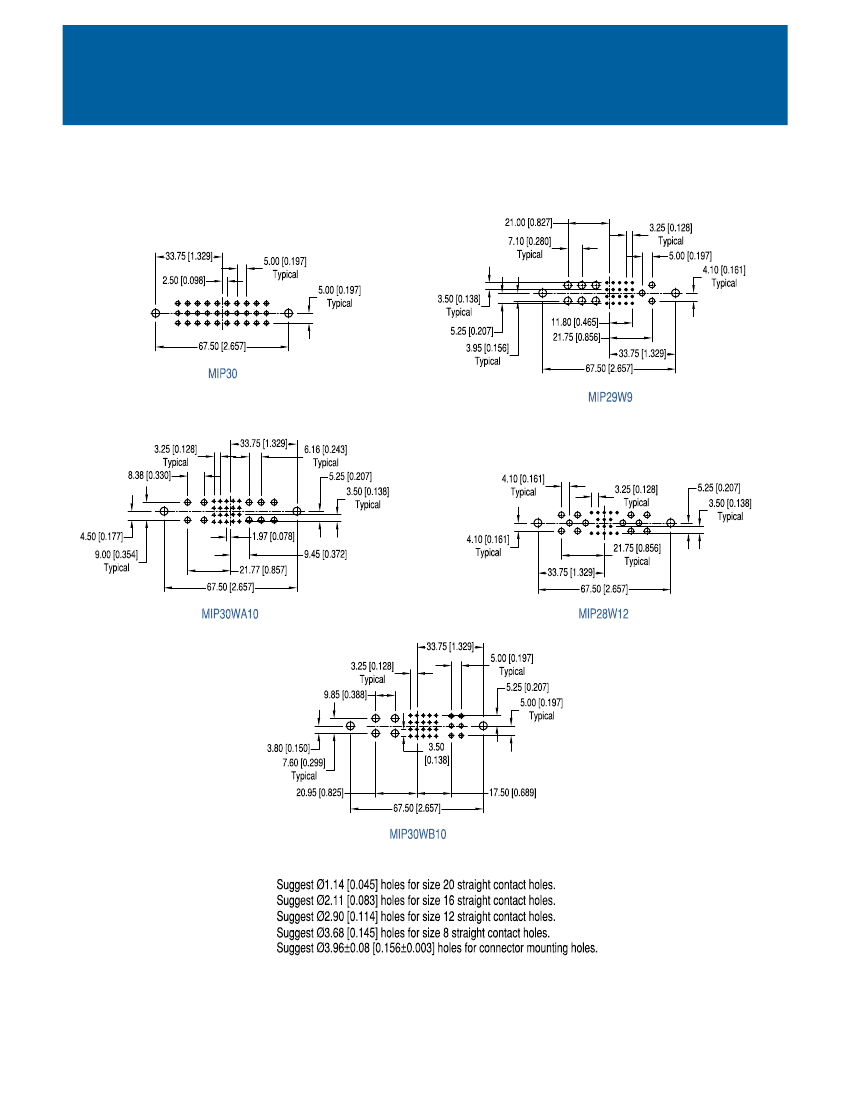

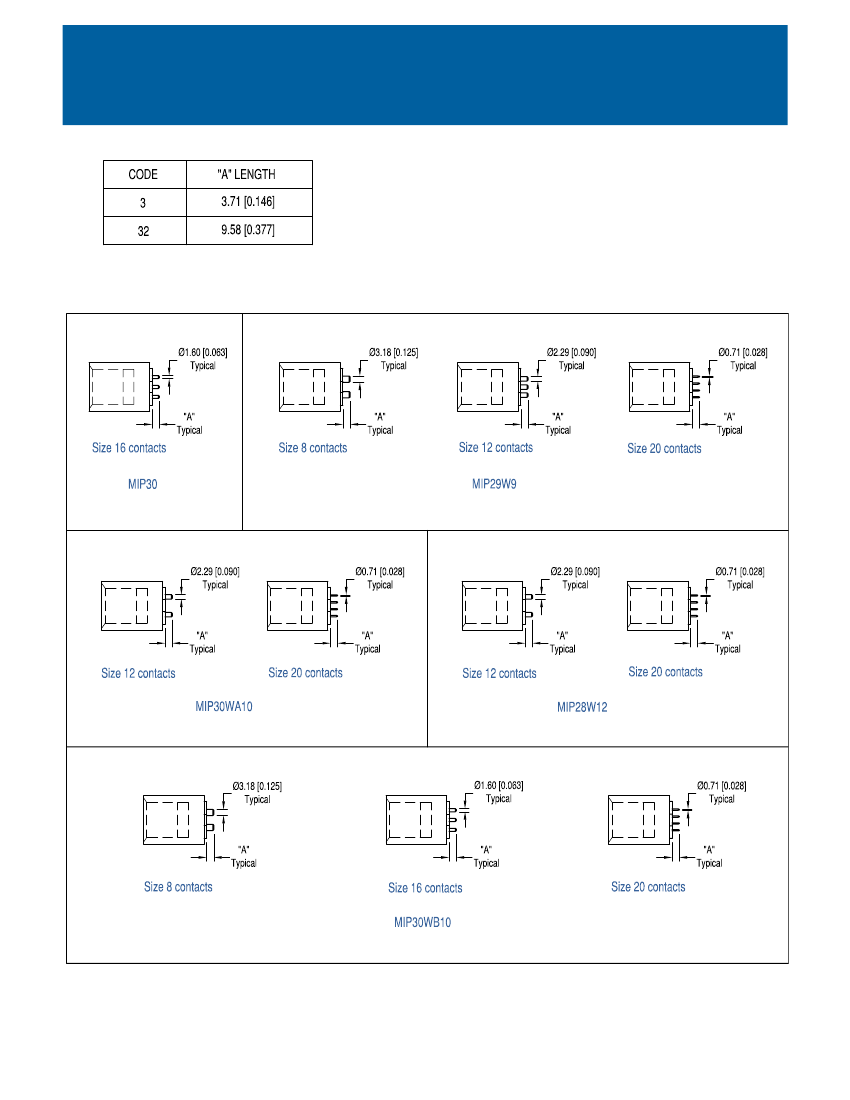

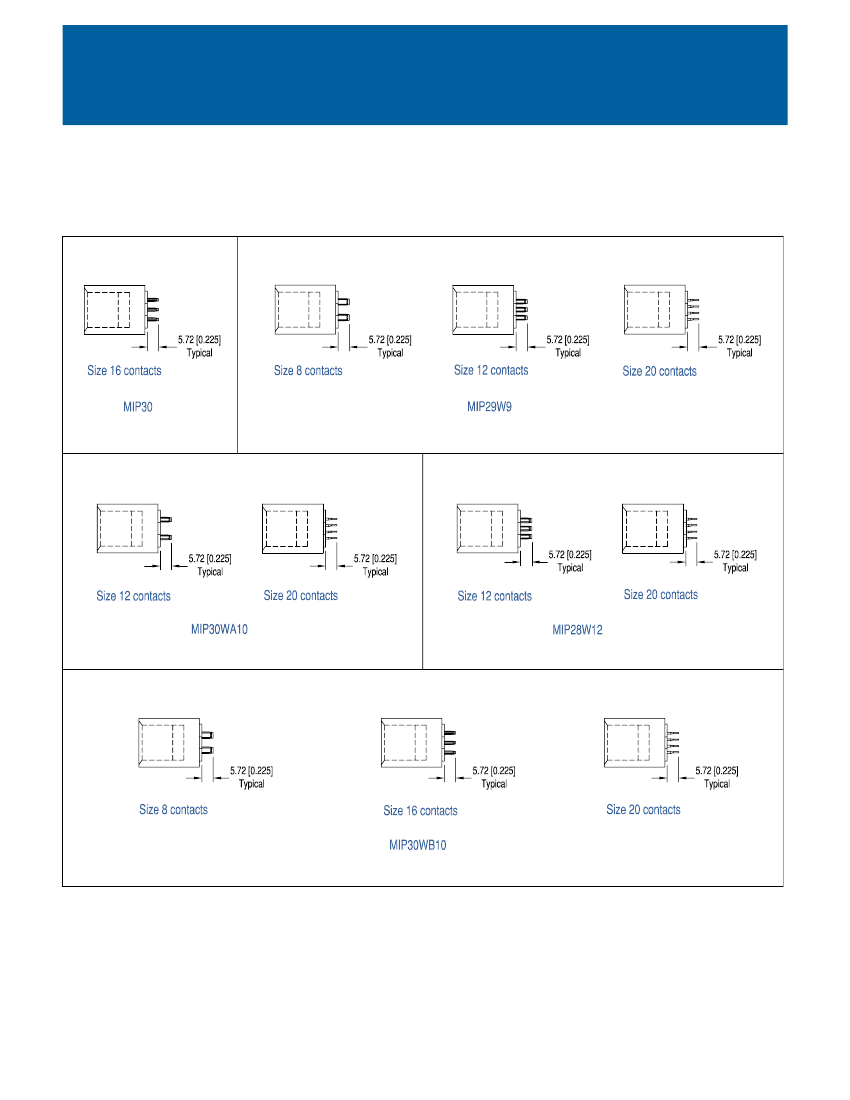

MIP28W12 VARIANT

12 Size 12 and 16 Size 20 Contacts

MIP29W9 VARIANT

3 Size 12, 20 Size 20, 6 Size 8 Contacts

MIP30 VARIANT

30 Size 16 Contacts

MIP30WA10 VARIANT

10 Size 12 and 20 Size 20 Contacts

MIP30WB10 VARIANT

4 Size 8, 6 Size 16, 20 Size 20 Contacts

MIP24W8 VARIANT

2 Size 8 (High performance or standard

see page 27), 8 Size 12, 16 Size 20

Contacts

Only available for use with crimp contacts.

Refer to page 8 for Application Specific Arrangements.
