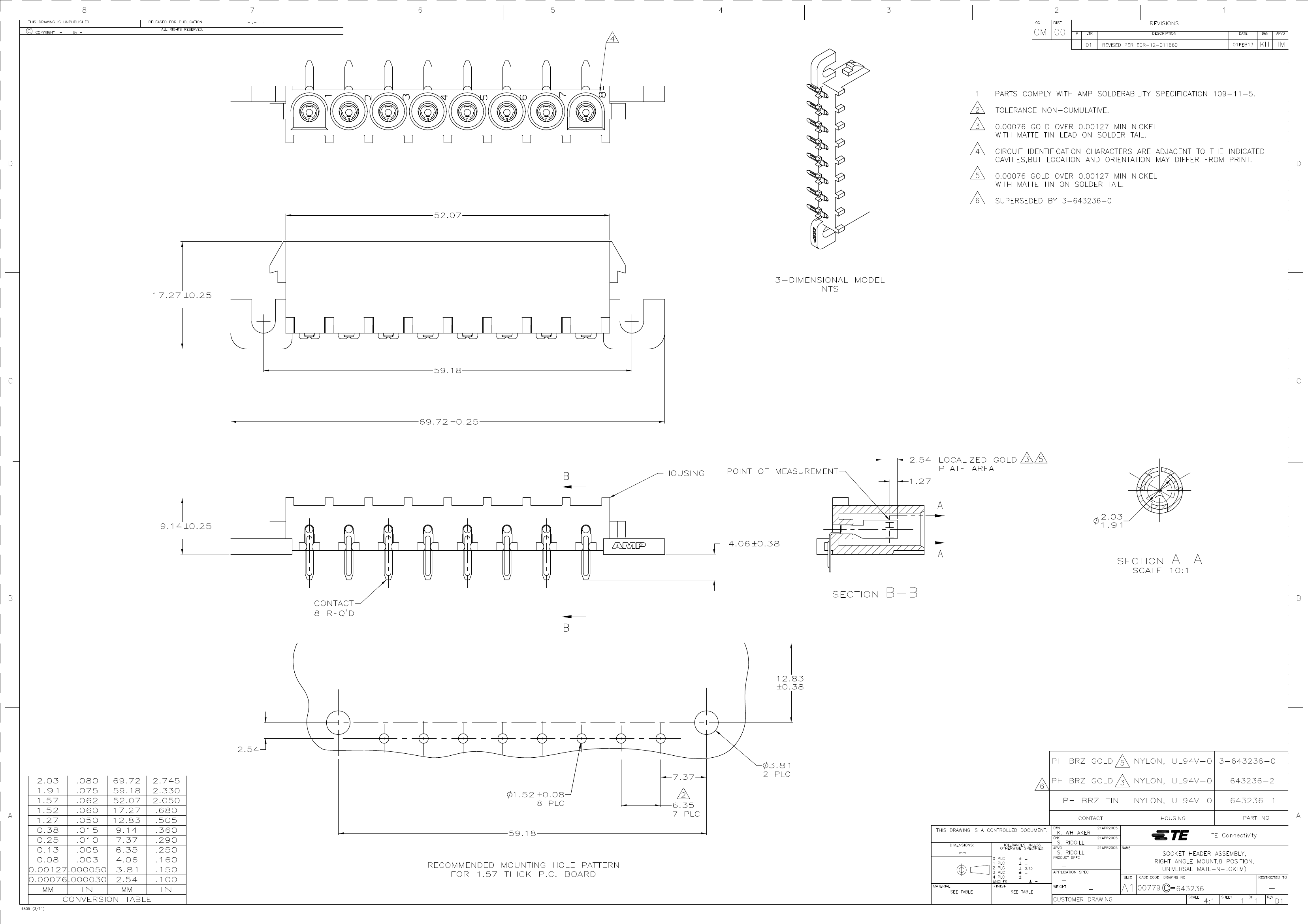

3-643236-0 datasheet, PDF - EEWORLD Datasheet

3-643236-0: Description08P UMNL HDR ASSY R/A 94VO LF; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-643236-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-643236-0	-	-	View	Buy Now

08P UMNL HDR ASSY R/A 94VO LF

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Objectid	1656196741
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	16 weeks 1 day
Samacsys Description	08P UMNL HDR ASSY R/A 94VO LF
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 19:58:25
YTEOL	7.7
Other features	MATE-N-LOK
body width	0.36 inch
subject depth	0.36 inch
body length	2.745 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	NATURAL
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	12A
Mixed contacts	NO
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	30u inch
polarization key	POLARIZED
Rated current (signal)	12 A
Guideline	CSA, UL, V
Terminal length	0.125 inch
Terminal pitch	6.35 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

	3-643236-0	643236-1
Description	08P UMNL HDR ASSY R/A 94VO LF	08P UMNL HDR ASSY R/A 94VO
Brand Name	AMP	AMP
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli
Factory Lead Time	16 weeks 1 day	12 weeks
Other features	MATE-N-LOK	MATE-N-LOK
Body/casing type	RECEPTACLE	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	TIN
Contact completed and terminated	MATTE TIN	Tin (Sn)
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE
DIN compliance	NO	NO
empty shell	YES	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER
Total number of contacts	8	8
UL Flammability Code	94V-0	94V-0
