Milli-Grid
™
2.00MM (0.79”) Pitch interconnect SySteM
50394, 87396

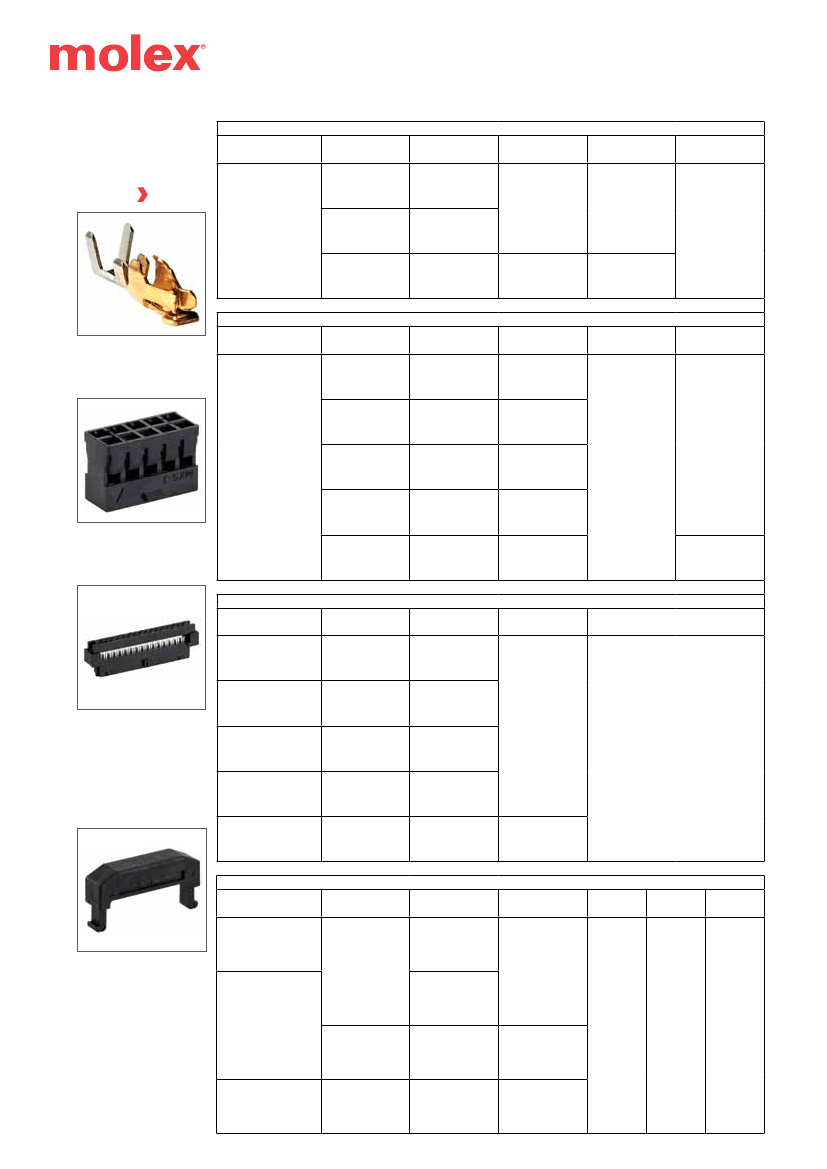

Crimp Terminal
5110, 78045
Receptacle Crimp Housing
87568
IDT Receptacle
87569
IDT Strain Relief
87831, 78246

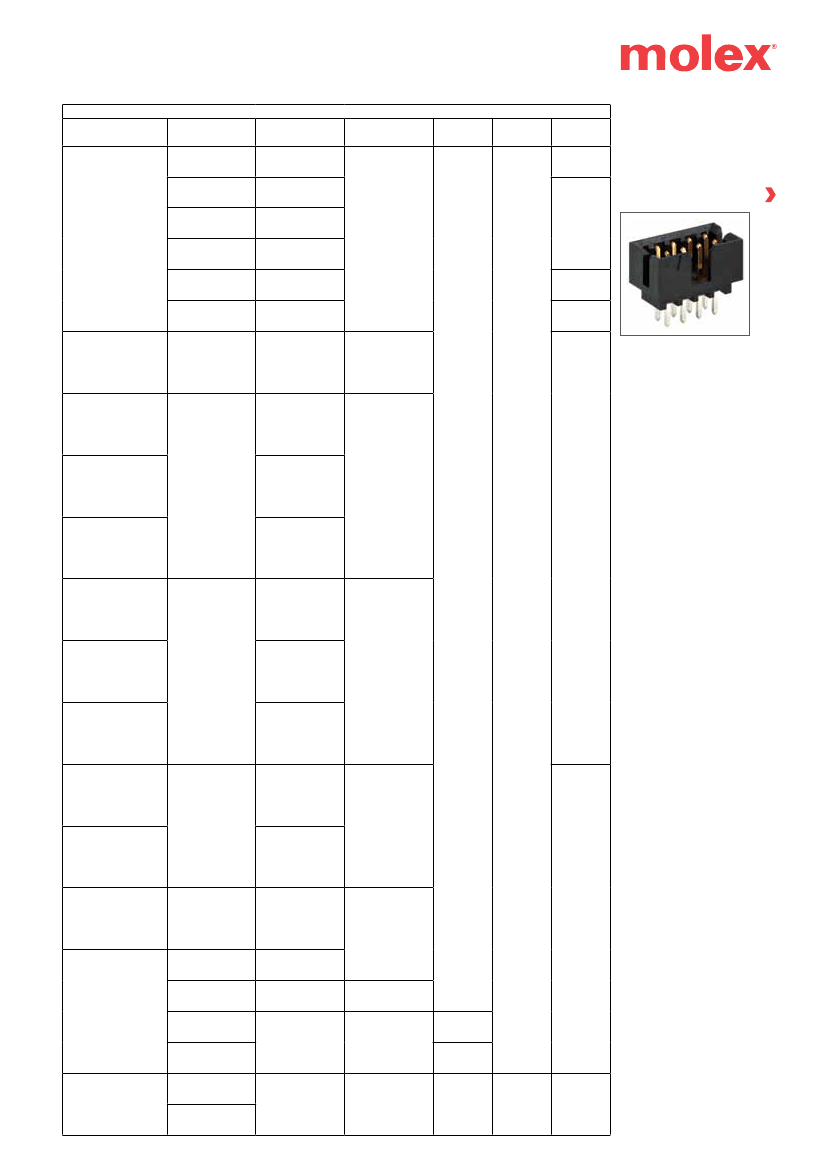

Through-Hole Shrouded Header
87832
SMT Shrouded Header
87833, 78046
Right Angle, Through-Hole Shrouded Header
87340
SMT Receptacle, Low Profile
79107
Through-Hole Receptacle
79109, 87381
SMT Receptacle
87264
Through-Hole Receptacle, Side Entry
87368
SMT Receptacle, Side Entry
87263
SMT Receptacle, Bottom Entry

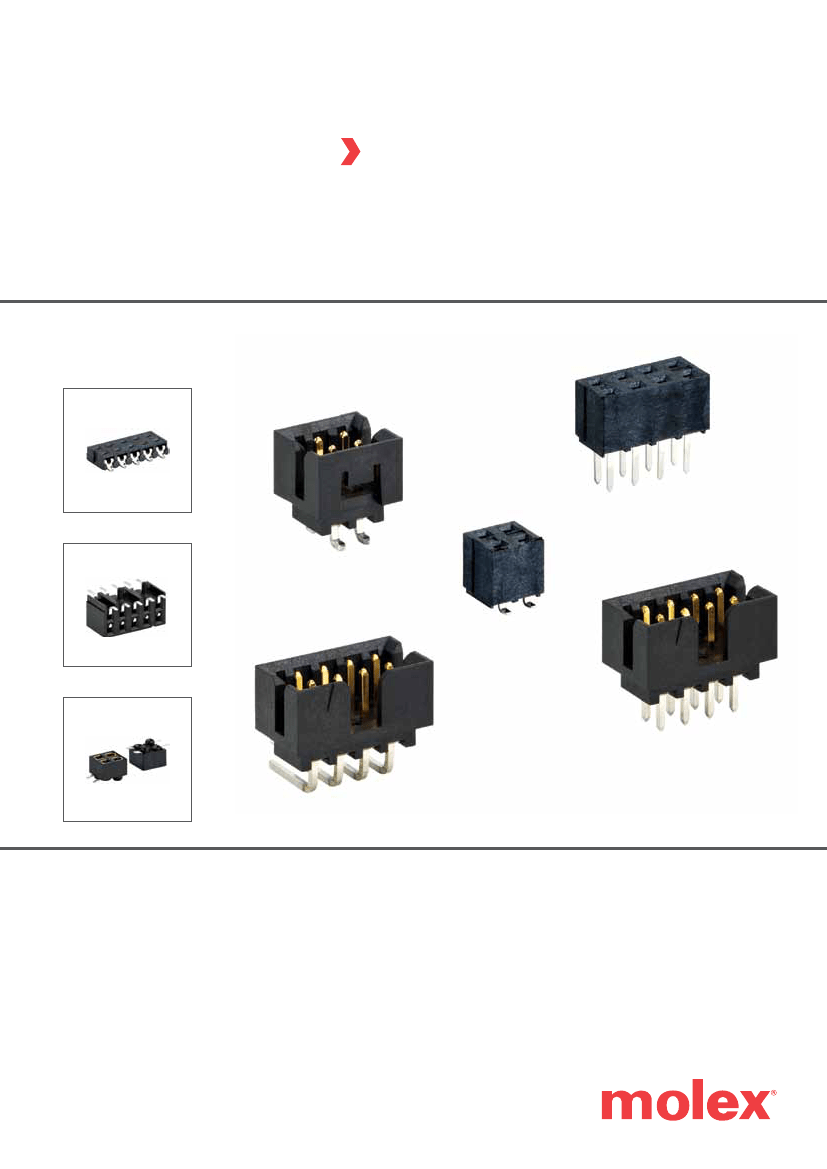

Milli-Grid™ family of high density connectors is based on
a 2.00 x 2.00mm grid pattern. the system offers complete
design flexibility for wire-to-board, board-to-board and
cable-to-board connections in Pc, consumer, telecom and
other electronic industries.
Compared to traditional 2.54mm (.100”) pitch connectors,
Milli-Grid connectors
offer up to 40% savings in PCB real estate.
The Milli-Grid™ family includes crimp terminals, housings, headers
and receptacles. The crimp terminals feature an early entry design
that provides longer wiping action for more reliable contact. The
receptacles boast a choice of mating styles in top, side and bottom
entry in PCB, IDT and FPC versions. Headers are available in both
shrouded and unshrouded styles.
Applications
Office Machines
- Printers
- Fax Machines
- copiers
computers/Peripherals
- Storage
- Servers
- Modems
- Motherboards
- Monitors
telecom
- hubs
- Switches
- routers
Automotive/commercial Vehicles
- car Audio
- data/telemetry
- GPS
Measuring/Analyzing equipment
- Security Systems/Alarms
- Medical Monitoring
- lab equipment
entertainment
- Set-top Boxes
- Satellite radio
- Video/dVd Products
- digital Media Player
other Applications
- Vending Machines
- Gaming Machines
- exercise equipment
2
Feature
• Early entry system crimp
terminals
• Center polarization key
• Locking ramps
Benefit
• Provides long pin wipe
• Prevents mismating
• Provide strong retention force
to header
• Enhances cable retention
• IDT receptacle strain relief
(optional)
• Center polarization slot
• Locking windows
• Marking feature
• Prevents mismating
• Ensure firm locking to receptacle
• Provides marking for first circuit
location
Specifications
reFerence inForMAtion
UL File No.: E29179
CSA File No.: LR19980-182
electricAl
Voltage Rating: 125V AC
Current Rating: 1.0 to 2.0A
Contact Resistance: 15 to 40mΩ max.
Dielectric Withstanding Voltage:
500V AC (RMS)
Insulation Resistance: 1000MΩ min.
MechAnicAl
Mating Pin Length: 2.50 to 4.20mm
(0.098 to 0.165”)
Dual beam contact design
ensures reliable electrical
performance
Shrouded version to
protect pins during
mating/unmating
PhySicAl
Housing: Black/Grey high
temperature, UL 94V-0
Contacts: Phosphor Bronze/
Copper Alloy
Operating Temperature: -55 to 105°C
Soldering Temperature/
Infra-red Heat: 260 ± 5°C
Wire Gauge (Crimp): 26 to 30 AWG
Packaging: Tube/Tray/Tape And Reel
Milli-Grid
™
2.00MM (0.79”)
Pitch
interconnect
SySteM

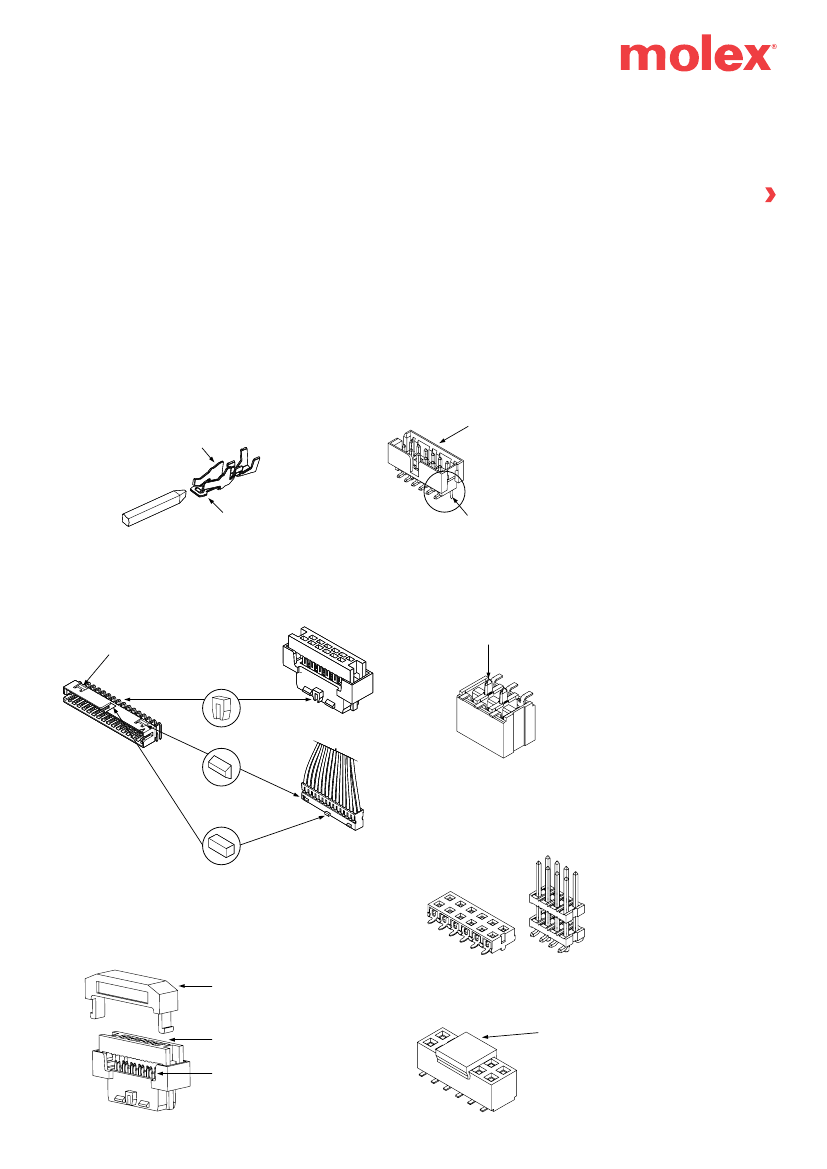

Early entry terminal design
for superior contact wipe
Optional locating
pegs for automatic
insertion process
Dual Beam Contact and
Early Entry Terminal Design
Shrouded Headers
and Locating Pegs
Center Polarization Slot
and Locking Window Options
Polarization Key
Option for IDT
Pegs offer press-fit retention to PCB
Locking Ramp
Pegs with Press-Fit
Retention
(79109 Series)
Polarization Key
for Crimp Housing
Polarization Key, Ramp,
Slot and Locking Window
End-to-End Stackable
Enhances cable retention
Pre-loaded upper housing
offers precise cover-to-base
alignment
Early entry single beam
contact provides long wiping
action during mating
Cap version
for automatic
pick-and-place
delivery
Cable-to-Board System
Pick-and-Place Cap
3
