3-316080-5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-316080-5

Preview

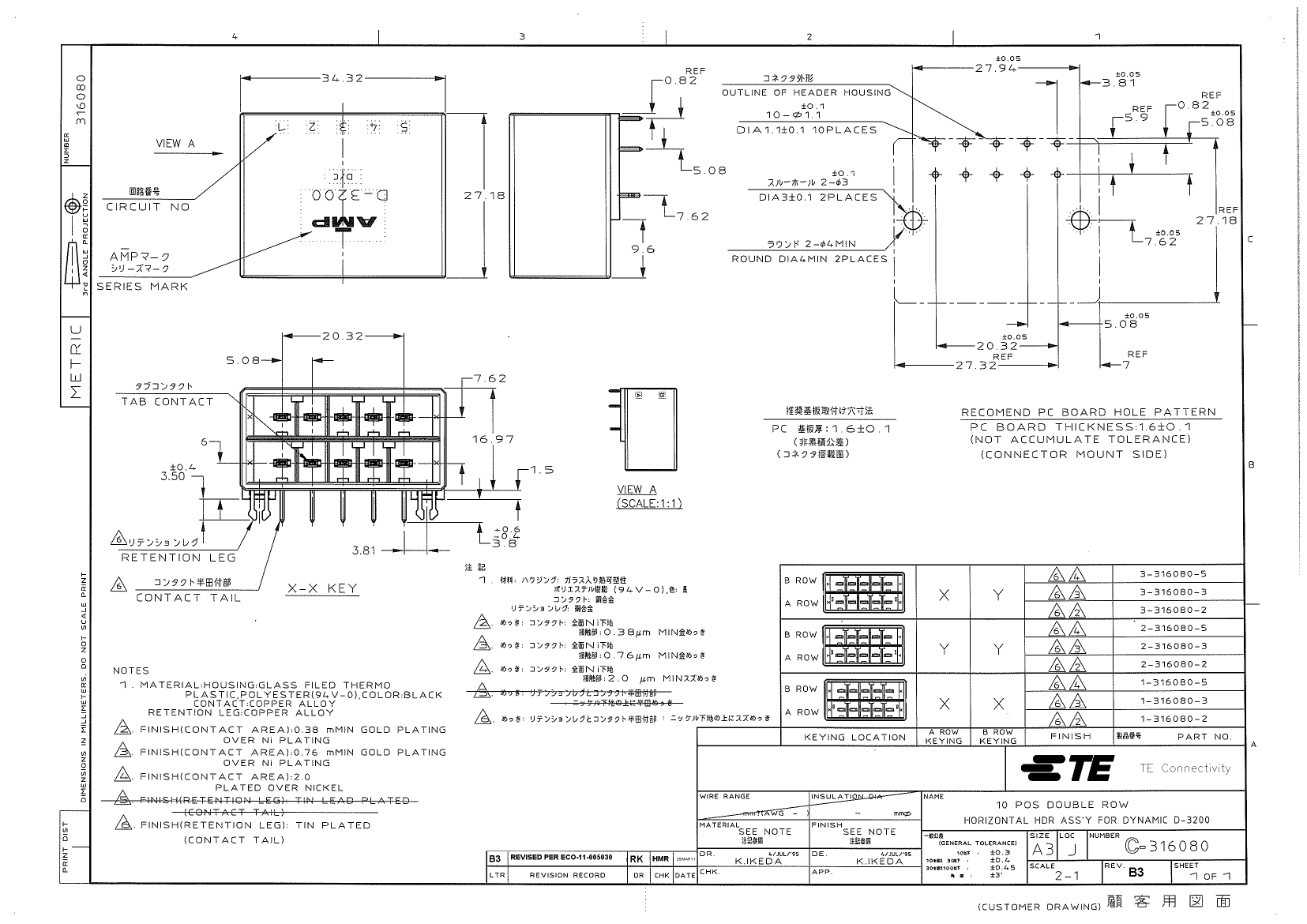

3-316080-5: DescriptionDYNAMIC D-3200 HDR ASSY 10P H; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-316080-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-316080-5	-	-	View	Buy Now

3-316080-5 Overview

DYNAMIC D-3200 HDR ASSY 10P H

3-316080-5 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Other features	POLARIZED
Board mount options	SPLIT BOARD LOCK
body width	0.727 inch
subject depth	1.07 inch
body length	1.351 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P10
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	100 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
MIL compliance	NO
Plug information	3-917659-5
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	79u inch
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
Terminal length	0.15 inch
Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	.4726 N
Base Number Matches	1

Preview

Download Datasheet

View All

3-316080-5 Related Products

	3-316080-5	3-316080-2
Description	DYNAMIC D-3200 HDR ASSY 10P H	DYNAMIC D-3200 HDR ASSY 10P H
Brand Name	AMP	AMP
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
Other features	POLARIZED	POLARIZED
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.727 inch	0.727 inch
subject depth	1.07 inch	1.07 inch
body length	1.351 inch	1.351 inch
Body/casing type	PLUG	PLUG
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P10	S0P10
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact style	BLADE PIN-SKT	BLADE PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	2200VAC V	2200VAC V
Durability	100 Cycles	500 Cycles
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	4.8928 N	4.8928 N
Insulation resistance	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK
MIL compliance	NO	NO
Plug information	3-917659-5	3-917659-5
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	79u inch	15u inch
Guideline	CSA, UL	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Shell material	GLASS FILLED POLYETHYLENE POLYESTER	GLASS FILLED POLYETHYLENE POLYESTER
Terminal length	0.15 inch	0.15 inch
Termination type	SOLDER	SOLDER
Total number of contacts	10	10
Evacuation force-minimum value	.4726 N	.28912 N
Base Number Matches	1	1
