CRF21TR391K

Description
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 390ohm, 100V, 10% +/-Tol, -200,200ppm/Cel, 0805,
File Size302KB,1 Pages
ManufacturerAkahane Electronics Ind Corp
Environmental Compliance
Download Datasheet Parametric View All

CRF21TR391K Overview

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 390ohm, 100V, 10% +/-Tol, -200,200ppm/Cel, 0805,

CRF21TR391K Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid993496640
Reach Compliance Codecompliant
ECCN codeEAR99
structureChip
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height0.5 mm
Package length2 mm
Package formSMT
Package width1.25 mm
method of packingTR
Rated power dissipation(P)0.1 W
resistance390 Ω
Resistor typeFIXED RESISTOR
seriesCRF
size code0805
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient200 ppm/°C
Tolerance10%
Operating Voltage100 V

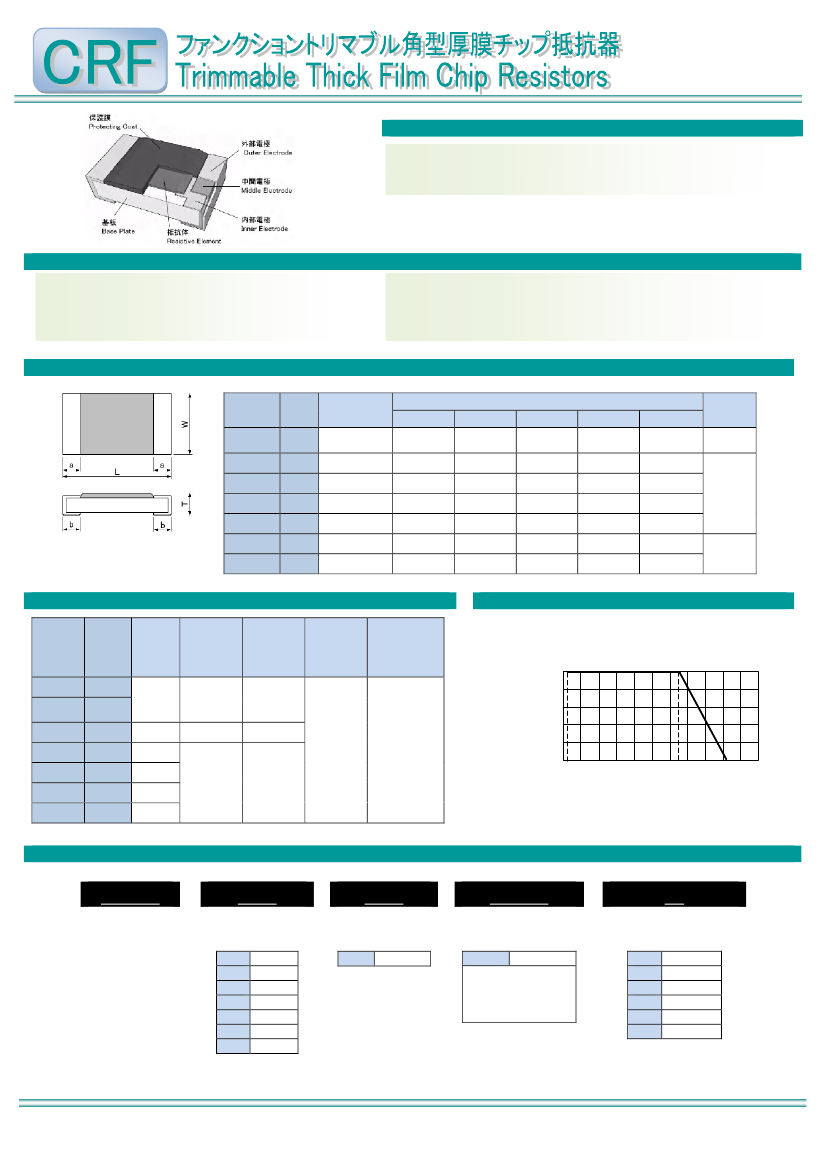

CRF21TR391K Preview

用途
-Application-
産業用機器、電気機器全般
For industrial instrument, general electric instrument,
特長
-Features-
サイズ、定格、抵抗値の豊富なバリエーション
フロー、リフローはんだ対応品です。
RoHS 対応品です。
There are
extensive
variations of size, power rating , resistance value
Suitable for both flow & reflow soldering.
RoHS compliant product.
構造・寸法
-Construction・Dimensions-
½名
Type
Inch
size
定格電力
Power Rating
0063W
0.063W
0.10W
0.125W
0.25W
0.50W
1W
寸法
Dimensions:mm
L
1.00±0.05
1.60±0.15
2.00±0.20
3.20±0.20
3.20±0.20
5.00±0.20
6.30±0.20
W
0.50±0.05
0.80±0.15
1.25±0.10
1.60±0.15
2.50±0.15
2.50±0.15
3.20±0.20
T
0.35±0.05
0.45±0.10
0.50±0.10
0.60±0.10
0.60±0.10
0.60±0.10
0.60±0.10
a
0.20±0.10
0.30±0.20
0.40±0.20
0.50±0.20
0.50±0.20
0.60±0.20
0.70±0.20
b
0.25
-
0.10
0.30±0.20
0.40±0.20
0.50±0.20
0.50±0.20
0.50±0.20
0.70±0.20
4,000
5,000
+
0.05
包装数量
/Qty
10,000
CRF10
CRF16
CRF21
CRF32
CRFB32
表示 : 無し
Marking: no marking
CRF50
CRF63
0402
0603
0805
1206
1210
2010
2512
仕様
-Specifications-
½名
Type
CRF10
CRF16
CRF21
CRF32
CRFB32
CRF50
CRF63
Inch
size
0402
0603
0805
1206
1210
2010
2512
0.063W
0.10W
0.125W
0.25W
0.5W
1W
200V
400V
50V
100V
100V
200V
±200
1-1MΩ
定格電力
Power
Rating
最高
½用電圧
Max.
Working
Voltage
最高
過負荷電圧 抵抗温度係数
T.C.R.
Max.
ppm/℃
Overload
Voltage
抵抗値範囲
Resistance
Range
K/M/S/W/R/L
E24
負荷電力½減曲線
-Power Derating Curve-
定格電力比
PERCENT POWER RATING(%)
100
80
60
40
20
0
-55
0
70
125
周囲温度
AMBIENT TEMPERATURE(℃)
½名
-How to Code-
CRF
種類
Type
10
定格電力
Power Rating
10
16
21
32
B32
50
63
0.063W
0.063W
0.10W
0.125W
0.25W
0.50W
1W
TR
包装½態
Package
TR
Reel
101
抵抗値
Resistance Value
E24
3digits
例)Ex.
10Ω→100
47kΩ→473
M
K
S
W
R
L
許容差
Tolerance
±20%
±10%
0½-5%
0½-10%
0½-20%
0½-30%
本カタログに記載の仕様は予告なく変更する場合がございます。ご注文及びご½用前に納入仕様書等で内容をご確認頂きます様お願い致します。
Specifications given herein are subject to change without notice. Please confirm technical specifications before you order and / or use.
http://www.akaneohm.com
