CLT-109-02-L-D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CLT-109-02-L-D

Preview

CLT-109-02-L-D: Descriptionconn rcpt 18pos dual 2mm smd; CategoryThe connector The connector; File Size621KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

CLT-109-02-L-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CLT-109-02-L-D	-	-	View	Buy Now

CLT-109-02-L-D Overview

conn rcpt 18pos dual 2mm smd

CLT-109-02-L-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Samacsys Description	18 Position, Low Profile Dual-Wipe Socket, 2.00mm Pitch
Other features	E.L.P., TIGER CLAW CONTACT, LOW PROFILE
body width	0.157 inch
body length	0.709 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CLT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.064 mm
Plating thickness	10u inch
Rated current (signal)	4.1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
Evacuation force-minimum value	.1668 N

Preview

Download Datasheet

View All

F-214

CLT–115–02–F–D–A–K–BE

CLT–125–02–L–D

CLT–105–02–F–D

(2,00 mm) .0787"

CLT SERIES

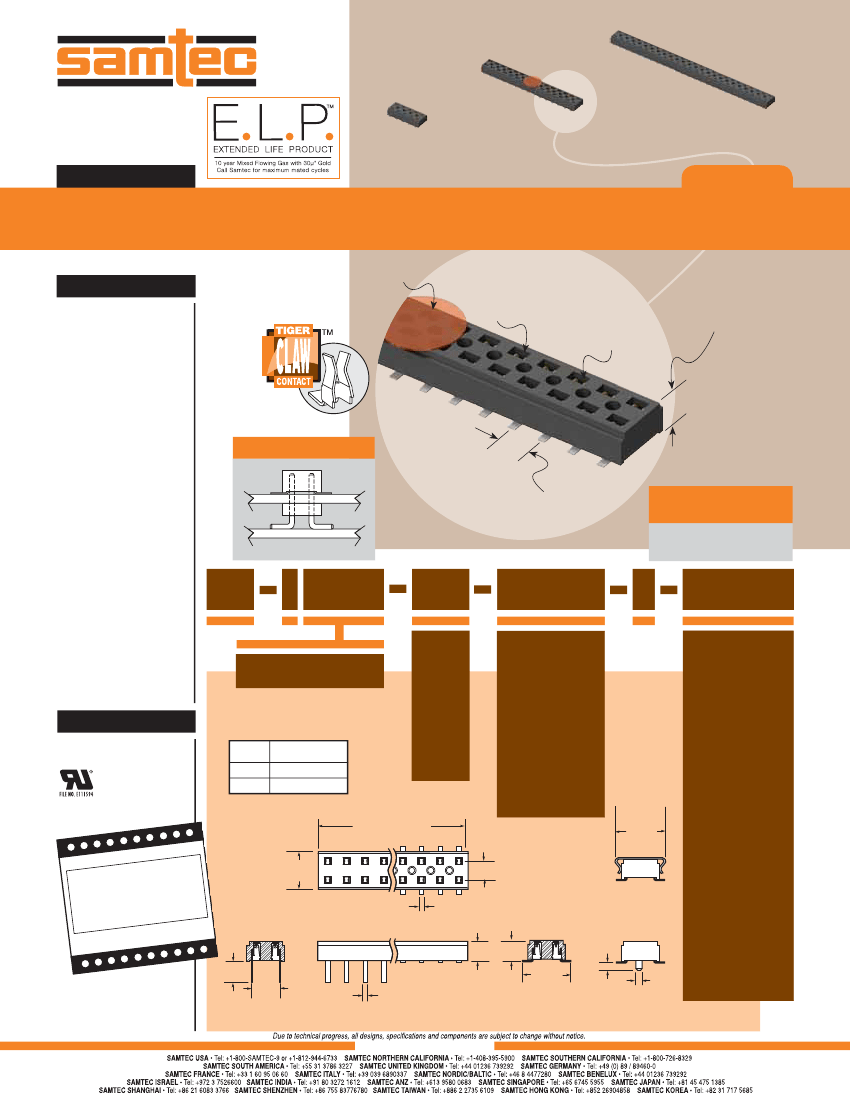

LOW PROFILE DUAL WIPE SOCKET

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?CLT

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Current Rating (TMMH/CLT):

4.1 A per pin

(1 pin powered per row)

Operating Temp Range:

-55°C to +125°C

Contact Resistance:

10 mΩ

Insertion Depth:

Top Entry=

(1,40 mm) .055" minimum

Bottom Entry=

(2,57 mm) .101" minimum

(add board thickness for

correct post OAL)

Insertion Force:

(Single contact only)

1.8 oz (0,50 N) avg.

Withdrawal Force:

(Single contact only)

.6 oz (0,17 N) avg.

Max Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

Mates with:

TMM, TMMH,

MTMM, MMT,

TW, TSH

Available with optional

Pick & Place Pads

Tiger Claw

TM

contacts

Low proﬁle

(2,21 mm)

.087"

Suitable for

pass-through

applications

APPLICATION

(2,00 mm)

.0787" pitch

ALSO AVAILABLE

(MOQ Required)

• Other platings

Contact Samtec.

Pass-Thru

CLT

1

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

D

OTHER

OPTIONS

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max (02-25)

(0,15 mm) .006" max (26-34)

(0,20 mm) .008" max (35-50)

–01

02 thru 50

= Through-

hole

–F

= Gold ﬂash

on contact,

Matte Tin on tail

All options require

Style –02

–02

= Surface

Mount

LEAD

STYLE

–BE

= Bottom Entry

(Required for bottom

entry applications)

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

A

(2,16) .085

(2,95) .116

–03

= Through-

hole

–01

–03

–G

= 10µ" (0,25 µm)

Gold on contact,

Gold ﬂash on tail

(5,08)

.200

x

(5,71)

.225

= Alignment Pin

(3 positions minimum)

Metal or plastic at

Samtec’s discretion

–A

No. of positions x

(2,00) .0787

02

–K

= (5,00 mm) .197" DIA

Polyimide Film

Pick & Place Pad

(04 thru 50 only)

TAPE & RE

arges.

No tooling ch e lesser of

rder is th 5 pieces.

Minimum o antity or 12

a full reel quantity above minimum.

u

Order any q design, manufacture.

In-house turn-around.

Quick

tions

for specifica

Call Samtecring information.

and orde

E

ILITY

L AVAILAB

(4,00)

.157

(0,51)

.020

01

(2,00)

.0787

–P

(2,13)

.084

(2,27)

.090

(0,81)

.032

(5,16)

.203

–02

–A

(0,64)

.025

DIA

–P

= Pick & Place Pad

(4 positions minimum)

(Not always necessary

for auto placement.)

A

(3,02)

.119

–01 or –03

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

(0,51)

.020

= Tape & Reel

Packaging

(36 positions max)

–TR

WWW.SAMTEC.COM
