MS611GGU

Description
IC Socket, SIP61, 61 Contact(s), 2.54mm Term Pitch, Solder
File Size112KB,1 Pages
ManufacturerMPE-Garry GmbH
Environmental Compliance
Download Datasheet Parametric View All

MS611GGU Overview

IC Socket, SIP61, 61 Contact(s), 2.54mm Term Pitch, Solder

MS611GGU Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1166437504
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.1 inch
subject depth0.193 inch
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn)
Contact materialNOT SPECIFIED
Contact styleRND PIN-SKT
current rating3 A
Device slot typeIC SOCKET
Type of equipment usedSIP61
Dielectric withstand voltage1000VAC V
Shell materialTHERMOPLASTIC
JESD-609 codee3
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Number of contacts61
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
Terminal pitch2.54 mm
Termination typeSOLDER

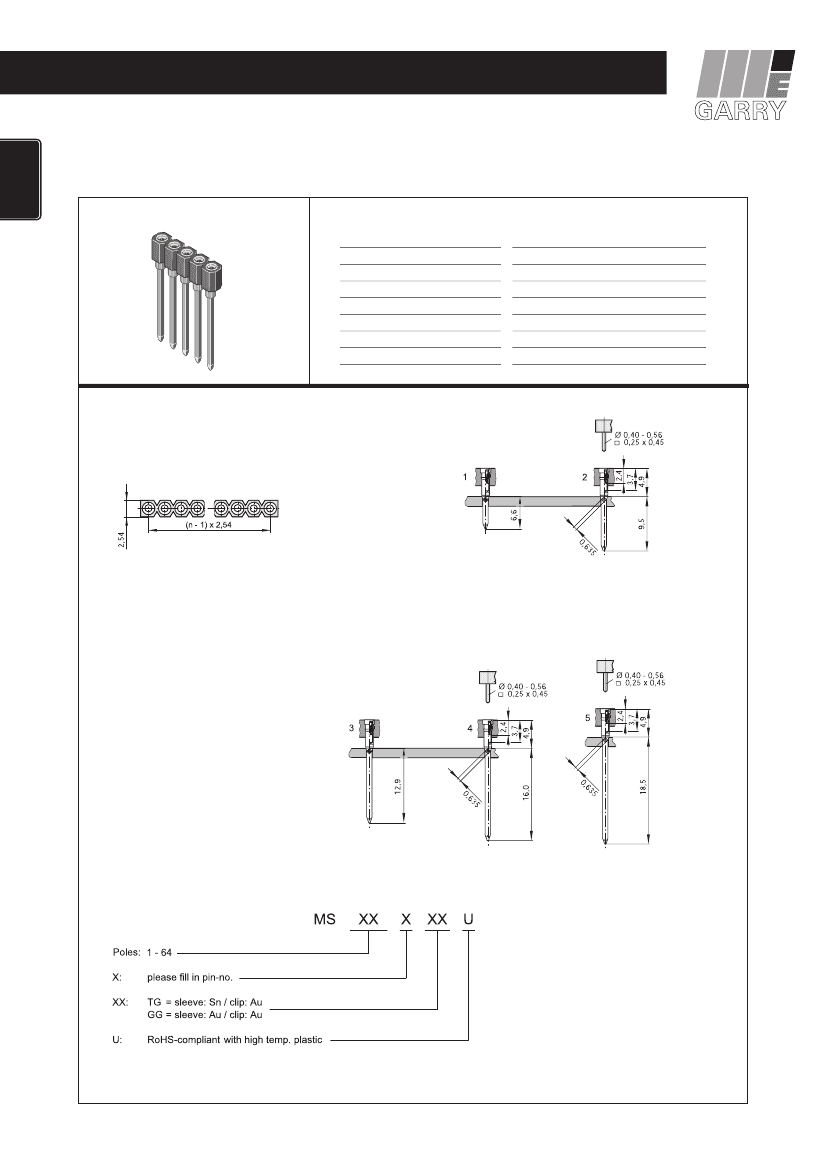

MS611GGU Preview

PRODUCT GROUP 1 - PRECISION IC-SOCKET
SIL SOCKETS „WIRE WRAP”
ID: 031
MS Wire-Wrap
Series 125
TECHNICAL DATA
Pitch
Insulating Material
Contact Material
Rated Current
Rated Voltage
Breakdown Voltage
Operating Temperature
Maximum Soldering Temperature
2,54 mm
high temp. thermoplast UL94V-0
Brass/BeCu
3 Amp.
100 V
RMS
/150 V
DC
min. 1000 V
RMS
-55°C bis +125°C
260°C for 10 seconds
1
| 2,54 mm
All dimensions in mm.
Other dimensions upon request.
32
MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520
e-mail: vk@mpe-connector.de · www.mpe-connector.de
