SERIES 28
HiPer-D
®
Combo Connectors

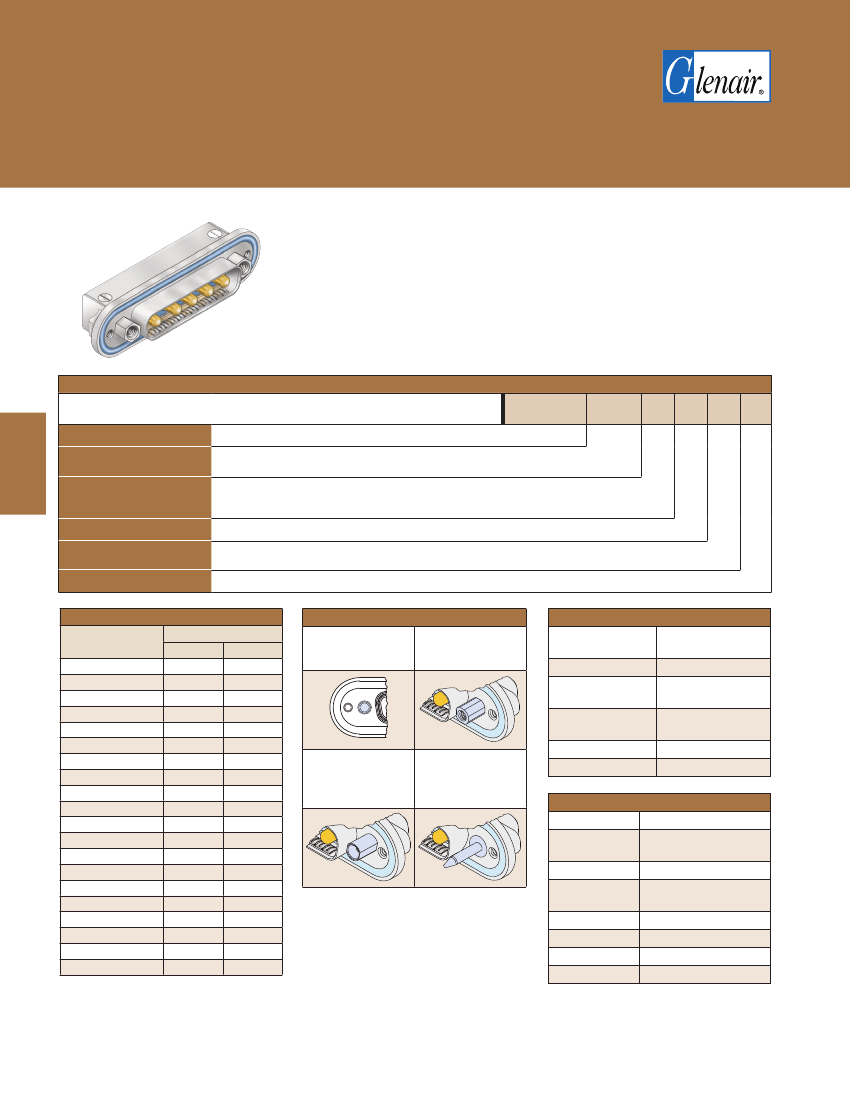

280-052P right angle PC tail combo pin connectors
with O-ring flange for rear panel mounting
The HiPer-D
®
is a high performance version of the M24308-type D-Subminiature
connector. HiPer-D
®
connectors feature improved EMI performance and
environmental sealing. Factory-installed PC tail contacts, integral board standoffs
and threaded holes for attaching to circuit board. Optional ground springs for
improved resistance to electromagnetic interference. Stainless steel EMI shroud.
Gold-plated copper alloy contacts, one-piece machined aluminum shell, glass-
reinforced thermoset epoxy insulator, epoxy potting compound, fluorosilicone
face seal and O-ring. 1000 VAC, 7.5 Amps (#20), up to 40 Amps with size #8 power
contacts.
How To Order
Sample Part Number
Basic Part Number
280-052P
See Shell Size - Contact Arrangements Table
ME
= Electroless Nickel
JF
= Cadmium with Yellow Chromate
Z1
= Passivated Stainless Steel
G
= Supplied with EMI Ground Spring
N
= No Hardware
G
= Male Guide Pins
A
= .125 (3.18) Tail Length
MT
= Nickel-PTFE
Z2
= Gold
N
= No Ground Spring
P
= #4-40 Female Jackposts
B
= Female Guide Bushings
B
= .250 (6.35) Tail Length
280-052P
3-5P5
ME
G
B
B
C
Shell Size-
Contact Arrangement
Shell Finish
Ground Spring
Mating Hardware
PC Tail Length
Contact Arr.
1-2P2
1-5P1
2-3P3
2-7P2
2-11P1
3-5P5
3-9P4
3-13P3
3-17P2
3-21P1
4-8P8
4-13P6
4-17P5
4-21PA4
4-25P3
4-27P2
5-24P7
5-36P4
5-43P2
5-47P1
Contact Arrangements
Contact Size and Qty
Shell Size-
#20
4
5
10
5
10
15
20
7
12
17
22
25
17
32
41
46
#8
2
1
3
2
1
5
4
3
2
1
8
6
5
4
3
2
7
4
2
1
Mating Hardware
N
No Hardware
#8-32 tapped hole
P
Female Jackposts
#4-40, Non-removable
Current Rating
Test Voltage
Specifications
#20 7.5 AMPS, #8 40
AMPS
1000 VAC RMS
5000 megohms
minimum
-65° C. to +200° C.
300 g.
43.92 g.
Insulation Resistance
Operating
Temperature
B
Female Guide
Bushings
Non-removable
G
Male Guide Pins
Non-removable
Shock
Vibration, Random
Materials and Finishes
Shell
Contacts
Insulator
Potting
Compound
EMI Spring
Face Seal, O-ring
Hardware
Shroud
Aluminum alloy
Copper alloy, 50
microinches gold
Thermoset epoxy
Epoxy
Copper alloy, nickel plated
Fluorosilicone rubber
300 series stainless steel
Stainless steel
C-26
Rev. 09.04.20
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D catalog
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 28
HiPer-D
®
Combo Connectors
280-052P right angle PC tail combo pin connectors
with O-ring flange for rear panel mounting

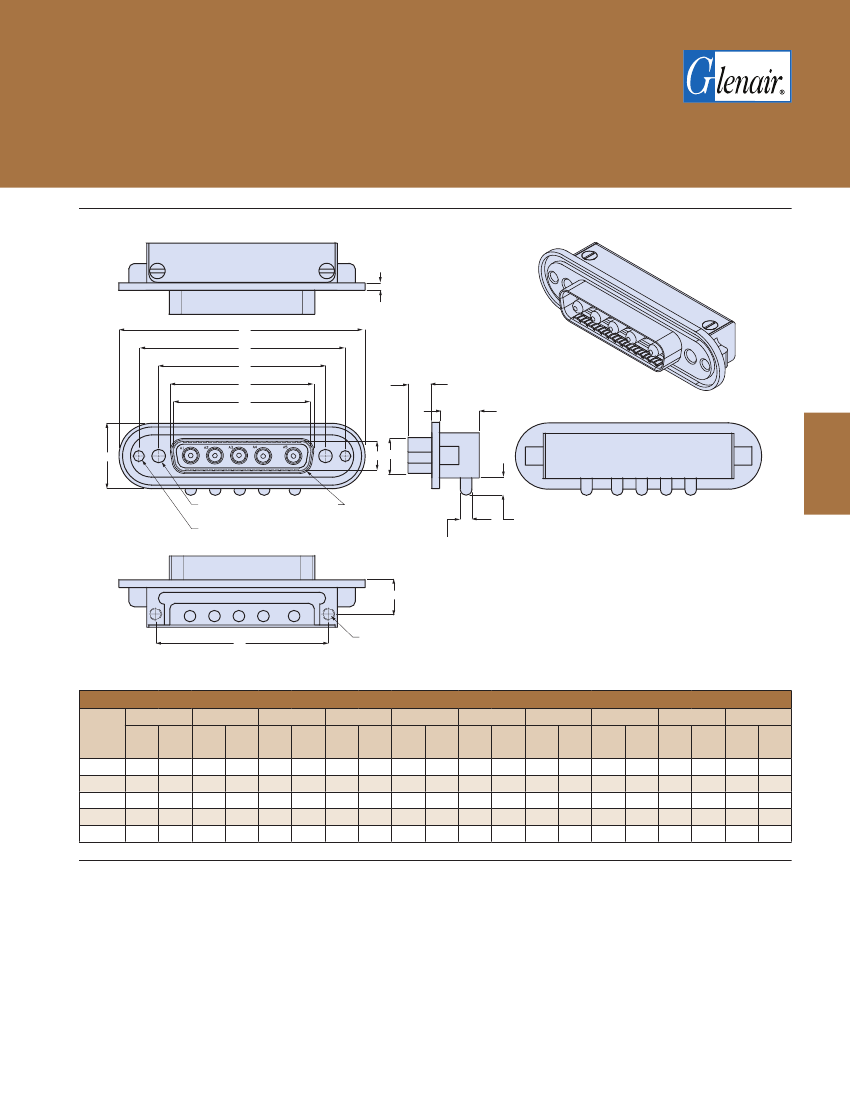

280-052P DIMENSIONS
.094
(2.39)
A
H
C
E
D
.262 ± .005
(6.65 ± 0.13)
J
B
F G
C
TAIL LENGTH ± .015
(0.38)
8-32 UNC-2B .150
(3.81) DEEP 2 PLCS
4-40 UNC-2B .150
(3.81) DEEP 2 PLCS
R .134
(3.40)
PC TAIL DIAMETER
.125± .002 (3.18 ± 0.05) SIZE 8
.030 ± .002 (0.76 ± 0.05) SIZE 20
K
C
4-40 UNC-2B .150
(3.81) DEEP 2 PLCS
Dimensions
Shell
Size
1
2
3
4
5
A
B
C Basic
in.
.984
D
E
F
G
H Basic
J
K
in
mm
in
mm
± .015 ± 0.38 ± .015 ± 0.38
1.865 47.37 .725 18.42
2.200
2.736
3.385
3.289
55.88
69.49
85.98
83.54
.725
.725
.725
.837
in
mm
in
mm
in
mm
in
mm
mm ± .005 ± 0.13 ± .005 ± 0.13 ± .005 ± 0.13 ± .015 ± 0.38
in
24.99 .666 16.92 .726 18.44 .329 8.36 .389 9.88 1.424
25.25
38.96
55.42
52.81
1.054
1.594
2.242
2.139
26.77
40.49
56.95
54.33
.329
.329
.329
.441
8.36
8.36
8.36
11.20
.389
.389
.389
.501
in
mm
in
mm
mm ± .005 ± 0.13 ± .005 ± 0.13
36.17 .518 13.16 .374 9.50
.518
.518
.518
.630
13.16
13.16
13.16
16.00
.374
.374
.374
.430
9.50
9.50
9.50
10.92
18.42 1.312 33.32 .994
18.42 1.852 47.04 1.534
18.42 2.500 63.50 2.182
21.26 2.406 61.11 2.079
9.88 1.752 44.50
9.88 2.292 58.22
9.88 2.940 74.68
12.73 2.846 72.29
NOTES
1. Contacts are factory-installed, non-removable and are potted with epoxy.
2. HiPer-D
®
connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D
®
Shell Plating Options
for
additional choices .
3. For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
4. For printed circuit board mounting dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
5. Combo HiPer-D
®
connectors meet the applicable requirements of MIL-DTL-24308 and are intermateable with standard M24308-type
D-Subminiature combo connectors with corresponding contact arrangements and type.
6. Additional electrical, mechanical and environmental specifications are listed in
HiPer-D
®
Product Specification.
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 28 HiPer-D catalog
Dimensions in Inches (millimeters) are subject to change without notice.
C-27
