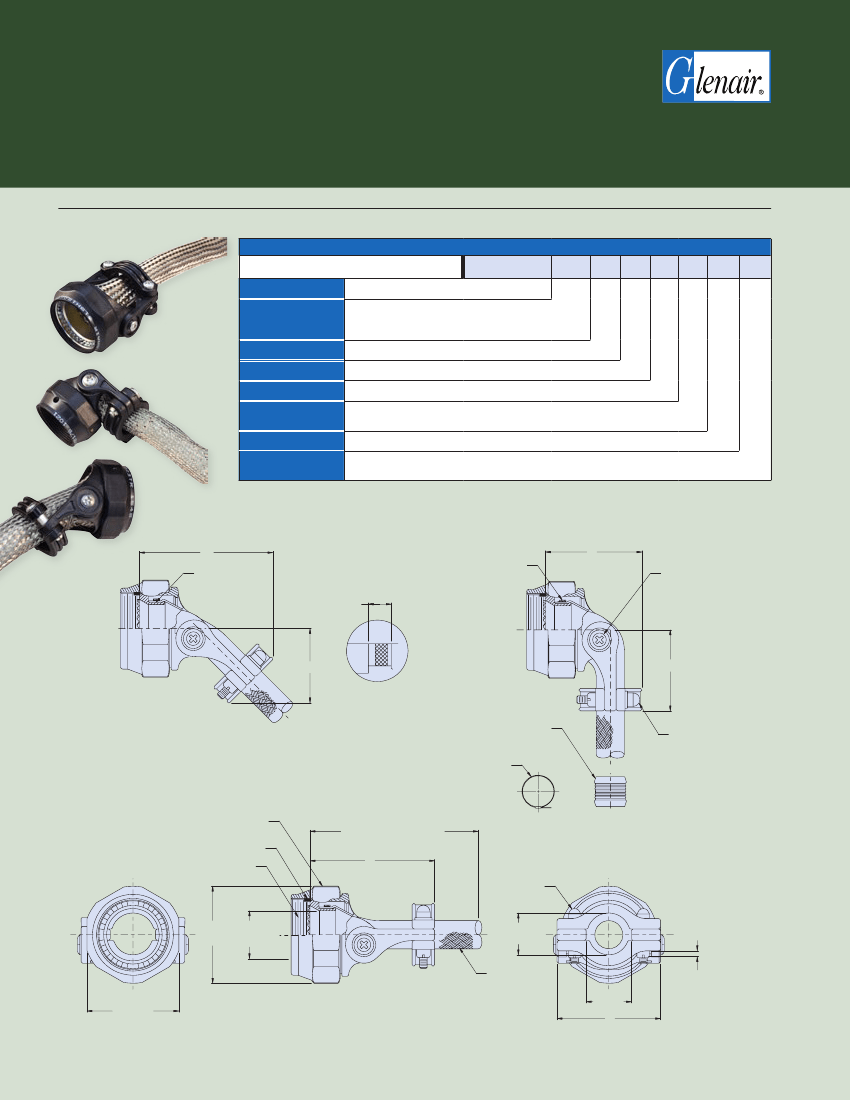

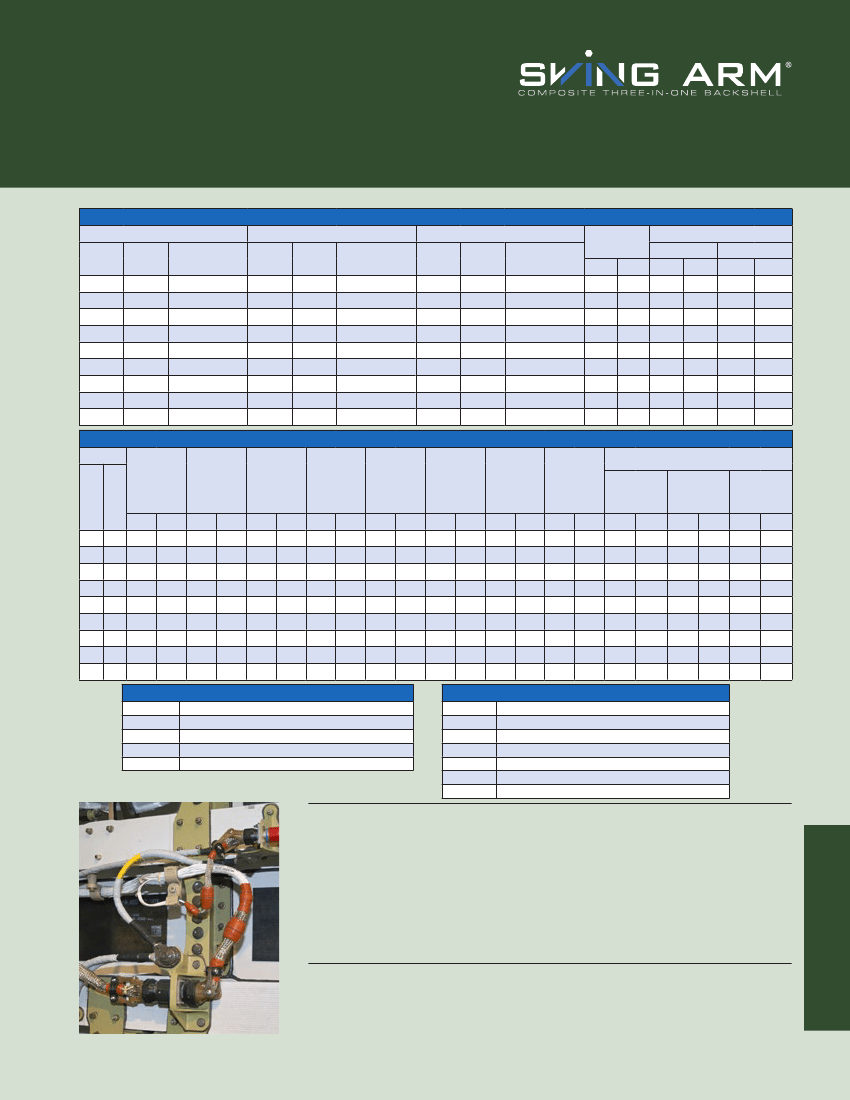

EMI/RFI SHIELDING AND STRAIN RELIEF
Swing-Arm 3-in-1 lightweight
composite backshell with integrated EMI/RFI shield sock
319-180 standard entry
COMPOSITE BACKSHELL WITH SHIELD SOCK AND SELF-LOCKING ROTATABLE COUPLING NUT
How To Order
Sample Part Number
Basic Part Number
Connector
Designator
Basic Number
Finish Symbol
Dash Number
Optional Braid
Material
Split Ring Option
Custom Braid
Length
319
H
180 XB
15
B
R
14
319
- Swing-Arm backshell with shield sock
A
= MIL-DTL-83723 Series 3
F
= MIL-DTL-38999 Series I and II*
H
= MIL-DTL-38999 Series III &IV
180
See Table II
See Dimensions Table I
See
Table III.
Omit
for standard Nickel/Copper 34AWG)
R
= Supplied with Split Ring (687-207) and Band (600-052).
Omit
for none.
Specify in Inches.
Omit
For Standard 12" Length
G
Detail B
Typ
Crimp Ring
Typ
Termination Area
Free Of Cadmium
E
Captive position screw
locks Swing Arm in 45°
increments (see notes)
45°
Position
Shown
90°
Position
Shown
F
H
Detail B
Finish XN
Split Ring
Glenair P/N 687-207
Band
Glenair P/N 600-052
Anti-rotation
Device - Typ
EMI Shroud Typ
A Thread
Typ
Screw Head Same
Side - Typ
12.000 (304.80) Min
(Standard Braid Length)
D
Self-locking
Hardware
Typ
L Typ
Closed
Shield
.062 (1.57) Min
.250 ( 6.35) Max
Screw Protrusion Typ
B
Typ
M
Typ
C Flats
Typ
Straight
Position
K Typ
J
52
© 2017 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Braided Wire Protection
Dimensions in Inches (millimeters) are subject to change without notice.
EMI/RFI SHIELDING AND STRAIN RELIEF
Swing-Arm 3-in-1 lightweight
composite backshell with integrated EMI/RFI shield sock
319-180 standard entry
Table I
Connector Designator A
Dash No.
08
10
12
14
16
18
20
22
24
Shell Size
D Max
A, F
H
In.
1.50
1.54
1.62
1.63
1.73
1.88
1.88
1.91
1.94
Sym
XB
XM
XMT
XN
mm
38.1
39.1
41.1
41.4
43.9
47.8
47.8
48.5
49.3
In.
.95
.99
1.14
1.24
1.36
1.46
1.55
1.63
1.70
mm
24.1
25.1
29.0
31.5
34.5
37.1
39.4
41.4
43.2
In.
.84
.90
1.00
1.07
1.13
1.20
1.26
1.33
1.40
mm
21.3
22.9
25.4
27.2
28.7
30.5
32.0
33.8
35.6
In.
1.43
1.49
1.64
1.73
mm
36.3
37.8
41.7
43.9
In.
.76
.82
.92
.98
1.08
1.12
1.21
1.27
1.33
mm
19.3
20.8
23.4
24.9
27.4
28.4
30.7
32.3
33.8
In.
.98
1.05
1.2
1.3
1.44
1.56
1.69
1.77
1.89
mm
24.9
26.7
30.5
33.0
36.6
39.6
42.9
45.0
48.0
Sym
A
B
(omit)
L
M
T
In.
.22
.27
.35
.47
.55
.62
.70
.78
.85
mm
5.6
6.9
8.9
11.9
14.0
15.7
17.8
19.8
21.6
In.
.265
.310
.390
.506
.591
.661
.744
.826
.896
mm
6.7
7.9
9.9
12.9
E Max
F Max
G Max
H Max
J Max
K Min
L Max
A Code
Min
In.
.264
.365
.498
.575
mm
6.7
9.3
12.6
14.6
Shell Size
Ref
08
10
12
14
16
18
20
22
24
A Thread Class 2B
1/2-20 UNF
5/8-24 UNEF
3/4-20 UNEF
7/8-20 UNEF
1-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
1 5/16-18 UNEF
1 7/16-18 UNEF
Dash No.
08
10
12
14
16
18
20
22
24
Connector Designator F
Shell Size
Ref
08
10
12
14
16
18
20
22
24
A Thread Class 2B
7/16-28 UNEF
9/16-24 UNEF
11/16-24 UNEF
13/16-20 UNEF
15/16-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
1 5/16-18 UNEF
1 7/16-18 UNEF
Dash No.
09
11
13
15
17
19
21
23
25
Connector Designator H
Shell Size
A Thread Iso Metric
Ref
A
B
C
D
E
F
G
H
J
M12 x 1.0-6h
M15 x 1.0-6H
M18 x 1.0-6H
M22 x 1.0-6H
M25 x 1.0-6H
M28 x 1.0-6H
M31 x 1.0-6H
M34 x 1.0-6H
M37 x 1.0-6H
B Max Dia
In.
.812
.938
1.125
1.250
1.375
1.500
1.625
1.750
1.875
mm
20.6
23.8
28.6
31.8
34.9
38.1
41.3
44.5
47.6
C Flats
Max
In.
.750
.875
1.000
1.125
1.250
1.375
1.500
1.625
1.750
mm
19.1
22.2
25.4
28.6
31.8
34.9
38.1
41.3
44.5
In.
.736
.860
.980
1.100
1.224
1.348
1.469
1.581
1.690
Min
mm
18.7
21.8
24.9
27.9
31.1
34.2
37.3
40.2
42.9
Table I (continued)
M Diameter
F Code
Min
In.
.264
.392
.506
.631
mm
6.7
10.0
12.9
16.0
H Code
Min
In.
.264
.390
.504
.630
.756
.843
.969
1.091
1.217
mm
6.7
9.9
12.8
16.0
19.2
21.4
24.6
27.7
30.9
08
10
12
14
16
18
20
22
24
09
11
13
15
17
19
21
23
25
1.86 47.2
1.93 49.0
2.08 52.8
2.15 54.6
2.23
56.6
15.0 .700 17.8 .756 19.2
16.8 .779 19.8 .844 21.4
18.9 .904 23.0 .970 24.6
21.0 1.029 26.1 1.094 27.8
22.8
1.144
29.1
1.219
31.0
Table II - Finish
Finish Description
No Plating, Black
Electroless Nickel
Ni-PTFE, Nickel-Fluorocarbon Polymer
Selective Plating, Nickel & CAD O.D., See Detail B
Table III - Braid Material
Braid
100% AmberStrand®
75%/25% AmberStrand® Blend
Standard Nickel/Copper 34 AWG
ArmorLite™
75%/25% ArmorLite™ Blend
Tin/Copper 34 AWG
NOTES
• Glenair Series 600 Assembly Tools are recommended for assembly and installation.
• Swing arm locks in 45° increments, shell size 09 through 25. Additional positioning
increments are manufacturer’s option.
• Screw is captive to the arm when disengaged. When tightened, the screw will not
protrude into the inside surfaces.
• *Add Mod Code
-475
to end of part number for use with Series II connector. Backshell to
be supplied less shroud.
• Metric dimensions (mm) indicated in parentheses.
D
MATERIAL/FINISH:
Clamp body, coupling nut, saddles - High grade thermoplastic/See Table III.
Clamp hardware - CRES/Passivate
Crimp ring - Copper/Tin plated.
© 2017 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Braided Wire Protection
Dimensions in Inches (millimeters) are subject to change without notice.
53
