VG95234
Connectors
VG95234 B1 and VG95234 B2
Rear Panel Wall Mount Receptacle
with Threaded (B1) and Thru-Holes (B2)
Basic Part Number
Contact
Arrangement
1
- Standard AWG Contacts
(Omit for Metric)
VG95234
B1
32-6
S
1
N
Alternate Insert
Positions
N-X-Y
Rear Panel Mount
Receptacle with...
B1
- Threaded Holes
B2
- Thru Holes
P
- Pin contacts
S
- Socket contacts
L2
L3
D2
E
ØA
D1
L1
L4

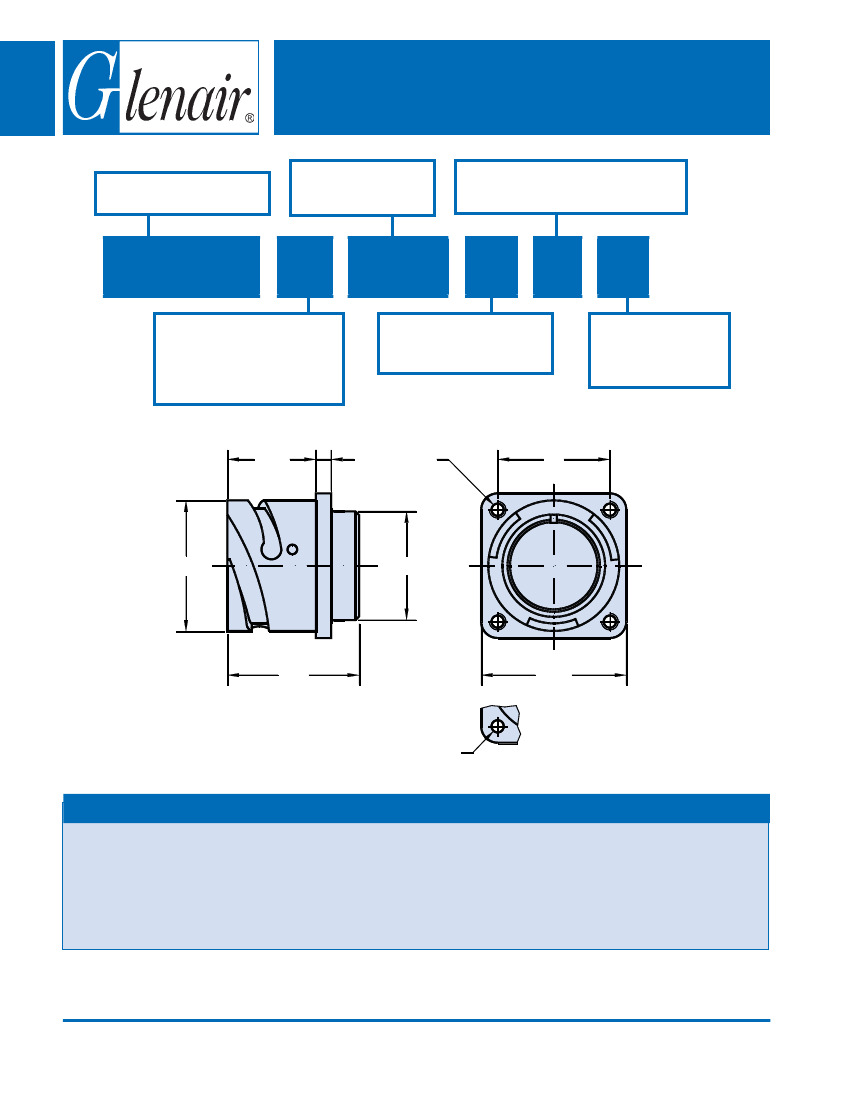

VG95234 B2
D2
APPLICATION NOTES
1.
2.
Rear panel mount square
fl
ange receptacle—no accessory
threads. Threaded or through mounting holes.
Standard crimp contact material consists of copper alloy with
silver plating. Please see pages 16-17 for additional contact
information.
Insert arrangements IAW VG95234. Please see pages 10-15.
4.
5.
6.
Standard insert is synthetic rubber, oil and low temperature
resistant (-55°C to +125°C) IAW MIL-R-3065.
Stainless steel and marine bronze shells are available in Series
ITS products. Please consult factory.
All dimensions are metric unless otherwise noted.
3.
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
22
VG95234 B1 and VG95234 B2
Rear Panel Wall Mount Receptacle
with Threaded (B1) and Thru-Holes (B2)
DIMENSIONS
Shell
Size
10 SL
14 S
16 S
16
18
20
22
24
28
32
36
ØA
+0
-0.15
18.2
24.6
27.4
27.4
30.8
34.2
37.4
40.9
46.7
53.4
59.6
D1
Max
16.2
19.2
22.4
22.4
25.6
29.0
32.2
35.3
41.4
47.8
54.1
D2
B1
M4
M4
M4
M4
M4
M4
M4
M4
M5
M5
M5
B2
H13
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.7
3.7
4.3
4.3
E
±0.1
18.2
23.0
24.6
24.6
27.0
29.4
31.8
35.9
39.7
44.5
49.2
L1
±0.3
24.7
24.7
24.7
33.8
33.8
33.8
33.8
33.8
33.8
33.8
33.8
L2
+0.4
-0
18.2
18.2
18.2
23.05
23.05
23.05
23.05
23.05
24.05
24.05
24.05
L3
±0.2
2.8
3.2
3.2
3.2
4.0
4.0
4.0
4.0
4.0
4.0
4.0
L4
±0.3
25.4
30.0
32.5
32.5
35.0
38.0
41.0
44.5
50.8
57.0
63.5
Weight
gr.
Max
14
21
22
27
33
37
42
48
58
72
84
MATERIALS
SHELLS
Aluminum Alloy
IAW QQ-A-591 Shells
INSERTS (Temperature Range)
High Insulation Synthetic Rubber
-55°C/+125°C
STANDARD FINISH
(For QQ-A-591 Aluminum Shells)
Requirements
Thermal Shock
Salt Spray After
Thermal Shock
Electrical Conductivity
Abrasion Resistance
Cadmium with Olive
Drab Passivation
IAW QQ-P-416
-55°C + 125°C
500 hour
Very Good
Very Good
CRIMP CONTACTS
Copper Alloy with Silver Plating Over Nickel
