3-1445098-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1445098-1

3-1445098-1: DescriptionMICRO MNL HDR ASSY SNGL ROW LF; CategoryThe connector The connector; File Size219KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1445098-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1445098-1	-	-	View	Buy Now

3-1445098-1 Overview

MICRO MNL HDR ASSY SNGL ROW LF

3-1445098-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MATE-N-LOK, POLARIZED
Board mount options	SPLIT BOARD LOCK
body width	0.223 inch
subject depth	0.351 inch
body length	1.462 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1-1445022-1
Mixed contacts	NO
Installation option 1	FRICTION RAMP
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.138 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-16-011494

30MAY2017

DIM W # 0.39

1.30

HOUSING

MATERIAL:

PLATING:

CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

CONTACTS - 0.76µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM TIN LEAD ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

CIRCUIT 1

CONTACT

DATUMS AND BASIC DIMENSIONS ARE ESTABLISHED BY CUSTOMER.

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING:

CONTACTS - 0.76µm MINIMUM GOLD ON MATING END,

2.54µm MINIMUM MATTE TIN ON SOLDER TAILS, BOTH OVER

1.27µm MINIMUM NICKEL.

3.86

7.88

REF

0.51

3.00

REF

8.92

REF

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

DIM Z

28.70

25.70

22.70

19.70

16.70

13.70

10.70

7.70

4.70

28.70

25.70

22.70

19.70

16.70

13.70

10.70

7.70

4.70

DIM V

DWN

CHK

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM T

09OCT2000

NAME

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

40.14

37.14

34.14

31.14

28.14

25.14

22.14

19.14

16.14

13.14

10.14

DIM W

NO. OF

POSN

3-1445098-2

3-1445098-1

3-1445098-0

2-1445098-9

2-1445098-8

2-1445098-7

2-1445098-6

2-1445098-5

2-1445098-4

2-1445098-3

2-1445098-2

1-1445098-2

1-1445098-1

1-1445098-0

1445098-9

1445098-8

1445098-7

1445098-6

1445098-5

1445098-4

1445098-3

1445098-2

PART NUMBER

TE Connectivity

DIM T

REF

SUPERCEDED BY 3-1445098-2

SUPERCEDED BY 3-1445098-1

SUPERCEDED BY 3-1445098-0

SUPERCEDED BY 2-1445098-9

SUPERCEDED BY 2-1445098-8

SUPERCEDED BY 2-1445098-7

SUPERCEDED BY 2-1445098-6

SUPERCEDED BY 2-1445098-5

SUPERCEDED BY 2-1445098-4

SUPERCEDED BY 2-1445098-3

SUPERCEDED BY 2-1445098-2

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

17-APR-2001

K. WHITAKER

APVD

17-APR-2001

C. JONES

PRODUCT SPEC

APPLICATION SPEC

J.ROOT

RESTRICTED TO

1471-9 (3/13)

SEE TABLE

WEIGHT

CUSTOMER DRAWING

00779

SIZE

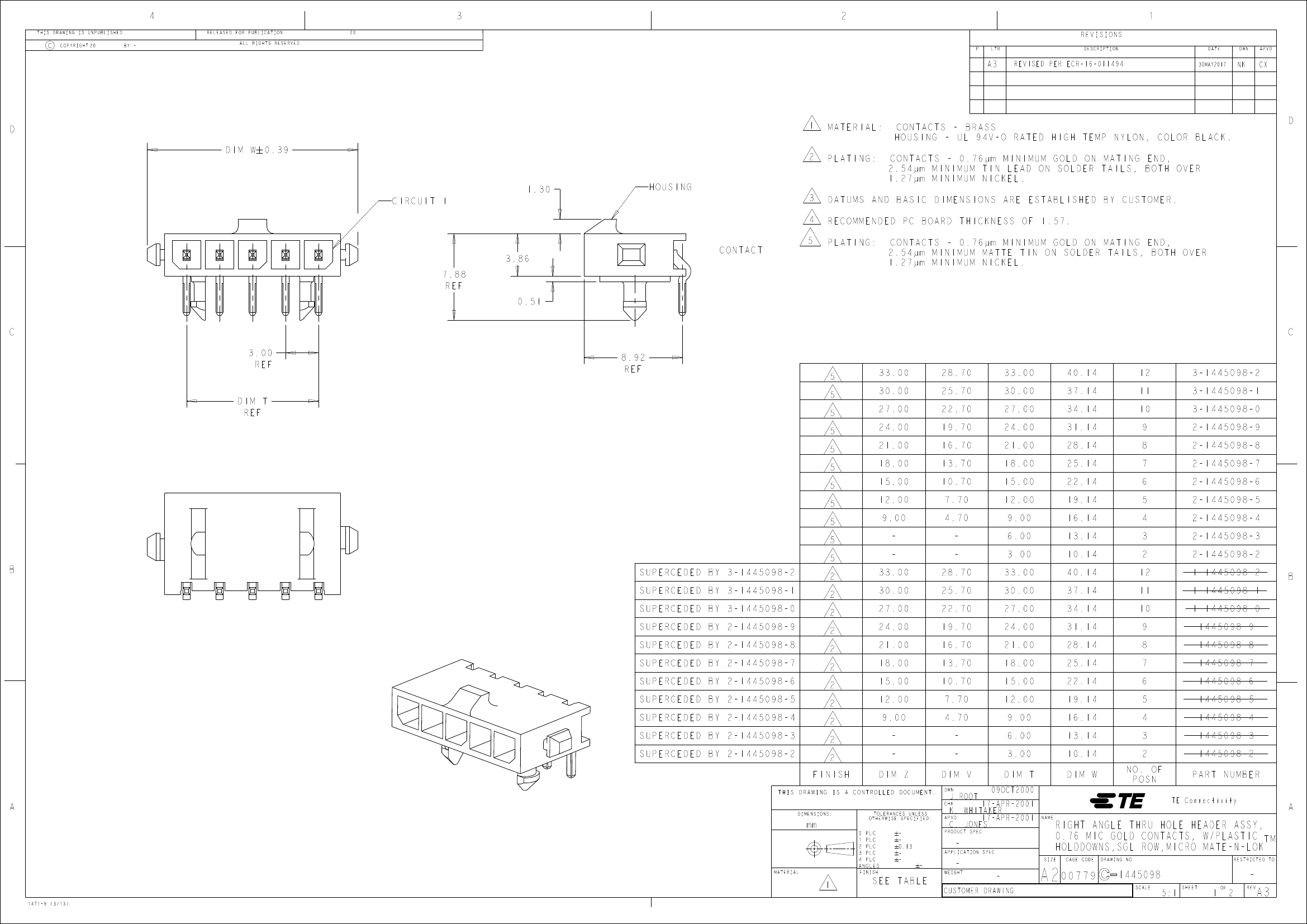

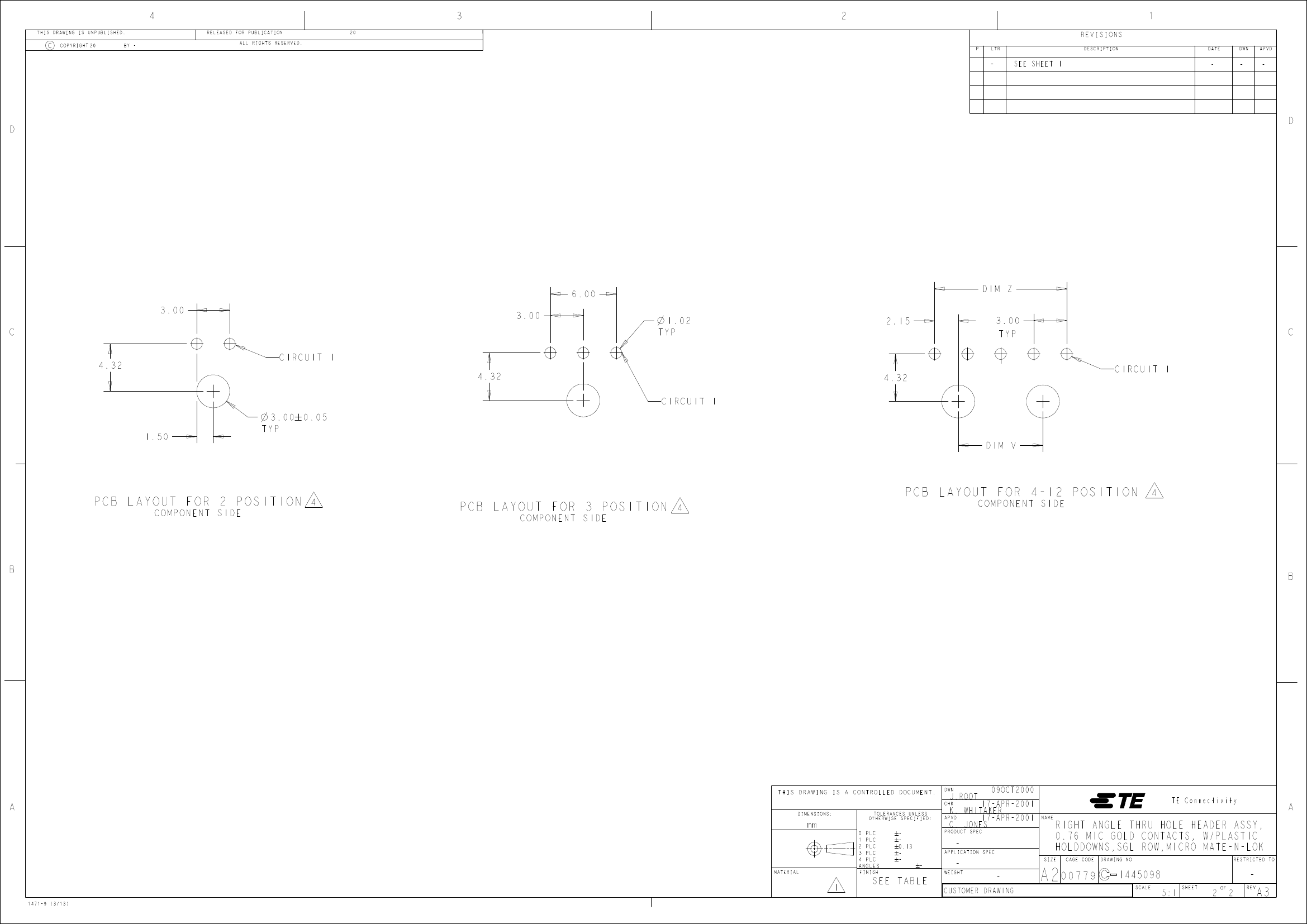

RIGHT ANGLE THRU HOLE HEADER ASSY,

0.76 MIC GOLD CONTACTS, W/PLASTIC

HOLDDOWNS,SGL ROW,MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

1445098

SCALE

5:1

SHEET

REV

3-1445098-1 Related Products

	3-1445098-1
Description	MICRO MNL HDR ASSY SNGL ROW LF
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MATE-N-LOK, POLARIZED
Board mount options	SPLIT BOARD LOCK
body width	0.223 inch
subject depth	0.351 inch
body length	1.462 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1-1445022-1
Mixed contacts	NO
Installation option 1	FRICTION RAMP
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.138 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1
