M83513/19-F01NT

Description
D Microminiature Connector, 37 Contact(s), Female, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size231KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

M83513/19-F01NT Overview

D Microminiature Connector, 37 Contact(s), Female, Solder Terminal, Receptacle,

M83513/19-F01NT Parametric

Parameter NameAttribute value
Objectid7422471751
Reach Compliance Codeunknown
YTEOL8.57
Other featuresSTANDARD: MIL-DTL-83513
Body/casing typeRECEPTACLE
Connector typeD MICROMINIATURE CONNECTOR
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialPOLYPHENYLENE SULFIDE
MIL complianceYES
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceNICKEL
Shell materialMETAL
Housing sizeF
Termination typeSOLDER
Total number of contacts37
Amphenol
Aerospace
Contacts
& Tools
A
PIN 1
PCB Connectors

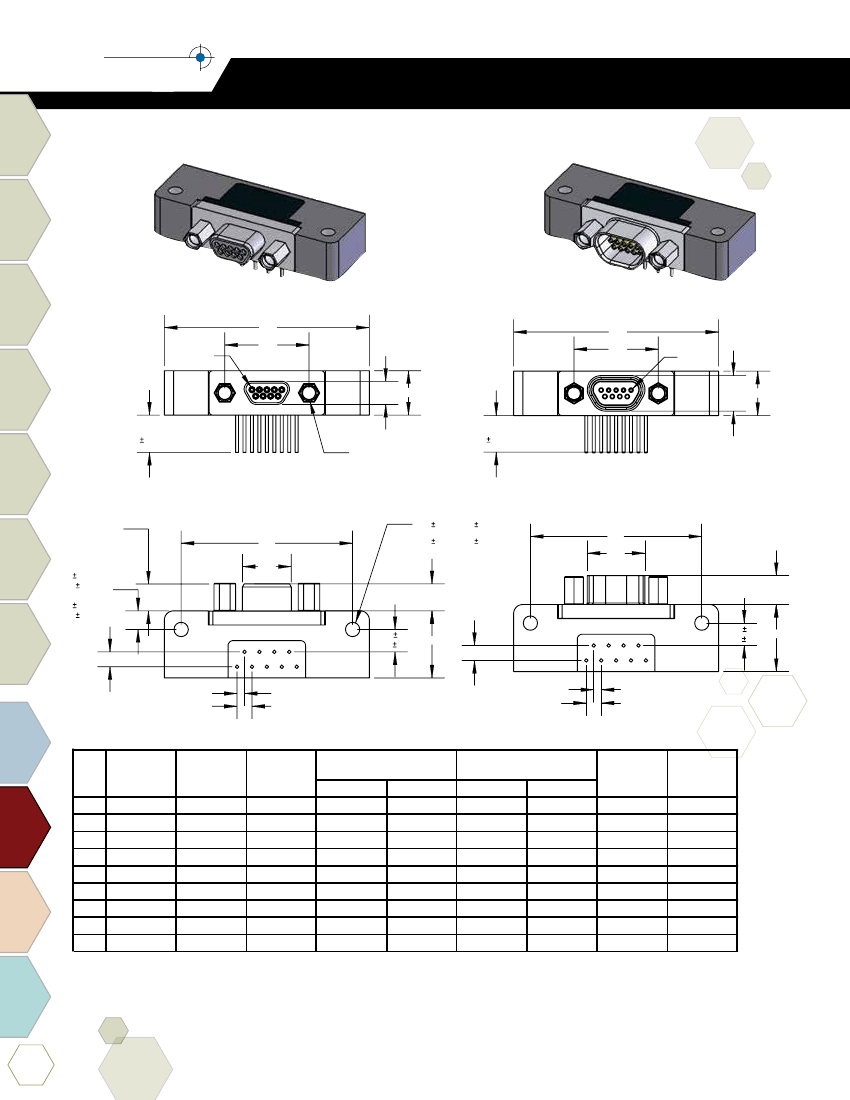

Series 100, 102 & 104
PLUG
C
br
Qualified to M83513 (slash sheets 16 thru 21)
* INTERFACIAL
RECEPTACLE
SEAL NOT INCL. FOR PLASTIC SHELL
A
C
SKT 1
riGHT ANGle (90 DeG) PCb CoNfiGurATioNS
2M Specs
E
G
E
G
LEAD LENGTH
.015
JACKPOST (2 PLCS)
#2-56 UNC-2B (SIZE 9-69)
#4-40 UNC-2B (SIZE 100)
LEAD LENGTH
.015
2M801
PLUG
FOR
.190
FOR
.185
SIZE 9-69
(4.82) MAX
SIZE 100
(4.70) MAX
A
C
PIN 1
RECEPTACLE
* INTERFACIAL SEAL NOT INCL. FOR PLASTIC SHELL
A
B
D
THRU HOLE (2 PLCS)
FOR SIZE 9-69
.096 .003 (2.44 0.08)
FOR SIZE 100
.125 .003 (3.18 0.08)
B
D
C
SKT 1
2M803
FOR SIZE 9-69
.125 .010
(3.18 0.25)
FOR SIZE100
.225 .010
(5.72 0.25)
E
G
E
G
.186 (4.72) MAX
LEAD LENGTH
.015
JACKPOST (2 PLCS)
.150 .010
#2-56 UNC-2B (SIZE 9-69)
F
#4-40 UNC-2B (SIZE 100)
(3.8 0.25)
.100 (2.54) TYP.
LEAD LENGTH
.015
.198 (5.03) MAX
2M804
.150 .010
(3.8 0.25)
F
.100 (2.54) TYP.
2M805
FOR
.190
FOR
.185
SIZE 9-69
(4.82) MAX
SIZE 100
(4.70) MAX
.050 (1.27) TYP.
.100 (2.54) TYP.
B
D
THRU HOLE (2 PLCS)
FOR SIZE 9-69
.096 .003 (2.44 0.08)
FOR SIZE 100
.125 .003 (3.18 0.08)
.050 (1.27) TYP.
.100 (2.54) TYP.
B
D
2M
Accessories
FOR SIZE 9-69
.125 .010
(3.18 0.25)
FOR SIZE100
.225 .010
(5.72 0.25)
.186 (4.72) MAX
.198 (5.03) MAX
.150 .010
(3.8 0.25)
.100 (2.54) TYP.
F
.100 (2.54) TYP.
.150 .010
(3.8 0.25)
F
.050 (1.27) TYP.
.100 (2.54) TYP.
.050 (1.27) TYP.
.100 (2.54) TYP.
HD38999
SIZE
09
15
21
25
31
A
MAX
1.390 (35.31)
1.540 (39.12)
1.690 (42.93)
1.790 (45.47)
2.040 (51.82)
2.340 (59.44)
1.875 (47.63)
2.500 (63.50)
B
±.007 (0.18)
1.150 (29.21)
1.300 (33.02)
1.450 (36.83)
1.550 (39.37)
1.800 (45.72)
2.100 (53.34)
1.600 (40.64)
2.200 (55.88)
C
±.005 (0.13)
.565 (14.35)
.715 (18.16)
.865 (21.97)
.965 (24.51)
1.115 (28.32)
1.265 (32.13)
1.215 (30.86)
1.515 (38.48)
D
MAX
PLUG
.334 (8.48)
.484 (12.29)
.634 (16.10)
.734 (18.64)
.884 (22.45)
1.034 (26.26)
.984 (24.99)
1.289 (32.74)
RCPT
.402 (10.21)
.552 (13.97)
.702 (17.83)
.802 (20.37)
.952 (24.18)
1.102 (27.99)
1.052 (26.72)
1.357 (34.47)
D
1.508 (38.10)
MAX
RCPT
.402 (10.21)
.552 (13.97)
.702 (17.83)
.802 (20.37)
.952 (24.18)
E
MAX
PLUG
.185 (4.70)
.185 (4.70)
.185 (4.70)
.185 (4.70)
.185 (4.70)
.185 (4.70)
.228 (5.79)
.228 (5.79)
.271 (6.88)
PLUG
.185 (4.70)
.185 (4.70)
.185 (4.70)
.185 (4.70)
.185 (4.70)
RCPT
.253 (6.43)
.253 (6.43)
.253 (6.43)
.253 (6.43)
.253 (6.43)
.253 (6.43)
.296 (7.52)
.296 (7.52)
E
.394 (10.01)
MAX
RCPT
.253 (6.43)
.253 (6.43)
.253 (6.43)
.253 (6.43)
.253 (6.43)
F
MAX
.455 (11.56)
.455 (11.56)
.455 (11.56)
.455 (11.56)
.455 (11.56)
.455 (11.56)
.565 (14.35)
.565 (14.35)
.765 (19.43)
F
MAX
G
MAX
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.351 (8.92)
.351 (8.92)
.394 (10.01)
G
MAX
.308 (7.82)
.308 (7.82)
Terrapin
Micro-D
37
51
69
100
2.780 (70.61) 2.500 (63.50) 1.800 (45.72) 1.386 (35.15)
A
B
C
SIZE
MAX
±.007 (0.18)
±.005 (0.13)
PLUG
09
15
21
25
31
1.390 (35.31)
1.540 (39.12)
1.690 (42.93)
1.790 (45.47)
2.040 (51.82)
1.150 (29.21)
1.300 (33.02)
1.450 (36.83)
1.550 (39.37)
1.800 (45.72)
.565 (14.35)
.715 (18.16)
.865 (21.97)
.965 (24.51)
1.115 (28.32)
Nexus
.334 (8.48)
.484 (12.29)
.634 (16.10)
.734 (18.64)
.884 (22.45)
.455 (11.56)
.455 (11.56)
.455 (11.56)
.455 (11.56)
.455 (11.56)
Inches (mm)
.308 (7.82)
All dimensions for reference only
.308 (7.82)
.308 (7.82)
.308 (7.82)
.351 (8.92)
152
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
37
51
2.340 (59.44)
1.875 (47.63)
2.100 (53.34)
1.600 (40.64)
1.265 (32.13)
1.215 (30.86)
1.034 (26.26)
.984 (24.99)
1.102 (27.99)
1.052 (26.72)
.185 (4.70)
.228 (5.79)
.253 (6.43)
.296 (7.52)
.455 (11.56)
.565 (14.35)
